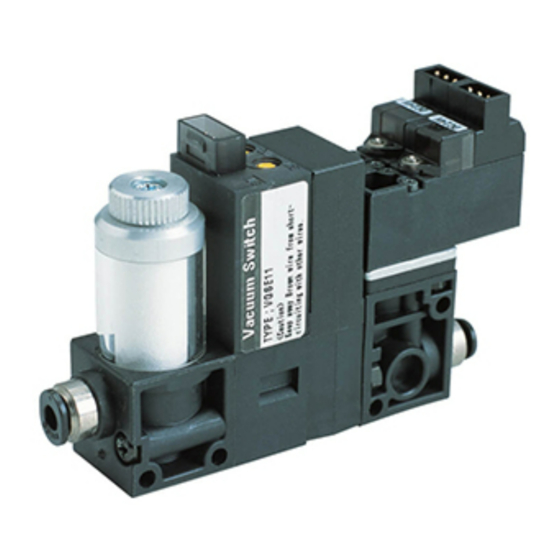

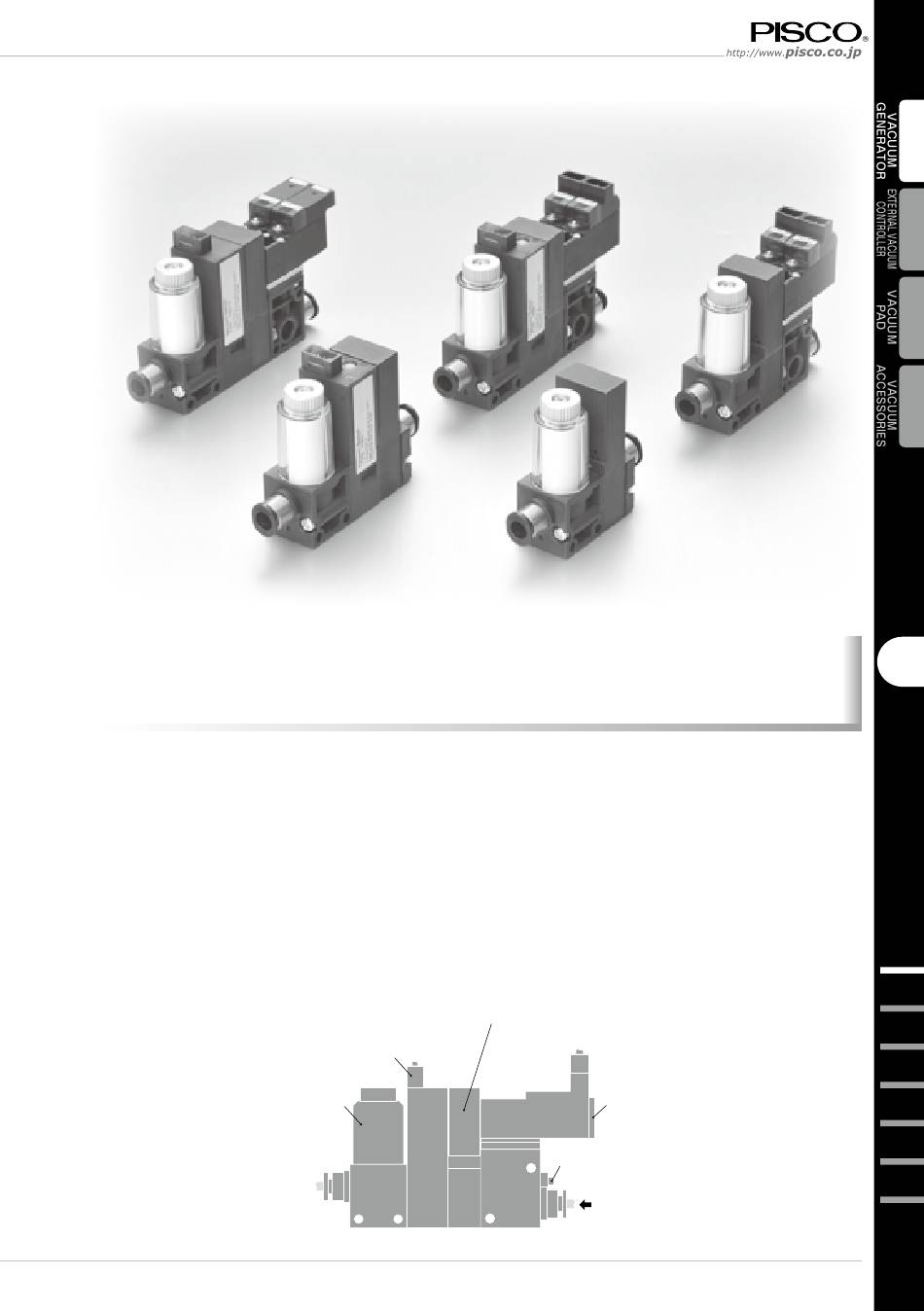

Complex Ejector focusing on basic performance
Vacuum Generator
Vacuum switch and blow-off valve are united. Select the
best combination in accordance with applications.
There are 3 output types: 1 switch output and 1 analog
output type, 2-point switch output type, and cost saving
Vacuum switch
Vacuum port (V) ➡
Filter
VG

1 analog output type.
Ejector unit
Valve unit
(Suction valve / Blow-off valve)
Blow-off air rate adjustment needle
Air supply port
Series
(P)
106
VG
VK
VJ
VX
VQ
VZ
VN

Advertisement

loading
Need help?

Need help?

Do you have a question about the VG Series and is the answer not in the manual?

Questions and answers

Summary of Contents for PISCO VG Series

  • Page 1 Complex Ejector focusing on basic performance Series Vacuum Generator    Vacuum switch and blow-off valve are united. Select the ● best combination in accordance with applications. There are 3 output types: 1 switch output and 1 analog ● output type, 2-point switch output type, and cost saving 1 analog output type.
  • Page 2 Vacuum Generator Series Vacuum Generator VG ■ Model Designation (Example) DC24 Complex Vacuum Generator ⑧ Vacuum Switch ① ⑦ Vacuum characteristics Wire lead-out direction ② ⑥ Nozzle bore Valve unit voltage spec ③ ⑤ Combination of units Air supply port size ④...
  • Page 3: Specification

    ■ Specification Fluid medium Operating pressure range 0.25 ~ 0.7MPa Operating temp. range 5 ~ 50°C Lubrication Not required ■ Suction Valve Specification Valve type Pilot operated poppet valve Rated voltage DC24V ± 10% ・ AC100V ± 10% Power consumption 1.2W (with LED ) ・...
  • Page 4 Vacuum Generator Series Vacuum Generator VG ■ Filter Specification Element material PVF(Polyvinyl formal) Filtering capacity 10µm Element model code VGFE10 ■ Characteristics Supply pressure - Final vacuum / Suction Flow / Air Consumption VGH05, VGL05 VGH07, VGL07, VGE07 Vacuum characteristics Flow characteristics Vacuum characteristics Flow characteristics...
  • Page 5 ■ How to insert and disconnect 1. How to insert and disconnect tubes ① Tube insertion Insert a tube into Push-In Fitting of the vacuum generator VG up to the tube end. Lock-claws bite the tube to fix it and the elastic sleeve seals around the tube.
  • Page 6 Vacuum Generator Series Vacuum Generator VG ■ Standard Size List Unit combination : Built-in Filter Type Unit combination: Vacuum Switch (digital type) / Built-in Filter Type Ejector Silencer Ejector Air source Silencer Vacuum switch Air source Filter Filter Vacuum Vacuum Page Air supply Vacuum port...
  • Page 7 10.1 11.7 VGH10B-66- □ VGL05B-44- □ 10.9 11.5 VVG-001 VGL07B-66- □ 12.1 10.1 11.7 VGL10B-66- □ VGE07B-66- □ 10.5 12.1 10.1 11.7 VGE10B-66- □ Chart Characteristic chart page CAD data is available at PISCO website.   - 2D - P.000...
  • Page 8 (l/min(ANR)) 10.9 11.5 VGH05E-44-□S VGH07E-66-□S 12.1 10.1 11.7 VGH10E-66-□S 10.9 11.5 VGL05E-44-□S VVG-001 VGL07E-66-□S 12.1 10.1 11.7 VGL10E-66-□S 10.5 VGE07E-66-□S 12.1 10.1 11.7 VGE10E-66-□S Chart Characteristic chart page CAD data is available at PISCO website.   - 2D - P.000...
  • Page 9 (l/min(ANR)) 10.9 11.5 VGH05F-44-□S-□ VGH07F-66-□S-□ 12.1 10.1 11.7 VGH10F-66-□S-□ 10.9 11.5 VGL05F-44-□S-□ VVG-001 VGL07F-66-□S-□ 12.1 10.1 11.7 VGL10F-66-□S-□ 10.5 VGE07F-66-□S-□ 12.1 10.1 11.7 VGE10F-66-□S-□ Chart Characteristic chart page CAD data is available at PISCO website.   - 2D - P.000...
  • Page 10: Detailed Safety Instructions

    1. Attentions should be paid when pipe resistance is large or a large amount of blow-off air rate is required. Insufficient blow-off air may cause troubles. Make sure to evaluate PISCO products by actual system. 2. The coil in a pilot valve generates heat under the following ① - ③ conditions. Heating may be a cause of dropping life cycle, malfunctions and burn or may affect negatively on peripheral machines due to the heat.
  • Page 11: Pressure Adjustment

    ■ Adjusting Method of Blow-off Air ■ Adjusting Method of Blow-off Air  ● Turn the release needle in the clockwise direction to reduce blow-off air and counter-clockwise to increase. Air rate: Increase Air rate: Reduce   ※ After adjustment of the blow-off air rate, make sure to Blow-off air rate adjustment needle tighten the locknut to prevent the setting from changing Locknut...
  • Page 12 Vacuum Generator Series Vacuum Generator VG 3. Output Characteristics of 1 analog switch (Code: -A). ■Analog output characteristics Vacuum level (-kPa) 4. Wiring / Piping   (1)Be sure to shut off the power supply before wiring.   (2)In conducting the wiring, distinguish the wire colors and confirm the terminal output.  ...
  • Page 13: Safety Instructions

    JIS B 8370:General rules and safety requirements for systems and their components. This safety instructions is classified into “Danger”, “Warning” and “Caution” depending on the degree of danger or damages caused by improper use of PISCO products. Danger Hazardous conditions. It can cause death or serious personal injury.
  • Page 14 PISCO products, or by combinational use with non-PISCO products and other software systems. 5. The damages caused by the defect of Pisco products shall be covered but limited to the full amount of the PISCO products paid by the customer.
  • Page 15 2. Do not disassemble or modify PISCO products, which affect the performance, function, and basic structure of the product. 3. Turn off the power supply, stop the air supply to PISCO products, and make sure there is no residual air pressure in the pipes before maintenance and inspection.
  • Page 16 When a fluid medium is liquid or the products are required to be used in harsh environments, contact us for further information. 5. In case of using non-PISCO brand tubes, make sure the tolerance of the outer tube diameter is within the limits of Table 1.
  • Page 17 ③ Adjust the tube direction while tightening thread within these limits, since some PISCO products are not rotatable after the installation. ● Table 2: Recommended tightening torque / Sealock color / Gasket...
  • Page 18 Series Vacuum Generator Common Safety Instructions for Vacuum Series Before selecting or using PISCO products, read the following instructions. Read the detailed instructions for individual series. Warning 1. If there is a risk of dropping work-pieces during vacuum suction, take a safety measure against the falling of them.
  • Page 19 2. Effective cross-section area of the air supply side needs to be three times as large as effective cross-section area of the nozzle bore. When arranging piping or selecting PISCO products, secure required effective cross-section area. Insufficient supply pressure may be a cause to impair performance.
  • Page 20 Vacuum Generator Series Vacuum Generator 9. The material of plastic filter cover for VQ and VFU series is PA. Avoid the adherence of chemicals below to the products, and do not use them under those chemical environments. ● Table Chemical Name Chemical Name Methanol Ethanol...
  • Page 21 Vacuum Generator VRL Vacuum Generator VG, VK Common Safety Instructions for Vacuum Generator VG and VK Series Before selecting or using PISCO products, read the following instructions. Read the detailed instructions for individual series. Warning 1. For the operation of the valve, make sure that the leakage current is less than 1mA.
