Summary of Contents for EvaKool INFINITY Series

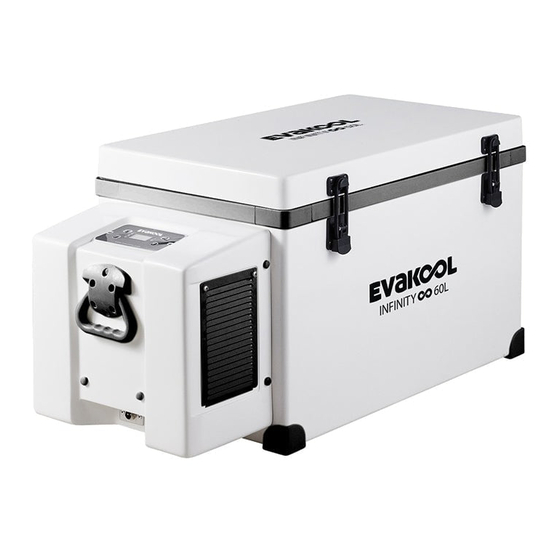

- Page 1 INFINITY RANGE INSTRUCTION MANUAL FOR MODELS EVAKOOL RF & ED AUSTRALIAN OWNED AUSTRALIAN MADE FROM IMPORTED & LOCAL COMPONENTS...
-
Page 3: Table Of Contents
Please read operating manual carefully before using your unit. Please keep manual in a safe place. If lost you can find a digital copy at Evakool.com.au or contact Evakool on 1300 865 665. Thank you for purchasing an EvaKool fridge freezer. -
Page 4: Installation
1. Installation • Your EvaKool Fridge/Freezer is designed to operate from either a 12V or 24V DC power source. It can also operate from a 240V (AC) main supply with the use of a 12V/24V adaptor. • When using solar power or power generators ensure that the fridge is connected through a 12V or 24V battery. -
Page 5: Operating Instructions
12 Volt Operation • The unit can also operate from a 240V mains power source via an EvaKool approved 12V/24V adaptor. • Connect the military plug end of the adaptor to the fridge and plug the 3 pin plug into the mains. -
Page 6: Selection Of Fridge/Freezer Options
3. Selection of Fridge/Freezer Options Your EvaKool fridge/freezer is uniquely designed to operate as a fridge or freezer or fridge/ freezer combo. • When you first start the fridge, remove the insulated internal divider which will allow the air to circulate and hence bring down the temperature in the cabinet quicker •... -
Page 7: Operation
10 to 20mm to allow more cold air from the freezer section to cool the fridge section. 4. Operation Your EvaKool fridge is designed to operate at 3 speeds: • High: 3500 RPM - High product load, quick pull down. • Medium: 3000 RPM - Normal running. -
Page 8: Control Panel
• As a result all the lights on the control panel will go out. • To reset simply push down the black button on the circuit breaker. • If after re-setting, the circuit breaker continues to ‘trip’ , please contact Evakool or your service agent. (See list of service agents supplied). -
Page 9: Helpful Hints
• We recommend that your fridge is operated at regular intervals, ie. for 24 hours once a month, if it is being stored for any length of time. Remember your EvaKool can be used in the home as an additional fridge or freezer by using your EvaPower AC adaptor. (see page 4). -
Page 10: Preventative Maintenance
8. Preventative Maintenance • As your EvaKool is a portable unit it is likely to be subjected to a variety of different operating conditions. • Accordingly in order to ensure maximum operating efficiency we recommend that the unit is regularly inspected by an approved EvaKool service agent. See warranty statement. - Page 11 • The cigarette lighter socket in your car or 4WD will have on average 2mm core wiring. This wiring is too thin and will drop voltage from one end to the other. EvaKool recommend a minimum of 6mm core cable and if the distance from the power source is over 6 metres, 10mm core wiring is required.
-
Page 12: Trouble Shooting Chart
If the below options do not help, you are unable to follow them or unable to complete the steps please contact EvaKool or a service agent for further help. Valid for EvaKool RD, ED and GFM Models fitted with digital controls from 2015. NOT COOLING... -
Page 13: Warranty Statement
• Service agents may charge a fee for viewing or testing the unit. This is not covered by EvaKool or this warranty and is payable at the service point unless authorised by EvaKool. - Page 16 For your nearest stockist contact EvaKool T: 1300 865 665 E: warranty@evakool.com or visit us at evakool.com.au...
