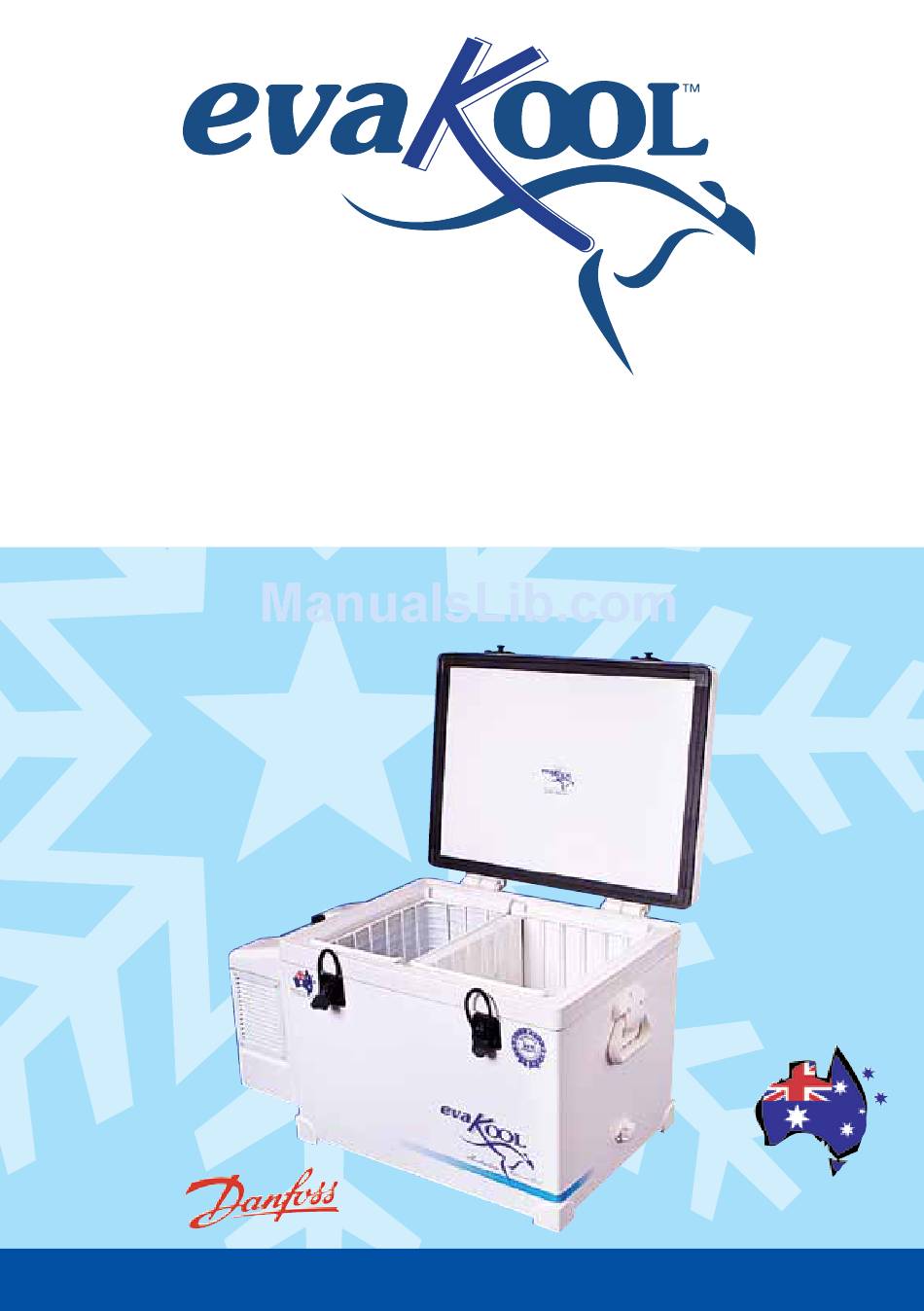

Page 1
& Owner’s Manual WARRANTY ‘RF MODEL’ AUSTRALIAN OWNED POWERED BY AUSTRALIAN MADE FROM IMPORTED & LOCAL COMPONENTS QUALITY & PERFORMANCE - THE LASTING IMPRESSION...
Page 2
This unit is designed to operate from either a 12V or 24V power source or from a 240V mains supply via an EvaKool approved 12v/24v adaptor. It can also be operated in remote areas from solar and generator power sources.
Page 3
INDEX INSTALLATION ..................?? OPERATING INSTRUCTIONS?? • 12 Volt Operation ..............?? • 240 Volt Operation ..............?? • Important Tips ................. ?? SELECTION OF FRIDGE/FREEZER OPTIONS ........?? NORMAL OR ECONOMY OPERATION ..........?? CONTROL PANEL • Temperature Settings .............. ?? •...
Page 4
INSTALLATION Your EvaKool fridge/freezer is designed to operate from either a 12V or 24V DC power source. It can also operate from a 240V (AC) main supply with the use of a 12V/24V adaptor. When using solar power or power generators ensure that the fridge is connected through a 12V or 24V battery. We recommend the use of anti-surge devices when there is a possibility of ‘spikes’...
• Connect the military plug end of the • The unit can also operate from a 240V fridge lead, supplied with the fridge to mains power source via an EvaKool the fridge, approved 12V/24V adaptor. • Connect the military plug end of the •...
Page 6
Selection of FRIDGE/FREEZER OPTIONS Your EvaKool fridge/freezer is uniquely • To operate the entire unit as a fridge or designed to operate as a fridge or freezer as a freezer, remove the divider, slide or fridge/freezer combo. the basket towards the freezer plates and insert the divider at the end of •...
Page 7
NORMAL OR ECONOMY OPERATION Your EvaKool fridge is designed to operate SELECT in either normal or economy mode. ECONOMY for daily use and The normal/economy switch is used to optimum power useage and; change the speed and capacity of the...
Page 8
The threaded ring notched so that it can only be connected locks locks the plug into place. CIRCUIT BREAKER Your EvaKool is fitted with a 15 amp breaker will ‘trip’ thereby cutting off all circuit breaker. power to the unit.
Page 9
PREVENTATIVE MAINTENANCE compressor cover in place, drop the cover As your EvaKool is a portable unit it forward and using a small brush, vacuum is likely to be subjected to a variety of or compressed air, clean any dust or dirt different operating conditions.
Fault Finding refer to the TROUBLE SHOOTING GUIDE FLOW CHART FRIDGE NOT RUNNING? Is the RED light on? • Check power supply. • Check that the fridge lead is plugged in properly, and that no wires are loose. • Check that the temperature dial is not in the ‘OFF’ position. •...
Page 11
See section on voltage drop (AC adaptor, minimum of 10 amps at 12 volts peak or 5 amps at 24 volts peak). NOTE: The EvaKool AC adaptor model EP24 delivers 24 volts. • Fridge does not operate from a 240 volt power source when using an AC adaptor: Run the fridge from your vehicle or other fully charged 12 volt battery source.
Page 12
Nexberg Pty. Ltd. trading as EvaKool undertakes to the original purchaser that this product is sold free of defect in materials and/or workmanship under normal use for a period of 5 years subject to the following: EvaKool will repair free of charge or replace at their discretion your EvaKool fridge/freezer if the unit’s failure is as a direct result of faulty workmanship and/or materials.
Page 13
Service Record Fridge/Freezer As your EvaKool is a portable unit subject to a variety of different operating conditions the purchaser is obliged under this warranty to have the unit regularly inspected by an approved EvaKool service agent. This annual inspection should take no more than 30 minutes and will help ensure that your EvaKool is maintained in peak condition.
Page 14
FOLD AND SEAL WARRANTY CARD MODEL: ................SERIAL No.: ....... DATE OF PURCHASE: ............INVOICE No.: ..... PURCHASED FROM: ....................... PURCHASER’S NAME: ....................ADDRESS: ................POSTCODE: ................................PHONE No: ................FAX No.: ......RETAIN FOR YOUR RECORDS WARRANTY CARD MODEL: ................SERIAL No.: ....... DATE OF PURCHASE: ............INVOICE No.: .....
