DOWN UNDER SERIES
INSTRUCTION
MANUAL
FOR MODELS
DU95-DZ
DU75-DZ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOWN UNDER Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EvaKool DOWN UNDER Series

Summary of Contents for EvaKool DOWN UNDER Series

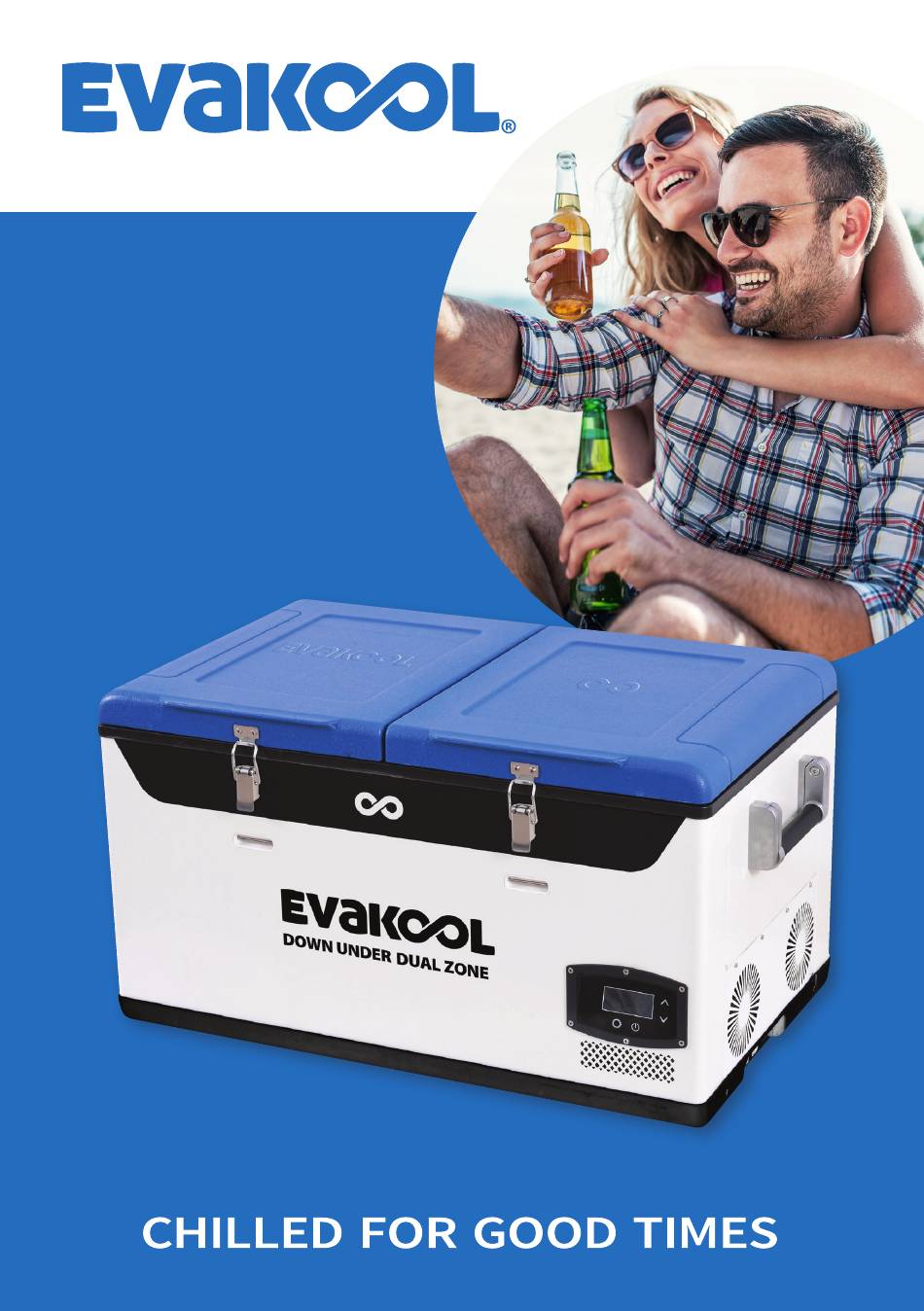

  • Page 1 DOWN UNDER SERIES INSTRUCTION MANUAL FOR MODELS DU95-DZ DU75-DZ...

  • Page 3: Table Of Contents

    DOWN UNDER SERIES Please read operating manual carefully before using your unit. Please keep manual in a safe place. If lost you can find a digital copy at Evakool.com.au or contact Evakool on 1300 385 665 (1300 EVKOOL). Contents Safety Instructions .

  • Page 4: Safety Instructions

    • This product is not designed for marine purposes and warranty may become void if corrosion or rust is caused by sea salt. Helpful Hints To ensure maximum performance from your Evakool Down Under Fridge/Freezer, please read the following helpful hints. • Read this instruction manual thoroughly, prior to operation.

  • Page 5: Operation

    DOWN UNDER SERIES RECOMMENDED TEMPERATURE SETTINGS Fridge 2°C Freezer -16°C COMPRESSOR SPEED SETTINGS Recommended for ambient temperatures of 30°C or less. Recommended for ambient temperatures of 30°C or more. For Maximum Efficiency • Use the included baskets to ensure air circulation freely around the cabinet.
  • Page 6 DOWN UNDER SERIES LED Control Panel LED Display +/- Buttons On/Off Button Button 1. Display Error message will display here ROOM 1 - Larger Bin ROOM 2 - Smaller Bin Automatically set to Celsius. Temperature Fahrenheit not available. Battery Protection...
  • Page 7 DOWN UNDER SERIES 4. Setting the Max or Eco mode: • Press the button 3 times. • Use the buttons to select mode. • After a few seconds, the selected mode will automatically set. 5. Setting the battery protection mode: •...

  • Page 8: Connecting The Refrigerator

    DOWN UNDER SERIES 4. Connecting the Refrigerator Connecting to a battery • The fridge can be operated with 12V or 24V. • Note: disconnect the fridge (and other consumer units) from the battery before you connect the battery to a quick charging device. Over voltage can damage the electronics of the device.

  • Page 9: Error Codes

    DOWN UNDER SERIES 5. Error Codes Code Reason / Solution Low Voltage • Please check the source voltage to ensure it is above the cut out. Try lowering the voltage cut out setting to LOW (refer to page 7). • The vehicle cabling may be inadequate/unsuitable, please refer to cable specifications table for correct cable thickness (page 5).

  • Page 10: Preventative Maintenance & Care

    • Do not store electrical devices such as the 12 volt adaptor inside the refrigerator. Refrigerator Maintenance • As your EvaKool fridge is a portable appliance it is subjected to a variety of different operating conditions. Every 12 months of use, a general inspection and maintenance should be carried out.

  • Page 11: Troubleshooting

    DOWN UNDER SERIES 7. Troubleshooting The appliance is not turning on • Check the power supply. • Check whether the plug and the socket have a good connection. • If you have purchased an additional 12V adaptor with a cigarette end, check whether the fuse requires replacing.
  • Page 12 • Press the transparent part of the lamp back into the housing. • Connect the power supply to the fridge. If none of the above solves your issue please contact Evakool on 1300 385 665 or warranty@evakool.com.au for details of your closest Evakool service centre.

  • Page 13: Product Data

    DOWN UNDER SERIES 8. Product Data SPECIFICATIONS Model No. DU75-DZ DU95-DZ Basic Data Type DC + Adaptor Cooling △T °C 43°C Temperature Range Refrigeration °C +10°C to -18°C Gross Capacity Power Supply DC 12/24V Rated Current DC 5.4A/2.7A Rated Power Input...

  • Page 14: Product Drawings

    DOWN UNDER SERIES 9. Product Drawings DU75 Internal Dimensions External Dimensions 530.0...
  • Page 15 DOWN UNDER SERIES DU95 Internal Dimensions External Dimensions 575.0...

  • Page 16: Warranty Statement

    • Service agents may charge a fee for viewing or testing the unit. This is not covered by EvaKool or this warranty and is payable at the service point unless authorised by EvaKool.
  • Page 17 DOWN UNDER SERIES...
  • Page 18 DOWN UNDER SERIES...
  • Page 20 For your nearest stockist contact Evakool T: 1300 385 665 (1300 EVKOOL) E: sales@evakool.com evakool.com.au For Service and Warranty support contact Evakool T: 1300 385 665 (EVKOOL) E: warranty@evakool.com...
