Instructivo de Pulidora 177,8 mm 1 200 W 7” para autos Potencia Disco Este Instructivo es para: Modelo Código PULA-7A3-2 16713 PULA-7A3-2 Lea este Instructivo por completo ATENCIÓN antes de usar la herramienta.
Partes herramienta. Montaje Guarde este instructivo para futuras referencias. Puesta en marcha Los gráficos de este instructivo son para referencia, pueden variar del aspecto real de la Mantenimiento herramienta. Notas Centros de Servicio Autorizados Sucursales Póliza de Garantía PULA-7A3-2 ESPAÑOL...
Especificaciones técnicas PULA-7A3-2 Código 16713 Descripción Pulidora para auto Discos 177,8 mm (7”) Tensión 220 V Frecuencia 50 Hz / 60 Hz Corriente Potencia 1 200 W Velocidad 600 r/min - 3 300 r/min Ciclo de trabajo 30 minutos de trabajo por 15 minutos de descanso.
Advertencias generales de seguridad para herramientas eléctricas ¡ADVERTENCIA! Lea detenidamente todas las advertencias de seguridad y todas las instrucciones que se enlistan a continuación. La omisión de alguna de ellas puede dar como resultado un choque eléctrico, incendio y/o daño serio. Conserve las advertencias y las instrucciones para futuras referencias. Área de trabajo Retire cualquier llave o herramienta de ajuste antes de arrancar Mantenga el área de trabajo limpia y bien iluminada.
Advertencias de Seguridad para uso de pulidoras para auto • Nunca mantenga encendido su auto cuando esté utilizando la pulidora en un lugar cerrado. • Haga una prueba con su pulidora antes de iniciar el trabajo. En caso de que la herramienta emita un sonido extraño o vibre de manera irregular, apáguela.
Partes Control de Tabla de Seguro velocidad velocidades del eje Mango Cable de alimentación Mango Borla para auxiliar Disco con pulir Seguro velcro del eje Mango Disco con Gatillo Botón para velcro uso contínuo Tapa de interruptor carbón (x2) Borla para pulir Montaje Montaje del mango auxiliar...
Puesta en marcha Encendido y control de operación • Operación intermitente: Conecte la clavija al tomacorriente. Presione el interruptor (A) para hacer que la herramienta empiece a funcionar. Para interrumpir su uso, simplemente suelte el interruptor. • Operación continua: Conecte la clavija al tomacorriente. Presione el interruptor (A) y bloquéelo, apretando el botón de uso continuo (B).
Mantenimiento • Desconecte siempre la herramienta antes de proceder a limpiarla. • Nunca utilice agua u otros líquidos, solamente utilice un cepillo. • Para evitar que se sobrecaliente el motor, debe limpiar las ranuras de ventilación de manera regular. • Revise que todos los componentes de la herramienta estén bien fijos. •...
Centros de Servicio Autorizados En caso de tener algún problema para contactar un Centro de Servicio consulte nuestra página www.truper.com donde obtendrá un listado actualizado, o llame al teléfono: 01(800) 690-6990 ó 01(800) 018-7873 donde le informarán cuál es el Centro de Servicio Autorizado más cercano.
Page 11
ZAMORA, MICH. TEL.: 01(351) 517-8420 671432 MERCADO DE LA SOLDADURA DEL SURESTE, S.A. DE C.V. BLVD. ADOLFO RUÍZ CORTÍNEZ 2001-B, 670805 LA NUEVA FERRETERÍA TRUPER COL. ATASTA, VILLAHERMOSA, C.P. 86100 TEL.: 01(933) GENERAL PUEBLITA No. 356, COL. CENTRO C.P. 58600, 161-4820 | 161-4479 ZACAPU, MICH.

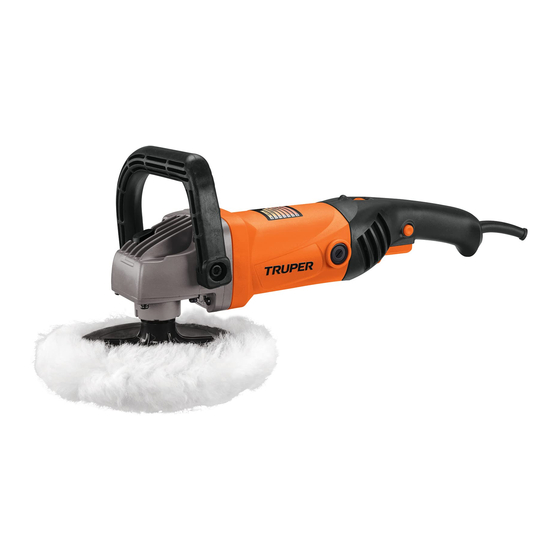

Manual Polisher 1.6 Hp 7” Power Disc Applies for Model Code PULA-7A3-2 16713 PULA-7A3-2 Read this manual thoroughly CAUTION before using the tool.
Page 14
Parts using the tool. Assembly Keep this manual for future references. Start Up The illustrations in this manual are for reference Maintenance only. They might be different from the real tool. Notes Authorized Service Centers Branches Warranty Policy PULA-7A3-2 ENGLISH...
Technical Data PULA-7A3-2 Code 16713 Description Polisher Discs 7” Voltage 220 V Frequency 50 Hz / 60 Hz Current Power 1.6 Hp Speed 600 - 3 300 RPM Duty cycle 30 minutes work per 15 minutes idle. Maximum 3 hours per day.
General power tool safety warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.
Safety warnings for polishers • Never have the car running when using the polisher in an enclosed place. • Before starting the polishing job, make a test. In the event the tool makes strange sounds or vibrates in an unusual way, please turn it off. Disconnect it and take it to Authorized Service Center.
Parts Speed Speed Spindle control table lock Handle Power cord Auxiliary Polishing handle Velcro bonnet Spindle disc lock Handle Velcro Trigger Continuous disc switch use button Carbon brush housing cap (x2) Polishing bonnet Assembly Auxiliary handle assembly • Align the auxiliary handle with the polisher head and match the screw orifices.
Start Up Start up and operation control • Intermittent operation: Connect the plug into the power outlet. Press switch (A) to start the tool. To stop, release the switch. • Continuous operation: Connect the plug into the power outlet. Press switch (A) and block it pressing the continuous use button (B). To stop, press and release the switch.
Maintenance • Always disconnect the tool before cleaning it. • Never use water or other liquids. Use a brush only. • To prevent motor overheating clean regularly the ventilation slots. • Double-check the entire tool components are perfectly tight. • The tool housing shall not be cracked or damaged. •...
Authorized Service Centers In the event of any problem contacting a Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 01(800) 690-6990 or 01 (800) 018-7873 to get information about the nearest Authorized Service Center.
Page 23
671432 MERCADO DE LA SOLDADURA DEL SURESTE, ZAMORA, MICH. TEL.: 01(351) 517-8420 S.A. DE C.V. BLVD. ADOLFO RUÍZ CORTÍNEZ 2001-B, 670805 LA NUEVA FERRETERÍA TRUPER COL. ATASTA, VILLAHERMOSA, C.P. 86100 TEL.: 01(933) GENERAL PUEBLITA No. 356, COL. CENTRO C.P. 58600, 161-4820 | 161-4479 ZACAPU, MICH.
This warranty shall be effective when presenting the product and the valid Warranty policy duly stamped by the supplier or the proof of purchase. To comply with this warranty, Truper will cover transportation expenses in case consumer’s address is out of range from Authorized Service Centers listed herein or at the website www.truper.com or at our toll-free numbers: 01 (800) 690-6990 or 01(800) 018-7873.
