3.5 Connecting sensors
￭￭￭￭￭￭￭￭
26

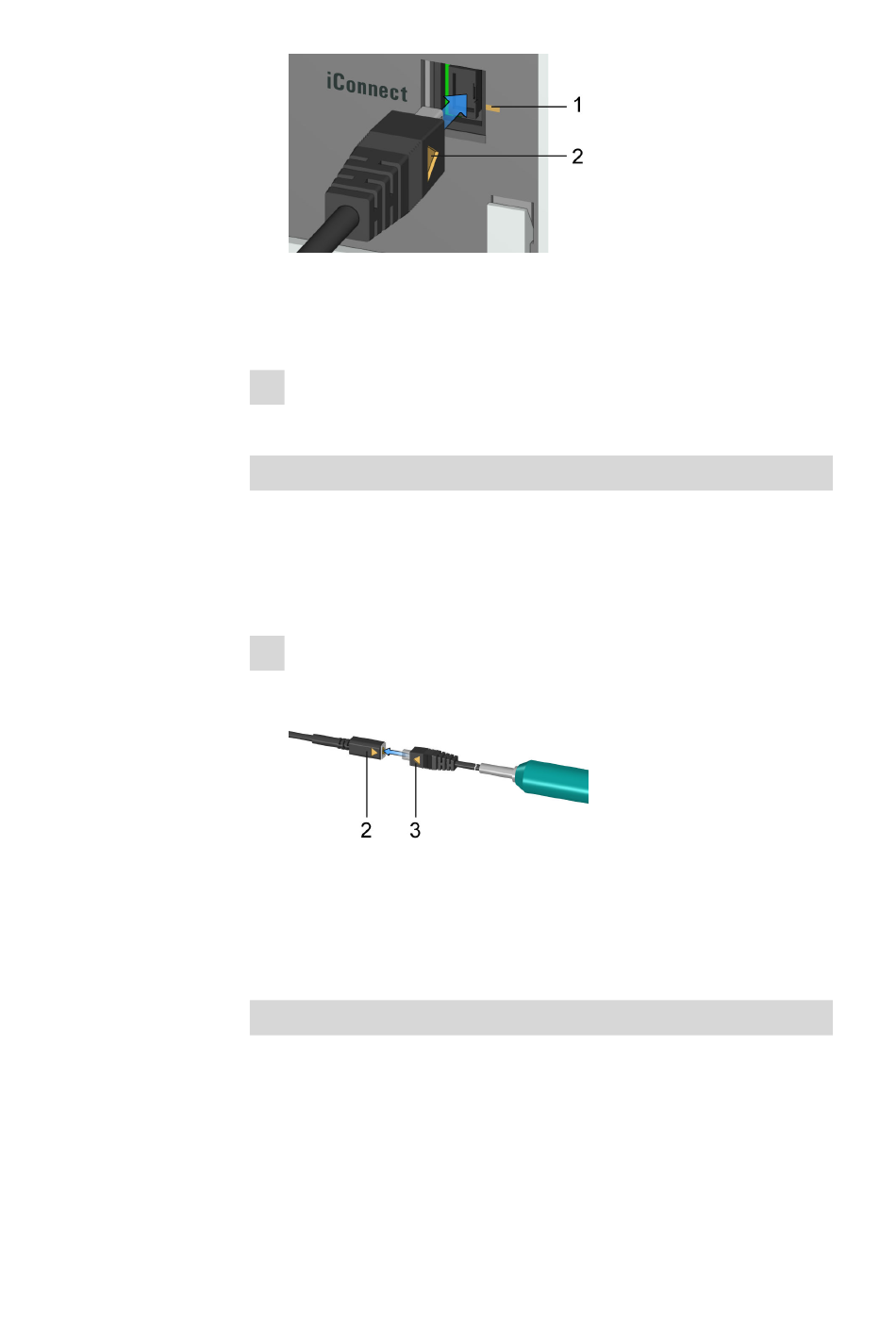

Figure 16 Plugging in the mini USB adapter cable
Depending on the instrument's model version, there may be several
iConnect connectors.
2 Leave the adapter cable plugged in to protect the connector inside
the instrument (1) against mechanical impact.
Connecting the 854 iConnect to the adapter cable
Make sure that the mini USB adapter cable is connected to the instru-
ment.
The 854 iConnect can also be connected while the instrument is switched
on.
1 Plug the plug of the 854 iConnect (3) into the socket of the mini USB
adapter cable (2). Observe the correct orientation (markings).
Figure 17 Plugging in the 854 iConnect
As soon as the instrument is switched on, the 854 iConnect is detec-
ted automatically and entered as measuring input into the device
properties.
Connecting the electrode
The 854 iConnect is used as measuring input for iTrodes (electrodes with
integrated memory chip).
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
867 pH Module
