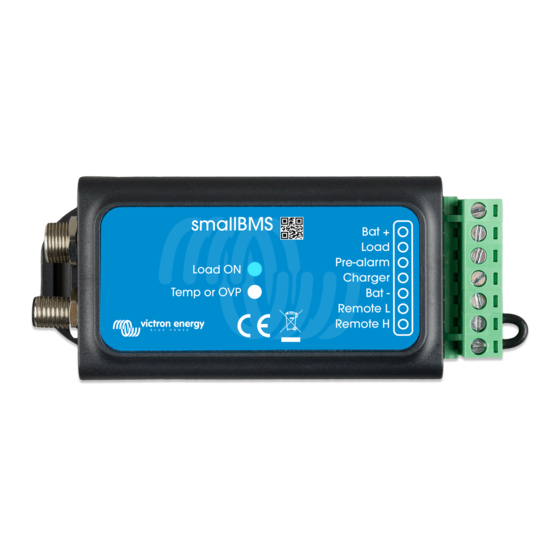

1. General Description A simple and low cost alternative to the VE.Bus BMS The smallBMS can replace the VE.Bus BMS in several applications. It is however not suitable for use with VE.Bus MultiPlus and Quattro inverter/chargers: it has no VE.Bus interface.
(= battery voltage) has decreased below a preset value, or when the remote on/off terminal is pulled low. The smallBMS can be used to control the remote on/off terminal Contrary to a Cyrix or contactor, a BatteryProtect can start a load with a large input capacitor such as an inverter or a DC-DC converter.
Page 5
Figure 2: Application example for a vehicle or boat, with on/off switch between L and battery negative Figure 3: Application example for a vehicle or boat, with on/off switch between H and L...
Figure 4: Solar application with two MPPT 150/85 CAN-bus The MPPT 150/85 CAN-bus has a remote on-off port which can be be controlled directly by the VE.Bus BMS 5. Specifications smallBMS Normal operating Input voltage range (Vbat) 8 – 70V DC Current draw, normal operation 2.2 mA (excluding Load output and Charger output current)
Appendix: 1. Loads which can be controlled directly by the Load Disconnect output of the BMS Inverters: All Phoenix inverters VE.Direct Connect to the left hand terminal of the 2 pole connector Phoenix 12/800; 24/800; 48/800 Phoenix 12/1200; 24/1200; 48/1200 Connect to the right hand terminal of the 2 pole connector DC-DC converters: All Tr type DC-DC converters with remote on/off connector,...
1. Obecný popis Jednoduchá a levná alternativa VE.Bus BMS SmallBMS může nahradit VE.Bus BMS ve více aplikacích. Nehodí se však pro použití s nabíječkami/střídači VE.Bus MultiPlus a Quattro, protože nemá rozhraní VE.Bus. Zařízení smallBMS je určeno pro použití s bateriemi Victron Smart LiFePo4 s kruhovými konektory M8.
Page 10
(= napětí baterie) se snížilo pod přednastavenou hodnotu, nebo když je svorka dálkového zapnutí / vypnutí nízko. SmallBMS lze použít k ovládání svorky dálkového zapnutí / vypnutí Na rozdíl od Cyrix nebo stykače může BatteryProtect spustit zátěž s velkým vstupním kondenzátorem, jako je střídač nebo měnič...
Page 11
Obrázek 2: Příklad použití pro vozidlo nebo loď s přepínačem zapnutí / vypnutí mezi L a mínusem baterie Obrázek 3: Příklad použití pro vozidlo nebo loď, s vypínačem mezi H a L...
Page 12
Obrázek 4: Solární aplikace se dvěma MPPT 150/85 CAN-bus Sběrnice CAN-Bus MPPT 150/85 má port pro dálkové zapnutí/vypnutí, který může být přímo řízen systémem VE.Bus BMS 5. Specifikace smallBMS Rozsah vstupního napětí normálního provozu (Vbat) 8 - 70 V DC Odběr proudu, normální...
Page 13
Příloha: 1. Zátěže, které mohou být přímo řízené pomocí výstupu pro odpojení zátěže BMS Střídače: Všechny střídače Phoenix VE.Direct Připojte k levé svorce 2 pólového konektoru Phoenix 12/800; 24/800; 48/800 Phoenix 12/1200; 24/1200; 48/1200 Připojte k pravé svorce 2 pólového konektoru Měníče DC-DC: Všechny měniče DC-DC typu Tr s konektorem dálkového zapnutí/vypnutí, a Orion 12/24-20;...
1. Descrizione generale Un’alternativa semplice ed economica al BMS VE.Bus Questo smallBMS può sostituire il BMS VE.Bus in varie applicazioni. Ciononostante, non è adatto per l’uso con il MultiPlus VE.Bus e gli inverter/caricabatterie Quattro, giacché non ha l’interfaccia VE.Bus. Il smallBMS è pensato per l’uso con le batterie Victron Smart LiFePo4 con connettori circolari M8.
(= tensione batteria) scende al di sotto di un valore predefinito; oppure il morsetto on/off remoto viene abbassato. Il smallBMS si può utilizzare per controllare il morsetto on/off remoto Diversamente dal Cyrix o dal contattore, il BatteryProtect può avviare un carico con un grande condensatore in entrata, come un inverter o un convertitore CC-CC.
Page 17
Figura 2: Esempio di applicazione per un veicolo o un natante, con interruttore on/ off tra L e polo negativo della batteria Figura 3: Esempio di applicazione per un veicolo o un natante, con interruttore on/ off tra H e L...
Page 18
Figura 4: Applicazione solare per due CAN-bus MPPT 150/85 Il CAN-bus MPPT 150/85 possiede una porta remota on-off, che può essere controllata direttamente dal BMS VE.Bus 5. Specifiche smallBMS Intervallo della tensione di ingresso in 8 – 70V CC funzionamento normale (Vbat)
Page 19
Appendice: 1. Carichi che possono essere controllati direttamente dall’uscita di scollegamento del carico del BMS Inverter: Tutti gli Inverter Phoenix VE.Direct Collegare al morsetto di sinistra del connettore a 2 poli Phoenix 12/800; 24/800; 48/800 Phoenix 12/1200; 24/1200; 48/1200 Collegare al morsetto di destra del connettore a 2 poli Convertitori CC-CC: Tutti i tipi Tr di convertitori CC-CC con connettore on/off remoto e Orion 12/24-20;...
1. Descrição Geral Uma alternativa simples e de baixo custo ao VE.Bus BMS O smallBMS pode substituir o VE.Bus BMS em várias aplicações. No entanto, não é apropriado para utilizar com os inversores/carregadores Multiplus e Quattro VE.Bus, pois não dispõe desta interface.
Page 22
3.3 Cargas CC com terminais de ligar/desligar (on/off) remoto As cargas CC devem ser desligadas ou desconectadas em caso de subtensão iminente da célula. A saída de Desconexão da Carga do VE.Bus BMS pode ser utilizada para este efeito. A saída de Desconexão de Carga é normalmente elevada (igual à tensão de bateria) e converte-se em flutuação livre (= circuito aberto) em caso de subtensão iminente das células (sem abaixamento interno para limitar o consumo de corrente residual em caso baixa tensão na célula).
Page 23
Figura 2: Exemplo de aplicação para um veículo ou barco, com interruptor de ligar/desligar entre L e o negativo da bateria. Figura 3: Exemplo de aplicação para um veículo ou barco, com interruptor de ligar/desligar entre H e L...
Figura 4: Aplicação solar com dois MPPT 150/85 CAN-bus O MPPT 150/85 CAN-bus tem uma porta de ligar/desligar que pode ser controlada diretamente pelo VE.Bus BMS. 5. Especificações técnicas smallBMS Intervalo de tensão da entrada em 8 V CC a 70 V CC...
Page 25
Apêndice: 1. Cargas que podem ser controladas diretamente com a saída de Desconexão da Carga do Inversores: Todos inversores Phoenix VE.Direct Conectar ao terminal esquerdo do conector de dois polos Phoenix 12/800; 24/800; 48/800 Phoenix 12/1200; 24/1200; 48/1200 Conectar ao terminal direito do conector de dois polos Conversores CC-CC: Todos os conversores Tr tipo CC-CC com conector de ligar/desligar (on/off) e Orion 12/24-20;...
1. Genel Tanım VE.Bus BMS için basit ve düşük maliyetli alternatif smallBMS birçok uygulamada VE.Bus BMS yerine kullanılabilir. Ancak VE.Bus arabirimi bulunmadığından VE.Bus MultiPlus ve Quattro invertörler/şarj cihazları ile uyumlu değildir. smallBMS, Victron Smart LiFePo4 aküleri ve M8 dairesel konektörleri ile kullanılmak üzere geliştirilmiştir.
Page 28
BatteryProtect, aşağıdaki durumlarda yükü keser: Giriş gerilimi (= akü gerilimi), önceden ayarlanan bir değerin altına düştüğünde veya uzaktan açma/kapama terminali düşüğe çekildiğinde. Uzaktan açma/kapama terminalini kontrol etmek için smallBMS kullanılabilir Cyrix veya kontaktörün aksine BatteryProtect, invertör veya DC-DC konvertör gibi geniş bir giriş kapasitörüne sahip bir yükü...
Page 29
Şekil 2: L ile akünün eksi ucu arasında açma/kapama anahtarı ile beraber araç ya da tekne için uygulama örneği Şekil 3: H ve L arasındaki açma/kapama anahtarıyla beraber, araç ya da tekne için örnek uygulama...
Şekil 4: İki MPPT 150/85 CAN-bus ile güneş uygulaması MPPT 150/85 CAN-bus, VE.Bus BMS tarafından doğrudan kontrol edilebilen bir uzaktan açma-kapama portuna sahiptir 5. Teknik Özellikler smallBMS Normal çalışan Giriş voltajı aralığı (Vbat) 8 - 70 V DC Çekilen akım, normal çalışma 2,2 mA (Yük çıkışı...
Page 31
1. Doğrudan BMS’nin Yük Kesme çıkışı tarafından kontrol edilebilecek yükler İnvertörler: Tüm Phoenix invertörleri VE.Direct 2 kutuplu konektörün el terminalinin soluna bağlayın Phoenix 12/800; 24/800; 48/800 Phoenix 12/1200; 24/1200; 48/1200 2 kutuplu konektörün el terminalinin sağına bağlayın DC-DC konvertörler: Uzaktan açma/kapama konektörüne sahip tüm Tr tip DC-DC konvertörler ve Orion 12/24-20;...
Page 33
Serial number: Version : 00 Date : September 25 , 2020 Victron Energy B.V. De Paal 35 | 1351 JG Almere PO Box 50016 | 1305 AA Almere | The Netherlands General phone +31 (0)36 535 97 00 E-mail sales@victronenergy.com...
