Ozone Solutions DR Series Installation & Operation Manual

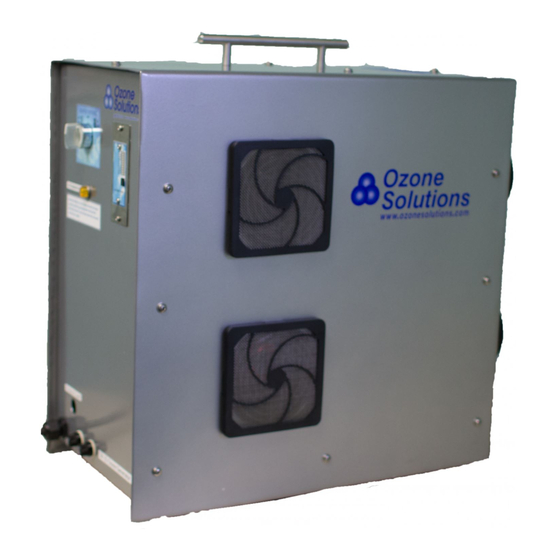

High output shock treatment ozone generator
Hide thumbs
Also See for DR Series:
- Installation & operation manual (12 pages) ,
- Installation & operation manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Ozone Solutions DR Series
Summary of Contents for Ozone Solutions DR Series

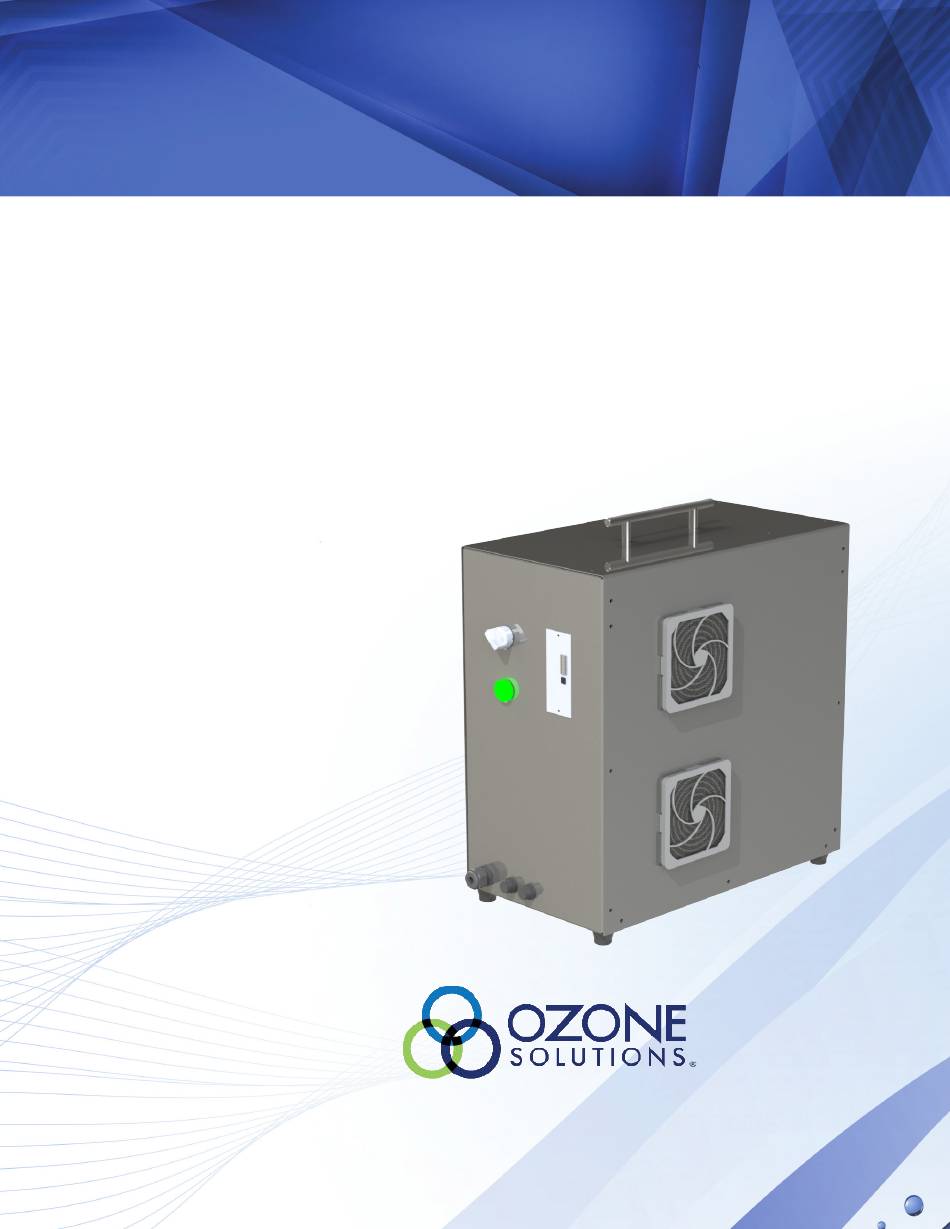

- Page 1 DR SERIES HIGH OUTPUT SHOCK TREATMENT OZONE GENERATOR MODEL: DR-25 INSTALLATION & OPERATIONS MANUAL 451 Black Forest Road Hull, Iowa 51239 USA P 712.439.6880 F 712.439.6733...
-
Page 3: Table Of Contents
Description ..............6 III. INSTALLATION & OPERATION Requirements ..............6 Operator Instructions .............7 IV. ADDITIONAL INFORMATION Specifications ..............7 Warranty .................8 Contact Information ............8 IMPORTANT SAFETY INSTRUCTIONS, READ AND FOLLOW ALL INSTRUCTIONS. Read this manual completely before attempting installation. SAVE THESE INSTRUCTIONS. DR SERIES... -
Page 4: Introduction
Corona discharge is a process where an electrical spark The DR Series ozone generators are a complete ozone is used to split the molecular bond of natural oxygen generation system. No external compressed air or... -
Page 5: Personal Safety
Whenever possible it is recommended that the machine run with maximum permissible air flow for at least 10 minutes with the Ozone Output OFF in order to flush out residual ozone. DR SERIES... -
Page 6: Components Diagram
This oxygen concentration system is not weather proof; tabs located at the top of the machine and mounting therefore, a dust-free, indoor environment is required feet on the bottom. for operation. All components must be accessible for future maintenance and service. DR SERIES... -
Page 7: Operator Instructions
IV. ADDITIONAL INFORMATION SPECIFICATIONS Ozone Flow Rate Power Supply Power Current Dimensions Weight Production (CFM) (VAC) Consumption (Amps) (D x W x H) (lbs) (g/hr) (Watts) 110 - Single 23 x 11.1 x 20.4 Phase DR SERIES... -
Page 8: Warranty
For without notice. Because of this, Ozone Solutions is not such products, the manufacturer warranty will obligated to replace warranty defective part(s) and/or supercede this warranty. -
Page 9: Appendix A - Cad Drawing
APPENDIX A - CAD DRAWING DR SERIES... -
Page 10: Appendix B - Maintenance
APPENDIX B - MAINTENANCE IMPORTANT: The DR Series Ozone Generator has electrical and mechanical hazards. Maintenance or repair should not take place unless all energy sources have been turned off, disconnected, and/or drained. Maintenance Table Component Action Time Period Part Numbers... -
Page 11: Appendix C - Safety Data Sheet
APPENDIX C - SAFETY DATA SHEET DR SERIES... - Page 12 Hull, Iowa 51239 USA P 712.439.6880 F 712.439.6733 E sales@ozonesolutions.com www.ozonesolutions.com Rev 1a © 2019, Ozone Solutions. All Rights Reserved. Ozone Solutions is a registered trademark. This publication may not be reproduced in part or whole without written permission of Ozone Solutions.
