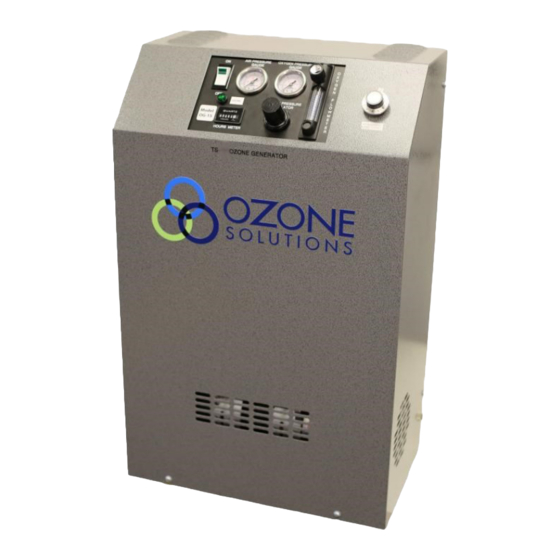

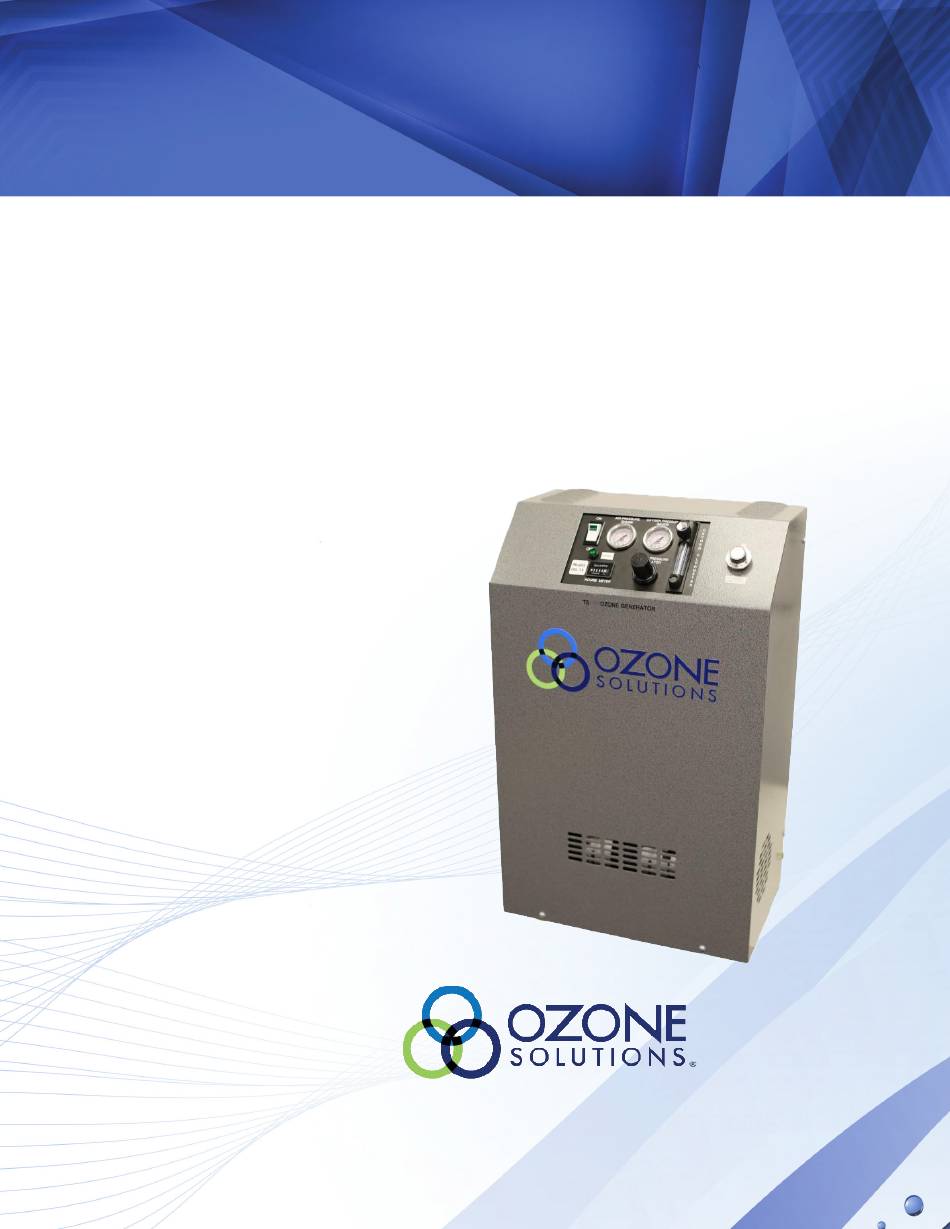

- Page 1 TS SERIES COMPACT TURNKEY OZONE GENERATOR MODEL: TS-20 INSTALLATION & OPERATIONS MANUAL 451 Black Forest Road Hull, Iowa 51239 USA P 712.439.6880 F 712.439.6733...
-
Page 3: Table Of Contents
APPENDIX C - SAFETY DATA SHEET ....13 Descriptions..............6 III. INSTALLATION AND OPERATION Requirements ..............7 Initial Start-up ..............7 Operator Instructions .............8 Flow Meter corrected Flow ..........8 IMPORTANT SAFETY INSTRUCTIONS, READ AND FOLLOW ALL INSTRUCTIONS. Read this manual completely before attempting installation. SAVE THESE INSTRUCTIONS. TS SERIES... -
Page 4: Introduction
O molecules to form O (ozone). 7. Ozone exits the TS series via the OZONE OUT port The spark inside the TS Series is a controlled corona. This spark, an intense corona, is produced by forcing a high voltage source through a dielectric and a small air gap. -
Page 5: Personal Safety
Tampering can result in serious injury or death. For at least 10 minutes with the Ozone Generator OFF in service instructions, contact Ozone Solutions. order to flush out most residual ozone. Oxygen itself is not combustible, however it greatly In most circumstances, a very small amount of ozone accelerates the burning of combustible materials. -
Page 6: Components Diagram
2. Air Pressure Gauge 11. Connection for Ozone Dial 3. Oxygen Pressure Gauge 12. Timer 4. Hour Meter 13. Inlet Air Filter 5. Oxygen Pressure Regulator 14. Ozone Outlet 6. Flowmeter 15. Air Compressor 7. Ozone Output Control TS SERIES... -
Page 7: Installation And Operation
7. Once flow is properly adjusted, the air pressure Mechanical Connections gauge will continuously cycle between 15 and The TS series unit can provide gaseous ozone out of 40 PSI. This is due to the cycling of the oxygen the 1/4” Swagelok tube compression bulkhead on the concentrator, and is normal expected operation. -
Page 8: Operator Instructions
If desired, the production of ozone can be controlled is usually a sign of improper system setup (too much from a remote location. Contact Ozone Solutions to set oxygen/ozone flow) or air compressor wear. up remote connections to the unit. -
Page 9: Contact Information
Solutions or by an authorized dealer. Ozone Solutions reserves the right to make changes in its products without notice. Because of this, Ozone Solutions is not obligated to replace warranty defective part(s) and/or product with the same original part or product. - Page 10 TS SERIES...
-
Page 11: Appendix A - Maintenance
APPENDIX A - MAINTENANCE Please contact Ozone Solutions with any questions or concerns regarding the maintenance and servicing of this system. Maintenance Table Component Action Time Period Part Numbers Compressor Inlet air filter Replace filter element 3 months/as needed CP-Filter-4: Repl Element... -
Page 12: Appendix B - Troubleshooting
Low air pressure Air leak inside ozone generator Find and repair air leak Pressure regulator requires adjustment Adjust pressure regulator Low oxygen pressure Oxygen or ozone leak Find and repair leak Low Air Pressure See “Low air pressure” TS SERIES... -
Page 13: Appendix C - Safety Data Sheet
APPENDIX C - SAFETY DATA SHEET TS SERIES... - Page 14 OZONE SOLUTIONS This page left blank for booklet printing purposes. TS SERIES...
- Page 15 INSTALLATION & OPERATIONS MANUAL This page left blank for booklet printing purposes. TS SERIES...
- Page 16 Hull, Iowa 51239 USA P 712.439.6880 F 712.439.6733 E sales@ozonesolutions.com www.ozonesolutions.com Rev 1a © 2020, Ozone Solutions. All Rights Reserved. Ozone Solutions is a registered trademark. This publication may not be reproduced in part or whole without written permission of Ozone Solutions.
