Summary of Contents for Aiwa HS-PS201 Y

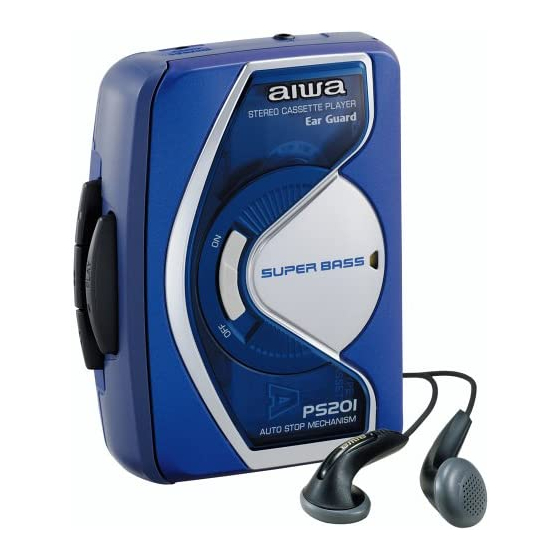

- Page 1 HS-PS201 Y, YJ, YU SERVICE MANUAL STEREO BASIC TAPE MECHANISM : 4ZM-2 P12NC CASSETTE PLAYER S/M Code No. 09-99C-419-8R1...
-
Page 2: Specifications
SPECIFICATIONS Maximum output: 15 mW + 15 mW (EIAJ 32 ohms)<YU, YJ> 4 mW + 4 mW (EIAJ 16 ohms)<Y> Power source: DC 3V using two size AA (R6) batteries. Maximum dimensions: 116.6 (W) x 92.0 (H) x 35.3 (D) mm in.) Weight: Approx.108.5 g (3.8 oz) (excluding batteries) -
Page 3: Electrical Main Parts List
ELECTRICAL MAIN PARTS LIST REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION 87-A21-387-040 C-IC,TA2145F DIODE 87-020-027-080 CHIP-DIODE 1SS184 MAIN C.B 87-A11-554-080 C-CAP,S 1800P-50 K B 87-A11-554-080 C-CAP,S 1800P-50 K B 87-A11-565-080 C-CAP,S 8200P-50 K B 87-A11-565-080 C-CAP,S 8200P-50 K B 87-015-674-040 CAP E 22-6.3M SRA... - Page 4 WIRING (MAIN / FORNT)
- Page 5 SCHEMATIC DIAGRAM (MAIN / FRONT)
- Page 6 MECHANICAL EXPLODED VIEW 1 / 1 ADJUSTMENT MAIN C.B VOLUME VR 1 PHONES SFR 51 1. Tape Speed Adjustment 2. Head Azimuth Adjustment Settings : • Test tape : TTA–100 (Tape center) Settings : • Test tape : TTA–300 • Test point : PHONES JACK (J1) •...
-
Page 7: Mechanical Parts List
MECHANICAL PARTS LIST 1 / 1 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION 8A-HKA-003-010 KNOB,SL SBASS 8A-HKA-002-010 PANEL,SBASS<YU,YJ> 8A-HKA-009-010 PANEL,SBASS YZ<[S]Y,[LL]Y,[LM]Y> 8A-HKA-014-010 PANEL,SBASS YZS<[GM]Y,[YM]Y> 8A-HKA-005-010 PLATE,COLOR 8A-HKA-004-010 PLATE,INDICATOR 8A-HKA-001-010 LID,CASS<YU,[S]Y,YJ> 8A-HKA-011-010 LID,CASS LBLU<[LL]Y> 8A-HKA-010-010 LID,CASS MBLU<[LM]Y> 8A-HKA-012-010 LID,CASS MGRE<[GM]Y>... - Page 8 TAPE MECHANISM EXPLIDED VIEW 1 / 1 REEL TABLE,L FRAME,CENTER SHAFT,REEL FELT,CLUTCH LEVER,REW G CAPSTAN, 1.8-23.3...
-
Page 9: Tape Mechanism Parts List
TAPE MECHANISM PARTS LIST 1 / 1 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION 84-ZM2-012-110 LEVER,PLAY G 84-ZM2-211-110 GEAR,CONNECT 84-ZM2-222-110 SPR-T,PLAY 84-ZM2-015-110 LEVER,STOP G 84-ZM2-216-210 REEL TABLE,R 84-ZM2-013-110 LEVER,FF G 84-ZM2-223-110 SPR-T,REW STOP 84-ZM2-232-310 BELT,MAIN 84-ZM2-221-110 FLY-WHL,P2 84-ZM2-228-310... - Page 10 2-11, IKENOHATA 1-CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111 2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111 9820572 0251431 9630472 Printed in Singapore...
