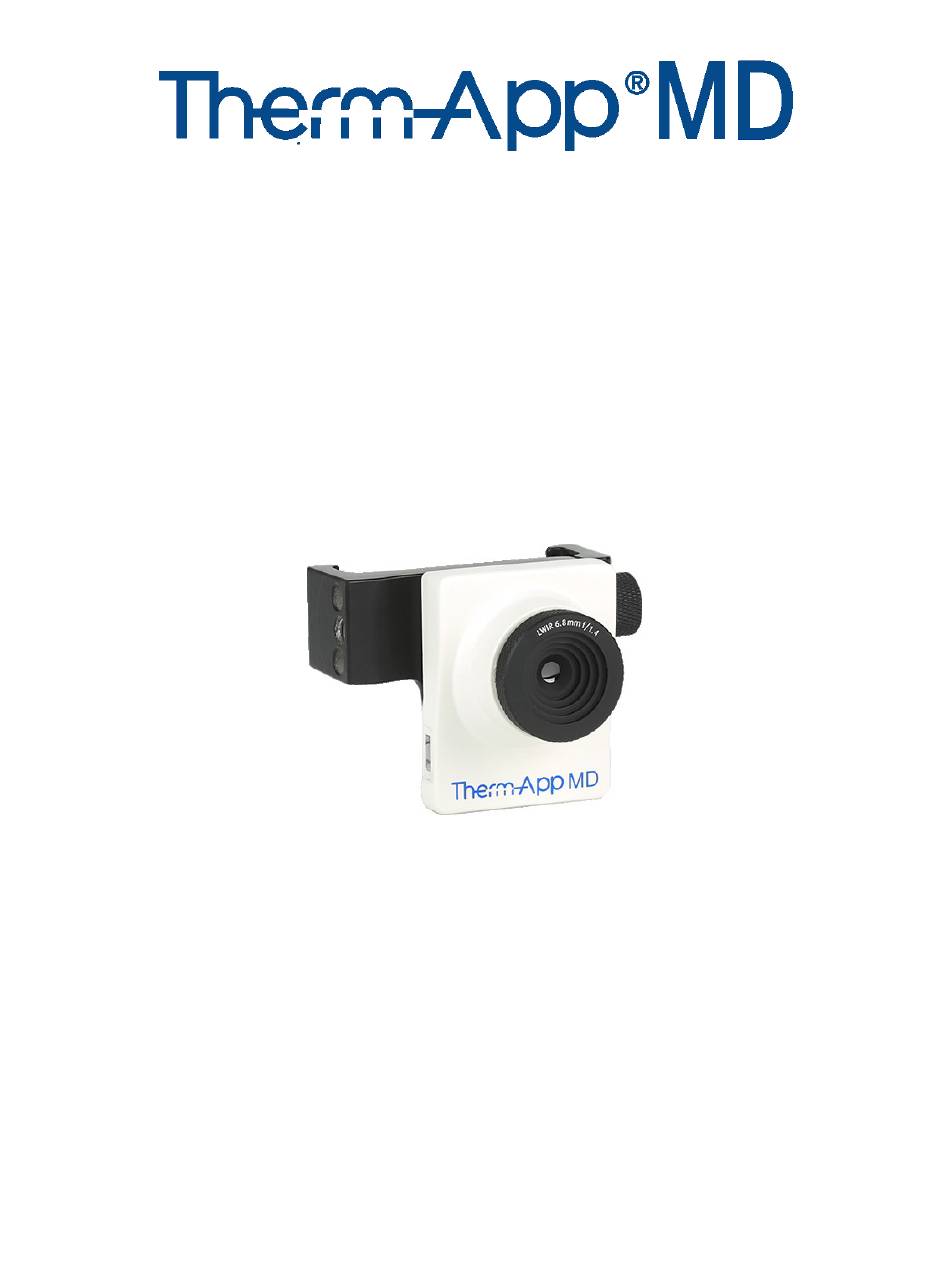

User Manual
This document discloses data in which Opgal Inc. has proprietary rights. Neither the furnishing, receipt, nor possession thereof
confers upon or transfers any right to reproduce or disclose the document, any part thereof, or any information therein except
by written permission from, or written agreement with, Opgal Inc.
Advertisement
Table of Contents
Summary of Contents for OPGAL ThermApp MD
- Page 1 User Manual This document discloses data in which Opgal Inc. has proprietary rights. Neither the furnishing, receipt, nor possession thereof confers upon or transfers any right to reproduce or disclose the document, any part thereof, or any information therein except...
-
Page 2: Table Of Contents
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Table of Contended Overview ............................... 3 Disclaimer .............................. 3 Hardware Connection ........................... 4 Installation ............................5 Installing the Application ......................5 Application Operation ........................... 5 Initialization ........................... 5 Selecting Night Vision / Thermography Color Palettes ..............6 App Screen Layout ........................ -
Page 3: Overview
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Congratulations! You are now the owner of a new Therm-App® MD world-class thermal imaging device which includes hardware and software components (the “Product”). 1 Overview Therm-App® MD is an Android-supported thermographic imaging device for elevated body temperature (EBT) measurement, specifically calibrated to measure temperature. -
Page 4: Hardware Connection
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3 Hardware Connection ------------------------------------------------------------------------------------------------------------------------------------------------------------ Page 4 of... -
Page 5: Installation
Android. The Therm-App application is compatible with the last three official Android releases. The device must support USB On-The-Go (OTG). Visit the Opgal website to download the latest Therm-App MD update for free. Scan the QR code to link directly to https://www.opgal.com/products/therm-app-... -
Page 6: Selecting Night Vision / Thermography Color Palettes
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5.2 Selecting Night Vision / Thermography Color Palettes On each imaging mode, the Therm-App® device image can be displayed using one of several palettes. To change the selected palette, swipe your finger or select by the mouse across the image on the main screen: Available palettes: Spotter... -
Page 7: App Screen Layout
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5.3 App Screen Layout Upper toolbar [1] ◼ Image display [2] ◼ Lower toolbar [3] ◼ 5.4 Upper Toolbar Settings button [1] – For configuring Therm-App® settings Temperature bar (Thermography mode) [2] – Presents the range of temperatures currently being viewed. -
Page 8: Image Display
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5.5 Image Display Full Screen Mode ◼ By tapping the screen twice quickly, you can switch between standard and full screen modes. Please Note: Only available in for portrait mode. The screen mode allows landscape configuration for use of HDMI screens. -
Page 9: Lower Toolbar
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5.6 Lower Toolbar Gallery [1] – Displays pictures stored on the ◼ Android device using the default album application. – Snapshot [2] Takes a snapshot of the image ◼ displayed on the screen. – Records a video Video Recording [3] ◼... -
Page 10: Settings
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 6 Settings 6.1 Preparation For best performance, the ambient room temperature should be 25°c (77°F). For optimal performance wait 40 minutes or more from start-up, to allow the Therm-App to reach an initial steady temperature state. In order to establish a baseline temperature, have 3 healthy people with regular temperatures pass in front of the camera. -
Page 11: Quick Access Menu
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 6.2 Quick Access Menu This menu allows you to quickly select: ◼ Imaging Mode [1] – Thermography or Night Vision mode. ◼ Emissivity and Reflected Temperatures [2] (see thermography settings). ◼ Turn on Temperature alerts [3] ◼... -
Page 12: Main Therm-App ® Settings Menu
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 6.3 Main Therm-app Settings Menu ® Tap the Settings button located on the upper toolbar. The settings screen includes: ◼ Imaging Mode – Switches between "Night Vision" and "Thermography" modes. ◼ Thermography Settings – Enables selection of temperature units, emissivity, reflected temperature, and camera output options (available only when in "Thermography mode"). -
Page 13: Main Menu Options
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 6.4 Main Menu Options Imaging Mode Night Vision – This mode maximizes the difference ◼ between hot objects and their surrounding and is used for night-time detection of various targets. Imaging Mode – switches between "Night Vision" and "Thermography" modes. -
Page 14: Thermography Settings
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 6.5 Thermography Settings ◼ Units – select between Celsius and Fahrenheit. Emissivity – Emissivity is the ability of the surface of a ◼ material to emit energy as thermal radiation. The emissivity value (0 – 1) represents the ratio of energy radiated by the observed material to the energy radiated by a black body at the same temperature. -
Page 15: General Settings
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 6.6 General Settings ◼ Disable Screen Timeout – Allows the device’s default screen timeout to be disabled to enable ongoing use of Therm-App® (only valid when Therm-App® is connected and image is shown). ◼ Gain Limit Mode - Therm-App® is using noise filter by averaging frames for temporal noise reduction. - Page 16 Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- General Settings (continue) ------------------------------------------------------------------------------------------------------------------------------------------------------------ Page 16 of...
- Page 17 Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ◼ Video Snapshot Orientation – This lets you choose your viewing orientation, both while using the device and while viewing onscreen (on a display). Live Screen Position: Allows you to set the viewing orientation for the live screen. Video/Snapshot Orientation: Allows you to set the viewing orientation for videos or snapshots.
- Page 18 Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- General Settings (continue) ◼ Language – Select your preferred interface language (Match Device, English, Chinese, Thai, German, French, Russian, or Spanish). Match phone is the default. If this feature is selected, the Therm-App® application will detect the language on your device and attempt to match it.
-
Page 19: Maintenance
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 6.7 Maintenance Under the maintenance menu you will find the following settings: BAD PIXELS REPAIR – Following extensive operation of ◼ the thermal sensor, or due to mechanical shock, some pixels may need digital repair. Bad pixels are observed as pixels that are darker or brighter than their surroundings. -
Page 20: Help
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 7 Help In the Help heading you will find options for: Manual ◼ Therm-App® support ◼ Terms of use ◼ 8 About In the About section you will find information about the device, including serial number, application version, firmware version, and hardware version. -
Page 21: Faq And Troubleshooting
Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 9 FAQ and Troubleshooting 1) Does the camera work on other operating systems (iOS, Windows)? Therm-App is designed exclusively to work on Android OS and Linux. 2) How do I get my hands on the Software Developer’s Kit for this? We are happy to provide the SDK for you. -
Page 22: Terms And Conditions
Date (“Warranty Period”). Any Product that is repaired or replaced under warranty, is covered for nighty (90) days from the date of return shipment by Opgal or for the remaining duration of the applicable Warranty Period, whichever is longer. If the Product is purchased in an... - Page 23 Your license, under Section 6 above, confers no title or ownership in the Software or the Documentation and should not be construed as a sale of any rights in the Software or the Documentation. Opgal’s third party suppliers may protect their rights in the event of any violation of these terms.
- Page 24 Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PRODUCT USAGE NOTICES Attachment to your Mobile Device To avoid damage to your Product and mobile device, attachment of the Product to your mobile device should be done with care, securing the locking knob with your fingers only. Do not use any external tools as too much pressure may mark or damage your mobile device. Calibration The Product makes use of specific calibration data, which was prepared for it in the factory.
- Page 25 Therm-App MD User Manual ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- WARNING Be careful when you clean the infrared lens. The lens has a delicate anti-reflective coating. Do not clean the lens too vigorously; this can damage the anti-reflective coating. WARNING The Product allows for field replacement of the lens. Exchanging the lens should be done with great caution, as after the removal of the lens the IR detector is exposed until the new lens is installed.
