Summary of Contents for YORKVILLE ELITE ES200P

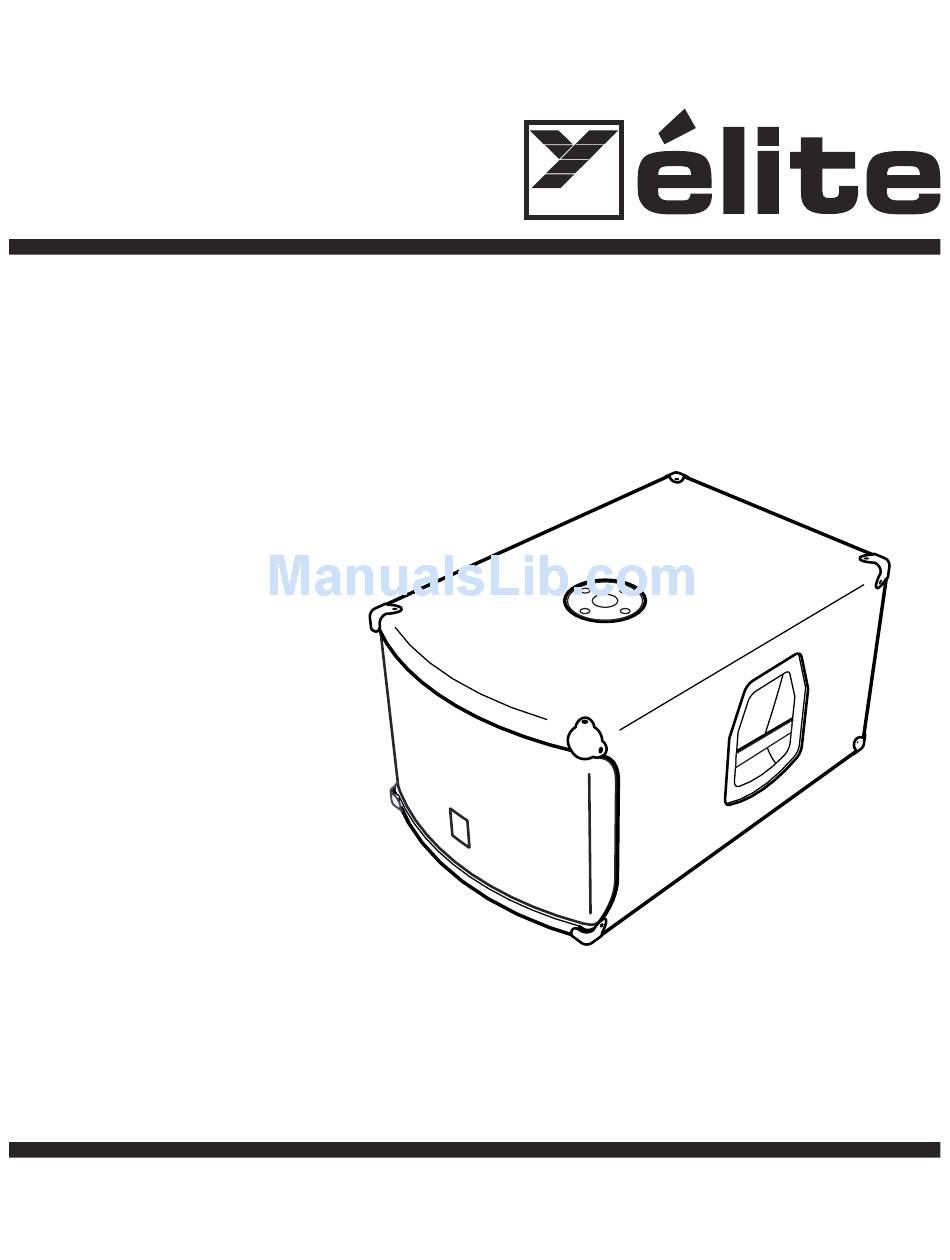

- Page 1 Yorkville OWNER'S MANUAL MANUEL de L'UTILISATEUR TYPE: YS1019 ES200P...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Read Instructions: The Owner’s Manual should be read and understood before operation of your unit. -
Page 3: Input Level Switch
POWER Yorkville ES200P DESIGNED & MANUFACTURED BY YORKVILLE SOUND • TORONTO, CANADA 230V 120V 50Hz 60Hz 1.1A 2.2A Yorkville CAUTION: REPLACE WITH SAME TYPE FUSE AND RATING ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE ET CALIBRE T 1,25A L I I N N T T R R O O D D U U C C T T I I O O N N The ES200P powered subwoofer incorporates a 200 watt amplifier. -
Page 4: Power On Led
6. Power ON LED MULTIPLE ES200P's As well as accommodating the full-range speakers, the parallel input jacks allow many ES200P's to be connected in a string. There is no practical limit to the number of ES200P's that may be connected together. Full Range Cabinet ES200P... -
Page 5: Specifications
Note: The es200p built-in stand mounting adapter can be used with Yorkville SW-Teletube accessory to support our E160 cabinets. The support tube can be adusted up to it's full 5'4" extension safely as long as the es200p is not inclined more than 10° (10 degrees). WARNING: Larger/heavier cabinets should not be used with the stand mount! Power Requirements North American:... - Page 6 POWER Yorkville ES200P DESIGNED & MANUFACTURED BY YORKVILLE SOUND • TORONTO, CANADA 230V 120V 50Hz 60Hz 1.1A 2.2A Yorkville CAUTION: REPLACE WITH SAME TYPE FUSE AND RATING ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE ET CALIBRE T 1,25A L I I N N T T R R O O D D U U C C T T I I O O N N Le subwoofer amplifié...
- Page 7 BRANCHEMENT A MULTIPLE ES200P's En plus de servir pour le raccordement au cabinet pleine gamme, les prises d'entrées parallèles permettent un branchement à ES200P multiple. Il n'y a aucune limite pratique au nombre de ES200P qui peuvent êtres reliés ensemble. Le panneau arrière de L' ES200P contient le texte suivant qui résume 'information ci-dessus.
- Page 8 NOTEZ BIEN: L'adapteur de support es200p peut être utilisé avec l'accessoire YORKVILLE SW- Teletube pour supporter les enceintes E160. Le tube de support peut être ajusté à sa pleine extension de 5'4" avec sécurité guand le es200p est incliné à moin de 10° par rapport à l'horizontale. ATTENTION: Les enceintes plus larges où...
- Page 9 Notes...
- Page 10 WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689...
