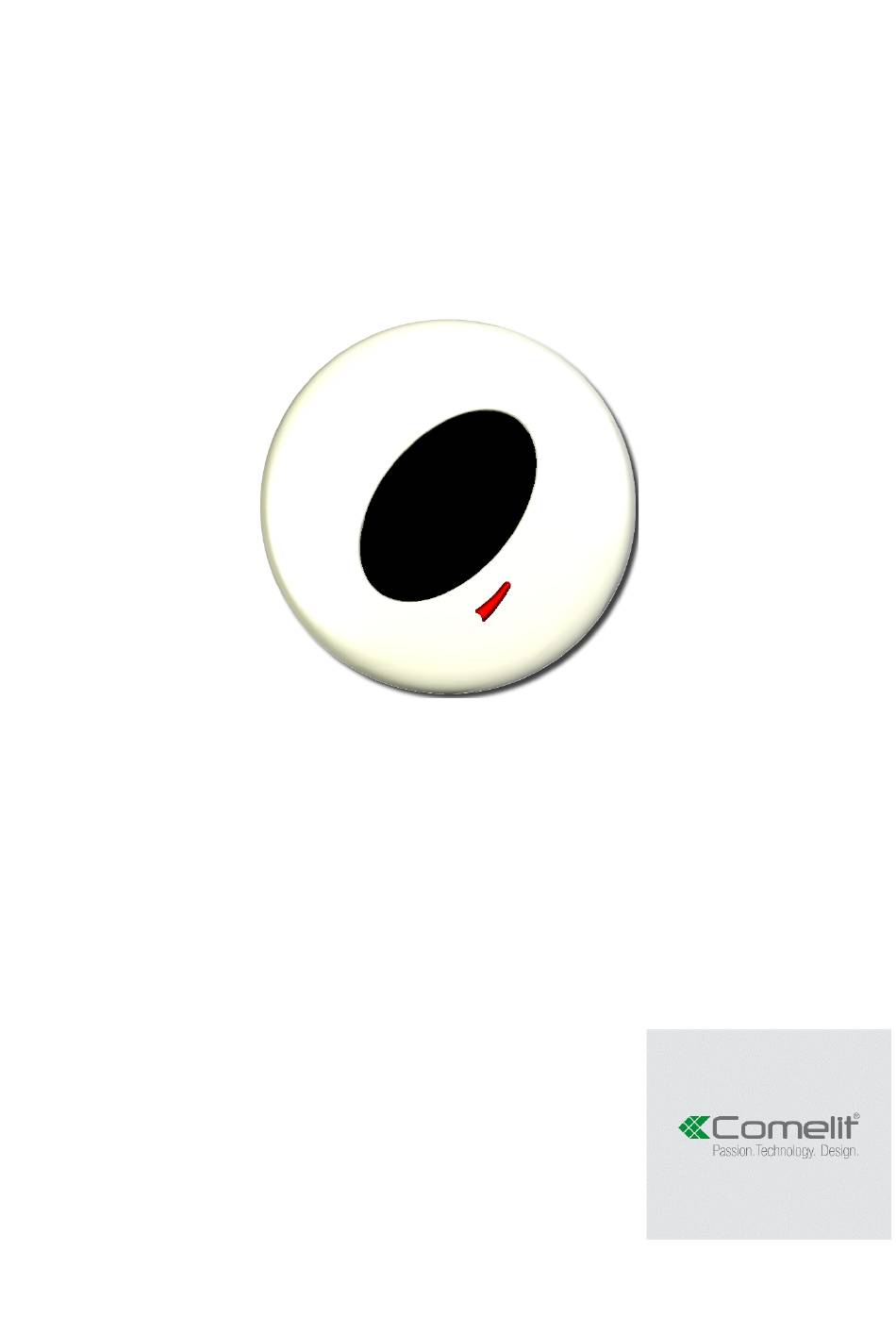

- Page 1 OPTICAL BEAM LINEAR SMOKE DETECTOR WITH REFLECTOR 3-30 M 48BFC000 Please read this manual before using the equipment and keep it safe for future reference...
-
Page 2: Usage Limits
A.1. INTRODUCTION The linear optical smoke detector consists of two parts positioned one in front of the other: – An “Emitter/Receiver” part (E / R), – A reflector consisting of 1 safety reflector. A.2. USAGE LIMITS The linear smoke detector cannot be installed inside buildings. OPTICAL BLOCK 1 fastener screws 2 built-in laser pointer... - Page 3 INSTALLATION OF THE ELEMENTS The main detector installation steps are as follows: Step Step description Securing the detector base Electrical connections Securing the optical block Activating the laser pointer (press button) Securing the reflector Deactivating the laser pointer (press button) Caution: ...
-
Page 4: Electrical Connections
A.2.6. Laser pointer During installation, the reflector is positioned with the help of the laser pointer built into the E / R. This pointing function is independent and does not require an external power supply. To activate the laser pointer: press the button and hold for more than a second, then release. To deactivate the laser pointer: press the button again. - Page 5 Description of the 10-pole terminal block: Terminal reference Description “+” Power supply “-” Power supply SHLD Shield COM+ | Dt+ “+” remote box communication line COM- | Dt- “-” remote box communication line Not connected Caution: The type of cable to use for electrical connection depends on the unit to which it is connected. For further information, please refer to the manual for the device supplying power to the detector.
-
Page 6: Laser Pointer
A.6. LASER POINTER During commissioning, activation of the laser pointer makes it possible to check that the reflector has been positioned correctly in relation to the E / R. If the zone indicated by the laser beam is more than 5 cm away from the reflector, adjust the position of the E / R, using the corresponding screws to bring the point indicated by the beam closer to the reflector. -
Page 7: Technical Characteristics
TECHNICAL CHARACTERISTICS Electrical parameters Value Power supply voltage 13 - 28 Vdc (rated: 24 Vdc) Current consumption at startup Peak of 22 mA max. for 4 sec., thus 0.76 mA max. Current consumption at 24 Vdc Relay usage Connection to conventional zone ... -
Page 8: Maintenance
A piece of brown cardboard (packaging type) which can cover the whole surface of the reflector (minimum 10 cm x 10 cm). WIRING DIAGRAMS Wiring diagram for 1 barrier directly Wiring diagram for 1 barrier with relay connected to the Comelit conventional output with external power supply zone...
