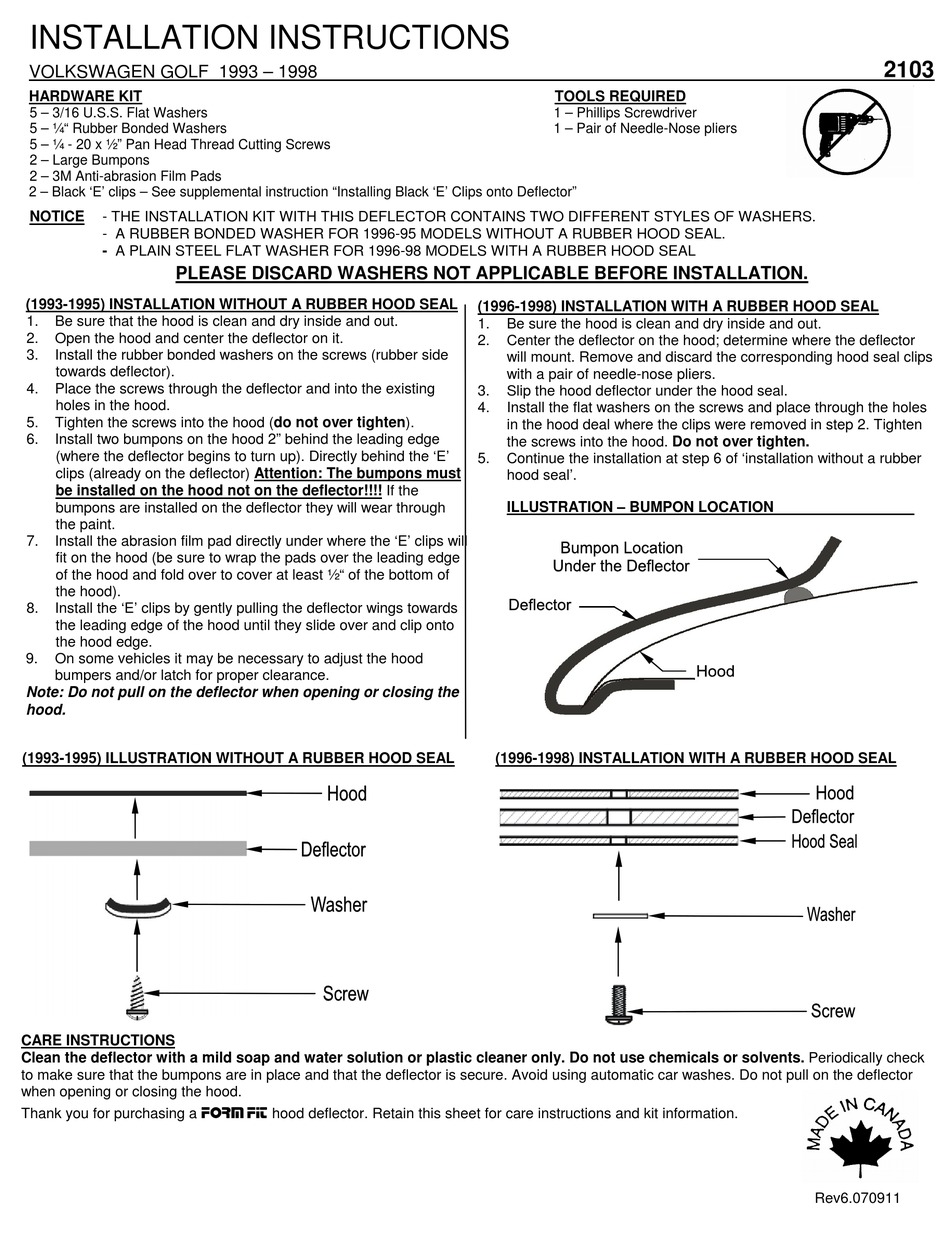

FORM FIT 2103 Installation Instructions

INSTALLATION INSTRUCTIONS
VOLKSWAGEN GOLF 1993 – 1998

HARDWARE KIT

5 – 3/16 U.S.S. Flat Washers
5 – ¼" Rubber Bonded Washers
5 – ¼ - 20 x ½" Pan Head Thread Cutting Screws
2 – Large Bumpons
2 – 3M Anti-abrasion Film Pads
2 – Black 'E' clips – See supplemental instruction "Installing Black 'E' Clips onto Deflector"
NOTICE - THE INSTALLATION KIT WITH THIS DEFLECTOR CONTAINS TWO DIFFERENT STYLES OF WASHERS.
- A RUBBER BONDED WASHER FOR 1996-95 MODELS WITHOUT A RUBBER HOOD SEAL.
- A PLAIN STEEL FLAT WASHER FOR 1996-98 MODELS WITH A RUBBER HOOD SEAL
PLEASE DISCARD WASHERS NOT APPLICABLE BEFORE INSTALLATION.

(1993-1995) INSTALLATION WITHOUT A RUBBER HOOD SEAL

1. Be sure that the hood is clean and dry inside and out.
2. Open the hood and center the deflector on it.
3. Install the rubber bonded washers on the screws (rubber side
towards deflector).
4. Place the screws through the deflector and into the existing
holes in the hood.
5. Tighten the screws into the hood (do not over tighten).
6. Install two bumpons on the hood 2" behind the leading edge
(where the deflector begins to turn up). Directly behind the 'E'
clips (already on the deflector) Attention: The bumpons must
be installed on the hood not on the deflector!!!! If the
bumpons are installed on the deflector they will wear through
the paint.
7. Install the abrasion film pad directly under where the 'E' clips will
fit on the hood (be sure to wrap the pads over the leading edge
of the hood and fold over to cover at least ½" of the bottom of
the hood).
8. Install the 'E' clips by gently pulling the deflector wings towards
the leading edge of the hood until they slide over and clip onto
the hood edge.
9. On some vehicles it may be necessary to adjust the hood
bumpers and/or latch for proper clearance.
Note: Do not pull on the deflector when opening or closing the
hood.
(1993-1995) ILLUSTRATION WITHOUT A RUBBER HOOD SEAL

CARE INSTRUCTIONS

Clean the deflector with a mild soap and water solution or plastic cleaner only. Do not use chemicals or solvents. Periodically check
to make sure that the bumpons are in place and that the deflector is secure. Avoid using automatic car washes. Do not pull on the deflector
when opening or closing the hood.
Thank you for purchasing a
Form Fit
hood deflector. Retain this sheet for care instructions and kit information.

TOOLS REQUIRED

1 – Phillips Screwdriver
1 – Pair of Needle-Nose pliers

(1996-1998) INSTALLATION WITH A RUBBER HOOD SEAL

1. Be sure the hood is clean and dry inside and out.
2. Center the deflector on the hood; determine where the deflector
will mount. Remove and discard the corresponding hood seal clips
with a pair of needle-nose pliers.
3. Slip the hood deflector under the hood seal.
4. Install the flat washers on the screws and place through the holes
in the hood deal where the clips were removed in step 2. Tighten
the screws into the hood. Do not over tighten.
5. Continue the installation at step 6 of 'installation without a rubber
hood seal'.
ILLUSTRATION – BUMPON LOCATION
(1996-1998) INSTALLATION WITH A RUBBER HOOD SEAL
2103
Rev6.070911
