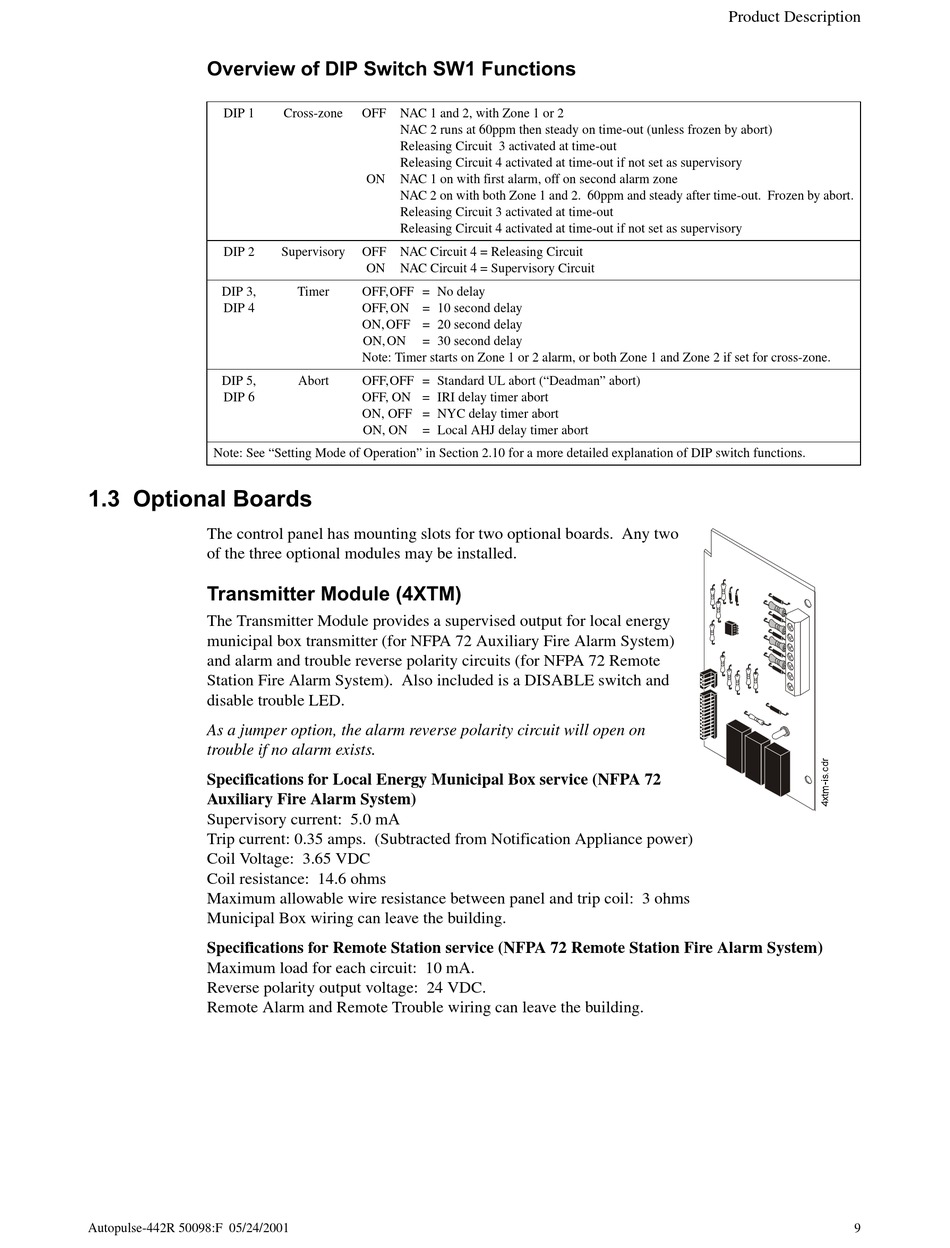

2YHUYLHZRI',36ZLWFK6:)XQFWLRQV
DIP 1
DIP 2
DIP 3,
DIP 4
DIP 5,
DIP 6
Note: See "Setting Mode of Operation" in Section 2.10 for a more detailed explanation of DIP switch functions.
2SWLRQDO%RDUGV
The control panel has mounting slots for two optional boards. Any two
of the three optional modules may be installed.
7UDQVPLWWHU0RGXOH ;70
The Transmitter Module provides a supervised output for local energy
municipal box transmitter (for NFPA 72 Auxiliary Fire Alarm System)
and alarm and trouble reverse polarity circuits (for NFPA 72 Remote
Station Fire Alarm System). Also included is a DISABLE switch and
disable trouble LED.
As a jumper option, the alarm reverse polarity circuit will open on
trouble if no alarm exists.
Specifications for Local Energy Municipal Box service (NFPA 72
Auxiliary Fire Alarm System)
Supervisory current: 5.0 mA
Trip current: 0.35 amps. (Subtracted from Notification Appliance power)
Coil Voltage: 3.65 VDC
Coil resistance: 14.6 ohms
Maximum allowable wire resistance between panel and trip coil: 3 ohms
Municipal Box wiring can leave the building.
Specifications for Remote Station service (NFPA 72 Remote Station Fire Alarm System)
Maximum load for each circuit: 10 mA.
Reverse polarity output voltage: 24 VDC.
Remote Alarm and Remote Trouble wiring can leave the building.
Autopulse-442R 50098:F 05/24/2001
Cross-zone OFF NAC 1 and 2, with Zone 1 or 2
NAC 2 runs at 60ppm then steady on time-out (unless frozen by abort)
Releasing Circuit 3 activated at time-out
Releasing Circuit 4 activated at time-out if not set as supervisory
ON NAC 1 on with first alarm, off on second alarm zone
NAC 2 on with both Zone 1 and 2. 60ppm and steady after time-out. Frozen by abort.
Releasing Circuit 3 activated at time-out
Releasing Circuit 4 activated at time-out if not set as supervisory
Supervisory OFF NAC Circuit 4 = Releasing Circuit
ON NAC Circuit 4 = Supervisory Circuit
Timer OFF, OFF = No delay
OFF, ON = 10 second delay
ON, OFF = 20 second delay
ON, ON = 30 second delay
Note: Timer starts on Zone 1 or 2 alarm, or both Zone 1 and Zone 2 if set for cross-zone.
Abort OFF, OFF = Standard UL abort ("Deadman" abort)
OFF, ON = IRI delay timer abort
ON, OFF = NYC delay timer abort
ON, ON = Local AHJ delay timer abort
Product Description
