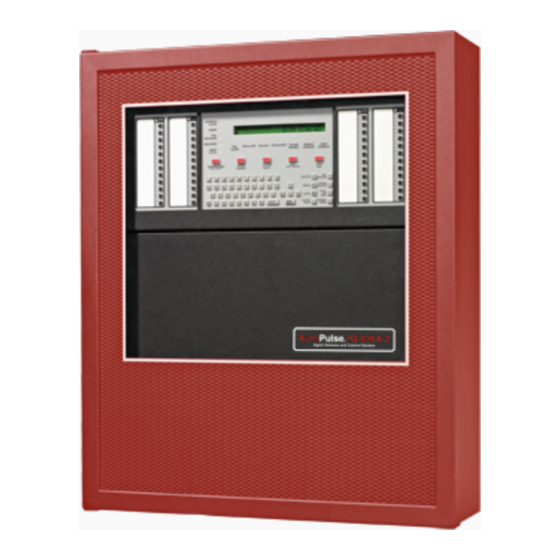

AUTOPULSE
IQ-636X-2/E
®
ANALOG ADDRESSABLE
CONTROL SYSTEM

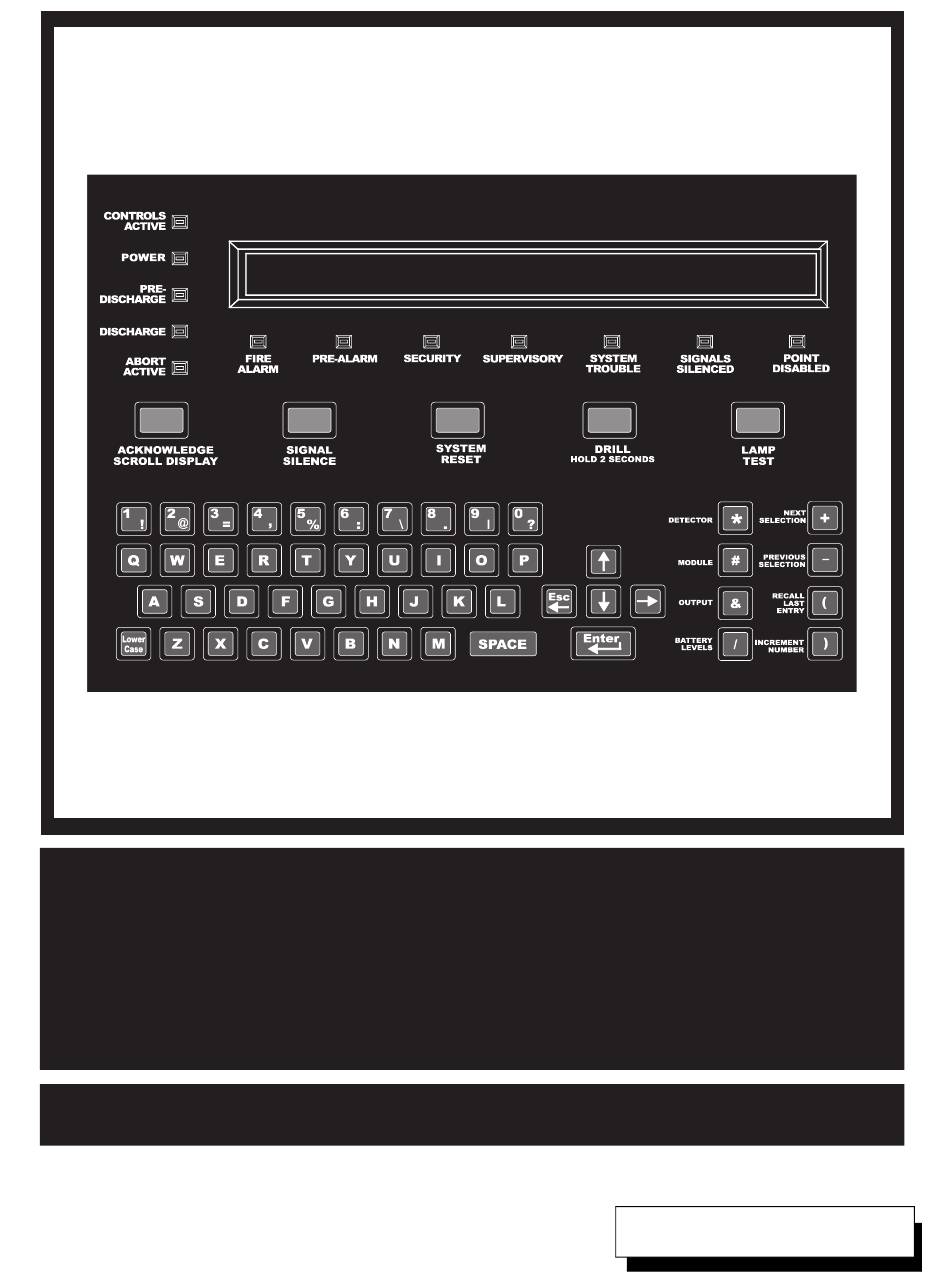

Fire Alarm Control Panel Installation Manual
(Meets the Requirements of UL 864 9th Edition)
K3
Document 52853
9/28/15
Rev:
P/N 52853:K3
ECN 15-230

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUTOPULSE IQ-636X-2/E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ansul AUTOPULSE IQ-636X-2/E

Summary of Contents for Ansul AUTOPULSE IQ-636X-2/E

  • Page 1 AUTOPULSE IQ-636X-2/E ® ANALOG ADDRESSABLE CONTROL SYSTEM Fire Alarm Control Panel Installation Manual (Meets the Requirements of UL 864 9th Edition) Document 52853 9/28/15 Rev: P/N 52853:K3 ECN 15-230...
  • Page 2 Fire Alarm & Emergency Communication System Limitations While a life safety system may lower insurance rates, it is not a substitute for life and property insurance! An automatic fire alarm system—typically made up of smoke (caused by escaping gas, improper storage of flammable materi- detectors, heat detectors, manual pull stations, audible warning als, etc.).
  • Page 3 Installation Precautions Adherence to the following will aid in problem-free installation with long-term reliability: WARNING - Several different sources of power can be Like all solid state electronic devices, this system may connected to the fire alarm control panel. Disconnect all operate erratically or can be damaged when subjected to light- sources of power before servicing.
  • Page 4 Software Downloads In order to supply the latest features and functionality in fire alarm and life safety technology to our cus- tomers, we make frequent upgrades to the embedded software in our products. To ensure that you are installing and programming the latest features, we strongly recommend that you download the most cur- rent version of software for each product prior to commissioning any system.

  • Page 5: Table Of Contents

    Table of Contents Section 1: About This Manual....................7 1.1: Standards and Other Documents........................7 1.2: UL 864 Compliance............................8 1.2.1: Products Subject to AHJ Approval......................8 1.3: Related Documents ............................8 1.4: Cautions and Warnings ..........................9 Section 2: System Overview ....................10 2.1: System Description ............................10 2.1.1: Standard Features ..........................10 2.1.2: Options ..............................11 2.1.3: System Limitations ..........................11...
  • Page 6 Table of Contents 3.15: Connecting a PC for Off-Line Programming.....................43 Section 4: Applications ......................44 4.1: Overview..............................44 4.2: Devices Requiring External Power Supervision..................44 4.3: NFPA 72 Central or Remote Station Fire Alarm System (Protected Premises Unit) ........45 4.4: Central Station Fire Alarm System Canadian Requirements...............47 4.5: NFPA 72 Proprietary Fire Alarm Systems....................47 4.6: Fire/Security Applications ..........................48 4.6.1: General Operation..........................48...

  • Page 7: Section 1: About This Manual

    Section 1: About This Manual 1.1 Standards and Other Documents This Fire Alarm Control Panel complies with the following NFPA standards:  • NFPA 12 CO Extinguishing Systems • NFPA 12A Halon 1301 Extinguishing Systems • NFPA 13 Sprinkler Systems •...

  • Page 8: Ul 864 Compliance

    About This Manual UL 864 Compliance 1.2 UL 864 Compliance 1.2.1 Products Subject to AHJ Approval This product has been certified to comply with the requirements in the Standard for Control Units and Accessories for Fire Alarm Systems, UL 864 9th Edition. The following products have not received UL 864 9th Edition certification and may only be used in retrofit applications.

  • Page 9: Cautions And Warnings

    Cautions and Warnings About This Manual AutoPulse-NCA-2 Network Control Annunciator Manual 52857 ANSUL-NCA Network Control Annunciator Manual 52185 (432781) Document Number System Components (Part no. if applicable) Annunciator Control System Manual 15842 FDU-80/FDU-80G Remote Annunciator Manual 51264/52707 LCD-80 Liquid Crystal Display Remote Annunciator...

  • Page 10: Section 2: System Overview

    Section 2: System Overview 2.1 System Description The IQ-636X-2/E control panel is a modular, intelligent fire alarm control panel (FACP) with an extensive list of powerful features. The control panel uses the CPS-24/E integral power supply with battery charger. This is combined with a mounting chassis and cabinet to create a complete fire alarm control system.

  • Page 11: 2: Options

    System Components System Overview 2.1.2 Options Refer to Section 2.4 “Compatible Equipment” for other peripherals listed for use with this panel. • QWERTY silicone-rubber keypad with a 2x40 LCD display and eight indicator LEDs • Optional LEM-320 provides a second SLC loop that is electrically identical to the one on the main board •...

  • Page 12: 2: Control Panel Circuit Board

    System Overview System Components 2.2.2 Control Panel Circuit Board The control panel electronics are contained on one printed circuit board that incorporates a signaling line circuit (SLC) and the central processing unit (CPU). The built-in power supply includes an integral battery charger. A keypad/display unit can be installed over the power supply; see Figure 2.1.

  • Page 13: 4: Circuit Board Components

    System Components System Overview 2.2.4 Circuit Board Components The following two figures illustrate the location of the various connections, switches, jumpers and LEDs on the IQ636X-CPU2/IQ636X-CPU2E and its power supply. Figure 2.2 shows wiring connections; Figure 2.3 shows jumpers, LEDs and switches. See Section 3 “Installation” for larger images and more details.
  • Page 14 System Overview System Components Figure 2.3 IQ636X-CPU2/IQ636X-CPU2E and Power-Supply: Jumpers, LEDs and Switches IQ-636X-2/E Installation Manual — P/N 52839:K3 9/28/15...

  • Page 15: System Cabinets

    System Cabinets System Overview 2.3 System Cabinets The control panel and modules are installed in a CAB-4 series backbox . There are four different sizes available, holding from one to four rows of equipment plus batteries (up to two 26 AH batteries).

  • Page 16: Compatible Equipment

    System Overview Compatible Equipment 2.4 Compatible Equipment These are the most common devices at time of publishing; the most complete list of compatible intelligent SLC loop devices is provided in the AutoPulse SLC Wiring Manual; for conventional non-addressable equipment see the Device Compatibility Document. These devices are UL and ULC listed unless marked otherwise (in parentheses next to the product).
  • Page 17 ACM-16AT Annunciator Control Module ACM-32A Annunciator Control Module ACPS-2406 Auxiliary Charger/Power Supply AEM-16AT Annunciator Expander Module AEM-32A Annunciator Expander Module ANSUL-NCA Network Control Annunciator APS-6R Auxiliary Power Supply BGX-101L Addressable Manual Pull Station CHG-120 Battery Charger FCPS-24 Field Charger Power Supply IPX-751 Advanced Multi-Sensor Intelligent Detector...

  • Page 18: Section 3: Installation

    Section 3: Installation 3.1 Preparing for Installation Choose a location for the fire alarm system that is clean, dry, and vibration-free with moderate temperature. The area should be readily accessible with sufficient room to easily install and maintain it. There should be sufficient space for cabinet door(s) to open completely. Carefully unpack the system and inspect for shipping damage.

  • Page 19: Installation Checklist

    Installation Checklist Installation 3.2 Installation Checklist Table 3.1 provides an installation checklist for installing, wiring, and testing the IQ-636X-2/E system. It has references to installation information included in manuals listed in Section 1.3 “Related Documents”. Task Refer to Mount the cabinet backbox to the wall. Section 3.3 “Mounting a Cabinet”...

  • Page 20: Laying Out Equipment In Cabinet And Chassis

    Installation Laying Out Equipment in Cabinet and Chassis • Mount the backbox on a surface that is in a clean, dry, vibration-free area. CAUTION: Unless you are familiar with the placement of components within this backbox, only use the knockout locations provided for conduit entry.
  • Page 21 Laying Out Equipment in Cabinet and Chassis Installation The CPU mounts in the IQ-636X-2 chassis behind DP-DISP2 (top row) or ADP2-640 (lower row). The control panel fills three positions in the first-installed layer against the chassis; its power supply occupies two positions on top of the control panel; and the optional display occupies two positions in the fourth layer (flush with the dress panel).
  • Page 22 Installation Laying Out Equipment in Cabinet and Chassis Slot 1 (CPU, CPS-24, and primary display) Slot 2 (CPU, CPS-24, and primary display) Slot 3 (Mounting location for LEM-320) or other Keypad/display option board unit attaches to chassis rails Slot 4 Mounting location for option boards and other compatible peripherals Also see Figure 3.3, “Top View of...
  • Page 23 Laying Out Equipment in Cabinet and Chassis Installation From… To… Required Stand-off or Hardware IQ-636X-2/E Control panel or Attaches directly to chassis. chassis option board on first layer IQ-636X-2/E Keypad/display unit Attaches directly to chassis rails. chassis IQ-636X-2/E AutoPulse-NCA-2 Attaches directly to chassis rails with mounting hardware NCA/640-2-KIT chassis (ordered separately) Control panel...

  • Page 24: Installing The Control Panel

    Installation Installing the Control Panel Typical Backbox Location(s) Chassis/Dress plate in CAB-4 Backboxes IQ-636X-2/E chassis Top row of backbox typical; lower rows also possible. CHS-4, CHS-4L, CHS-4N Second or lower row of backbox DPA-2 Dress Panel Mounts in front of CA-2 covering two rows of the backbox DP-DISP2 Dress Panel Mounts in front of the IQ-636X-2/E chassis in top row of...

  • Page 25: 2: Using Autopulse-Nca-2 As Primary Display

    Installing the Control Panel Installation If installing the AutoPulse-NCA-2 as primary display: Secure it to the IQ-636X-2/E chassis with NCA/640-2-KIT as described in the AutoPulse-NCA-2 Manual. If installing option boards, do so as described in Section 3.6, “Mounting Option Boards”. If IQ-636X-2/E is being installed into an older backbox, two additional steps must be taken: Battery Plate BP-4 must be replaced with AP-BP2-4, per UL’s revised labeling requirements.

  • Page 26: Mounting Option Boards

    Installation Mounting Option Boards 3.6 Mounting Option Boards If installing option boards into a CAB-4 Series backbox, mount and connect those boards at this time. General instructions follow; the sections about individual option boards contain any module- specific instructions such as mounting LEM-320’s stacker-connector. 3.6.1 Option Boards in the IQ-636X-2/E Chassis Mount option boards in slots 3 and 4 of the IQ-636X-2/E chassis.

  • Page 27: 2: Option Boards In Chs-4L

    Mounting Option Boards Installation Attach option boards to mounting studs on chassis backplate (see Section 3.6, “Mounting Option Boards”) Figure 3.7 Attaching Option Boards to the Right of the CPU 3.6.2 Option Boards in CHS-4L Slide the tabs at the bottom of the option board into slots on the chassis as shown in Figure 3.9. Lay the board back onto the flanges so that the studs line up with mounting holes on the option board.

  • Page 28: 3: Option Boards On Bmp-1 In Dress Panels

    Installation Mounting Option Boards Slots Insert tab of option board One option board Two option boards into slot of chassis, and lay in CHS-4L in CHS-4L the option board back against standoffs. Figure 3.9 Mounting an Option Board in a Chassis (CHS-4L Shown) 3.6.3 Option Boards on BMP-1 in Dress Panels Option boards can be mounted on BMP-1 blank module plate, inside dress panels such as DP- DISP2, ADP2-640, ADP-4B, as shown in Figure 3.10.

  • Page 29: 4: Transmitter Module Tm-4

    Mounting Option Boards Installation 3.6.4 Transmitter Module TM-4 TM-4 is power-limited. Connections are on TB10 nonresettable output and TB11 EIA-485 ACS Mode. Refer to the Transmitter Module TM-4 installation document for installation details. 3.6.5 Loop Expander Module Installing a Loop Expander Module adds a second SLC loop to the control panel.

  • Page 30: Connecting The Power Cables

    Installation Connecting the Power Cables 1 inch standoffs LEM-320 IQ636X-CPU2 Stacker-connector The short-pin end plugs directly into the top of the IQ636X-CPU2 plug. The long-pin end plugs into the back of the LEM board. Figure 3.12 Mounting LEM-320 with the Stacker-connector 3.7 Connecting the Power Cables WARNING: Remove all power sources to equipment while connecting electrical components.

  • Page 31: 2: Connecting The Control Panel To Ac Power

    Connecting the Power Cables Installation • External power sources – 24 VDC power for Smoke Detectors (4 wire), NACs, and Annunciators. • Auxiliary power source – 24 VDC power @ 0.5 A and 5 VDC power @ 0.15 A from TB2 on the CPS-24/E.

  • Page 32: 4: Installing And Connecting The Batteries

    Installation Connecting the Power Cables 3.7.4 Installing and Connecting the Batteries WARNING: Battery contains sulfuric acid which can cause severe burns to the skin and eyes, and can destroy fabrics. If contact is made with sulfuric acid, immediately flush skin or eyes with water for 15 minutes and seek immediate medical attention.

  • Page 33: 6: Accessories Dc Power Output Connections

    Connecting the Power Cables Installation Connect external field wires to the power supply terminals TB10 RESET(+) and (–) to provide up to 1.25 A of current for powering four-wire smoke detectors. See Figure 3.15 above. TB2 (on CPS- 24), TB10 and all 4 NACS share a maximum of 3.0 A in standby and 6.0 A in alarm. 24 VDC Non-resettable Power Circuit The power supply provides one 24 VDC filtered, power-limited, non-resettable power output, capable of up to 1.25 A.

  • Page 34: Nac Connections And Releasing Circuits

    Installation NAC Connections and Releasing Circuits 3.8 NAC Connections and Releasing Circuits The control panel provides four NAC terminals as shown in Figure 3.18. Each can be configured as Style Y (Class B) or Style Z (Class A) as shown in Figure 3.17. Each circuit can provide 1.5 A of current, but the total current drawn from the main power supply cannot exceed 7.4 A in alarm condition (refer to Table A.2).

  • Page 35: Output Relay Connections

    Output Relay Connections Installation 3.9 Output Relay Connections The panel provides a set of Form-C relays. These are rated for 2.0 A at 30 VDC (resistive): • Alarm - TB4 • Trouble - TB4 • Supervisory - TB5 • Security - TB5 These are power-limited only if connected to a power-limited source.

  • Page 36: Ul Power-Limited Wiring Requirements

    Installation UL Power-limited Wiring Requirements 3.11 UL Power-limited Wiring Requirements Power-limited and nonpower-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25 inches (6.35 mm) from any nonpower- limited circuit wiring. All power-limited and nonpower-limited circuit wiring must enter and exit the cabinet through different knockout and or conduits.

  • Page 37: 1: Labeling Modules And Circuits

    Installing EIA-485 Devices Installation 3.11.1 Labeling Modules and Circuits At the time of installation, each nonpower-limited circuit connected to ACM-8R, and LDM-R32 modules must be identified in the space provided on the cabinet door label when connected to a non-power-limited source of power. The label lists all compatible power-limited modules and circuits;...
  • Page 38 Installation Installing Remote Printers and/or CRT This section contains information on connecting a printer to the control panel and for setting the printer options. Connecting a Remote PRN Series Printer Remote printers require a 120 VAC, 50/60 Hz primary power source. If required for the fire alarm system configuration (for example, a Proprietary Fire Alarm System), a remote printer requires a secondary power source (battery backup).

  • Page 39: 3: Installing And Configuring A Keltron Printer

    Installing Remote Printers and/or CRT Installation Option Setting Option Setting Font HS Draft 10 CPI 6 LPI Skip ESC Character Emulate Epson FX-850 PRN-6, LQ-2550 PRN-7 Bidirectional Copy Buffer 40K PRN-6, 64K PRN-7 CG-TAB Graphic Serial Country E-US ASCII Baud 9600, 4800, or 2400 Auto CR Format...

  • Page 40: 4: Installing And Configuring A Crt-2

    Installation Installing Remote Printers and/or CRT Table 3.7 Keltron DIP Switch Settings 3.13.4 Installing and Configuring a CRT-2 A CRT-2 can only be used in a non-networked application when used with the IQ-636X-2/E. For further details on setting up the CRT-2, refer to the IQ-636X-2/E Operations Manual. Connect a CRT-2 to the Control Panel as follows: Connect the three (3) open leads of the custom cable to the TB12 terminal block on the control panel as shown in Figure 3.25.
  • Page 41 Installing Remote Printers and/or CRT Installation Table 3.8 shows the standard settings for using the CRT-2 with the IQ-636X-2/E; for one instance where these settings may change slightly see Section 3.13.5 “Connecting Multiple Printers, CRTs, or CRT/PRN Combination”. The basic settings for using the CRT-2 with IQ-636X-2/E are: •...

  • Page 42: 5: Connecting Multiple Printers, Crts, Or Crt/Prn Combination

    Installation Wiring a Signaling Line Circuit (SLC) 3.13.5 Connecting Multiple Printers, CRTs, or CRT/PRN Combination Connecting multiple devices requires changing the CRT-2 setup using the F1(Quick) menu: • Set Host/Printer=EIA/AUX. • Set EIA Data Format=8/1/N. • If the AUX device is a printer, set the Printer and AUX Data Format=7/1/E. •...

  • Page 43: Connecting A Pc For Off-Line Programming

    Connecting a PC for Off-Line Programming Installation NOTE: To meet the ten-second response time required by UL 864, 9th edition, when SLC loops are configured to run in CLIP mode, all input modules must be set to address 19 or lower on both loop one and 2.

  • Page 44: Section 4: Applications

    Section 4: Applications 4.1 Overview Chapter Covers the following topics Section 4.3 “NFPA 72 Central or How to install UDACT/UDACT-2 with the control panel for use as a Remote Station Fire Alarm System NFPA Central or Remote Station Fire Alarm System (Protected (Protected Premises Unit)”...

  • Page 45: Nfpa 72 Central Or Remote Station Fire Alarm System (Protected Premises Unit)

    NFPA 72 Central or Remote Station Fire Alarm System (Protected Premises Unit) Applications Power Supervision Relay (EOLR-1) (Not required for SLC from FACP FlashScan type codes that provide built-in power supervision.) – Non-resettable 24 VDC Power from – a listed source Device to be *If the SLC device does Supervised...
  • Page 46 Applications NFPA 72 Central or Remote Station Fire Alarm System (Protected Premises Unit) Ferrite cores P/N 29090 FACP Cabinet Solid earth To supervised ground phone lines EIA-485 24 VDC (ACS Mode) Nonresettable power Supervised and power-limited EIA-485 and power wiring UDACT in ABS-8RB (shown with cover removed) Figure 4.2 Typical Wiring Diagram for a Central Station Fire Alarm System...

  • Page 47: Central Station Fire Alarm System Canadian Requirements

    Central Station Fire Alarm System Canadian Requirements Applications 4.4 Central Station Fire Alarm System Canadian Requirements For Canadian applications requiring a second dial-out option, refer to the following illustration for UDACT/UDACT-2 and TM-4 setup: NOTES: • Drawing is not to scale. EIA-485 •...

  • Page 48: Fire/Security Applications

    Applications Fire/Security Applications Telephone line & backup UDACT or UDACT-2 Compatible Receiving Unit IQ-636X-2/E (see UDACT Manual or UDACT-2 Manual) IQ-636X-2/E Protected Premises Unit Figure 4.4 Typical Proprietary Fire Alarm Systems Wiring Connections 4.6 Fire/Security Applications NOTE: IQ-636X-2/E is not approved for use in security applications in Canada. 4.6.1 General Operation The control panel can be used as a combination Fire/Security system when installed and operated according to the instructions in this section.

  • Page 49: 3: Receiving Unit

    Fire/Security Applications Applications Install the magnet on the same side of the cabinet door as the lock. Push the magnet through the opening in the door until it snaps into place. Connect the STS-1 connector to J5 (Security Tamper) on the Control Panel. (As shown in Figure 4.5, J5 is located on the circuit board, underneath the edge of KDM-R2.) Connect to J5 “Security Tamper”...

  • Page 50: Releasing Applications

    Applications Releasing Applications IQ-636X-2/E Protected Premises Unit UL-listed 47K UL-listed, Channel End-of-Line Resistor normally-open A or B (provided with module) security switch *If the SLC device does not match the one in this figure, refer to the SLC manual appendix, which contains wiring conversion charts for type V and type H modules.

  • Page 51: 2: Programming

    Releasing Applications Applications 4.7.2 Programming The control panel supports up to ten releasing software zones. You can map these zones to activate Control Panel releasing outputs and FCM-1 modules. Program the FCM-1 module for the appropriate type code according to the chart below: Type Code: RELEASE CKT Type Code: REL CKT ULC •...
  • Page 52 Applications Releasing Applications b) Program the releasing circuit for Type Code REL CKT ULC. c) Circuits are supervised against opens and shorts. For applications not requiring power-limited circuits – a) If the application does not require supervising the releasing device against shorts, in-line supervisory devices (P/N REL-2.2K) are not required.

  • Page 53: 4: Connecting A Releasing Device To The Fcm-1 Module

    Releasing Applications Applications Monitor Module Mechanical Disconnect Switch listed for the application Note: Disconnect switch must provide separate dry contacts to indicate supervisory. Figure 4.11 Release Circuits (Mechanical Disconnect Switch) 4.7.4 Connecting a Releasing Device to the FCM-1 Module The module can control 1 A of current. Make sure to keep total system current within the limits of the power supply.
  • Page 54 Applications Releasing Applications d) Maintain a 0.25 inch (6.35 mm) spacing between the non-power-limited releasing circuit device wiring and any power-limited circuit wiring. WARNING: The XP6-C is not listed for releasing applications and cannot be substituted for FCM-1 NOTE: As per UL 864 9th Edition, a supervisory signal must be indicated at the panel whenever a releasing circuit is physically disconnected.

  • Page 55: 5: Connecting Releasing Devices To The Fcm-1-Rel Control Module

    Releasing Applications Applications 4.7.5 Connecting Releasing Devices to the FCM-1-REL Control Module Typical Connections Figure 4.13 and Figure 4.13 show typical connections for wiring a releasing device to the FCM-1-REL. Refer to the Device Compatibility Document for compatible releasing devices. Non-resettable 24 VDC power SLC (-)

  • Page 56: 6: Connecting An Nbg-12Lra Agent Release-Abort Station

    Applications Releasing Applications Program the releasing circuit for Type Code REL CKT ULC or RELEASE CKT. Circuits are supervised against opens and shorts. Refer to the IQ-636X-2/E Programming Manual for instructions on setting the Soak Timer. The FCM-1-REL module must be programmed with the correct releasing type code listed in the IQ-636X-2/E Programming Manual.

  • Page 57: Section 5: Testing The System

    Section 5: Testing the System 5.1 Acceptance Test When finished with the original installation and all modifications, conduct a complete operational test on the entire installation to verify compliance with applicable NFPA standards. Testing should be conducted by a factory-trained fire alarm technician in the presence of a representative of the Authority Having Jurisdiction and the owner’s representative.

  • Page 58: Battery Checks And Maintenance

    Testing the System Battery Checks and Maintenance • Return all circuits to their pretest condition. • Check that all status LEDs are off and the green POWER LED is on. • Notify fire, central station and/or building personnel when you finish testing the system. 5.4 Battery Checks and Maintenance Maintenance-free sealed lead-acid batteries used in the system do not require the addition of water or electrolyte.

  • Page 59: Appendix A: Power Supply Calculations

    Appendix A: Power Supply Calculations Calculations must be done to determine standby and alarm DC current loads. Ampere-hour requirements must be calculated as well to determine battery size. The on-board power supply provides filtered 24VDC power that may be used for operating external devices.
  • Page 60 Power Supply Calculations Calculating the System Current Draws How to Use the Calculating Tables As used in this section, “Primary” refers to the control panel’s on-board power supply, its primary source of AC power. “Secondary” refers to the control panel’s backup batteries (or any other 24 VDC power supply listed for Fire Protective Signaling and connected in place of the batteries).

  • Page 61: A.2.1: Calculating The Maximum Secondary Power Fire Alarm Current Draw

    0 / 1 x [0.100]= 0 / 1 x [0.100]= † SLC loop x [.200]= x [.200]= x [.200]= ANSUL-NCA, AutoPulse-NCA-2 (Back x [0.400]= x [0.400]= x [0.400]= light ON) x [0.200]= x [0.200]= x [0.200]= ANSUL-NCA, AutoPulse-NCA-2 (Back x [0.110]= x [0.175]=...
  • Page 62 Power Supply Calculations Calculating the System Current Draws Current Device Quantity Total Current/Type (in amps) Alarm Current, from Table A.2, col 2 APS-6R APS2-6R Sum Column for Secondary Fire Alarm Load Table A.3 Maximum Secondary Power Fire Alarm Current Draw * Actual load current may be used in place of maximum rated supply current.

  • Page 63: A.3: Calculating The Battery Requirements

    Calculating the Battery Requirements Power Supply Calculations A.3 Calculating the Battery Requirements A.3.1 Calculating the Battery Capacity Use this table to determine the battery capacity needed for the system: Current (amps) Time (hours) Secondary Non-Fire Alarm Current Required Secondary Non-Fire Alarm (from column 3 in Table A.2) Standby Time (24 or 60 hours) (see Note 8)

  • Page 64: A.3.2: Calculating The Battery Size

    Power Supply Calculations Calculating the Battery Requirements A.3.2 Calculating the Battery Size Use this table to choose the battery size, in amp-hours, needed to support the fire alarm system. The CPS-24/E can charge batteries from 18 to 200 AH. Select batteries that meet or exceed the Total Amp-Hours calculated in Table A.4 and that are within the acceptable battery charger range.

  • Page 65: Appendix B: Electrical Specifications

    Appendix B: Electrical Specifications B.1 Electrical Specifications AC Power Component Values Main Power Supply 120 VAC, 50/60 Hz, 5.0 A; or 240 VAC, 50/60 Hz, 2.5 A Wire size Maximum 12 AWG (3.31 mm ) with 600 VAC insulation NOTE: If using an auxiliary power supply such as FCPS-24S6/S8, APS-6R or ACPS-2406, or ACPS-610, refer to the documentation for that equipment.
  • Page 66 Electrical Specifications Electrical Specifications Notification Appliance Circuits & Releasing Circuits Item Value Max. wiring voltage drop 2 VDC (Retrofit note: SLCs with old CMX modules are restricted to 1.2 VDC.) NAC Nominal operating 24 VDC regulated, 1.5 A max. voltage Special Applications for 20.16 - 26.42 VDC Releasing Circuits...

  • Page 67: B.2: Wire Requirements

    Wire Requirements Electrical Specifications • Connect the branch circuit to the line side of the main power feed of the protected premises. • Do not power other equipment from the fire alarm branch circuit. • Run the AC branch circuit wire continuously, without any disconnect devices except for overcurrent protection, from the power source to the fire alarm control panel.
  • Page 68 Electrical Specifications Wire Requirements Circuit Distance Circuit Type Wire Requirements Typical Wire Type Function (feet/meters) Connects to Twisted-unshielded pair, 12 to 18 AWG 12,500 ft. (3,810 m) 12 AWG (3.31 mm (power limited) intelligent and (3.31 to 0.82 mm ). 50 ohms maximum per 9,500 ft.

  • Page 69: Appendix C: Canadian Applications

    Appendix C: Canadian Applications C.1 Standalone Application C.1.1 IQ-636X-2/E with KDM-R2 If using KDM-R2 as the primary display for IQ-636X-2/E, an ACS series annunciator must be mounted adjacent to the panel or within IQ-636X-2/E enclosure. C.1.2 IQ-636X-2/E with AutoPulse-NCA-2 Network Control Annunciator (AutoPulse-NCA-2) with 640-character, multi-line display complies with ULC requirements when used as the primary display for IQ-636X-2/E.
  • Page 70 Index Numerics 24 VDC, see Power (DC) Electrical Connections 30 Electrical Specifications 65 EOLR-1 see Power Supervision Relay External Power Supervision 44 A77-716B, see Power Supervision Relay Replaced by EOLR-1 AC, also see Power 31 Acceptance Test 57 FCM-1 53 ACM-8R FCM-1-REL 44 –...
  • Page 71 Index N–W Specifications 66 Releasing Device NACs (Notification Appliance Circuits) Connections 51 Backup Option 35 FCM-1 Connections 53 NAC Connections 34 FCM-1-REL Connections 44 Releasing Applications 34 Specifications 66 NBG-12LRA 56 NFPA Applications Security Relays, see Form-C Relays 35 NFPA 72 Central or Remote Station Fire Security Tamper Switch 48 Alarm System 45 Service 57...
  • Page 72 TYCO SAFETY PRODUCTS ONE STANTON STREET MARINETTE, WI 54143-2542 715-735-7411...
