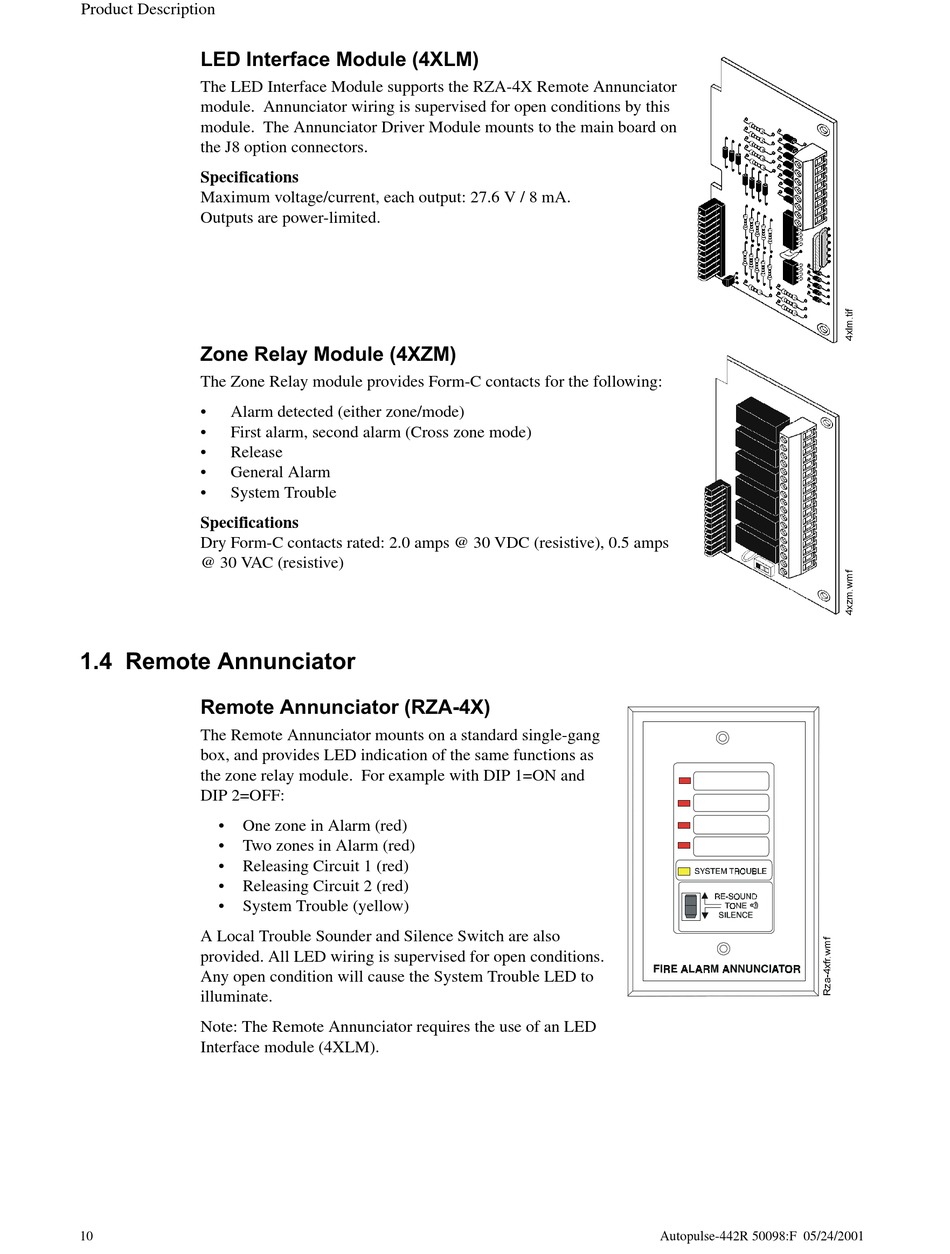

Product Description
/(',QWHUIDFH0RGXOH ;/0
The LED Interface Module supports the RZA-4X Remote Annunciator
module. Annunciator wiring is supervised for open conditions by this
module. The Annunciator Driver Module mounts to the main board on
the J8 option connectors.

Specifications

Maximum voltage/current, each output: 27.6 V / 8 mA.
Outputs are power-limited.
=RQH5HOD\0RGXOH ;=0
The Zone Relay module provides Form-C contacts for the following:
• Alarm detected (either zone/mode)
• First alarm, second alarm (Cross zone mode)
• Release
• General Alarm
• System Trouble
Specifications
Dry Form-C contacts rated: 2.0 amps @ 30 VDC (resistive), 0.5 amps
@ 30 VAC (resistive)
5HPRWH$QQXQFLDWRU
5HPRWH$QQXQFLDWRU 5=$;
The Remote Annunciator mounts on a standard single-gang
box, and provides LED indication of the same functions as
the zone relay module. For example with DIP 1=ON and
DIP 2=OFF:
• One zone in Alarm (red)
• Two zones in Alarm (red)
• Releasing Circuit 1 (red)
• Releasing Circuit 2 (red)
• System Trouble (yellow)
A Local Trouble Sounder and Silence Switch are also
provided. All LED wiring is supervised for open conditions.
Any open condition will cause the System Trouble LED to
illuminate.
Note: The Remote Annunciator requires the use of an LED
Interface module (4XLM).
10 Autopulse-442R 50098:F 05/24/2001
