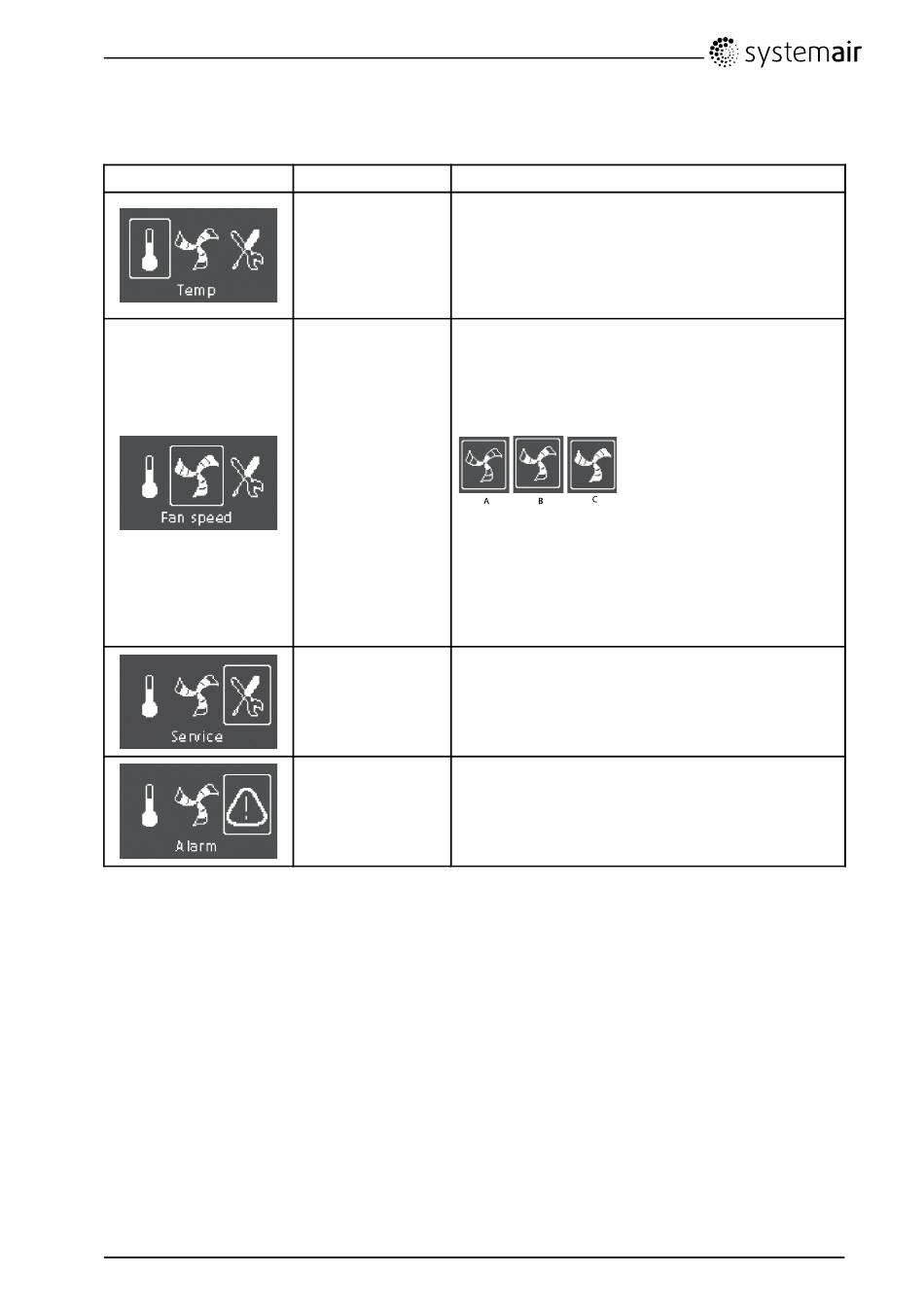

2 Display symbols
Symbol
1. Can be set to OFF by activating "Manual fan stop". See "Service menu overview" under
"Functions".
CD Control panel
D2074870
Description
Explanation
Illustrates the current set temperature. The
temperature setting is done in 5 steps (from completely
empty to filled symbol) and can be changed manually
Temp
by turning the "selection knob".
Confirm the setting with the "confirm button" (chapter
3.1 and chapter 3.3).
Illustrates the current set fan speed.
The fan speed can be set manually in 3 steps (Low,
Nom and High) by turning the selection knob and
confirming with the confirm button after completed
setting.
Fan speed
• Low ventilation (A): Can be used when leaving the
• Nominal ventilation (B): Will give required air
• High ventilation (C): To increase the airflow if
Access the service menu by pressing the confirm
Service
button.
Alarm
Access the alarm list by pressing the confirm button.
2
C
A
B
building for a longer period.
change under normal conditions.
necessary.
1
Service Menu
Systemair AB
