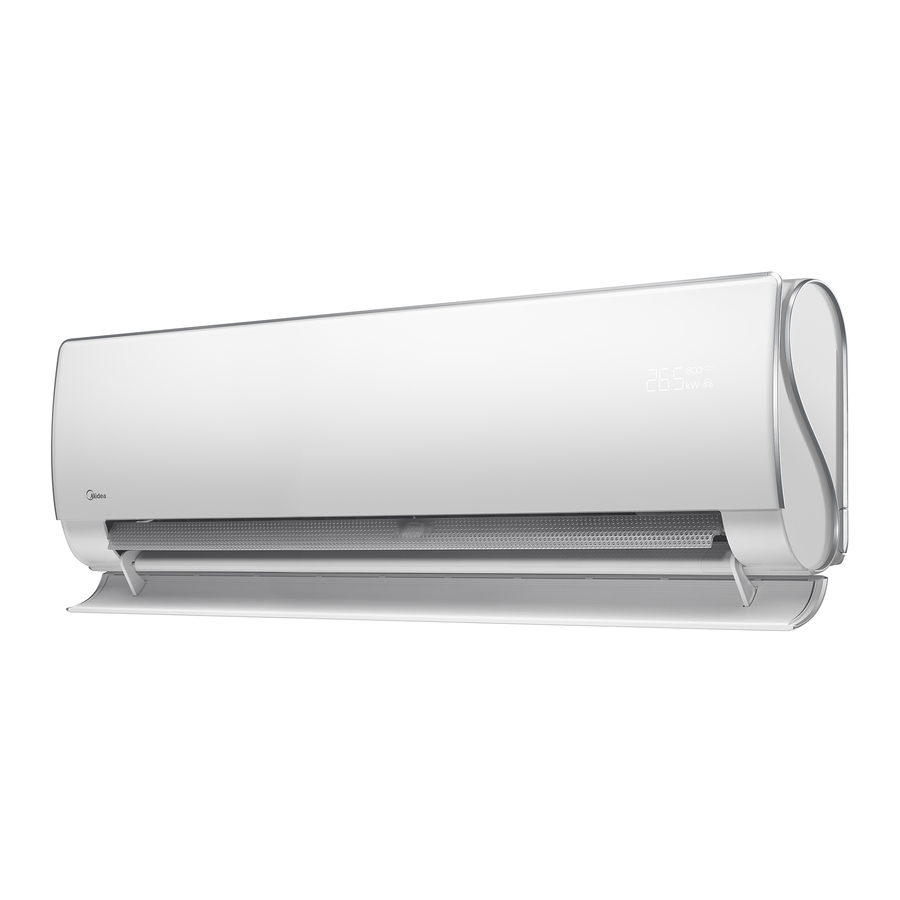

- Page 1 Installation Manual Ultimate Comfort Series Indoor Unit Model Outdoor Unit Model MSMTAU-09HRFN8-QRD6GW MOB01-09HFN8-QRD6GW MSMTAU-12HRFN8-QRD6GW MOB01-12HFN8-QRD6GWC CS78421-548-754...
-
Page 2: Table Of Contents
Table of Contents Installation Manual Safety Precautions......Accessories........Installation Summary - Indoor Unit..Unit Parts.......... 10 Indoor Unit Installation..11 1. Select installation location......11 2. Attach mounting plate to wall....12 3. Drill wall hole for connective piping.... 12 4. - Page 3 Refrigerant Piping Connection..25 A. Note on Pipe Length..........25 B. Connection Instructions –Refrigerant Piping..... 25 1. Cut pipe.............. 25 2. Remove burrs............26 3. Flare pipe ends............ 26 4. Connect pipes............. 27 Caution: Risk of fire (for R32 refrigerant ony ) Air Evacuation....
- Page 4 12 Quick Guide........40 13 Display board & Fault Codes ...41 Service Documents....42...
-
Page 5: Safety Precautions
Safety Precautions Read Safety Precautions Before Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION. This symbol indicates that ignoring instructions may cause death or serious injury. - Page 6 WARNING For all electrical work, follow all local and national wiring standards, regulations, and the Installation Manual. You must use an independent circuit and single outlet to supply power. Insufficient electrical capacity or defects in electrical work can cause electrical shock or fire. 12.
-
Page 7: Accessories
Accessories The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or cause the equipment to fail. Name Shape Quantity... - Page 8 Name Shape Quantity SPLIT-TYPE ROOM AIR CONDITIONER Owner’s Manual Aurora Series All Model Numbers Owner’s manual CS78421-548-754 IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. SPLIT-TYPE ROOM AIR CONDITIONER Installation Manual Aurora Series...
-
Page 9: Installation Summary - Indoor Unit
Installation Summary - Indoor Unit 15cm 12cm 12cm 2.3m Select Installation Location Determine Wall Hole Position (Page 11) (Page 12) Attach Mounting Plate Drill Wall Hole (Page 12) (Page 12) Page 8 ... - Page 10 Connect Piping Prepare Refrigerant Connect Wiring piping (Page 25) (Page 17) (Page 14) STEP Mount Indoor Unit (Page 18) Page 9 ...
-
Page 11: Unit Parts
Unit Parts NOTE: The installation must be performed in accordance with the requirement of local and national standards. The installation may be slightly different in different areas. Air-break switch （1） （2） Fig. 2.1 Functional Filter (On Front of Remote Controller Wall Mounting Plate Main Filter - Some Units) Remote controller Holder... - Page 12 Indoor Unit Installation install unit in the following DO NOT Installation Instructions – Indoor locations: Unit Near any source of heat, steam, or combustible gas PRIOR TO INSTALLATION Near any obstacle that might block air Before installing the indoor unit, refer to the circulation label on the product box to make sure that the model number of the indoor unit matches the...
-
Page 13: Attach Mounting Plate To Wall
Refer to the following diagram to ensure proper distance from walls and ceiling: 15cm or more 12cm 12cm or more more 2.3m or more Fig. 3.1 Step 2: Attach mounting plate to wall Step 3: Drill wall hole for connective piping The mounting plate is the device on which you You must drill a hole in the wall for refrigerant will mount the indoor unit. - Page 14 Wall Indoor Outdoor Fig.3.2 Fig. 3.2 MOUNTING PLATE DIMENSIONS 506mm Different models have different mounting plates. In order to ensure that you have ample room to mount the indoor unit, the diagrams to the right show different types of mounting plates along Left rear wall with the following dimensions: hole 65mm...
-
Page 15: Prepare Refrigerant Piping
4. Use scissors to cut down the length of the Step 4: Prepare refrigerant piping insulating sleeve to reveal about 15cm of The refrigerant piping is inside an insulating the refrigerant piping. This serves two sleeve attached to the back of the unit. You must purposes: prepare the piping before passing it through the •... -
Page 16: Connect Drain Hose
Step 5: Connect drain hose PLUG THE UNUSED DRAIN HOLE By default, the drain hose is attached to the left- To prevent unwanted leaks you must plug hand side of unit (when you’re facing the back the unused drain hole with the rubber plug of the unit). - Page 17 BEFORE PERFORMING ELECTRICAL WORK, READ THESE REGULATIONS All wiring must comply with local and national electrical codes, and must be installed by a licensed electrician. All electrical connections must be made according to the Electrical Connection Diagram located on the panels of the indoor and outdoor units. If there is a serious safety issue with the power supply, stop work immediately.
-
Page 18: Connect The Cables
Step 6: Connect the cables Prepare the cable for connection: The signal cable enables communication between Using wire strippers, strip the rubber jacket from both ends of signal cable to reveal the indoor and outdoor units. You must first about 40mm of the wires inside. choose the right cable size before preparing it for connection. -
Page 19: Mount Indoor Unit
Facing the back of the unit, remove the plastic DO NOT INTERTWINE SIGNAL CABLE WITH panel on the bottom left-hand side. OTHER WIRES 6. Feed the signal wire through this slot, from While bundling these items together, do not the back of the unit to the front. intertwine or cross the signal cable with any 7. - Page 20 If refrigerant piping is already embedded in Connect drain hose and refrigerant piping the wall, do the following: (refer to Refrigerant Piping Connection section of this manual for instructions). Hook the top of the indoor unit on the upper Keep pipe connection point exposed to hook of the mounting plate.
- Page 21 Outdoor Unit Installation Installation Instructions – Outdoor Unit Step 1: Select installation location Before installing the outdoor unit, you must choose an appropriate location. The following are standards that will help you choose an appropriate location for the unit. Fig. 4.1 Proper installation locations meet the following standards: install unit in the following locations:...
- Page 22 SPECIAL CONSIDERATIONS FOR EXTREME If the drain joint comes with a rubber seal WEATHER (see Fig. 4.4 - A ), do the following: If the unit is exposed to heavy wind: Fit the rubber seal on the end of the drain joint Install unit so that air outlet fan is at a 90°...
- Page 23 Step 3: Anchor outdoor unit UNIT MOUNTING DIMENSIONS The outdoor unit can be anchored The following is a list of different to the ground or to a wall-mounted outdoor unit sizes and the distance bracket. between their mounting feet. Prepare the installation base of the unit according to the dimensions below.
- Page 24 If you will install the unit on a wall-mounted BEFORE PERFORMING bracket , do the following: ELECTRICAL WORK, READ THESE REGULATIONS All wiring must comply with local and CAUTION national electrical codes, and must be Before installing a wall-mounted unit, make installed by a licensed electrician.
- Page 25 WARNING WARNING BEFORE PERFORMING ANY ELECTRICAL ALL WIRING MUST BE PERFORMED STRICTLY OR WIRING WORK, TURN OFF THE MAIN IN ACCORDANCE WITH THE WIRING DIRGRAM LOCATED INSIDE THE OUTDOOR POWER TO THE SYSTEM. ’ UNIT S WIRE COVER. Prepare the cable for connection: Power and Signal Cables Unscrew the electrical wiring cover and Rated Current of...
-
Page 26: Refrigerant Piping Connection
Refrigerant Piping Connection Note on Pipe Length The length of refrigerant piping will affect the performance and energy efficiency of the unit. Nominal efficiency is tested on units with a pipe length of 5 meters. A minimum pipe run of 3 metres is required to minimise vibration &... -
Page 27: Remove Burrs
DO NOT DEFORM PIPE WHILE CUTTING Flare nut Be extra careful not to damage, dent, or deform the pipe while cutting. This will drastically reduce the heating efficiency of the unit. Copper pipe Step 2: Remove burrs Burrs can affect the air-tight seal of refrigerant piping connection. -
Page 28: Connect Pipes
Place flaring tool onto the form. Tighten the flare nut as tightly as possible by hand. Turn the handle of the flaring tool clockwise until the pipe is fully flared. Using a spanner, grip the nut on the unit tubing. Remove the flaring tool and flare form, then inspect the end of the pipe for cracks and While firmly gripping the nut on the unit... - Page 29 Instructions for Connecting Piping USE SPANNER TO GRIP MAIN to Outdoor Unit BODY OF VALVE Torque from tightening the flare nut can snap Unscrew the cover from the packed valve on off other parts of valve. the side of the outdoor unit. (See Fig. 5.9) Valve cove Fig.
- Page 30 Pressure Test Instructions Systems are pressure tested to ensure they are: Safe – for this test a pressure above the system’s maximum allowable pressure (PS i ) is used Leak tight – this test is at PS i . Pressure testing is hazardous and should be carried out carefully: The nitrogen used for pressure testing is an asphyxiant, so the area around the system should be well-ventilated High pressures are used, so all non-essential personal should be evacuated...
-
Page 31: Air Evacuation
Air Evacuation Preparations and Precautions Evacuation Instructions Air and foreign matter in the refrigerant circuit Before using the manifold gauge and vacuum can cause abnormal rises in pressure, which pump, read their operation manuals to familiarize can damage the air conditioner, reduce its yourself with how to use them properly. -
Page 32: Note On Adding Refrigerant
Flare nut Close the Low Pressure side of the manifold gauge, and turn off the vacuum pump. Wait for 5 minutes, then check that there has been no change in system pressure. If there is a change in system pressure, refer to Gas Leak Check section for information alve body on how to check for leaks. -
Page 33: Electrical And Gas Leak Checks
Electrical and Gas Leak Checks WARNING – RISK OF Electrical Safety Checks ELECTRIC SHOCK After installation, confirm that all electrical wiring ALL WIRING MUST COMPLY WITH LOCAL is installed in accordance with local and national AND NATIONAL ELECTRICAL CODES, regulations, and according to the Installation AND MUST BE INSTALLED BY A LICENSED Manual. -
Page 34: Test Run
Test Run Check to see that the drainage system is Before Test Run unimpeded and draining smoothly. g. Ensure there is no vibration or abnormal noise A test run must be performed after the entire system has during operation. been completely installed. Confirm the following points 5. - Page 35 DOUBLE-CHECK PIPE CONNECTIONS During operation, the pressure of the refrigerant circuit will increase. This may reveal leaks that were not present during your initial leak check. Take time during the Test Run to double-check that all refrigerant pipe connection points do not have leaks. Refer to Gas Leak Check section for instructions.
-
Page 36: European Disposal Guidelines
European Disposal Guidelines This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. Do not dispose of this product as household waste or unsorted municipal waste. When disposing of this appliance, you have the following options: •... -
Page 37: Servicing Information
Servicing Information (Required for the units adopt R32 Refrigerant only) 1. Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system. - Page 38 the charge size is in accordance with the room size within which the refrigerant containing parts are installed; the ventilation machinery and outlets are operating adequately and are not obstructed; if an indirect refrigerating circuit is being used, the secondary circuits shall be checked for the presence of refrigerant;...
- Page 39 11. Repair to intrinsically safe components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinscially safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
- Page 40 When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not closed to any ignition sources and there is ventilation available.
- Page 41 18. Labelling Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant. 19. Recovery When removing refrigerant from a system, either for service or decommissioning, it is recommended good practice that all refrigerants are removed safely.
- Page 42 Step 13: Complete your warranty card document and e-mail this with dated photo of outdoor serial number to: warranty@fgeuropeuk.co.uk Note: Installation videos can also be found on the Midea UK YouTube channel. Please contact your Midea support team if you have any issues during the installation and commissioning process. Tel: 02074 092009 E-Mail: technical@fgeuropeuk.co.uk...
- Page 43 Display Board & Fault Codes Page 4 1...
- Page 44 Service Documents Indoor Unit Maintenance 17 Old Park Lane, London, W1K 1QT Tel: + 44 (0) 2074 092009 Please complete a form PER Indoor Unit Customer Contact Information Company Name: Contact Name: Contact Number: E-Mail Address: Site Reference Date of Visit: Indoor Details Location Served Model No.
- Page 45 Outdoor Unit Maintenance 17 Old Park Lane, London, W1K 1QT Tel: + 44 (0) 2074 092009 Please complete a form PER Outdoor Unit Customer Contact Information Company Name: Contact Name: Contact Number: E-Mail Address: Site Reference Date of Visit: Outdoor Details Location Served Model No.
- Page 46 Split Commissioning Checklist 17 Old Park Lane, London, W1K 1QT Tel: + 44 (0) 2074 092009 Customer Contact Information Company Name: Contact Name: Contact Number: E-Mail Address: Site Reference Date of Visit: Site Address County/Region: Postcode: System Details Indoor Model No. Indoor Serial No.
- Page 47 WARRANTY CLAIM REQUEST FORM 17 Old Park Lane, London, W1K 1QT Tel: + 44 (0) 2074 092009 Once this from is completed please return to: warranty@fgeuropeuk.co.uk Customer Contact Information Company Name: Contact Name: Contact Number: E-Mail Address: Site Reference: Date: Parts to Be Claimed Model No.
- Page 48 NOTES...
- Page 49 17 Old Park Lane, London, W1K 1QT Tel: + 44 (0) 2074 092009...
