V3-10.15
Assembly Instructions
(W x D x H) m0.39 x 0.39m x 1.2m
Product Name: Scafell Obelisk
Pressure Treated products should not be treated with any other products for the first month.
PLEASE KEEP THESE INSTRUCTIONS
Zest4Leisure
01352 752555 option 1 – sales@zest4leisure.co.uk
Advertisement
Related Manuals for Zest 4 Leisure Scafell Obelisk
Summary of Contents for Zest 4 Leisure Scafell Obelisk

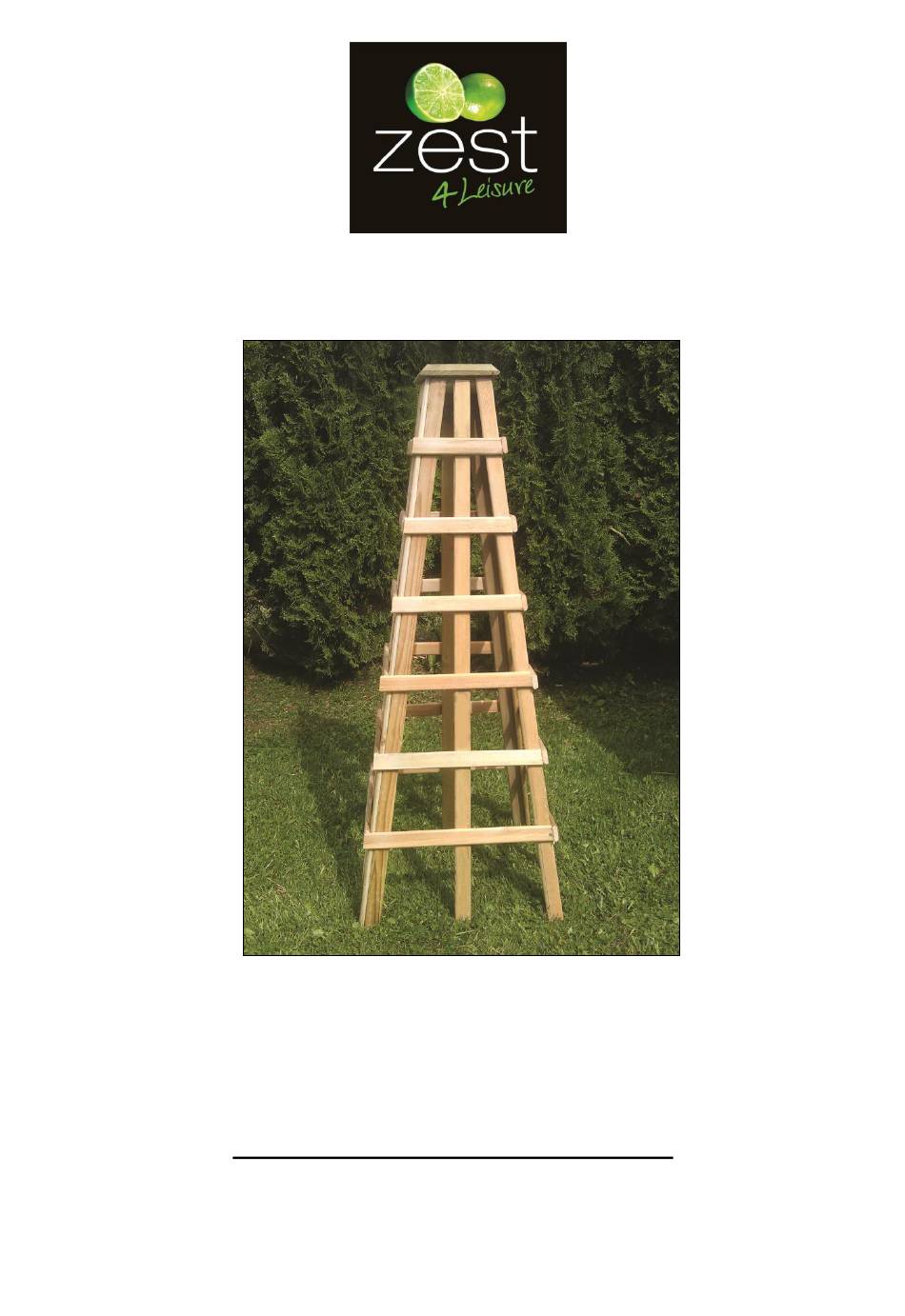

- Page 1 V3-10.15 Assembly Instructions (W x D x H) m0.39 x 0.39m x 1.2m Product Name: Scafell Obelisk Pressure Treated products should not be treated with any other products for the first month. PLEASE KEEP THESE INSTRUCTIONS Zest4Leisure 01352 752555 option 1 – sales@zest4leisure.co.uk...
- Page 2 Scafell Pike Obelisk Assembly Instructions Requires 2 person assembly. Tools required: Corded / Cordless Drill, Pozi-drive Bit / Screwdriver, 3mm Drill Bit required in order for you to drill all screw holes before construction. Scafell Pike Obelisk Pack List Item Description Quantity Side Panel...
- Page 3 Please take a few moments to check all pack contents listed. Assembly requires 2 persons. Tools required: Corded/Cordless Drill, Pozi-drive Bit/Screwdriver, 3mm Drill Bit required in order for you to drill all screw holes before construction. Align two Trellis Panels A as shown in Fig.1a. Ensuring that screw holes are positioned in overlap of horizontal batten (See arrows Fig.1a) and horizontal battens face outwards, attach panels using 3no 30mm screws (Figs.1b, 1c &...
- Page 4 www.zest4leisure.co.uk...
