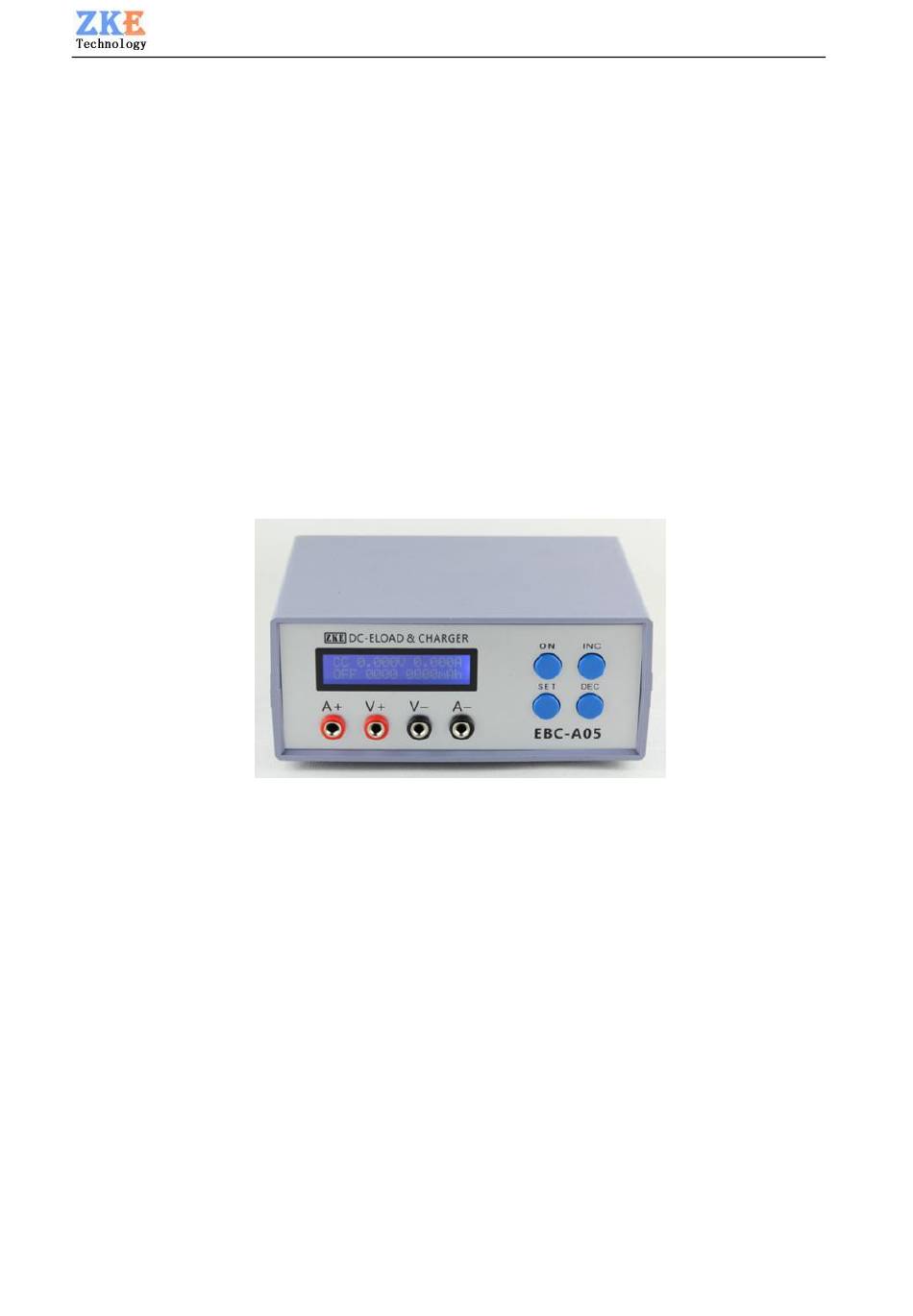

Multifunction Electronic Load (EBC-A05) User Manual EBC-A05 User Manual Copyright (C) 2006-2015 ZKE Technology...
Page 2
7) LCD Display: voltage, current, time, capacity, power, energy, and etc 8) PC Connection: The tester can be connected to a computer through a designated USB-TTL cable to have more functions. EBC-A05 User Manual Copyright (C) 2006-2015 ZKE Technology...
Page 3
5.5/2.1 (inside positive and outside negative). 4. Display and setting 4.1 Buttons —— start and stop —— set up and switch —— page up and increase —— page down and decrease 4.2 Testing Interface EBC-A05 User Manual Copyright (C) 2006-2015 ZKE Technology...
Page 4
First line: mode and discharging current setting. Second line: cut-off voltage (testing automatically stops when voltage reaches below this value) and the maximum testing time setting (no time limit if being set 0). 2) CP discharging EBC-A05 User Manual Copyright (C) 2006-2015 ZKE Technology...
Page 5
In setting mode, a long press on “SET” button to save data and return to testing interface. When setting completes, press “ON” button on the testing interface and testing starts. 4.4 Setting examples EBC-A05 User Manual Copyright (C) 2006-2015 ZKE Technology...
Page 6
5) PC software: http://zke2006.blog.163.com/blog/static/199527095201111284512232/ 6) Technical support: QQ:2353976901 E-Mail:zke2006@163.com We always focus on innovation and improvement and will keep upgrading the software. Please frequently visit our official blog: zke2006.blog.163.com to download the latest manuals. EBC-A05 User Manual Copyright (C) 2006-2015 ZKE Technology...
