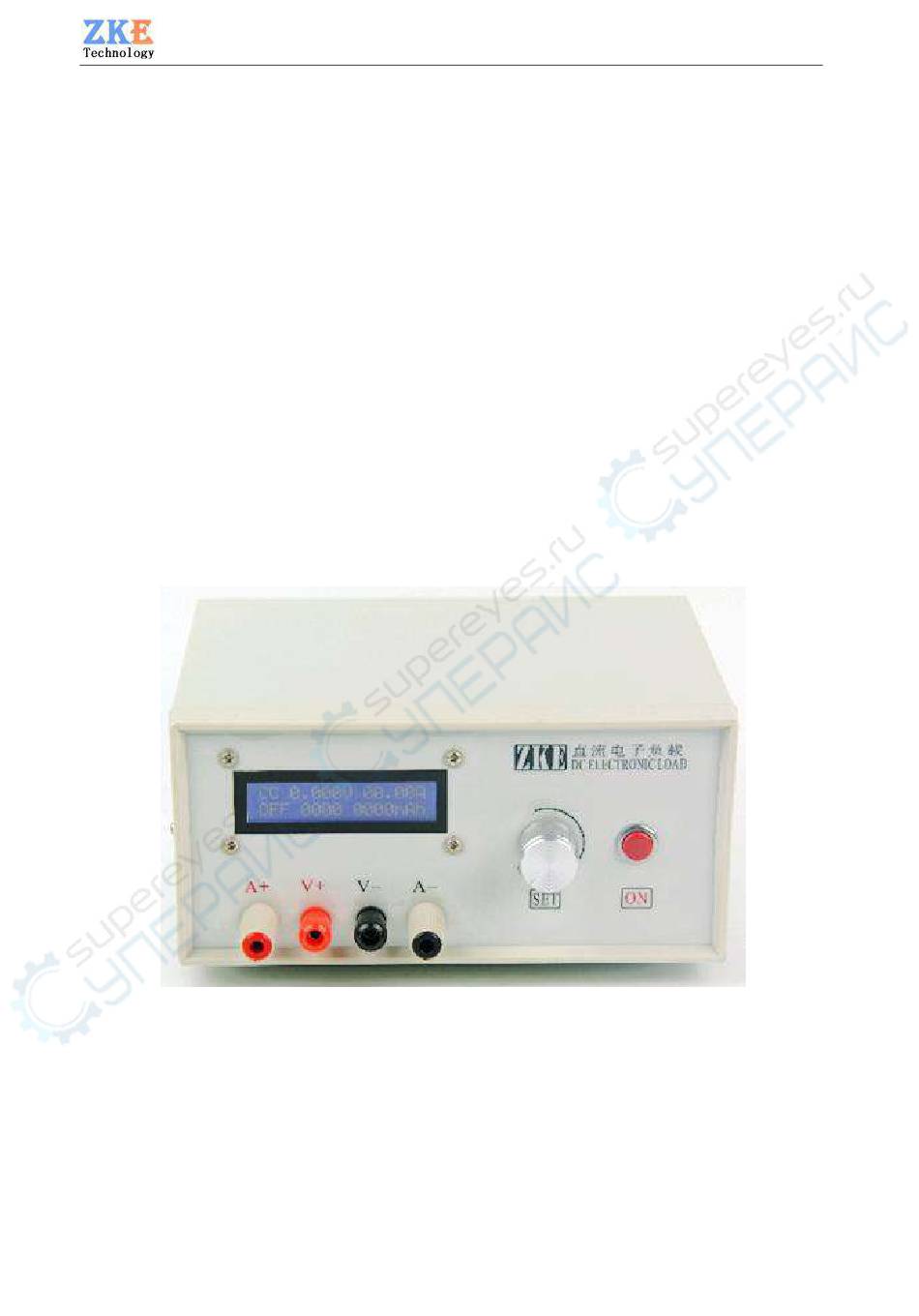

- Page 1 ZKETECH Multifunction Electronic Load (EBD-A20H) Release Date 2017-01-01...
-
Page 2: Specifications
10) LCD Display: voltage, current, time, capacity, power, energy, and etc 11) PC Connection: the tester can connect to a computer through a designated USB-TTL cable (with areial socket) for more functions, like graphs, calibration, firmware upgrade, and test circulation. EBD-A20H User Manual Copyright (C) 2006-2017 ZKETECH... - Page 3 Discharge stops when voltage in tests reaches below cut-off voltage. The second line shows working state (it shows OFF when the tester stops working and it turns DSC at working), working time (minutes) and capacity (automatically switches between EBD-A20H User Manual Copyright (C) 2006-2017 ZKETECH...
- Page 4 Ø Press “ON” button to start testing. Ø When testing completes rotate the knob to left and right to read test results. Ø Remove the battery and turn off the tester. 2) Discharging 3.7V LiPo to 2.8V at 10A EBD-A20H User Manual Copyright (C) 2006-2017 ZKETECH...
- Page 5 4) PC connection: follow EB Tester Software User Manual. 5) Technical support: zke2006@163.com 6) Taobao store: zke2006.taobao.com We always focus on innovation and improvement and will keep upgrading the software. Please frequently visit www.zketech.com to download the latest manuals. EBD-A20H User Manual Copyright (C) 2006-2017 ZKETECH...
