Summary of Contents for ZKETECH EBC-A01

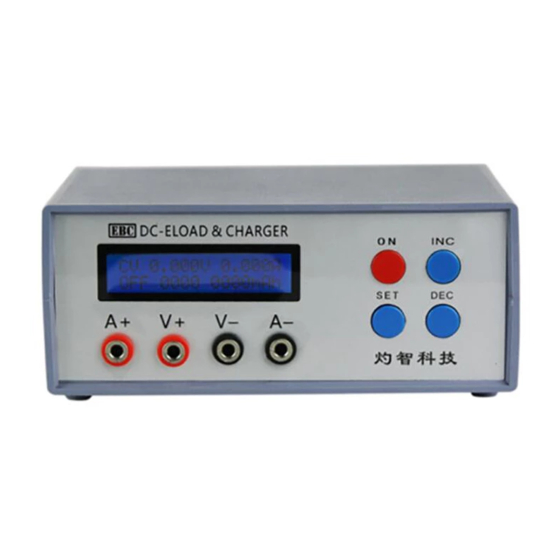

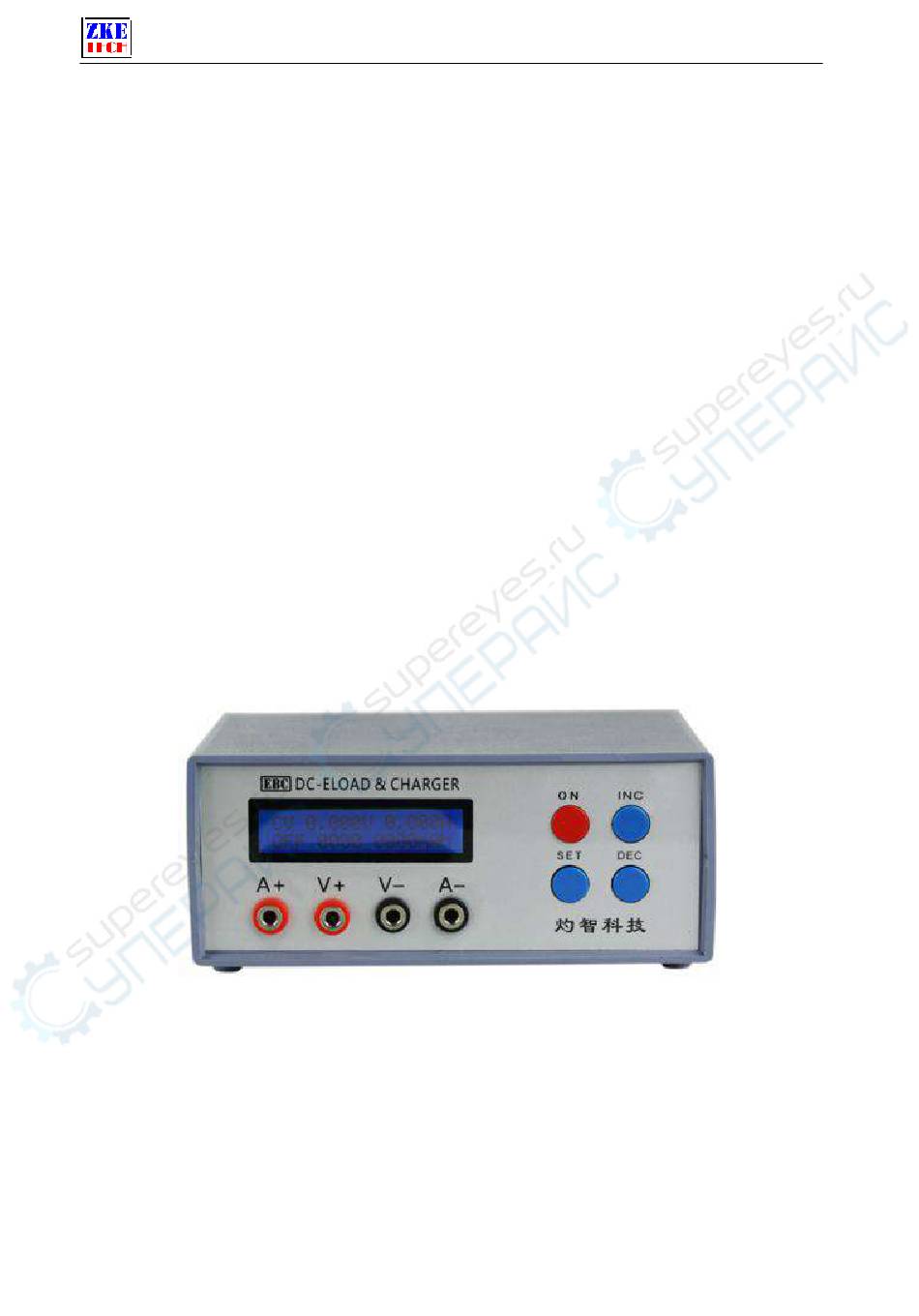

- Page 1 ZKETECH Multifunction Electronic Load EBC-A01) Release Date 2017-01-01...
- Page 2 11) LCD display: voltage, current, time, capacity, and etc. 12) PC connection: the tester can connect to a computer through a designated USB-TTL cable for more functions, like graphs, calibration, firmware upgrade, and test circulation. EBC-A01 User Manual Copyright (C) 2006-2017 ZKETECH...
- Page 3 The second line shows working state (it shows OFF when the tester stops working and it turns working. reads when choose automatic charging-discharging-charging mode, and 1 refers to current working step), working time EBC-A01 User Manual Copyright (C) 2006-2017 ZKETECH...
- Page 4 (0-999 minutes, no limitation when it’s set 0). 3) Charging at a constant current and voltage – DSC-CV The first line shows testing mode and charging current. EBC-A01 User Manual Copyright (C) 2006-2017 ZKETECH...
- Page 5 2) Setting discharging at a constant current (discharging a button cell battery to 2V at 0.005A) 3) Charging at a constant current (charging 3.7V LiPo to 4.2V at 0.1A, cut-off current sets 0.05A) EBC-A01 User Manual Copyright (C) 2006-2017 ZKETECH...
- Page 6 5) Technical support: zke2006@163.com 6) Taobao store: zke2006.taobao.com We always focus on innovation and improvement and will keep upgrading the software. Please frequently visit our official website: www.zketech.com to download the latest manuals. EBC-A01 User Manual Copyright (C) 2006-2017 ZKETECH...
