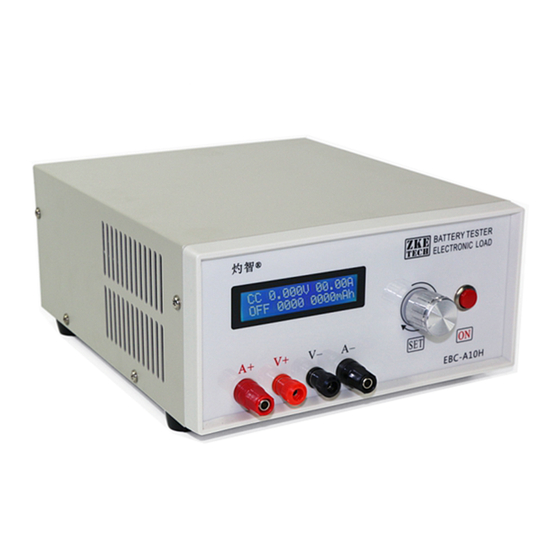

- Page 1 ZKETECH Multifunction Electronic Load EBC-A10H Release Date 2015-06-05...
-
Page 2: Specifications
6) Automatic Charging/Discharging: The tester supports “charging-discharging-charging” circles for capacity tests. 7) Voltage accuracy: between 0-4.5V, 0.003V, ±0.5%, between 4.5-30V, 0.01V, ±0.5%. 8) Current accuracy: 0.05-10.00A, 0.005A, ±0.5%. 9) Capacity detection: < 10Ah,0.001AH; 10-100Ah,0.01Ah; > 100Ah,0.1Ah EBC-A10H User Manual Copyright (C) 2006-2016 ZKETECH... - Page 3 SET —— setting knob (rotate to left/right and press) —— start 4.2 Testing interface The first line shows testing mode, voltage and current. Testing modes include: ² CC – constant current discharging CP – constant power discharging EBC-A10H User Manual Copyright (C) 2006-2016 ZKETECH...
- Page 4 The first line shows testing mode and discharging power. The second line shows cut-off voltage (testing stops automatically when voltage reaches below the set parameter) and the testing time (0-999 minutes, no limitation when it’s set 0). EBC-A10H User Manual Copyright (C) 2006-2016 ZKETECH...
- Page 5 1）Turn on the battery tester. 2）Connect battery and you can read the battery voltage on the testing interface on the screen. 3）Press “SET” knob for more than two seconds to open the setting interface. EBC-A10H User Manual Copyright (C) 2006-2016 ZKETECH...
- Page 6 4）Standard charging (charging 3.7V LiPo to 4.2V at 1A): 5）CC-CV charging (charging 3.7V LiPo to 4.2V at 1A, cut-off curent set at 0.08A) 6） Automatic charging-discharging-charging (charging 3.7V LiPo at 1A and then discharging at 2A, waiting time is 5 minutes) EBC-A10H User Manual Copyright (C) 2006-2016 ZKETECH...
- Page 7 6) PC connection: follow EB Tester Software User Manual. 7) Technical support: zke2006@163.com; QQ: 2353976901 8) Taobao store: zke2006.taobao.com We always focus on innovation and improvement and will keep upgrading the software. Please frequently visit www.zketech.com to download the latest manuals. EBC-A10H User Manual Copyright (C) 2006-2016 ZKETECH...
