Summary of Contents for Ametek SDT

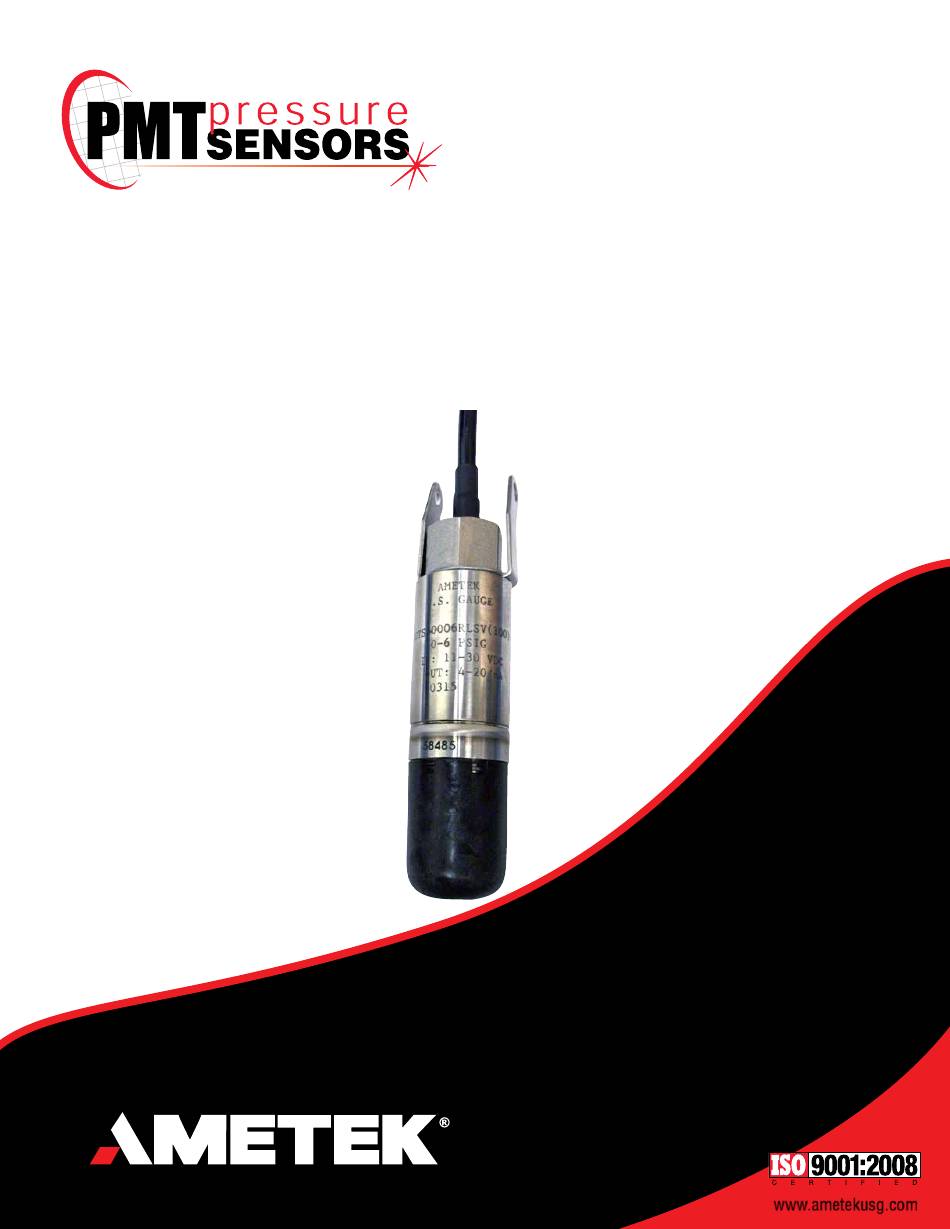

- Page 1 Ametek Model SDT Submersible Pressure Transmitter Installation and Operation Manual K796471 REV B 9/15 www.ametekusg.com...
- Page 2 User Manual AMETEK MODEL SDT SUBMERSIBLE PRESSURE TRANSMITTER Model SDT Submersible Level Transmitter INSTRUCTIONS FOR INSTALLATION, SERVICE AND PARTS SPECIFICATIONS Specifications PRESSURE RANGE UP TO 150 PSIG 0-1 PSI 0-2 PSI 0-3 PSI 0-4 PSI 0-6 PSI ACCURACY AT 25º C INCLUDING ±0.2% FS...
- Page 3 V = TEFLON CABLE (K515075)/CONDUIT ADAPTER X = TEFLON CABLE (K515075)/EMI/CONDUIT ADAPTER STANDARD PRESSURE RANGES* PRESSURE CODE Example: To specify the Model SDT Submersible Transmitter with 11-30V Input and 4-20mA Output having to Reference Equivalents XXXX = PRESSURE RANGE (PSI) 0001 B0.2...
- Page 4 User Manual To install the Model SDT Transmitter, connect the sur- tertightness. Any adjustment face end of the cable to the Ametek Model DMC Meter may destroy the watertight fe Controller or other power source and indicator. Suspend transmitter to water seepage,...
- Page 5 Service & Accessories FACTORY SERVICE WARRANTY POLICY Factory service is available by contacting the AMETEK [“Seller”] warrants for a period of one year Customer Service Department. Supply the from the date of shipment and that all products following information: manufactured by the seller are free from defects of 1.
