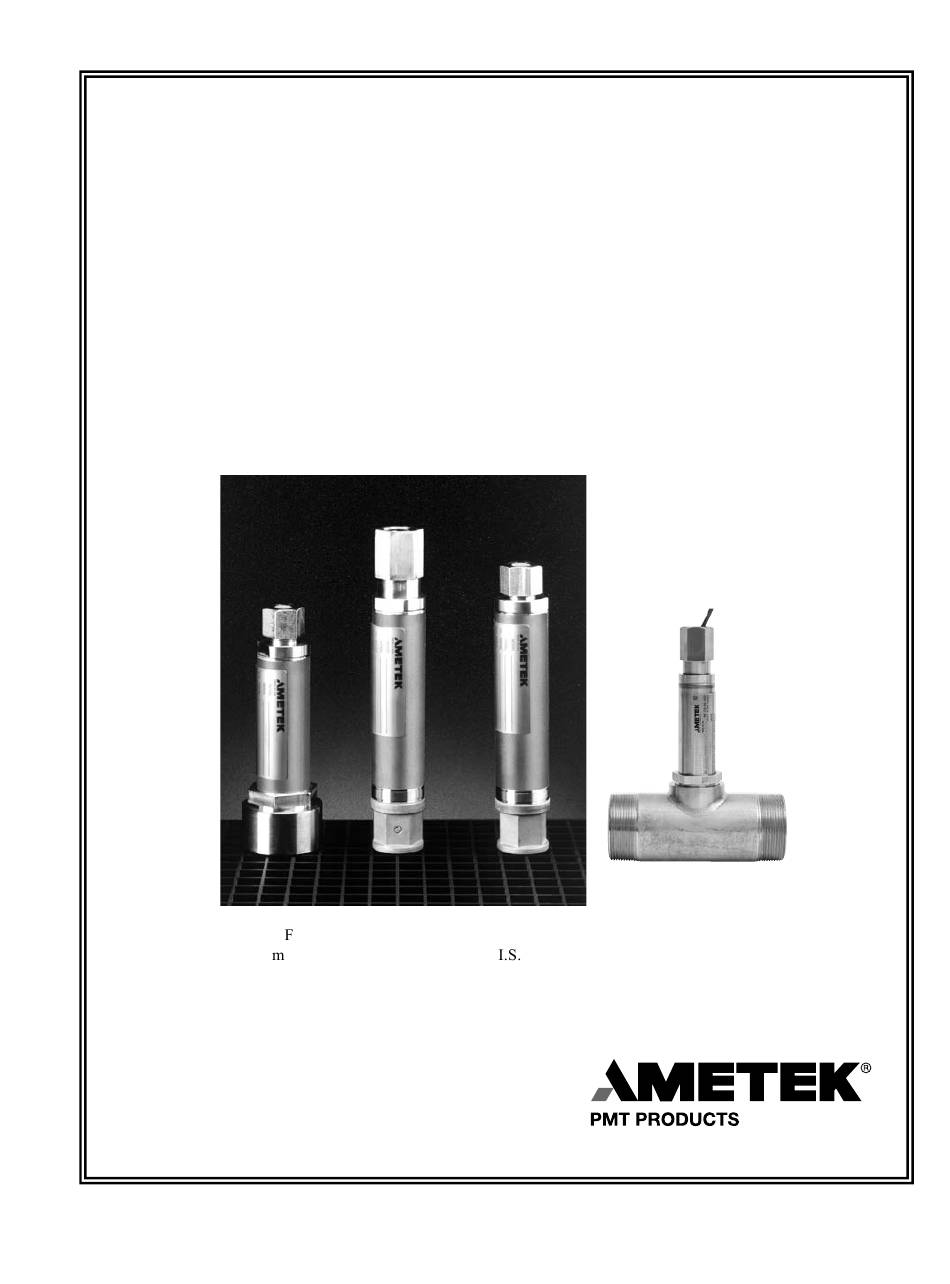

MODEL 851 SERIES ELECTRONIC PRESSURE TRANSMITTERS FOR HAZARDOUS LOCATIONS INSTRUCTIONS FOR INSTALLATION, OPERATION, AND CALIBRATION F l u s h m o u n t m o d e s h o w o u n t e d i...
Page 12
CAUTION – The Model 851F is shipped with a 3. Position the coupling so that the inside face Protective cover over the flush diaphragm. Do is approximately flush with the inside not damage the diaphragm after removing the surface of the customer’s pressure vessel cover.
Page 16
1. Apply 0 psi pressure to input. The Model 851 Transmitter can be calibrated out-of-system. 2. Adjust “Zero” pot to obtain 4mA (40 mV) output. Figure 4-2 shows an out-of -system piping diagram. 3. Apply pressure which corresponds to “full scale”...
Page 17
SECTION IV CALIBRATION (–) FLUSH MOUNT MODEL ZERO (FINE) ADJUSTMENT 1/2 NPT FEMALE CALIBRATION FITTING AMETEK #K900066...
Page 19
Mail, Telephone, Fax or Email orders to: AMETEK PMT DIVISION 820 PENNSYLVANIA BLVD FEASTERVILLE, PA 19053 For service: TELEPHONE: (215) 355-6900 TELEPHONE: (215) 355-6900 FAX: (215) 354-1802 FAX: (215) 354-1804 E-MAIL: mctpmt.sales@ametek.com E-MAIL: mctpmt.sales@ametek.com for 851F flush models...
