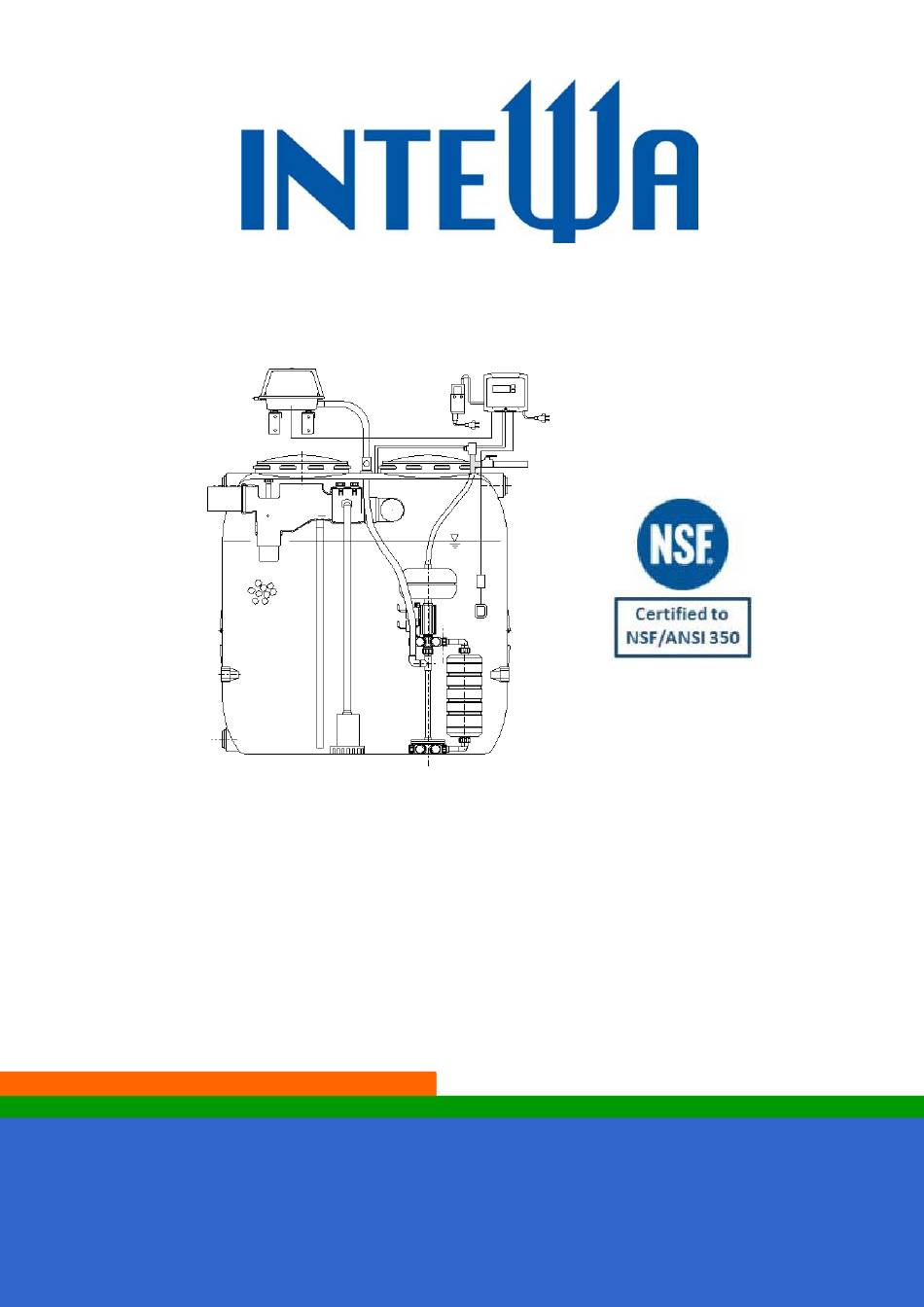

  • Page 1 AQUALOOP System GW greywater recycling AQUALOOP System GW 300 L AQUALOOP System GW 600 L AQUALOOP System GW 900 L AQUALOOP System GW 1200 L AQUALOOP System GW 1500 L AQUALOOP System GW 1800 L Installation and operating instructions WATER, WE’RE IN OUR ELEMENT...

  • Page 2: Table Of Contents

    Contents     Introduction ......................................2     Dimensioning and general description for the AQUALOOP GW series ................3     Functional description ................................4     Influent quality ................................... 5     Effluent quality ................................... 6     Certification NSF/ANSI 350 -2014 ............................6  ...

  • Page 3: Introduction

    1. Introduction In grey water recycling the contaminated water from shower, bath tub, hand basin and washing machine is collected and processed for reuse in toilet flushing, garden watering, washing machines and household cleaning purposes. The storage volume required for a grey water system is very small, as the water accumulates daily, therefore grey water systems require little space.

  • Page 4: Dimensioning And General Description For The Aqualoop Gw Series

    2. Dimensioning and general description for the AQUALOOP GW series   The AQUALOOP membrane station can be equipped with 1 to 6 membrane cartridges. In the standard grey water application 300 litres per day is filtered using one single membrane cartridge. One fully equipped membrane station (using 6 membrane cartridges) generates a daily flow of 1800 litres.

  • Page 5: Functional Description

    2.1 Functional description   Greywater inlet (ventilated) Bioreactor Pre-filter Suction overflow hose Sludge pump Sewerage system Membrane station with suction and back flush pump Membrane cartridge min. Blower 10. Control unit 11. Permeate outlet 12. Ventilated pipe Fig.: Installation layout of AQUALOOP System GW The grey water (1) from bathroom (bath tub, shower, basins) and washing machine outflow is first filtered by the pre-filter (3) and then enters the bio reactor (2).

  • Page 6: Influent Quality

    2.2 Influent quality The AQUALOOP System 300-1800L designed for greywater treatment. Greywater is only recognized as water from shower, bath tub, hand basin and washing machine! Never kitchen, dishwasher or toilet water! Permitted use of the following detergents and cleaning products: ...

  • Page 7: Effluent Quality

    2.3 Effluent quality The required and final tested treated effluent quality according to NSF/ANSI 350-2014 listed in the table below: Measure Class C Class C requirement AQUALOOP Test result NSF approval Measure Test Single Result Single Average Sample Average Sample Maximum Maximum CBOD (mg/L) TSS (mg/L)

  • Page 8: General Safety Instructions

    3. General safety instructions The live components have to be installed only by a qualified electrician. In case of failure of the electronic device, the product has to be repaired by a qualified electrician before being operated again. There is a risk of electric shock! The outlet circuit used for the device has to be secured through a circuit breaker protected (16 A in several countries).

  • Page 9: Declaration Of Conformity, Electrical Standards, Approvals

    Declaration of conformity, electrical standards, approvals The AQUALOOP electrical equipment corresponds with the basic safety and health requirements of the EC directives for machines. Any modification of the equipment not coordinated by INTEWA will void the warranty. INTEWA GMBH hereby declares that the electrical equipment of AQUALOOP fulfils the requirements of...

  • Page 10: Scope Of Delivery, Transporting, Storage

    5. Scope of delivery, Transporting, Storage AQUALOOP-MS, membrane station with control unit, switching power supplier, floating switch (2pcs.) AQUALOOP-MEM, membrane (numbers depending on necessary daily flow rate) AQUALOOP-F100, pre-filter AQUALOOP-BL , blower (size depends on the numbers of cartridges) AQUALOOP-FK30l, growth media material (depends on the daily flow rate) Bioreactor tank (size depends on the daily treated water amount) Installation material: ...

  • Page 11: Technical Data And Installation Details

    6. Technical data and installation details 6.1 Membrane station control unit Dimensions (H x W/(incl. AC switching power 201 x 198 (329) x 110 mm supply) x T): Mains supply central controller (230V-IN): 110 - 230 V AC / 50-60 Hz AC switching power supply input: 110 - 230 V AC / 50-60 Hz (24 V DC, 4.0 A) AC switching power supply output:...
  • Page 12 Fig.: Drilled hole distances of controller housing and DC switching power supply brackets Note: Pay attention that there is space to open the housing lid above the housing and a place for cable routings below the housing installation space (each at least 190 mm). Electric connections: - All electric cables are now to be connected to the controller.

  • Page 13: Membrane Station

    6.2 Membrane station Article: AL-MS Dimension (Ø x H): max. Ø 504 x 833 mm (with max. mounting) Weight without Membranes: 3,5 kg Central blower connection: Nozzle, Ø 25 mm Clear water connection: ¾“ AG Power consumption suction- / back flush 30-60 W (depending on the number of membranes pump connected...
  • Page 14 All connection points are sealed with O-rings or flat seals. GS 1 : 1 ¼“ O-Ring GS 2 : 1“ Flat seals GS 3: 1 ¼“ Flat seal GS 4: 1“ O-Ring Fig.: Connectors of the membrane station...

  • Page 15: Membrane Cartridge

    6.3 Membrane cartridge Article: AL-MEM Measure cartridge (Ø x H): Ø 164 mm x 410 mm Connection size with ell- Ø 164 mm x 486 mm outlets: Weight: 1.6 kg Membrane filter area: 6 m² Membrane fibre material / - PE / hollow fibre membrane type: Fibre diameter / -quantity / -...
  • Page 16 Note: The membrane cartridge has a blower connection (aeration) and a permeate connection. The membrane cartridge is always operated in a vertical position, whereby the blower connection is situated at the bottom. (The air should rise upwards in the cartridge through the fibre bundles.) The lower side of membrane used with the blower connection can be distinguished by the larger holes.

  • Page 17: Pre-Filter

    6.4 Pre-filter Article: AL-F100 Dimensions: (L x B x H): 605 mm x 180 mm x 358 mm Weight: 3.5 kg Branch: DN100/ Ø 110 mm (bush) Wastewater outlet: DN100/ Ø 110 mm (spigot end) Max. branch: 5 l/s Rough filter cage (Ø x H): Ø...

  • Page 18: Blower

    6.5 Blower Article: AL-BL30L* AL-BL60L* AL-BL100L AL-BL120L AL-BL200L Blower size: 30 L 60 L 100 L 120 L 200 L Length: 207 mm 305 mm 408 mm 408 mm 418 mm Width: 182 mm 214 mm 210 mm 210 mm 212 mm Height: 205 mm...

  • Page 19: Pressure Sensor Aeration

    6.7 Pressure sensor aeration Article: AL-BPS Measuring range: 0 to +0.6 bar Connection: 4-20 mA, Cable: Ø5mm, 3 m length Material: stainless steel, PP, NBR, PVC 6.8 Sludge pump Article: AL-VIP130/6 AL-VIP130/6 B (on request) Operating voltage: AL-VIP130/6: 230 V AC/ 50 Hz, 4A AL-VIP130/6 B 230 V AC/ 60 Hz, 4A (on request) Dimension: Ø165 x 290 mm...

  • Page 20: Electrical Function And Operation Of The Control Unit

    7. Electrical function and operation of the control unit 7.1 Electronic connections 24 V DC 230 V AC NIMH 200mAh  Input (cable bridge) 24 VDC Sig GND Ub Sig GND Ub Sig GND Sig GND Sig GND Sig GND GNDS + GNDS + GNDS +...
  • Page 21 Item Connection Description Connecting contact/Function ADr Pump Analogue pressure sensor for suction = green and back flushing pump monitoring GND = gray  Ub + = brown ADg Air Analogue pressure sensor, = black for monitoring blower GND = gray  Ub + = brown Float Sw Float switch in bioreactor for minimum Pot.
  • Page 22 Fig.: Electrical connection plan...

  • Page 23: Menu Overview

    7.2 Menu overview 14: 22:08h / A= 4 / 9 T1=05:00h / T2=16:00h Air ON/OFF BRmin + / CLmax - NEXT Key: Return to operation Menu1: Menu1: mode display. ENTER ENTER Number of MEM=1 Change number of MEM NEXT: to next menu NEXT: MEM= 1 ENTER: to change MEM ENTER: Set...
  • Page 24 NEXT Menu4: Test Air ON Menu4: Menu4: P(ADg):-1.200bar Testmode Testmode ENTER NEXT ENTER Autostop: 5:59 min Next: to next menu Next: to next test Stop with ENTER/Exit ENTER: for Testmode ENTER: for Air ON NEXT NEXT ENTER Menu4: Menu4: Test Suction Testmode P(ADr):-1.200bar ENTER...
  • Page 25 Menu6: Menu6 Menu6: Change minute Set actual time Change hour ENTER ENTER ENTER Next: 09:>26<:00h Next: exit menu Next: >09<:26:00h ENTER: set minute ENTER: change time ENTER: set hour NEXT NEXT NEXT Menu6: Menu6: Change minute Change hour ENTER ENTER Next: 09:>27<:00h Next: >10<:26:00h ENTER: set minute...
  • Page 26 Menu12 Menu12 Menu12 24Voutput=Air/Filter Output=Air new output = Air ENTER ENTER ENTER Next: exit menu NEXT: next selection NEXT: exit, no change ENTER: change output ENTER: set air ENTER: confirm output NEXT NEXT NEXT Menu12 Menu12 Output=Filter new output = Filter ENTER NEXT NEXT: next selection...

  • Page 27: Operating Mode Display

    7.2.1 Operating mode display Operating mode display: Aeration cycle/Rest cycle Number of pump cycle Time Suction A1/A2 Start time Start time - Pump cycle 1 - Pump cycle T2 14:22:08h / A= 4 / 9 T1=05:00h / T2=16:00h Air ON no display in Status display aeration mode...

  • Page 28: Menu Settings And Description

    7.2.2 Menu settings and description Any menu can be retrieved by selecting NEXT on the operation display. One is directed to respective menu settings by selecting ENTER. After leaving the menu setting, the display reverts back to the standard operation display screen. Generally, inputs or settings are displayed in addition to NEXT and ENTER.
  • Page 29 Menu 3: Sludge pump (Sludge pump SLP=0 to 40 days, t=0 to 60 sec.) This setting determines the weekly cycle of sludge pumping and the duration of the pumping. Note: This function is crucial only for MBR applications where solid material content must be minimised in the Bioreactor.
  • Page 30 Menu 5: Status overview (Status Overview: Status 1 to 4) The overview mode can be viewed at any time. All other activities, such as aeration mode and pump frequency, continue in the background. All current settings and operating status can be viewed in this mode.
  • Page 31 Menu 9: Number of pump intervals A1/A2 The numbers A1 and A2 determine how many pump intervals A (each with 15min run time/15s back flushing/4 s break) must be passed in pump cycles T1 and T2. The number of pump intervals is adjustable from A=0 to A= 60. The pump cycle starts when the starting time point T1 or T2 is reached.

  • Page 32: Installation And Connection

    Installation and connection General requirements: dry, frostproof and ventilated room contact area of the tank have to be smooth and even distance between tank and ceiling minimum 0,9 m for maintenance purpose a floor drain has to be provided near the installation the electric pump cables should be measured to ensure that the entire membrane station can be extracted without first having to disconnect the wiring from the controller.
  • Page 33 It is recommended that the sewerage overflow drainage is vented externally to prevent any unpleasant odors. If the system is installed below the backwater level*, then the overflow must be routed to a pumping station, so that the water above the backwater level can be pumped to the drainage via a tube loop. Look for a pumping system with sufficiently large pumping characteristics.

  • Page 34: Data Plate And Labelling Of The Control Unit

    8.1 Data plate and labelling of the control unit The data plate is mounted visible in front of the bio reactor! Fig.: Data plate with general inlet water requirements Company:  INTEWA GmbH Address :  Jülicher Str. 336, 52070 Aachen, Germany Tel:  0241 ‐96605 ‐0 No te: Al l i nfo rmati o n fo r the i ns tal latio nand how to run the AQUALOOP grey w ater sys tem are des cri pted i n the manual .

  • Page 35: System Start-Up

    9. System start-up Open at least one of the shower, bathtub or hand wash basin connected to the system. Fill the bioreactor with potable water up to the level of 800mm. 9.1 Tightness test Attention: The water tightness of all screw fixings of the membrane station is particularly important so that none of the contaminated water is able to contaminate the treated water.

  • Page 36: Starting The Bio Reactor

    9.3 Starting the bio reactor Following settings values are set as follows for the filtration process (Example of an AQUALOOP System 300L/day : Menu 1: Number of membranes: MEM = 1 Menu 2: Suction overflow: SO= 0 (weeks) Menu 3: Sludge pump: SLP/t= 7 / 1 (days/min) Menu 6: local Time: e.g.

  • Page 37: Trouble Shooting

    10. Trouble shooting Symptom Cause Remedy No display - Cable bridge (s. section 6.1) not - Plug in cable bridge inserted - No 24 V voltage supply and - Check AC switching power discharged battery supply, recharge battery via internal charging switch. * - Display cable is loose or - Check display cable or change defective...
  • Page 38 Symptom Cause Remedy Display failure - Display crashed - for instance, - Restore the display function by by voltage surge in power RESET (adjusted parameters are supply (lightning) or lost) or disconnect the cable Ooo/+-/ooo///+/-ssdf electrostatic effect bridge (s. section 6.1) on o/+-/ooof//,+ooO//OO control board.

  • Page 39: Maintenance And Replacement Instructions

    11. Maintenance and replacement instructions The following described maintenance schedule could be done by authorized service personnel or by the owner themselves. The instructions mentioned must be followed strictly! When working inside of the tank or on electrical equipment please unplug the power cord before.

  • Page 40: Suction And Back Flush Pump

    11.2 Suction and Back flush pump It is recommended that a function test of the pumps is carried out every six months. Each pump is started in the test menu 4. In the case where one pump should fail the complete twin pump unit has to be replaced. It is suggested that the suction and back flush pump set be replaced after 20,000 h running hours.

  • Page 41: Blower

    11.5 Blower AQUALOOP blowers are oil less. Never lubricate them. All blowers have already been precisely adjusted. Never disassemble them. (Do not try to loosen the hex. bolts on the endcap) Time to replace the Filter Element It is recommended that the Filter Element(s) is cleaned or replaced with new one(s) depending on the extent of its deterioration as determined by the atmospheric conditions particular to each installation.

  • Page 42: Membrane

    11.6 Membrane The membrane performance (flow) should be checked four times a year by measuring the permeate flow rate. Mechanical or chemical cleaning is recommended at a minimum flow rate: < 0.3 l/min (at 15°C) per membrane (Kindly note, that the filtration performance is linearly dependant on the water temperature.) 11.6.1 Mechanical cleaning of the membrane Sludge that has accumulated on the outside of the fibres...

  • Page 43: Chemical Cleaning

    11.6.2 Chemical cleaning Chemical cleaning dissolves biological clogging (fouling) and mineral deposits (such as lime) trapped inside of the hollow fibres. Chemical cleaning is done only if the flow is extremely reduced. Intensive chemical cleaning of the membrane cartridge may be done in two ways: ...
  • Page 44 Function of the connection device AL-CKIT for the In-Situ process: Minimum Minimum BRmin1 BRmin1 Fig.: Connection device normal filtration working Fig.: Cleaning device with connected canister (chem. fluid) Shut off valve V open Shut off valve V close Shut off valve V close Shut off valve V open...
  • Page 45 Chemical cleaning routine for the AQUALOOP System: A cleaning option is available in the control menu of the AQUALOOP Membrane controller. A semi- automatic cleaning of membrane cartridges can be performed without the need to dismount the membranes. Menu start of cleaning routine Selection of menu 11 Menu11: Chemical cleaning...

  • Page 46: Intensive Cleaning In An Separate Cleaning Tank

    In case a chlorine cleaning routine will be started after the acid cleaning the cleaning menu must be started again. ATTENTION! If chlorine cleaning is performed after acid cleaning, then the pipes must be sufficiently rinsed (see description Step 6.) 11.6.2.2 Intensive cleaning in an separate cleaning tank Description: The Membrane Station is taken completely out of the bio reactor and put in a separate cleaning...

  • Page 47: Cleaning Solution

    Cleaning of a Membrane Station (2-6 membranes): Be sure the room in which the cleaning takes place is well ventilated! The pumps are connected to the integrated control unit as described in Chap. 7. Ø 740 Ø 740 Ø 493 Ø...

  • Page 48: Bio Reactor

    ATTENTION! Never mix acids and alkali! All pipes and connections must be rinsed well with water after being cleaned with acid before cleaning with alkali and the other way around! Follow the warning and safety instructions of the chemicals used! Protective gloves and glasses are to be used during all cleaning operations! Initial concentration Citric acid...

  • Page 49: Collecting Effluent Samples

    ALBL-KIT030 600718 Blower repair kit for BL60 ALBL-KIT060 600719 Blower repair kit for BL100 and BL120 ALBL-KIT100-120 600720 Blower repair kit for BL200 ALBL-KIT200 600721 Spare parts can be ordered directly from INTEWA GmbH or please ask your local dealer.

  • Page 50: Optional Accessory

    13. Optional accessory Order description: AL-PCS AQUALOOP Pressure sensor for monitoring pump performance Measuring range: -0.8 to +0.8 bar, Connection: 4-20 mA, ventilated 3 line terminals Cable: Ø6mm, 3 m length Order description: AL-CTANK 60L AQUALOOP Cleaning tank 60 Litres Suitable for external cleaning of one single membrane station Tank volume: 60 Litres...

  • Page 51: Limited Warranty / Service Policy / Contact

    14. Limited Warranty / Service policy / Contact LIMITED WARRANTY INTEWA GmbH (hereinafter identified as manufacturer) warrants each AQUALOOP part to be free from defects in workmanship and materials for a period of two years from the date of purchase.
  • Page 52 GW series. Please refer to this manual for all questions regarding safe and reliable installation as well as troubleshooting. 2. INTEWA requires that local service providers are trained by INTEWA or by the local country distributors. The training covers the following aspects: a.
  • Page 53 CONTACT For customers in Germany: For any queries, ordering of spare parts, as well as in case of service, kindly contact INTEWA GmbH directly, quoting the model type, the serial-number and the purchase invoice details. INTEWA GmbH Jülicher Straße 336 52070 Aachen, Germany Tel.: 0049-241-96605-0...
  • Page 54 © INTEWA GmbH Version: 1.0 h Subject to technical changes.
