Rainwater harvesting system combinations
The RAINMASTER Eco can be used with almost all tanks and greywater systems and is an ideal
installation in new buildings and in older single family dwellings undergoing renovation. The most
important examples of system configurations can be found here:

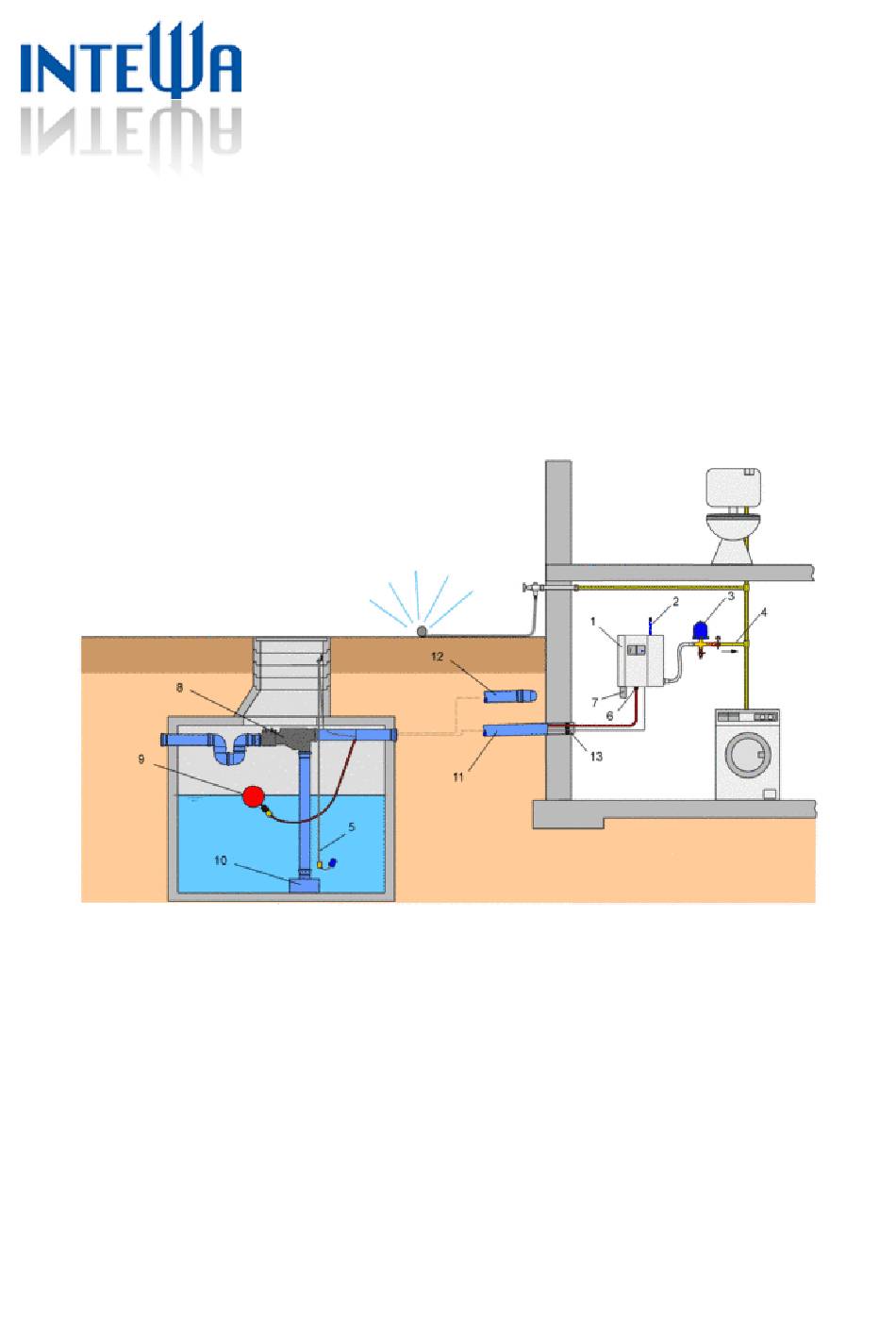

Rainwater harvesting with the RAINMASTER Eco and an underground tank
You can even install below the backwater level (generally above street level)
1: RAINMASTER Eco Rainwater system 8: PURAIN Rainwater filter
2: Mains water connection
3: Pressure line set with expansion tank 10: Quiet intake
4: Pressure line to consumer
5: Float switch
6: Suction line
7: Emergency overflow
INTEWA Ingenieur-Gesellschaft für
Energie- und Wassertechnik mbH
Verwaltung: Jülicher Straße 336
Lager: Jülicher Straße 342
D-52070 Aachen
9: Floating suction filter SAUGSAGF
11: Protective conduit for suction line and sensor cable
12: Rainwater inlet pipe
13: MD-100 wall bushes
Telefon: 0049-(0)241-96 605-0
Telefax: 0049-(0)241-96 605-10
E-Mail: info@intewa.de
Internet: www.intewa.de
Advertisement
Related Manuals for Intewa RAINMASTER Eco
Summary of Contents for Intewa RAINMASTER Eco
- Page 1 D-52070 Aachen Rainwater harvesting system combinations The RAINMASTER Eco can be used with almost all tanks and greywater systems and is an ideal installation in new buildings and in older single family dwellings undergoing renovation. The most important examples of system configurations can be found here:...
- Page 2 Rainwater harvesting with RAINMASTER Eco and a free-mounted Where the tank is in the house, the overflow has been designed to be backflow proof. 1: RAINMASTER Eco Rainwater system 7: Emergency overflow 2: Mains water connection 8: PURAIN Rainwater filter...
- Page 3 Greywater recycling with the RAINMASTER Eco The RAINMASTER Eco can also be used with greywater systems or other water systems. 1: RAINMASTER Eco Rainwater system 6: Suction line carrying processed greywater 2: Mains water connection 7: Emergency overflow 3: Pressure line set with expansion tank 8: Greywater inlet pipe...
-
Page 4: Safety First
Safety first The RAINMASTER Eco pump, controller and float switch are run from a 24 V low voltage supply for added safety. This low voltage is obtained via a switchable power supply, which can be used on 110-230 volt throughout the world. -
Page 5: Technical Data
Distribution dimensions EU- Pallet weight / Volume: 360 kg/ 1,9 m³ Carton package (H x W x D): 600 x 400 x 260 mm Carton weight: 12 kg Volume: 0,063 m³ EU- Pallet (H x W x D) with 28 pcs..: 2,00 x 0,8 x 1,20 m Technical data Dimensions (H x B x T): 398 x 353 x 200 mm... - Page 6 Design with dimensions and components...
- Page 7 RAINMASTER Eco unit should not exceed 9 m (= second floor). Pressure-side dimensions In the case of a single family dwelling a limited number of consumers would be drawing on the rainwater system at any one time.
- Page 8 A high pressure cleaner with a flow rate of up to 500 l/h (RM Eco 10) or up to 800 l/h (RM Eco 14) Note: The RAINMASTER Eco is not suitable to be installed where high flow rate equipment is used. Where the following are used, we recommend the...
- Page 9 Intake side dimensions In practice, the pump automatically starts intake due to decrease in pressure (pipe friction, intake level) only in a certain range. In this operating range, it evacuates the air from the pump independent of the suction line (for example, with initial start up operation). The intake characteristic line indicates the dependence of intake length on the intake level.
