AQUALOOP greywater recycling system

AQUALOOP greywater recycling 300 L/day

AQUALOOP greywater recycling 600 L/day

AQUALOOP greywater recycling 900 L/day

AQUALOOP greywater recycling 1200 L/day

AQUALOOP greywater recycling 1500 L/day

AQUALOOP greywater recycling 1800 L/day
MAINTENANCE Manual















Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUALOOP greywater recycling Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Intewa AQUALOOP greywater recycling Series

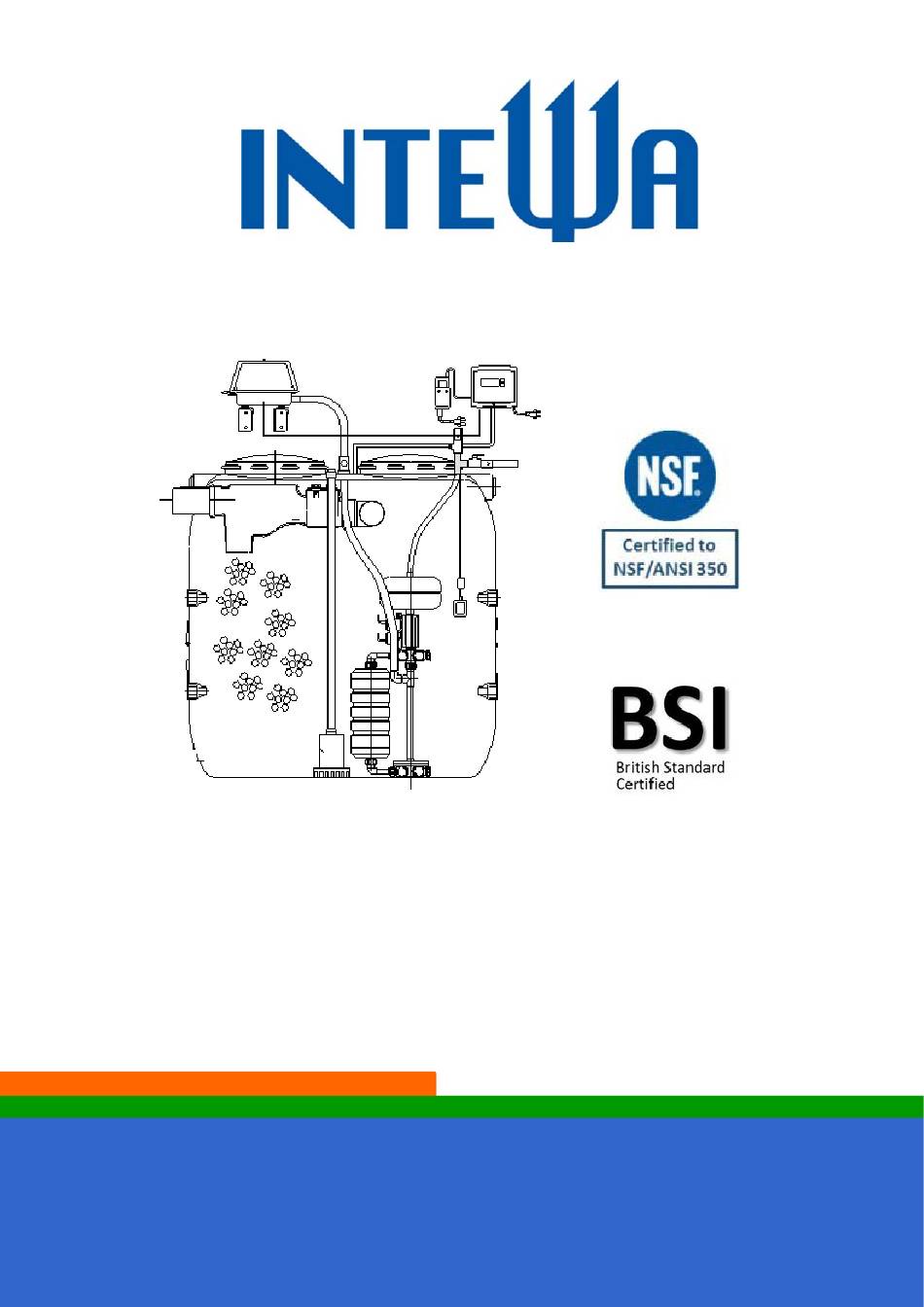

  • Page 1                                                                           AQUALOOP greywater recycling system    AQUALOOP greywater recycling 300 L/day    AQUALOOP greywater recycling 600 L/day    AQUALOOP greywater recycling 900 L/day    AQUALOOP greywater recycling 1200 L/day    AQUALOOP greywater recycling 1500 L/day    AQUALOOP greywater recycling 1800 L/day  MAINTENANCE Manual  ...
  • Page 2: Table Of Contents

        Contents        Maintenance and replacement instructions  .....................  2     Pre‐filter with backflush ........................... 3     Filtration and backwash pump ......................... 3     Floating switch ............................ 3     Pressure sensor  ............................  4     Blower  ..............................  4     1.6.1 Mechanical cleaning of the membrane ................... 5     1.6.2 Chemical cleaning .........................  6  ...
  • Page 3: Maintenance And Replacement Instructions

            1.  Maintenance and replacement instructions    The following described maintenance schedule should be performed by authorized service personnel or  in some cases, by the owner themselves.  The instructions mentioned must be followed strictly!      Before working inside of the tank or on electrical equipment disconnect the power.    Avoid direct skin contact  with  the  greywater  when  cleaning  the  pre‐filter and  the  membrane(s). Please use rubber gloves!        The following table represents an overview of regular maintenance and replacement intervals. Detailed  descriptions are outlined in the corresponding chapters.    Maintenance and/or check interval  Replacement interval  Pre‐filter  Check and clean every 3 months  ‐‐  Filtration / backwash pump  Check every 6 months  Replace after 20,000 hrs. running  time  Floating switch  Check every 6 months ...
  • Page 4         1.1  Pre‐filter     The pre‐filter should be checked every 3 months and cleaned every 6 months if necessary. The cleaning  interval can then be extended depending on the build‐up of contaminants.  The integrated non‐return valve must be checked twice a year and cleaned of any dirt or deposits.  Newer Aqualoop versions are being installed with solenoid activated auto‐back‐flush kits attached to the  pre‐filter. This means that maintenance is reduced but the pre‐filter should still be checked regularly in  case of blockage.      1.2  Suction and backwash pumpset    It is recommended that a function test of the pumps is carried out every six months. Each pump is started  in the test menu 4.  In the case where one pump should fail, the complete double pump unit should be replaced.   It is suggested that the filtration and backwash pump set be replaced after 20,000 hrs running time.    Please rerun the water‐tightness test to ensure there are no air leaks in the pipework  after the replacement of the double pump unit (s. section 9.1).              1.3  Float switch    It  is  recommended  that  a  function  test  of  each  float  switch  is  carried  out  every  six  months.  The  float  switch is tested by manually inverting it into the two switch positions (Empty=lower position /Full=upper ...
  • Page 5: Pressure Sensor

        Below is a reminder of the correct setting level for the Br  float switch.             1.4  Pressure sensor    Pressure  sensors  (when  fitted  to  larger  systems)  can  be  checked  in  the  menu  overview  every  6  months  (Menu 5, Status 2).      Pressure sensor, pumps P(ADr):   Pressure sensor, blower P(ADg):        When the pressure sensor is not connected the pressure displays ‐1.200 bar.        1.5 ...
  • Page 6: Mechanical Cleaning Of The Membrane

        Replacing the filter element:  It is recommended that the filter element(s) is cleaned or replaced depending on running time and the  surrounding air quality. The filter element(s) should be checked every 6 months and should be replaced  every 4 years.  Detailed  information  can  be  found  in  the  separate  blower  instruction  manual  (MEDO  LA  Blower)  –  available from your local Distributor.      Replacing the piston set assembly:  It is suggested that the Piston Set Assembly is replaced every 24 months or after 20,000 h depending on  the performance of the blower´s pressure and airflow delivery.  There is a groove on each Teflon seal of the piston indicating the degree of wear. If one or both grooves  are worn away, replacement of the Piston Set Assembly is recommended.  Detailed information can be found in the separate blower instruction manual which is included with the  blowers.        1.6  Membrane      1.6.1  Mechanical cleaning of the membrane   ...
  • Page 7: Chemical Cleaning

          Attention:  a.) Do not loosen the large dark grey nuts located at the top to open the membrane. The reassembling of  the cartridge is very difficult without specialised tools.    b.) After cleaning please check, that the external ring is locked in the LOCK position!      The hollow fibres are now exposed and can be carefully washed with a water jet.     Note:  Damaged  or  cracked  fibers  can  simply  be  knotted  by  the  Installer  to  seal  them  and  the  membrane  will  then pass the leakage test for quality assurance.         1.6.2 Chemical cleaning     Chemical cleaning dissolves biological build‐up (fouling) and mineral deposits (calcium) accumulated on  the hollow fibres.   Chemical cleaning is done only if the flow is severely reduced < 0.22 L/min = (300 L/day/MEM).  Chemical cleaning of the membrane cartridge may be done in two ways: ...
  • Page 8         Function of the cleaning connection AL‐C‐Kit for the In‐Situ process:    Minimum Minimum BRmin1 BRmin1     Fig.:  Cleaning connection during normal operation  Fig.:  Cleaning device with connected canister (chem. fluid)    Shut‐off valve, V  open    Shut‐off valve, V  close    Shut‐off valve, V close    Shut‐off valve, V open  2  2      Shut‐off valve, V open  3        Fig.: Function of the connection device in either horizontal and vertical position        ...
  • Page 9       Chemical cleaning routine for the AQUALOOP system:  A  cleaning  option  is  available  on  the  control  menu  of  the  AQUALOOP  controller.  A  semi‐automatic  cleaning of membrane cartridges can be performed without the need to dismount the membranes.    Menu steps for cleaning routine:    Proceed to menu 11  Menu11:   Chemical cleaning   Next: next menu clean   ENTER: start Confirmation for starting the cleaning routine    Menu11: Step 1 Chem.
  • Page 10: Intensive Cleaning In Separate Cleaning Tank

          Menu11: Step 7   Clearwater flushing After  completion  of  the  clear  water  flushing,  the  operation  mode  Time: 04: 00min appears  in  the  display  and  the  normal  program  continues  to  operate  ENTER: exit flushing further, corresponding to the set parameters.        In case a chlorine cleaning routine is required after the acid cleaning the cleaning menu routine must be ...
  • Page 11: Cleaning Solution

        m i n . m a x .             Fig.: Cleaning container AL‐Tank 60L for single membrane station (right: without aeration distributor)      Example: Cleaning AQUALOOP membrane station (2‐6 membranes):    Be  sure  the  room  in  which  the  cleaning  takes  place  is  well  ventilated!  The  pumps  are  connected  to  the  integrated control unit as described in section 7.      Ø 740 Ø...
  • Page 12       2) Alkali cleaning against excessive biological build‐up  Chlorine (target cleaning solution 0.25% chlorine):   a.) Available in most stores as domestic cleaner with chlorine base (e.g. bleach as 5% chlorine  solution).   Dilute 105 ml per AL membrane cartridge in 2 L warm, clear water (30°C) to achieve a cleaning  fluid concentration about 0.25%.  b.) Available in all stores which sell pool accessories concentrate (e.g. as 30% chlorine solution)  Dilute 17 ml per AL membrane cartridge in 2 L warm, clear water (30°C) to achieve a cleaning fluid  concentration about 0.25%.      ATTENTION!     Never mix acids and alkali!         All  pipes  and  connections  must  be  rinsed  well  with  water  after  being  cleaned  with  acid before cleaning with alkali and the other way around!   Follow the warning and safety instructions of the chemicals used!    Protective gloves and glasses are to be used during all cleaning operations!  ...
  • Page 13: Bioreactor

          1.7  Bioreactor    Periodic  cleaning  of the  bioreactor  itself  containing the  AQUALOOP  is  not  required.  The  removal  of  the  sludge is done by the sludge pump which is controlled by the AQUALOOP controller.     However, the bioreactor can be inspected by sight and smell.   AQUALOOP is an aerated moving bed treatment and filtration system. If a strong odour is noticed i.e. like  sulphur  (rotten  eggs),  the  aeration  process  may  not  be  operating  correctly  or  the  system  may  be  overloaded ...
  • Page 14: Spare Parts

      AQUALOOP blower filter element for 60, 200  ALBL‐FILTER‐B  600717  Note: 200 needs two elements      AQUALOOP blower repair kit for 30  ALBL‐KIT030  600718  AQUALOOP blower repair kit for 60  ALBL‐KIT060  600719  AQUALOOP blower repair kit for 100 and 120  ALBL‐KIT100/120  600720  AQUALOOP blower repair kit for 200  ALBL‐KIT200  600721  Spare parts can be ordered directly from INTEWA GmbH or please ask your local dealer.         3.  Optional accessories    Article:   AL‐PCS  AQUALOOP Pressure sensor for monitoring pump performance  Measuring range:   ‐0.8 to +0.8 bar,  Connection:   4‐20 mA, ventilated 3 line terminals  Cable:  Ø6mm, 3 m length          Article:   AL‐TANK 60L     ...
  • Page 15: Warranty / Contact

    Voltage:   24 V DC  Power:   12 W        4.  Warranty / Contact      The warranty terms are included in our sales conditions, and can be viewed at:    http://www.intewa.de/en/customer‐menu/contact/legal‐conditions/    For any queries, orders for spare parts or service requests, please get in touch with your local dealer or  visit the service domain on the INTEWA website according to your country.  Always keep your purchase invoice handy.   www.intewa.com      Limited Warranty  INTEWA GmbH (hereinafter identified as manufacturer) warrants each AQUALOOP part to be free from  defects in workmanship and materials for a period of two years from the date of purchase.  Some  countries/states  do  not  allow  limitations  on  how  long  an  implied  warranty  lasts,  so  the  above ...
  • Page 16 This  warranty  applies  only  to  the  INTEWA  AQUALOOP  components  and  does  not  include  any  of  the  locally installed wiring, plumbing, drainage, or disposal system. The manufacturer is not responsible for  any  delay  or  damages  caused  by  defective  components  or  materials,  for  loss  incurred  because  of ...
  • Page 17 1. Owners should only purchase AQUALOOP systems from certified and trained service providers.    2. Owners should contact the local Distributor or dealer with questions specific to their system.            Contact    For customers in Germany:   For  any  queries,  ordering  of  spare  parts  as  well  as  service  requests,  kindly  contact  INTEWA  GmbH  directly, quoting the model type, the serial number and the purchase invoice details.  INTEWA GmbH  Jülicher Straße 336  52070 Aachen, Germany    Tel.: 0049‐241‐96605‐0  Fax: 0049‐241‐96605‐10  Email: info@intewa.de   Internet: www.intewa.de    In the event service is required we will offer the estimated service costs in advance. ...
  • Page 18       For customers in other countries:  For  any  queries,  orders  for  spare  parts  or  service  requests  please  get  in  touch  with  your  local  dealer  or  visit the service domain on the INTEWA website according to your country.    http://www.intewa.de/en/company/partners/international‐distributors/    Distribution in South Africa is handled by:  Pure Rain Technologies Pty Ltd  Cirtech House Westlake Business Park  Cape Town    Tel: 086 111 4307  Email: purerain@iafrica.com   Email: intewasa@mweb.co.za     Web: https://www.purerain.co.za/   Web: https://za.intewa.net/en/      ...
  • Page 19             © INTEWA GmbH  Version: v2.0 sa    Subject to technical changes   ...
