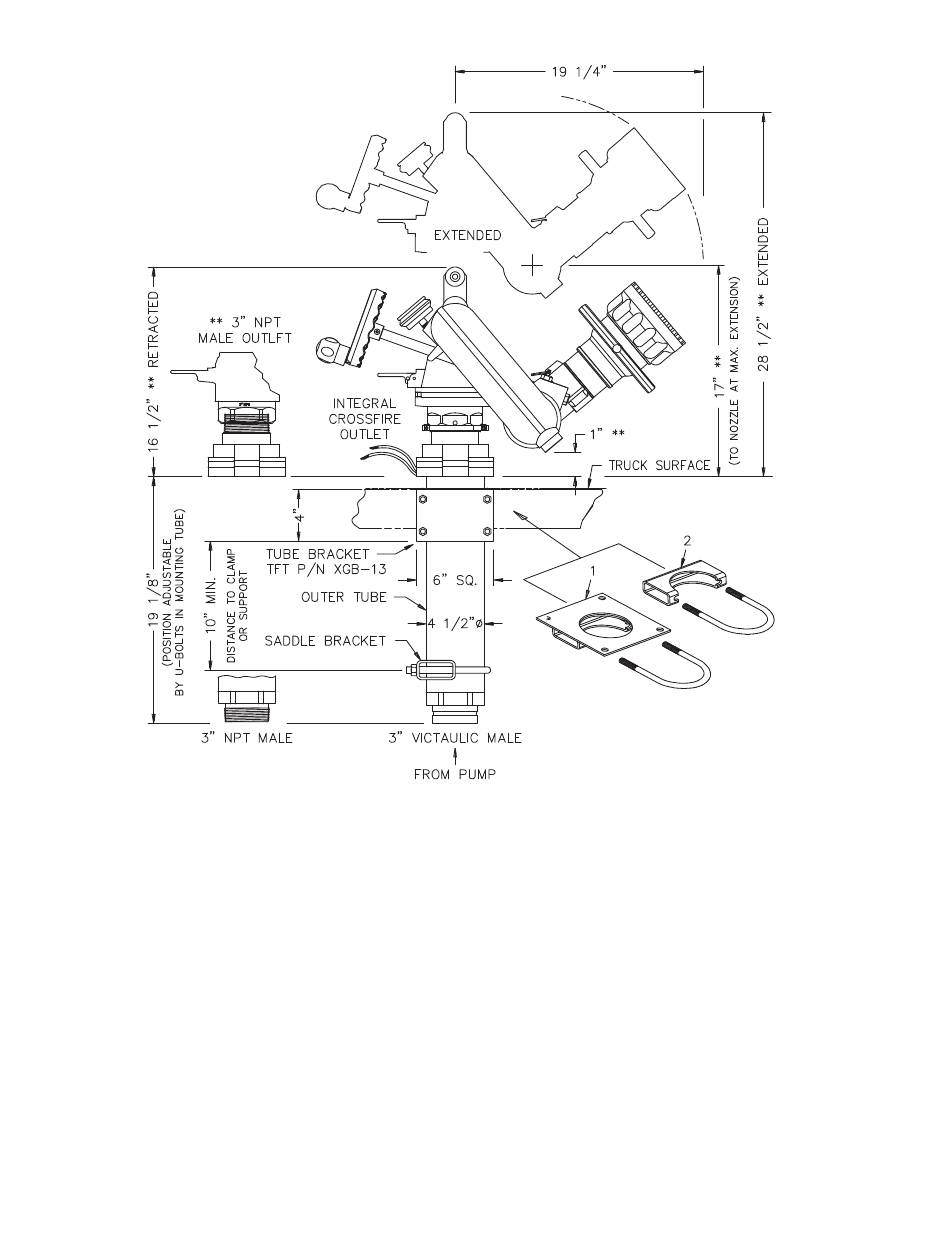

3.4 XG12 SERIES DIMENSIONS
SHOWN WITH
TFT MASTER NOZZLE
AND CROSSFIRE DECK GUN
©Copyright Task Force Tips LLC 2002-2020
3" NPT
**- OUTLETS SHOWN ARE
FOR MODELS XG12PL-XL & XG12VL-XL
FOR MODELS WITH 3" NPT OUTLET, ADD 1"
ALTERNATE:
1) MOUNTING PLATE, 9" SQ.
TFT PART XGB-23
2) SADDLE BRACKET
TFT PART XGB-33
Figure 3.4
