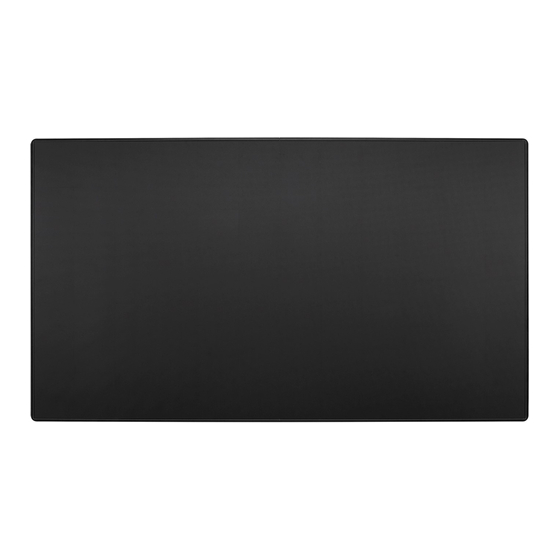

1.5mm Pixel Pitch with SMD LEDs
FHDQ130
All-in-one LED Display
A modular system for Indoor applications
Operation Manual
2019.07
Document version 1.20
Page 1 of 74

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FHDQ130 and is the answer not in the manual?

Questions and answers

Related Manuals for Optoma FHDQ130

Summary of Contents for Optoma FHDQ130

  • Page 1 1.5mm Pixel Pitch with SMD LEDs FHDQ130 All-in-one LED Display A modular system for Indoor applications Operation Manual 2019.07 Document version 1.20 Page 1 of 74...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Dear Customer………………….…………………………………………………………………………………. Important Safety Notice…………………………………………………………………………………………. Accessories Supplied……………………………………………………………………………………………… Spare Parts………………………………………………………………………………………………………… Parts and Functions………………………………………………………………………………………………. Interface Specifications……………………………………………………………………………………………. Assembly ……………………………………………………………………………………........Component Placement ……………………………………………………………………………..………... Intelligent Module (IM)……………………………………………………………………………..…………..Installation…………………………………………………………………………………………………………. Floor Stand……………………………………………………………………………………………………….. Wall Mount………………………………………………………………………………………………………. Hanging…………………………………………………………………………………………………………… How to Mount and Dismount IM………………………………………………………………………………… How to Assemble the Main Body…………………………………………………………………………………. How to Split the Main Body into two parts……………………………………………………………………...
  • Page 3 Program Edit Process……………………………………………………………………………………………… Async Content Editing……………………………………………………………………………………………. Publish Programs through USB/WIFI/LAN……………………………………………………………………….. Publish Programs through U disk………………………………………………………………………………… Sync Playing……………………………………………………………………………………………………….. Network and Management……………………………………………………………………………………... Connection and Management…………………………………………………………………………………….. Add Group and Device……………………………………………………………………………………………. APP Operation Instructions……………………………………………………………………………………. System Overview………………………………………………………………………………………………… APP Installation Instructions……………………………………………………………………………………… APP Operating Instructions………………………………………………………………………………………. Search Terminals…………………………………………………………………………………………………... Terminal Control………………………………………………………………………………………………….

  • Page 4: Dear Customer

    Dear Customer, Welcome to the family of customers. We hope that you will have many years of enjoyments from your new LED Display. To obtain maximum benefit from you set, please read this manual carefully before making any adjustments and retain it for future reference.

  • Page 5: Important Safety Notice

    Important Safety Notice RISK OF ELECTRIC SHOCK DO NOT OPEN DOORS WHILE THE EQUIPMENT IS REMAINING ON NO USER SERVICEABLE PARTS REFER SERVICING TO QUALIFIED PERSONNEL ONLY  Always ensure that the unit is properly earthed and power connections correctly made. ...

  • Page 6: Accessories Supplied

    Accessories Supplied Item Description Photo Qty. AC Power Cable 14S-0GE16A-PZ-PF AC Power Cable 14S-0UL20A-PZ-PF AC Power Cable 14S-0BS13A-PZ-PF M10 Large-headed Screw 600-W32M10-20-PF IM Replacement Tool 420-MAG130-A7-PF M4x10 Flat Head Screw 600-FM0410-DC-PF M10X16 Screw 600-HM1015-S0-PF M8x60 Expansion Screw 600-FM0860-10-PF M4x10 Screw(with plain and spring washer) 60S-WM0409-DC-PF M10 Flat Washer...

  • Page 7: Spare Parts

    Mounting Brace 420-TV1212-31-PF USB Flash Disk 333-DISK8G-00-PF Screwdriver 690-A25SDR-10-PF T-Hand Hex Key 690-DEM050-1A-PF Screwdriver 690-A15PBT-10-PF Infrared Remote Controller 898-IRC001-00-PF WIFI Dongle 898-00WUSB-00-PF ANTI-STATIC GOLVES 690-ASHAND-20-PF CORDLESS ANTI-STATIC WRISTBAND 690-ASWA15-00-PF Spare Parts Item Description Photo Qty. 0-AM4-01G090FFEA-02P M4x10 Flat Head Screw 600-FM0410-DC-PF M4x10 Screw(with plain and spring washer)

  • Page 8: Parts And Functions

    Parts and Functions  Interface Specifications Item PORT IN /OUT SPEC and Function INDICATOR Standby/Running STANDBY Startup/Power Off SWITCH SWITCH Source Switching Br+/Br- Screen Brightness Adjustment CONFIG Parameter Setup / Program Release USB for System Control Board USB for PV7 11,12 HDMI AUDIO...
  • Page 9 Page 9 of 74...

  • Page 10: Assembly

    Assembly (Appendix E) for the detail dimensions. The list in table 1 is the main components of an FHDQ130 LED display. The IMs are mounted to the front surface and the other main component locations are shown in Figure 1.

  • Page 11: Intelligent Module (Im)

     Intelligent Modules (IM) The front face of the FHDQ130 LED display is fitted with 144 light emitting diode (LED) dot matrix modules known as Intelligent Modules or IMs. Each IM is fitted with 14400 LEDs* plus associated drive electronics. Electrical connections (low voltage power, and digital data) are made to the rear of each IM, from inside of the enclosure.

  • Page 12: Installation

    The FHDQ130 LED display is designed to be mounted on the stand. When installing, it is important to ensure that the entire screen is correctly aligned, both vertically and horizontally.

  • Page 13: Wall Mount

     Wall Mount Mounting Plate Step1.Use 4 pcs M4x12 screws to install one side of the mounting brace to one mounting plate. Then install the mounting brace to another mounting plate. Mounting Brace M4x12mm Screw Page 13 of 74...
  • Page 14 Step2.Drill 50 pcs 10mm mounting holes (60-65mm depth) on the wall and install 2 pcs mounting plates with 50 pcs M8 x60 stainless steel expansion screws to the wall. Step3. After installing the mounting plates ,hang on the LED Display. Wall LED Display Mounting Plates...

  • Page 15: Hanging

    Hanging  Step1.Install 12pcs M10X16 screws(with a spring washer and flat washer) to the back side of LED display. M10 Flat Washer M10 Spring Washer M10X16 Screw Step2.Hang the LED display. If there is a crane, hang the LED display with the help of the crane. Page 15 of 74...

  • Page 16: How To Mount And Dismount Im

     How to Mount and Dismount IM The FHDQ130 LED display is designed to maintenance front access, When the IM is malfunction; please replace it by the following procedure. Note:1.Install the modules after the display is assembled, cut off the power.
  • Page 17 Step4. Pull the right handle toward inside horizontally. Step5. Ensure that the magnet is effectively. Take the IM out from rear plate horizontally and carefully. Step6. Put down the IM and tool together carefully onto an EPE (or other soft pad). Step7.
  • Page 18 2.Flatten the IM. Note: When mounting an IM back, pay more attention to the guide pin which located in corners to mount it smoothly. Page 18 of 74...

  • Page 19: How To Assemble The Main Body

     How to Assemble the Main Body The main body of display is split into two pieces, and all the accessories are attached to each part before shipping. Please follow below procedures to assembly two parts into a whole display. Note: 1.Don’t grab the four corners of display (after finishing assembling) when you want to move it from the floor, or the display will become deformed and affect the alignment.
  • Page 20 Step3. Install 12 pcs M4 flat head screws. Step4. Install 11 pcs M4 button head cap screws(with a plain washer and spring washer). Step 5. Install and tighten 3 pcs black M4 flat head screws to both upper and lower side of the case. Page 20 of 74...
  • Page 21 Step 6. Install and tighten 3 pcs black M4 flat head screws to both top and bottom side of the case. Step7. After assembling the main body , you need to connect all the cables and install back all the IMs. Please refer to ‘How to dismount IM’...

  • Page 22: How To Split The Main Body Into Two Parts

    Step8. All the IMs have labels stuck on the back side. Please follow below number to install back the IMs. We recommend that all the IMs are installed to the corresponding position on case ,or the screen will show color difference.
  • Page 23 Step 2.Loosening 3pcs black M3 flat head screws from both upper and lower sides of panel. Step 3.Loosening 3pcs black M3 flat head screws from both top and bottom sides of panel. Step 4. Disconnect all the cables which used to connect the left and right part. Power cable Please pay attention to the labels , eg.
  • Page 24 Step 5. Loosening two side-locks, clockwise is for loosening ,counterclockwise is for tightening. Step6. Loosening 12 pcs M4 flat head screws. Step7. Loosening 11 pcs black M4 button head cap screws(with a plain washer and spring washer). Step 8.Holding the reinforced rib and disassemble the display. Page 24 of 74...

  • Page 25: Packaging

     Packaging Flight Case 1.Put all IMs into antistatic bags separately and set them into the flight case. Page 25 of 74...
  • Page 26 2.Take out an PE bag and put one part of display into the bag. Seal the bag. Use the same method to package the other part of display. 3. Put these two parts into the flight case next to the IMs. Page 26 of 74...

  • Page 27: Electrical

     Earth Leakage Considerations Each FHDQ130 LED display has earth leakage current contributions from twenty-five switched-mode power supplies and two filters. The total earth leakage current per LED display can be up to 25.35mA at 240V. If a 30mA RCD is used, then the maximum number of LED display s per section should be safely limited to 1.

  • Page 28: Ac Power

     AC Power The AC power cable is connected to the EMI filters and distributes to the power supply units inside the display. Color of Wire A.C. Supply connection (200V) A.C. Supply connection (240V) Brown AC. Live AC. Live Blue AC.

  • Page 29: Settings

    Settings  Software Installation The software supports operating systems such as Windows XP \ Server 2003 \ Vista \ Windows 7 \ Windows 8\ Windows10. Recommended computer configuration is: the DVI or HDMI output interface; User can adjust configuration according to actual situation, mainly according to total LED screen pixels, program complexity and video whether is high-definition video source or not, etc.
  • Page 30 3. Check the components you want to install and uncheck the components you don’t want to install. Click [Install] to start the installation. Figure 3 4. Click [Finish] when control Q has been installed on your computer. Figure 4 5. The system automatically generates desktop shortcuts , double click to open the software.

  • Page 31: Software Settings

     Software Settings After starting the Control Q software, you can see the software interface show as below. Include play interface (Figure 5)and main interface(Figure 6). Figure 5 Main interface include six section:1.Menu 2.Main Toolbar 3. Program Edit Toolbar 4. Program Public 5.Program Property 6.
  • Page 32 1. Click [Control]-[LED Screen Setting], there will show a popup window to input the password [optoma]. Figure 7 Figure 8 Page 32 of 74...
  • Page 33 Figure 9 Page 33 of 74...

  • Page 34: Usb/Wifi/Lan Connection Settings

     USB/WIFI/LAN Connection Settings After connecting successfully, you can send related screen parameters, upload programs, manage programs, cloud management, etc. 1. USB Connection (1)Power on the LED connect it (USB Port) to PC (Config port) with a piece of USB cable. display (2)Click the icon to enter Program Publish interface.
  • Page 35 2. USB Disk Play Approach There are two ways for playing the USB port media content: Approach 1 : Plug & Play Media content will be played automatically within alphabet order. Approach 2: Programmed Play  Program needs to use Control Q to edit in advanced Store program into USB ...
  • Page 36 Step 2. Click Control\Screen Size and Count Setting, then key in width=1920,Height=1080. Figure 14 Figure 15 Step 3. Open software Control Q and click Page 36 of 74...
  • Page 37 Figure 16 Step 4. In Program Editing Area,Click c : Press “+” d : Normal page Figure 17 Page 37 of 74...
  • Page 38 Figure 18 Step 5. Click Figure 19 Figure 20 Step 6. Click o play the Video resolution must be 1920x1080. Page 38 of 74...
  • Page 39 Figure 21 Step 7. Then we can see the content window for editing.If you want to add more content,repeat Step3~6. Figure 22 Step 8. Choose USB Disk Mode: t after inserting it into the System Control Board ; the content won’t be stored on the System Control Board) he USB disk (automatically play the USB disk content after inserting it into the System Control Board;...
  • Page 40 Figure 23 Step 9. Click \Publish program to the selected USB disk Figure 24 Page 40 of 74...
  • Page 41 Figure 25 Step 10. After publishing program successfully  insert USB disk into System Control Board USB port  Switch the signal source to the internal Media player(System Control Board) Wait a moment, the content will paly.  Note: A rotating circle on the LED’s upper left corner will appear during the updating procedure. You may ...
  • Page 42 3. WIFI Before using WIFI , please connect USB WIFI DONGLE to the USB prots(Please refer to port 8,9 on page 8 ) of the screen and turn on the power. optoma (1)Click LED display after connecting successfully, then click [More] and input password to the pop-up window, you will see the interface showed below.
  • Page 43 Figure 28 4. WIFI Hotspot Input [SSID] and [Password] to use a WIFI Hotspot. [Band]: 2.4G or 5G (5G is available if your smartphone or PC can support 5G WIFI.) [Channel]: There are 1-14 optional channels to avoid network jam. Figure 29 Page 43 of 74...
  • Page 44 5. LAN (1)Automatically Obtain IP Address (Default) When you connect your LED LAN port to a router, LED will automatically obtain an IP address to display display access LAN. (2)Use Following IP Address Enter information for [IP], [Subnet Mask] and [Gateway] manual setup, then connect LED LAN port to the display router to access LAN.

  • Page 45: Basic Settings

     Basic Settings ● Ensure LED display is functioning normally before setting LED parameters. display ● Connect LED display to PC with a standard USB cable to set LED display parameters. 1. Play Box Date and Time: Click [Modify] to set up date and time, or time zone as well. 2.
  • Page 46 6. Playing Parameters (1)Screen Resolution The [Width] / [Height] has to be equal to or slightly larger than the actual screen resolution. (2)Output Every Frame (Default) Every Other Frame (Choosing [every other frame] can help avoid lag when image loading area is too large). (3)Control Area Suggest to select [Custom] in control area, and modify the values according to your network interface control area, click [Apply] to complete setting.

  • Page 47: Send Configuration Parameters, Address Files

    [ Detect Receiver Cards ] to check whether the screen has communicated well or not, if yes ,it will provide port and card number and version information, as Figure 18. Or click [LED Screen Setting] - enter password: [optoma], choose [Sending Device] - [Detect Receiver Cards], as Figure 19. Figure 33...
  • Page 48 2.Screen Parameters Settings Click [load…] to add the parameter file (with suffix name .rcvbp), then click [Send]-[Save To Receiver] ,click [ok] after the file is saved. Figure 35 Figure 36 Page 48 of 74...
  • Page 49 3. Connection Parameters Click [load…] to add the parameter file (with suffix name .rcvbp), then click [Send]-[Save To Receiver] , click [ok] after the file is saved. Figure 37 Figure 38 Page 49 of 74...

  • Page 50: Program Editing

    Program Editing Main Toolbar  The main toolbar provides the most commonly used tool shortcut icons, including program file operation, display / hide of the play window, switch between dual monitor, editing / stowage of the software main interface, program playback, sending program to dual mode card , close / display large screen, cloud release, view help and other functions.

  • Page 51: Program Edit Toolbar

     Program Edit Toolbar From left to right 1. Add program windows or play content bars: Add program windows or play content bars in the corresponding position. 2. Copy: Copy the selected items and everything below. 3. Paste: Paste the copied contents 4.

  • Page 52: Program Page

    LED display: It decided what to display to the LED large screen. Each "LED display" is a parallel relationship and can add multiple program pages. Program page: normal page and global page. Play content: The specific content displayed on the LED screen. Including video, picture, GIF, FLASH, text files, Office files, form, clock, timing, web page, database, weather forecast, external video, environmental information, sports score, desktop copies.

  • Page 53: Program Window

    Global Page: A program page that has been played during playback and can contain multiple windows Global page and normal page are synchronized, and the global page is always located at the top of the normal page. If you want to display content such as clock, weather forecast, corporate logo, etc. in a fixed location, you can edit the media to the global page.

  • Page 54: Program Edit Process

     Program Edit Process 1. Set the Screen Size It is very important to set the screen size correctly , Otherwise, the program may display incomplete or abnormal display . 2. How to Set the Screen Size Click the main menu [Control Screen] → [Screen Management], pop-up screen management window, set the number of LED screen, the starting position, size, etc..

  • Page 55: Publish Programs Through Usb/Wifi/Lan

     Publish Programs through USB/WIFI/LAN The same method can be used in USB/WIFI/LAN connections. (1)In program editing area , after finishing program editing, select the program page that you are going to publish; (2)In [Program Publish], click [Normal Page 1] and then right-click LED to choose [Publish current display program to the selected player], rename and upload the program to publish.
  • Page 56 Figure 11 Note: Recommend to remove previous contents of the USB disk before using it to update or play new contents, so as to avoid any problems. (3)Auto identify the inserted USB disk click [USB Disk] to choose [ F]. ①Select [ Normal Page 1] in program editing area.

  • Page 57: Sync Playing

    Figure 12 Note: A rotating circle in LED upper left corner will appear during the update procedure. You may unplug the USB disk after the circle disappears. Figure 13  Sync Playing In sync play, your LED plays contents sent to its HDMI port by an external source like your PC. display Note: LED will automatically switch to play sync signal content when an external HDMI signal input is...

  • Page 58: Network And Management

    (2) Network management: After the controlled terminal (PC, Mobile devices, etc) and LED are connected display into the same LAN, unplug the USB cable,select [LAN] ,right-click and choose[Refresh], FHDQ130 processor will auto identify LED and place it into Default Group. You can manage your LED under Default Group.

  • Page 59: App Operation Instructions

    APP Operation Instructions  System Overview 1) LH display supports system which is higher than Android 5.0. 2) LH display supports all the C series products.  APP Installation Instructions Log in Google Play and search LH display , download and install the App. ...

  • Page 60: Search Terminals

     Search Terminals Click the icon at the top left corner and select the terminal list. The terminal list will display all the devices in the current LAN, as shown below. Page 60 of 74...

  • Page 61: Terminal Control

    If the list doesn’t display any device, you can pull down or hit the to refresh list. If this doesn’t work, please check the network connection of the mobile phone.  Terminal Control Select the terminal to be controlled in the terminal list, and click to enter the control interface. A.
  • Page 62 Signal： Asynchronous and synchronous HDMI switching Terminal：on/off switch，volume adjustment Screen： on/off switch Brightness and color temperature：Brightness/color temperature adjustment B. Programs Click [PROGRAMS] and select the program to complete the program switch. Long press the program 2 seconds to enter the delete selection, you can choose to delete the program you want to delete. C.

  • Page 63: Edit Program

     Edit Program Open the APP, click the top left button to select [Edit Program], and enter the editing interface. Please refer to below screenshots for details. A. Set the screen size Click here B. Set the window size and add content Delete ,content ,upload( Maximize the optional)
  • Page 64 C. Upload program New program Upload Program Layer selection Long press to move the program up and down Page 64 of 74...

  • Page 65: Version Information

     Version Information Select the terminal in the terminal list, and then click the upper right button to view it, as shown below. Page 65 of 74...

  • Page 66: Specifications

    SPECIFICATIONS Appendix A Parameter Unit Value Brightness Nits 570±30 Color temperature deg. K 6,500 Viewing angle - Horizontal (50% brightness) deg. 140(+70/-70) Viewing angle - Vertical (50% brightness) deg. 140(+70/-70) Louver material Panel weight(max) kg / lb 125/275.5 weight(max)(sq.m) kg / lb 26/57 Panel diagonal/ Display diagonal mm / ft...
  • Page 67 PC Compatibility 1080p Refresh Rate Mode Resolution (Hz) HMDI 1 HDBT HDMI 2 SVGA 800 x 600 1024 x 768 720p 1280 x 720 WXGA 1280 x 800 SXGA 1280 x 1024 FWXGA 1366 x 768 SXGA+ 1400 x 1050 WXGA+ 1440 x 900 UXGA...
  • Page 68 American Plug European Plug Page 68 of 74...
  • Page 69 UK Plug Page 69 of 74...

  • Page 70: Appendix B Procedure For Im Replacement

    Appendix B Procedure for IM Replacement When you find the IM is malfunctioning, you can replace it with the following procedure: Power off the LED display; Locate the problem IM; Remove the IM with the specific magnetic suction tool; Mount a new IM back to the same position as the problem one; Make sure the IM is firmly mounted;...

  • Page 71: Appendix C Trouble Shooting

    Appendix C Trouble Shooting Guide 1. LED Module shows black Root Cause : LED module defect（When screen display is abnormal and missing color, connect it to computer and reconfigure the parameters first ,if this doesn’t work ,replace with spare parts .） IM shows black Mounting back IM after replacing PSU ,screen display back to normal...
  • Page 72 2. LED Module Failure Root Cause : LED module defect（When screen display is abnormal and missing color, connect it to computer and reconfigure the parameters first ,if this doesn’t work ,replace with spare parts ）. Corrective Action : Replace LED module. Resend screen parameters and address file after replacing problem IM. IM shows abnormal image After replacing problem IM Page 72 of 74...

  • Page 73: Appendix D Mechanical Assembly

    Appendix D Mechanical Assembly Page 73 of 74...
  • Page 74 Page 74 of 74...
