Summary of Contents for Optoma FHDQ163

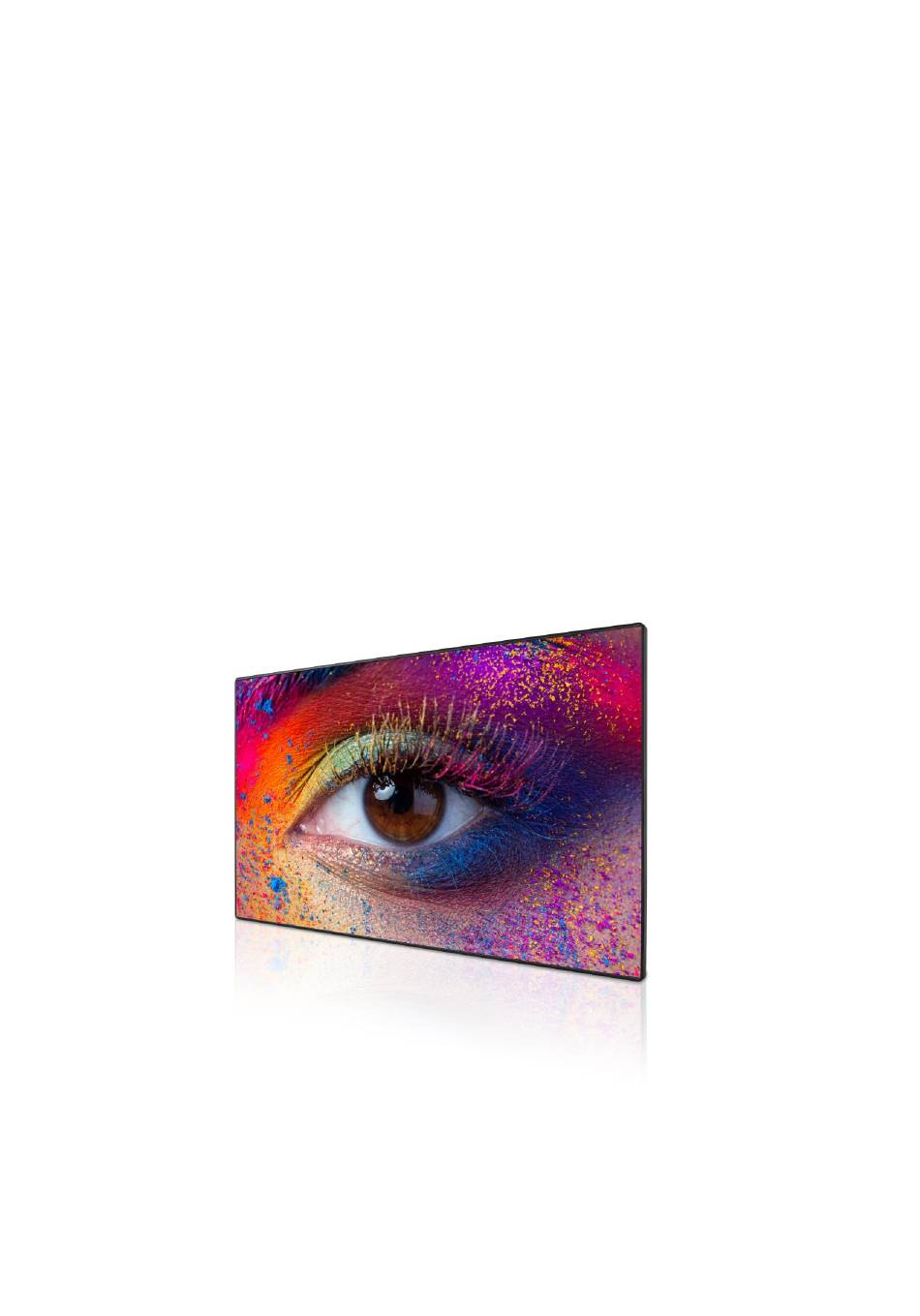

- Page 1 1.875mm Pixel Pitch with SMD LEDs FHDQ 163 All-in-one LED Display Operation Manual 2021.04 Document version 2.4.26 Page 1 of 31...
-
Page 2: Table Of Contents
TABLE CONTENTS Important Safety Notice …………………………………………………………………………… Installation/Use Precautions of AIO Products …………………………………………… Accessories Supplied ……………………………………………………………………………… Spare Parts ……………………………………………………………………………………………… Parts and Functions ………………………………………………………………………………… Interface Specifications ………………………………………………………………………… Remote control …………………………………………………………………………………… Electrical …………………………………………………………………………………………………… Circuit protection ………………………………………………………………………………… Ground leakage considerations ……………………………………………………………… Inrush-current and over-current considerations ……………………………………... - Page 3 Audio ……………………………………………………………………………………………… Setup ……………………………………………………………………………………………… Info ……………………………………………………………………………………………… System instructions ……………………………………………………………………………… Control and connecting …………………………………………………………………… Media ……………………………………………………………………………………………… Document ………………………………………………………………………………………… TapCast ……………………………………………………………………………………………… ……………………………………………………………………………………………… Settings …………………………………………………………………………………………………… Device information ……………………………………………………………………………… Source change ……………………………………………………………………………… Language Settings ……………………………………………………………………………… Theme ……………………………………………………………………………… Initialization ……………………………………………………………………………… Appendix A SPECIFICATIONS ……………………………………………………………………… Appendix B Optional Module ………………………………………………………………………...
-
Page 4: Important Safety Notice
mportant Safety Notice Always ensure that the unit is properly grounded and power connections correctly made. This equipment must be supplied by a power system providing a protective ground connection and having a neutral connection, which can be reliably identified. ... -
Page 5: Installation/Use Precautions Of Aio Products
Installation/Use Precautions of AIO Products The interior design of the AIO LED display screen is very sophisticated, although it is not dustproof or waterproof. Please adhere to the following precautions during installation and use. 1)Screen storage/working environment requirements Storage temperature：-10~50°C (14°F ~ 122°F)；Relative humidity：10%~60%; Working temperature：0~40°C (32°F ~ 104°F)；Relative humidity：10%~60%. -
Page 6: Accessories Supplied
Accessories Supplied Item Description Photo Qty. AC Power Cable 14S-0BS16A-00-PF (Assembled) AC Power Cable 14S-0UL16A-02-PF AC Power Cable 14S-GERMAN-04-PF STAINESS STEEL MOUNTING LOCK(3in1) 600-W60M10-10-PF 600-M25080-S0-PF IM Replacement Tool 420-MAG130-A7-PF M4x10 Flat Head Screw 600-FM0410-DC-PF M8x60 Expansion Screw 600-FM0860-10-PF HEAD SCREW M10 60S-HS1021-S0-PF Left plate of big 420-A163MT-10-PF... - Page 7 Right plate of small 420-A163MT-40-PF Side connection plate 420-A163MT-50-PF middle connection plate 420-A163MT-60-PF USB Flash Disk 333-DISK8G-00-PF Screwdriver 690-A25SDR-10-PF T-Hand Hex Key 690-DEM050-1A-PF 690-HEM108-10-PF Screwdriver 690-A15PBT-10-PF Infrared Remote Control 898-IRC001-00-PF Anti-static Gloves 690-ASHAND-20-PF Cordless Anti-static Wristband 690-ASWA15-00-PF Assist grip 420-A18HAD-11-PF MS SCREW M4x12mm 60S- WM0412-S0-PF Sensor box...
-
Page 8: Spare Parts
Parts and Functions Item Description Photo Qty. Intelligent Module 0-AM4-01C872FFEB-02P M4x10 Flat Head Screw 600-FM0410-DC-PF Interface Specifications Access SPECIFICATIONS Remark Qty : 1 HDBaseT input Qty : 1 Panel Control: Telnet Qty : 1 3G-SDI In / Out Qty : 2 RS232 Purpose : External Control (AMX) Audio Output... -
Page 9: Remote Control
Remote Control Page 9 of 31... -
Page 10: Electrical
Ground Leakage Considerations Each FHDQ163 LED display has ground leakage current contributions from twenty-six switched-mode power supplies and a filter. The total ground leakage current per LED display can be up to 26.35mA at 240V. If a 30mA RCD is used, then the maximum number of LED display s per section should be safely limited to 1. -
Page 11: Ac Power
AC Power The AC power cable is connected to the EMI filters and distributes to the power supply units inside the display. Color of Wire A.C. Supply connection (200V) A.C. Supply connection (240V) Brown AC. Live AC. Live Blue AC. -
Page 12: Osd
Display Page 12 of 31... -
Page 13: Image Settings
Image Settings: Set up image parameters. Display mode: Presentation/Cinema/Bright/User Brightness: -50~50 Contrast: -50~50 Saturation: -50~50 Hue: -50~50 Sharpness: -4~4 Gamma: 1.0/1.2/1.4/1.6/1.8/2.0/2.2/2.4 Color Temperature: Warm(6500K)/Standard(8500)/Cool(10000) Color Settings: RGB Gain/Bias/Color Space/RGB Channel/IRE Reset: Reset all settings Page 13 of 31... -
Page 14: Pip
(2) PIP Screen: PIP on/off PIP Location: set location PIP Size: size setting (25%, 33%, 43%) PIP Source: input source setting (input 1, input 2) Swap: swap 2 input sources Audio Mute: Mute on/off Volume: 0~10 Page 14 of 31... -
Page 15: Setup
Setup (1) LED Settings: LED Brightness/ Auto LED Brightness/Auto LED Warm Up (2) Power Settings: Signal Power On (only supported for HDMI 1 and HDMI 2)/ Sleep Timer/Direct Power On/Auto power off/Power Mode (Standby) (3) Test Pattern: Off/0: Red Curtain/1: Green Curtain/2: Blue Curtain/3: Grey V Bars/4: Grey H Bars/5: Aspect Test/6: Multi Test/7: Warp Adjust/8: SMPTE/9: Pluge/10: Moving Cross (4) Display ID: 00-99 (5) Options: Language(English/Spanish/Portuguese/French/German/繁體中文)/ Menu... -
Page 16: Info
Info Showing device settings and information Page 16 of 31... -
Page 17: System Instructions
Control and Connecting (1) To operate the FHDQ163, you can use the remote control or mobile device App.(Tapcast Pro: scan via QRcode or download from APP store or Google Play) (2) Open the app and enter the password “12345678”. Click “Device Connect” and then scan the QR code shown at the right-bottom of the display. -
Page 18: Media
Media (Playing internal media) Recently played: shows media files recently opened Media: shows all media files saved and available in the Launcher Playlist: shows playlists available Document (Office document viewer) Support type: Word/Excel/PowerPoint/PDF Page 18 of 31... -
Page 19: Tapcast
TapCast Pro Wirelessly display from mobile device. (please see quick start guide for more information) Page 19 of 31... -
Page 20: App
P-Cloud: Cloud-base content management system Settings (1) Device information Page 20 of 31... -
Page 21: Source Change
(2) Source change (3) Language Settings Page 21 of 31... -
Page 22: Theme
(4) Theme (5) Initialization Page 22 of 31... -
Page 23: Appendix Aspecifications
Appendix A SPECIFICATIONS Parameter Unit Value Brightness Nits 570±30 Color temperature deg. K 6,500 Viewing angle - Horizontal (50% brightness) deg. 140(+70/-70) Viewing angle - Vertical (50% brightness) deg. 140(+70/-70) Panel weight(max) kg / lb 200/441 Weight(max)(sq.m) kg / lb 27/60 Panel diagonal/ Display diagonal mm / ft... - Page 24 PC Compatibility PC Compatibility Refresh Rate Mode Resolution (Hz) HMDI 1 HDBT HDMI 2 Compatibility SVGA 800 x 600 1024 x 768 720p 1280 x 720 WXGA 1280 x 800 SXGA 1280 x 1024 FWXGA 1366 x 768 SXGA+ 1400 x 1050 WXGA+ 1440 x 900 UXGA...
-
Page 25: Appendix B Optional Module
Appendix B Optional Module GIM (Optional module) GIM is is extra slot-card for AIO display. Please contact local sales for more detailed information. OPS Compatible with Intel standard 80-pin OPS system. OPS Power spec: 60W(max), 12V, 5A. Page 25 of 31... -
Page 26: Appendix C Procedure For Intelligent Module Replacement
Appendix C Procedure for Intelligent Module Replacement If the intelligent module malfunctions, you can replace it using the following procedure: Power off the LED display; Locate the non-functioning intelligent module; Remove the intelligent module using the magnetic tool; Mount a new intelligent module back in the same position as the malfunctioning one; Make sure the intelligent module is firmly mounted;... -
Page 27: Appendix D Troubleshooting Guide
Appendix D Troubleshooting Guide Description Inspection Remove/replace The screen is blurred. Check to see if the source is correct. Signal source, signal Check to see if the wire and source connection wire connector are damaged. Picture discontinuity. Check to see if the screen reference Recorrect screen has been modified. -
Page 28: Appendix E Mechanical Assembly
Appendix E Mechanical Assembly Page 28 of 31... - Page 29 Page 29 of 31...
-
Page 30: Appendix Frs232 Command List
Appendix F RS232 Command List Page 30 of 31... -
Page 31: Appendix G Wi-Fi Hotspot Ssid And Password
Appendix G Wi-Fi Hotspot SSID and Password Password:123456789 Page 31 of 31...
