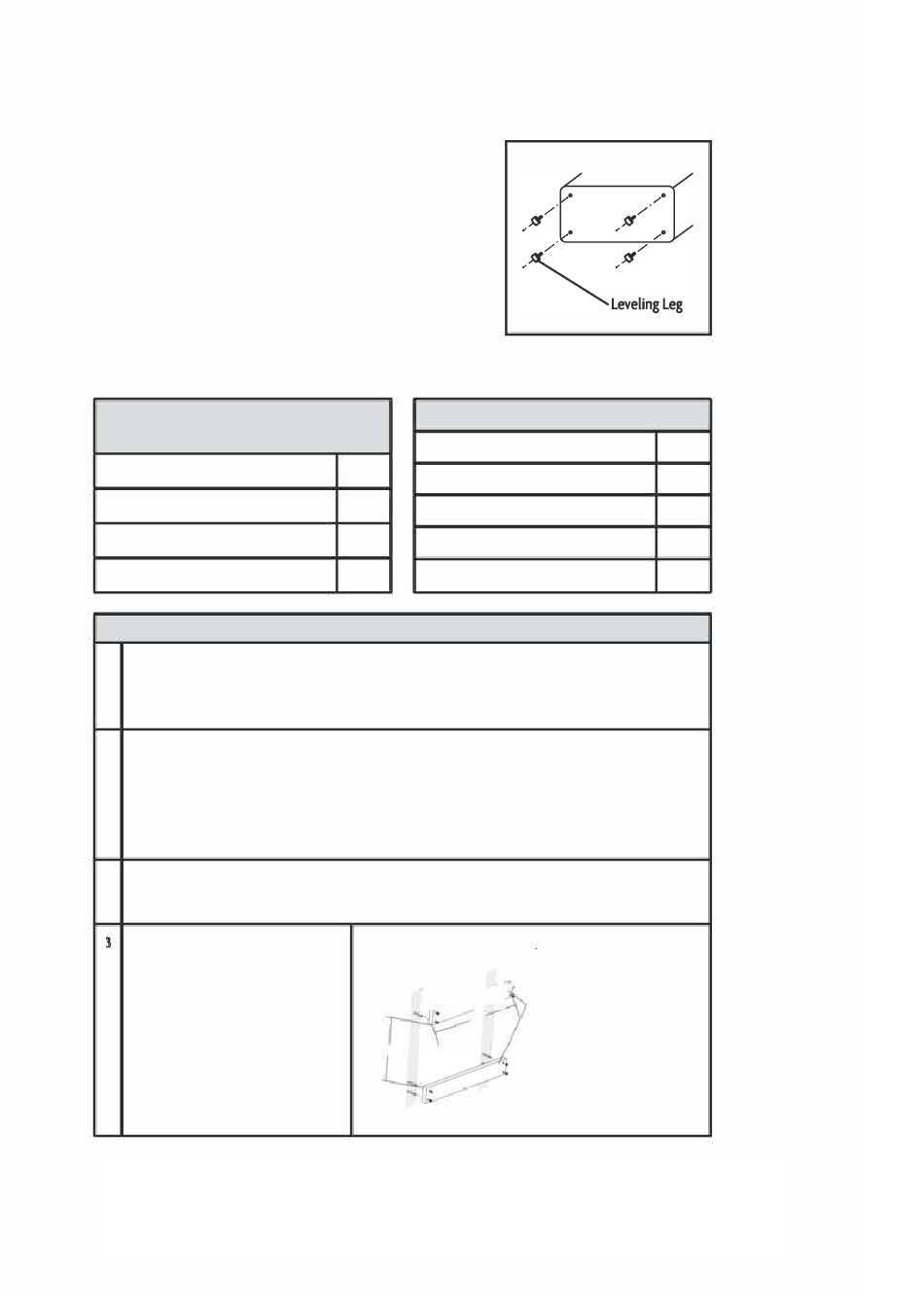

ADJUSTING THE LEVELING LEGS
The dryer is shipped with a bag containing the user guide and
four (4) leveling legs. See the illustration to the right to
install and adjust the leveling legs.
If the dryer is placed on an uneven or weak surface, noise or
vibrations will occur from the appliance. If the floor is uneven,
adjust the height level of the leveling legs accordingly. DO NOT
insert pieces of wood or any other objects under the legs.
WALL-MOUNTING INSTRUCTIONS
Tools and Parts Required for Plaster
and/or Wood Installation (Not Included)
Drill&DrillBit
Phillips Head Screwdriver
Expanding Wall Anchor
Wooden Slats
* NOTE: It is recommended to complete the following procedure with at least 2 people.
NOTE: As wall materials vary, the supplied hardware for fixing to the wall may be inappropriate for your wall
type. Consult your local hardware/ home improvement center for suggestions on the necessary hardware for
your particular wall type.
1 Determine the position where you will be installing the mounting hooks.
• This dryer is not designed to sit on top of your washing machine.
• A minimum of 2 inches is required between the top of the dryer and the ceiling above to allow easy
installation and adequate spacing for exhaust.
If mounting above a top load washing machine, allow sufficient spacing to open the lid of the washer. In the
case of a front loading washer, allow sufficient breathing space.
2 Although the supplied mounting hooks can be installed directly to the wall using the existing wooden studs, the
preferred method of installation is using wooden slats that provide a flat, level installation surface and added
stability to the whole wall installation.
Use two wooden slats (not included)
between the studs to mount the hooks.
Recommended wooden slat size is 23" (L)
x J½" (H) x l" (D).
When using the wooden slats to install
on drywall material, you must use
expansion wall anchor bolts to safely
secure the slats to the drywall.
Wall-Mounting Kit Includes
Wall-Mounting Hooks
1
l" Phillips Head Screws
1
Plastic Spacers
8
½" Phillips Flat Head Screws
2 Exhaust Connector
Wall-Mounting Instructions
M �
�
2 3 "
24"
10
Figure 5
2
4
2
4
1
pandmg Wall Ancho, 8, 2" Figure 6
WoodenSlats2J"(L)'3J,l''(H),1"(D)
