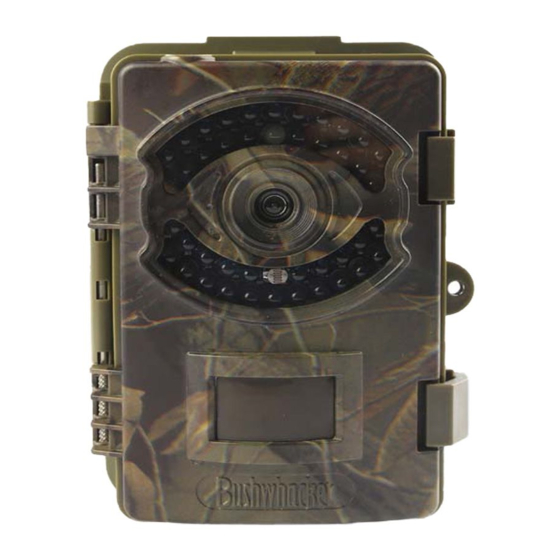

- Page 1 Instruction Manual Scouting Trail Camera MODEL: BIG EYE D3N ● 4K HD Video ● Time-lapse Video ● 0.2 Seconds Trigger Time ● Support SD Card up to 256GB ● 82 Feet PIR distance & IR range VER.202008...
-
Page 2: Table Of Contents
CONTENTS Quick Start Guide ............. 1 Introduction ............1 Application ............1 Battery ..............1 SD Card ............... 2 USB Function ............3 Attention .............. 4 Camera Overview............. 5 Quickly Use the Camera ............ 6 How to start the camera quickly ......6 Menu Function Table ............ -
Page 3: Quick Start Guide
Quick Start Guide Introduction Big Eye D3N wildlife camera is an infrared detection device. It can be triggered by sudden change of ambient temperature caused by moving game in a region of interest, which is detected by a highly sensitive passive Infra-Red (PIR) sensor, and then take pictures or video clips automatically. -
Page 4: Sd Card
camera for an extended period of time, please remove batteries from the camera to avoid possible acid leak that may damage the camera. B．External power supply This product supports 6V / 2A DC power adapter, solar power and so on. Note: When the battery is low, in the "TEST"... -
Page 5: Usb Function
16MP 1647 3333 6609 13219 26438 52875 Video Length (hours) 0:23:5 1:36:2 3:13:2 6:24:5 12:49:5 25:39:5 51:19:4 0:17:4 1:11:5 2:24:0 4:28:4 17:54:4 35:49:3 8:57:24 720P*6 0:05:1 0:20:5 0:41:5 1:23:2 11:07:1 2:46:49 5:33:38 0:13:2 0:53:5 1:48:0 3:34:5 14:19:4 28:39:2 720P 7:09:51 0:08:0 0:32:1 1:04:4... -
Page 6: Attention
The camera is connected to the RCA of the TV via the TV cable and the camera function switch to the "TEST" test preview mode. Select "REPLAY" to view the image file in the camera. Note: After connecting the TV, the camera display automatically turns off! Attention ... -
Page 7: Camera Overview
Camera Overview ② ⑧ TFT Screen ① ③ ⑮ Speaker IR LED Indicator ⑤ ⑨ SD Card Slot ④ ⑥ ⑯ Tripod Nut Light ⑧ ⑩ Keypad ⑦ ⑨ ⑰ DC In Lock Buckle Power/Mode ⑩ ⑪ ⑪ ⑫ ⑱ Battery Slot Lens Switch Battery Slot... -
Page 8: Quickly Use The Camera
Quickly Use the Camera Switch： 1. Turn the switch to "ON" then camera enters working mode ( before in working mode the indicator will flash red and blue lights 8 times, display then appears countdown, in normal working mode the display will be closed. 2. -
Page 9: Menu Function Table
Menu Function Table Press "MENU" key to enter the menu, press ▲, ▼ key to move the cursor to select various function options， "OK" key to confirm. Press "REPLAY" to enter playback mode. Press the "EXIT" key to return to the previous menu or exit the menu. The bold text in the table is the default. - Page 10 Beep Sound Off/On Format Yes/No Serial Number Off/On Longitude&Latitude Off/On Simple Menu Off/On Default Set Yes/No Version D3N-01-12025 Playback Cancel / Delete Delete Current File Cancel / Delete Delete All Images Slide Show Lock Current / Unlock Current Protect Lock All / Unlock All...
-
Page 11: Main Features And Parameters
Main Features and Parameters Main Features: 1) Photo Size：1MP/3MP/5MP/8MP/12MP/16MP 2) HD Video: 4K UHD/20FPS,1080P@30FPS,720P@30FPS 3) High-speed photography: 720P@60FPS 4) In "Camera + Video" Mode, camera takes both pictures and video at every trigger event. 5) Time-lapse Video: The camera is programmable to take pictures at predefined intervals and generates video files automatically, ideal for observing plant growth, flowering, bird nesting, starry sky changes, housing construction, etc. -
Page 12: Technical Parameters
23) Lockable and password protected. 24) Color pictures at daytime, monochrome pictures at night, switched automatically. 25) Serration design make camera easy to fix firmly. 26) Battery cover to prevent erosion from battery leakage which may damage the camera. 27) Nine-rectangle-grid mode and auto play to view images. 28) Supports loop recording. - Page 13 Lens FOV＝50° , F=2.5, Auto IR-Cut IR Flash 82 Feet/25 Meters IR Setting 42 LEDs; 850nm or 940nm LCD Screen 2.4" TFT Color Display Operation Keypad 7 buttons Beep Sounds On/Off Memory SD Card(≦256GB) PIR Level High/Normal/Low PIR Sensing Distance 82 Feet/25 Meters PIR Sensor Angle 50°...
- Page 14 Power Supply 200μA Stand-by Current Stand-by Time One Year(8× AA) 260mA (+790mA when IR LED lights Power Consumption Low Battery Alarm 4.15V TV-out, USB, SD card slot, 6V DC Interface External Mounting Strap; Tripod Nail Waterproof IP66 Work Temperature -4～＋158° F/-20～＋70° C Work Humidity 5%～95% Certification...
-
Page 15: Others
Others Replay With “REPLAY” button and other buttons can review/play/delete photos and videos in SD card; Photos can zoom in/zoom out/move; Nine-rectangle-grid mode to view images; Lock/unlock photos; Slide show, etc. Image Review: After press “REPLAY” button through ◄/► can review photos/videos in SD card. -
Page 16: Details Of Partial Function
pressing “CAMERA”/ “VIDEO" to take photos or videos. Automatic shutdown of keyboard without operation Display will be turned off after 2 minutes when keyboard is not operated, and camera will automatically shut down after 1 minute. Details of Partial Function 6.2.1 Timer Set camera to work within specified time period every day. -
Page 17: Faq
as the old one, to confirm upgrade process succeed. 6.3.1 When Camera Can't Start Normally Please do the following checks if camera cannot start or work normally: No battery; Battery loaded reversely; Run out of battery; Battery is not in conformity with the specifications;... -
Page 18: Warranty Policy
Warranty Policy We value our customers very highly and would like to ensure that our products and service are always of a top standard. However, if you are experiencing issues with your Camera products, please take a moment to read through the information below to establish whether your products are covered under the warranty. -
Page 19: Appendix I: Standard Packing List
Appendix I: Standard Packing List Part Name Quantity Digital Camera USB Cable TV Cable Strap Manual Warranty Statements The manufacturer reserves the right to amend the content due to editing or typographical errors，product upgrades and other factors which may causes discrepancies. Amendments will be applied to latest user’s manual.
