Summary of Contents for BUSHWACKER BATMAN D2

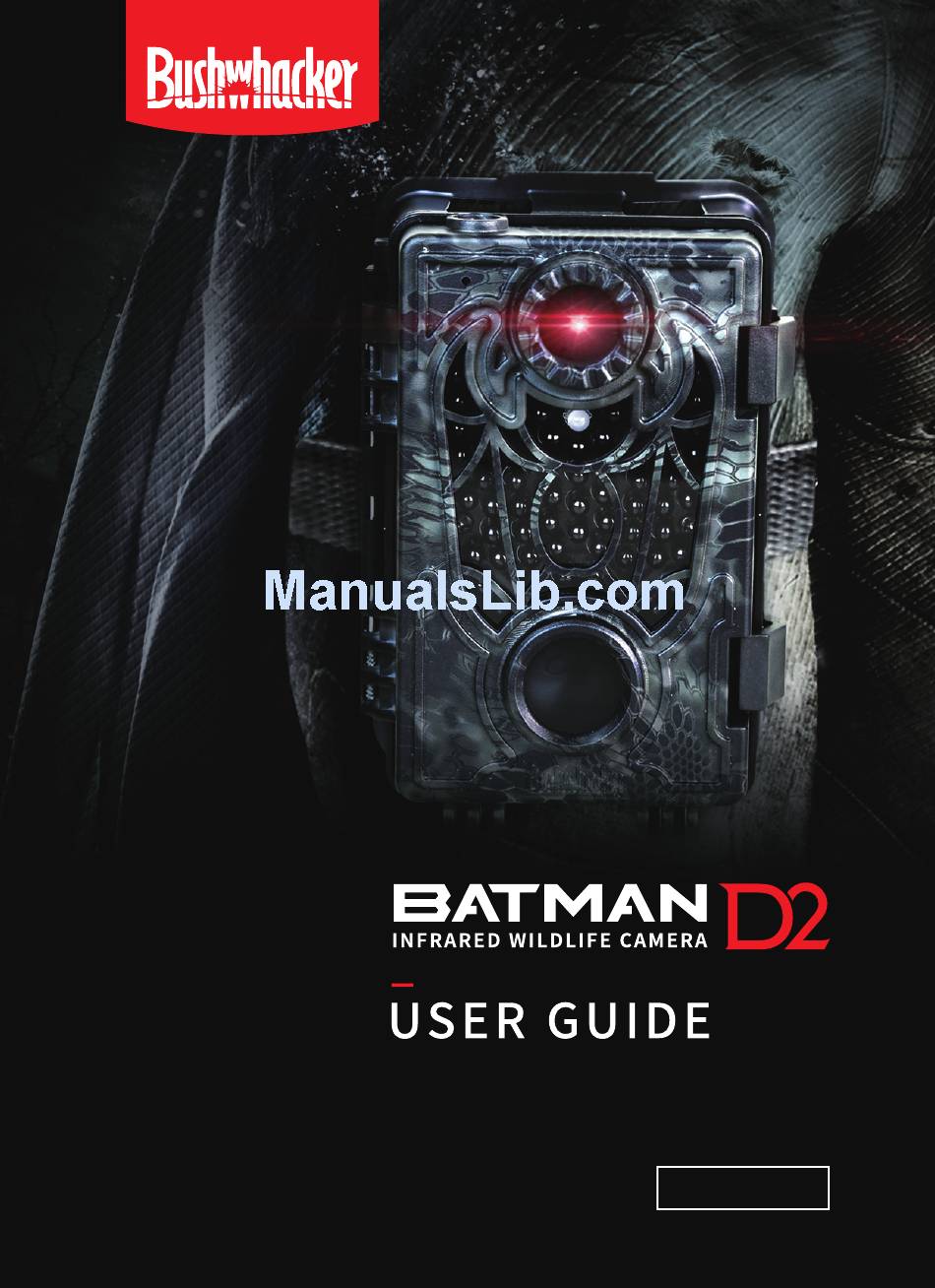

- Page 1 VER.201708...
-
Page 2: Table Of Contents
CONTENTS Quick Start Guide ..............1 Introduction ............1 Application ..............1 Battery ................. 1 SD Card ............... 2 USB Function .............. 3 Attention ..............3 Camera Overview ..............5 Camera Front Structure .......... 5 Camera Internal Structure ........6 Quickly use the camera ............ -
Page 3: Quick Start Guide
Quick Start Guide Introduction Batman D2 wildlife game camera (also called hunting camera/trail camera) is a scouting device. It can be triggered by sudden change of ambient temperature caused by moving game in a region of interest, which is detected by a highly sensitive Passive Infra-Red (PIR) sensor, and then take pictures or video clips automatically. -
Page 4: Sd Card
Note: The battery should be purchased by users. Make sure the polarity matches the sign on the cover. If you are not using the for an extended period of time, please remove batteries from the camera to avoid possible acid leak that may damage the camera. B．External power supply This product supports 6V / 2A DC power adapter, solar power and so on. -
Page 5: Usb Function
12MP 1806 3530 7361 14395 Video Length (hours) 1080P 0:08:22 0:16:32 0:32:19 1:07:23 2:11:46 720P 0:13:57 0:27:33 0:53:51 1:52:18 3:39:38 WVGA 0:18:36 0:36:44 1:11:49 2:29:44 4:52:51 0:24:59 0:49:21 1:36:28 3:21:09 6:33:22 10 seconds video number (segment) 1080P 720P 1317 WVGA 1757 1206 2360... - Page 6 upgrade, it needs to keep at least 5seconds before you can shut down or cut off power, otherwise it may causes upgrade failure. When install camera please make sure there are not moving objects in 3m area in front of lens such as branches, leaves, weeds, strings, color ribbon and other objects which may fluttered in the wind to avoid potential false triggers.
-
Page 7: Camera Overview
Camera Overview Camera Front Structure... -
Page 8: Camera Internal Structure
Camera Internal Structure... -
Page 9: Quickly Use The Camera
Quickly use the camera Switch： 1. Turn the switch to "ON" then camera enters working mode ( before in working mode the indicator will flash red and blue lights 8 times, display then appears countdown, in normal working mode the display will be closed. 2. -
Page 10: Menu Function Table
Menu Function Table Press "MENU" key to enter the menu, press ▲, ▼ key to move the cursor to select various function options, "OK" key to confirm. Press "REPLAY" to enter playback mode. Press the "EXIT" key to return to the previous menu or exit the menu. Menu function is related, part of the menu option will not appear because of the relevant function and display as gray. - Page 11 Videos are saved in AVI format 5s～59s， Video and able to display on most of 1/2/3/4/5/6/7/8/9/ Length video media player. 10 minutes Record Select On if you want to record Off/On Audio sound in video. Select the PIR interval time, the PIR will be disabled after each 5～59 minutes triggering.
- Page 12 Beep Sound Off/On Turn on or off. Format Yes/No Format SD Card 4 digits (0~9) and/or alphabets (A~Z) optional. Device Number will be showed on top 4 image file Device No. Off/On name, this helps users identify which camera captured the image when review it.
-
Page 13: Main Features And Parameters
Main Features and Parameters Main Features: 1）Photo Size：1MP/3MP/5MP/8MP/12MP 2）HD Video: 720P@30FPS, 1080P@17FPS, sounds recording can be turned on or off. 3）In "Camera + Video" Mode, camera takes both pictures and video at every trigger event. 4） Time-lapse Video: The camera is programmable to take pictures at predefined intervals and generates video files automatically, ideal for capturing ongoing work on a building, how a plant grows, etc. -
Page 14: Technical Parameters
21） Lockable and password protected. 22） Color pictures at daytime, monochrome pictures at night, switched automatically. 23） Serration design make camera easy to fix firmly. 24） Battery cover to prevent erosion from battery leakage which may damage the camera. 25） Nine-rectangle-grid mode and auto play to view images. - Page 15 Distance PIR Sensor Angle 50° Trigger Time 0.6 Seconds(When using 2GB SD card) PIR Sleep 5 Seconds～60 Minutes, Programmable Shooting Numbers 1/2/3/6 Photos Lock partial or all photos to avoid being deleted; Protection Unlock Video Length 5 Seconds～10 Minutes, Programmable Camera + Video First take Picture then Video Loop Recording...
-
Page 16: Others
Others Replay With “REPLAY” button and other buttons can review/play/delete photos and videos in SD card; Photos can zoom in/zoom out/move; Nine-rectangle-grid mode to view images; Lock/unlock photos; Slide show, etc. Image Review: After press “REPLAY” button through ◄/► can review photos/videos in SD card. -
Page 17: Details Of Partial Function
“CAMERA”/ “VIDEO" to take photos or videos. Details of Partial Function 6.2.1 Timer Set camera to work within specified time period every day. Outside the time period the camera will not be triggered or take photos/videos, it supports 1 group of timer set. Off, “00:00——00:00”... -
Page 18: Factory Default Setting
No battery; Battery loaded reversely; Run out of battery; Battery is not in conformity with the specifications; Not switch camera to “ON” mode; Not insert SD card; SD card is full or damaged; ... -
Page 19: Warranty Policy
Warranty Policy We value our customers very highly and would like to ensure that our products and service are always of a top standard. However, if you are experiencing issues with your Bushwhacker products, please take a moment to read through the information below to establish whether your products are covered under the warranty. -
Page 20: Appendix I：standard Packing List
Appendix I：Standard Packing List Quantity Part Name Digital Camera USB Cable TV Cable Strap Manual Warranty Statements The manufacturer reserves the right to amend the content due to editing or typographical errors, product upgrades and other factors which may causes discrepancies. Amendments will be applied to latest user’s manual.
