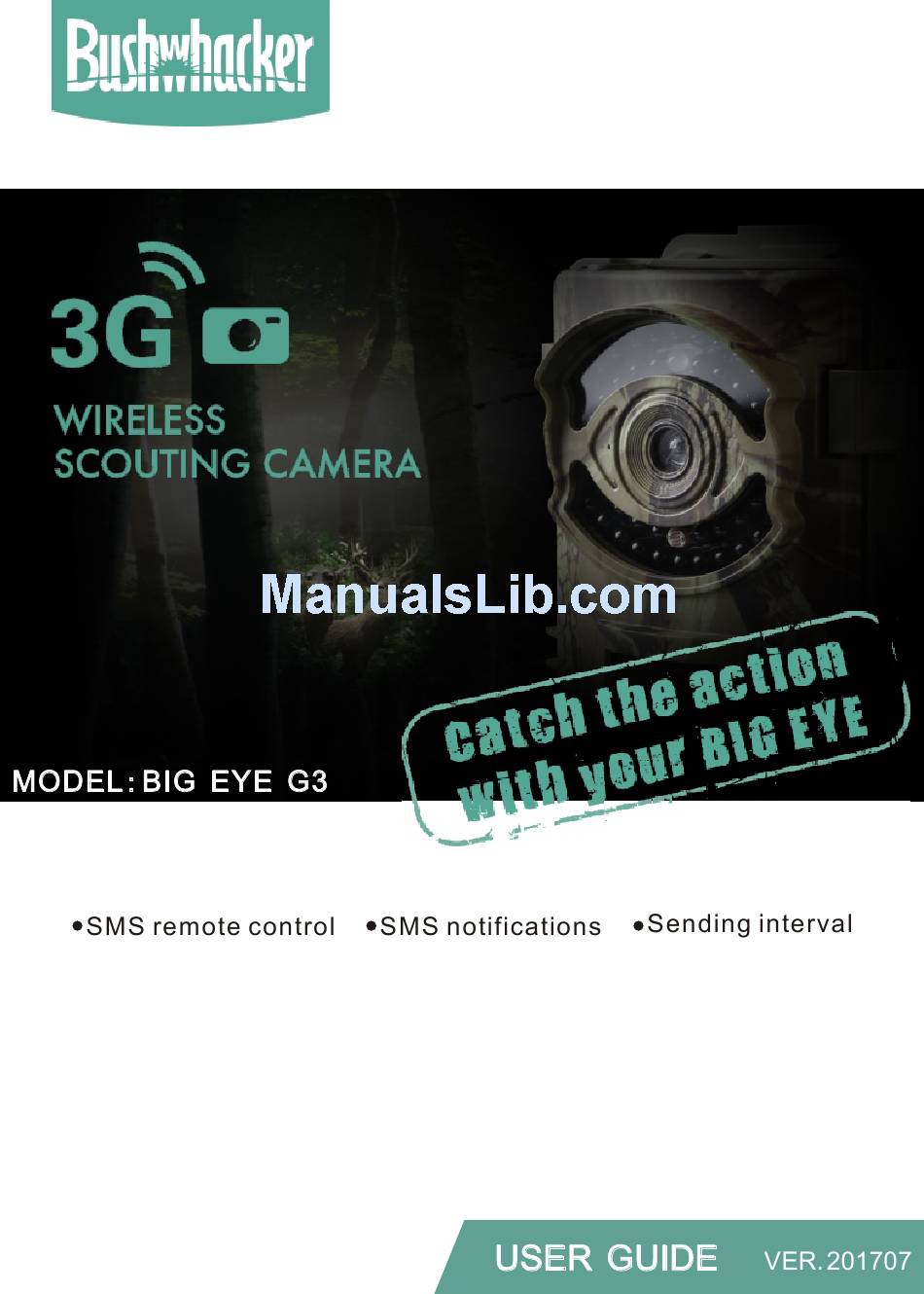

BUSHWACKER BIG EYE G3 User Manual

3g wireless scouting camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for BUSHWACKER BIG EYE G3

Summary of Contents for BUSHWACKER BIG EYE G3

  • Page 2: Table Of Contents

    Contents Introduction ................1 1.1 Application ................. 1 1.2 Power source ..............2 1.3 Memory card ..............3 1.4 USB functions ..............4 1.5 Precautions ................. 5 Camera structure knowledge ..........7 Front structure of the camera ........7 Internal structure of the camera ......... 8 III.
  • Page 3 VII. Other ................... 36 7.1 "REPLAY" key ..............36 7.2 Detailed explanations for partial functions ....... 38 7.2.1 Timer settings ............38 7.2.2 Language ............... 38 7.3 Firmware Upgrades ............38 7.4 Frequently Asked Questions ..........39 7.4.1 Camera cannot start normally ........ 39 7.4.2 If the camera cannot get the remote picture and information ..............

  • Page 4: Introduction

    Introduction Big Eye G3 wildlife camera (also known as wireless hunting camera / 3G trail cameras) is an wireless infrared detection device with 3G network. It is triggered by pyroelectric infrared sensor (PIR). Any change of environment temperature caused by movement of animals in observation area automatically triggers completion of photographs or video.

  • Page 5: Power Source

    stealing and illegal hunting, as well as for evidence obtaining. F． It can be used in other aspects for evidence collection. Notes to users: Please read instructions carefully before using this product, so as to avoid unnecessary loss! Do not disassemble the camera arbitrarily.

  • Page 6: Memory Card

    pay attention to the positive and negative electrode of the battery in installation. When you do not use the camera for a long time, please take out the battery, to avoid any damage to camera caused by liquid leakage. When battery capacity is low, please replace themin time.

  • Page 7: Usb Functions

    Image amount stored in SD cards with different capacity. 16GB 32GB 64GB Photo number (piece) 1644 3320 6746 13234 28055 53752 1026 2072 4212 8262 17514 33557 1307 2656 5210 11054 21162 12MP 1740 3414 7238 13868 16MP 1314 2578 5465 10471 Video length(hour)

  • Page 8: Precautions

    interface. The camera is connected with the USB interface of the computer through the USB data line, the camera display screen displays the USB connection symbol, and the operation key is invalid. Find the removable disk in "my computer", which could be used to read and write SD card in the camera through the computer.
  • Page 9 power off, otherwise it may lead to the failure of upgrade. If the upgrade failed, it may continue to upgrade again. C． When installing the camera, please ensure there is no moving object 3 meters range in front of camera, such as tree branches, leaves, weeds, ropes, ribbon and other objects fluttering in the wind, so as not to cause the camera to continuously take pictures by mistake.

  • Page 10: Camera Structure Knowledge

    on again, showing the network signal strength in the lower left corner of the screen. Camera structure knowledge Front structure of the camera antenna Working indicator light Microphone Infrared LED light Camera lens Photoresistance PIR infrared sensing window...

  • Page 11: Internal Structure Of The Camera

    Internal structure of the camera Battery compartment cover plate Display screen Battery compartment SD card slot On-off key SIM card slot Keyboard USB port DC power supply port VII. Use camera quickly Power switch: 1. When turning to ON, the camera enters into the work mode (before entering into the work mode, the red work indicator light flashes for 6 times, the blue light for the 3 times) 2.

  • Page 12: Start Camera Quickly

    3.1 Start camera quickly Monitoring Battery SD card SIM card Preparation 准备 安装电池 安装SD卡 安装SIM卡 开始监测 starting installation installation installation TEST 2 sets of 8 batteries. Pay Camera, battery 相机、电池 2组8个电池 SD卡、 attention to the positive 设置参数 Parameter SD card, SIM card 注意正负极...
  • Page 13 Network search Confirm to start network search SIM card intact, good signal No SIM card found, no signal If the signal is not normal, please send the Debug file.txt file in SD card back to the manufacturer for troubleshooting. Network standard strength Network standard is displayed in the camera as: (transmission speed from low to high) UTRAN...
  • Page 14 Check the network setting parameters Preparation 准备 进入TEST状态 Enter TEST state “MENU” 按两次“MENU”键，进入“设置”状态 Press "MENU" key twice to enter the "setting" state Press ▼ key, to find "network information view" state. “▼” 按“▼”键，找到“网络信息查看”状态 Display network facilities parameters “OK” 显示网络设置的参数 Network information Network information view display...

  • Page 15: Menu Function Table

    Communication module IMEI code can be queried on the menu. At the first time for using, it is only displayed after searching network. VIII. Menu function table Press "MENU" key to enter into cyclic menu. Press ▲or ▼ key to move the cursor to select a variety of function options.
  • Page 16 shooting, followed with video shooting at the preset length on the same target. High resolution can improve the definition of the photo, but 3MP/5MP/8MP/ Image Size it will take up more storage 12MP/16MP space, more time for file storing. High resolution can improve the definition of the video, but VGA/WVGA/ Video Size...
  • Page 17 Length seconds /20 seconds /30 be played in the most video seconds /45 seconds /1 players. minute /2 minutes /3 minutes /5 minutes /10 minutes 4 characters; each character can be selected optionally from 0-9, A-Z. equipment number becomes the first 4 Device No.
  • Page 18 minutes /5 minutes /10 PIR interval. After this period, minutes / 20 minutes /30 the PIR will resume the minutes /1 hour waiting state to be triggered. The camera could be set for Off/5 seconds /10 seconds timing shooting during set /15 seconds/ 30 seconds time interval.
  • Page 19 Record If it is turned on, there is sound Off/On Sound record with video. The user can set the PIR PIR Level Low / Normal / High sensitivity based on needs. Once a photo is shot, if the camera does not take another photo within the set time interval, the camera will send the photo (by Email or MMS)
  • Page 20 automatically. The "OFF" is selected; network function will be turned off too. Press “OK” key to display information of current network mode, receiving phone number, operator, server Net Info Net configuration mailbox, server port, sending mailbox, sending mailbox password, receiving and CC e-mail address, etc.
  • Page 21 Display the IEMI code for the IEMI current network module System Formatting Format SD card SD card Set Clock Set system time of the camera. 2017/01/01 00:00 Restore all settings to factory Default Set Factory defaults. Support multiple languages: Language English See 7.2.2 language Beep...

  • Page 22: Network Functions

    G3: Camera model; 01: Language Section; Software G3___01_6.1.01 6.1: Software version number; Ver. Customized software version number. Playback Delete Delete single one or all images Delete current / delete all Locked image cannot Lock current / unlock deleted. Only after unlocking, Protect current / lock all / unlock it could be removed.
  • Page 23 Pattern: Photo (1), video (2), photo + #01=1* video (3) Image Size: 3MP(1),5MP(2),8MP(3),12MP(4),16MP #02=1* Video size #03=1* 720P(1),1080P(2), VGA(3), WVGA(4) The number of continuous shooting: 1 unit (1), 2 units (2), 3units (3), 4 units #04=1* (4), 5 units (5), 6 units (2) Video length: 5 seconds (1), 10 seconds (2), 15 seconds (3), 20 seconds (4), 30 seconds (5), 45 seconds (6), 1minute (7),...
  • Page 24 PIR dormancy: 3 seconds (1), 5 seconds (2), 10 seconds (3), 15 seconds (4), 30 seconds (5), 1 minutes (6), 2 minutes #09=1* (7), 5 minutes (8), 10 minutes (9), 20 minutes (10), 30 minutes (11), 1 hour (12), off (13) Interval shooting: 3 seconds (1), 5 seconds (2), 10 seconds (3), 15 seconds (4), 30 seconds (5), 1 minute (6), 2...
  • Page 25 Key sound: On (1), Off (2) #18=1* Loop record On (1), Off (2) #19=1* TV Output: PAL (1), NTSC (2) #20=1* Password setting: Letters (26 pcs), #21=1234* numbers (10 pcs) Network mode: Turn off (0), SMS (1), #22=0* email (2), MMS (3) #23=1234567 Receiving phone number: 8901*...

  • Page 26: Pc Client Setting

    (11), 1 hour (12), off (13) After the camera is set with remote SMS, when the camera restarts next time, a message will be sent to the mobile phone. Safety SMS function: In the induction mode, following a normal shooting and sending if there is no other shooting in the next 12 hours, then the camera will send a message to inform the current state of the camera (including: time, energy, remaining storage capacity) to receiving mobile phone number.

  • Page 27: Camera Parameters Setting

    5.2.1 Camera parameters setting Click the camera settings for the camera parameter settings. After parameter setting, click on the "directory" to select the file storage address. Click "generate" to generate the camera parameter settings file as “CameraSet.cfg” filename. Click "Exit" to exit the...

  • Page 28: Network Parameter Setting

    main menu interface. Copy the parameter settings file of CameraSet.cfg to the SD card. Insert it to the camera and turn the key to TEST, camera setting is automatically finished. Load: If the generated parameters are incorrect, click "Load" to select the generated file, you can quickly restore the generated parameters, convenient for modify the parameters again.
  • Page 29 parameters. Then you can use it. If the parameters provided by the system are incorrect or no option, the user can choose the "manual" mode, to fill in all the network parameters, e-mail, telephone number. For network APN, server used, port, APN account and APN password, please consult local communications operators.
  • Page 30 After selection of the filling way, country, operators, it is needed to fill in the NET APN(Access Point Names), Send Server, Port, Send Name (Mailbox), Send Mailbox Password, Receiving mail, CC mail, Send Interval. For sending SMS, you need to fill in phone number.
  • Page 31 mode parameter settings. After selecting the Country, Operator, it is needed to fill in the Send Interval, Phone Number, MMS APN, MMS URL, MMS Proxy Server, MMS port. In some countries, it is required to fill out the APN Account, APN Password. If there are no requirements for operators, the two parts can be empty.
  • Page 32 In this mode, it is required to set the Country, Operator, Send Interval, Phone Number. When sending SMS, the set mobile phone number can receive the text information of the image shot by the camera. Note: Phone number format is "+8613800138000" or "13800138000".

  • Page 33: Main Performance And Technical Parameters Of The Product

    Main performance and technical parameters of the product Main functions 1) Picture pixels: 3MP/5MP/8MP/12MP/16MP. 2) HD video: 1080P 30 frames per second. The sound of the video can be set on or off. 3) In the "camera + video" mode, the camera after being triggered to start every time, the camera will take pictures first and then record a scene video.
  • Page 34 parking, garden. 12) Auto power off in 1-10 minutes whiles no keypad controlling. 13) Date, time, temperature, moon phase and battery capacity can be stamped in the picture. 14)7 operation buttons. The beep sound can turned on or off. 15) Free choice of TV out at PAL/NTSC. 16) Maximum 64GB SD memory card is supported.

  • Page 35: Technical Parameter

    mounting. 27) The battery hatchway cover can effectively avoid corrosion damage to camera caused by leakage of battery. 28) Image transmission speed is high, transmit image via SMTP/ MMS, network support GPRS / 3G. 29) With SMS notice and remote control functions. 30) Supports thumbnail or original transmission.
  • Page 36 FOV=90 degree (G3R:50 degree), F=2.4 (G3R:2.5), Lens auto-induction switch filtering IR Flash Distance 65 feet / 20 m 42pcs; Visible light lamp/invisible light lamp Infrared Lamp selectable Power Saving On/off; Only 20 lights work after opened LCD screen 2.4 inch, TFT colors, RGB Operation Keypad 7 buttons Beep Sounds...
  • Page 37 Slide Show 3 Second/5 Second/8 Second Loop Recording On/Off Locked or unlock image Lock Image On/Off, Logo, temperature, moon phase, date, time, Stamps battery power Password 4-digit number, each digit can be freely set with 0 ~9 4-digit number, each digit can be freely set with 26 Device No.
  • Page 38 no operation. Power Source 4×AA, 8×AA External DC Power 6V/2A Supply Standby Current 0.4mA 200mA( +700mA when IR LED lights up) Power Consumption 250mA (start network, maximum peak is 400mA) Low Battery Alarm 4.8V TV-out/USB, SD card slot, 6V DC power port, Interface network antenna, SIM card slot Mounting...

  • Page 39: Other

    Other 7.1 "REPLAY" key "REPLAY" key, with other keys achieve browsing/playing/deleting of images which have been stored in SD card; Photos can be enlarged /shrunk/moved; Video Sudoku thumbnail; Video lock/unlock; Slides play function. Image review: Press "REPLAY" first, in this state, press ◄/►key to browse photos and videos in SD card.
  • Page 40 When browsing video documents, operation instructions will be displayed at the bottom of the screen. Press "OK" key to play or suspend video. Press ▲/▼/ key to terminal video playing. When pressing "、" key, video will speed forward or go back with 2 times, 4times, 8 times of the play speed.

  • Page 41: Detailed Explanations For Partial Functions

    or video recording. 7.2 Detailed explanations for partial functions 7.2.1 Timer settings Timer function can set cameras to work in particular times, beyond these times the camera is in dormant state. Two time settings can be made. System default the timer: Off，“00:00——00:00”...

  • Page 42: Frequently Asked Questions

    and software. User may update camera software version through SD card (SD card capacity shall less than 32GB). Please conduct firmware upgrade of product with the following procedures: 1. Prepare a formatted SD card; 2. Copy the new version software document named "FWD3A.bin"...

  • Page 43: If The Camera Cannot Get The Remote Picture And

    Not tune function switch to ON state yet; Not insert SD card yet; SD card is full loaded or damaged. SD card capacity has surpassed the maximum support capacity 64GB; PIR sensor sensitivity setting grade is too low. 7.4.2 If the camera cannot get the remote picture and information SIM card contact is bad, the installation is not in place;...

  • Page 44: Warranty Policy

    Timer Interval 3 seconds Time Lapse shooting Stamps shooting Power Saving Auto Power Off 1 minute Record Audio PIR Level Normal Sending Interval 10 minutes Network Info Network configuration Networks Search for signal IMEI Identify number of 3G module System netwcommunication module Format SD card...
  • Page 45 whether your products are covered under the warranty. WARRANTY We guarantee our Bushwhacker cameras to be free of defects in materials and workmanship under normal use and service for a period of a limited times after registered date of purchase. EXCLUSIONS This warranty does not cover damages caused by misuse, abuse, improper handling or installation, or improper storage conditions...

  • Page 46: Time Of Taking Photos

    XIII. Appendix I: Corresponding table of “video length” and “time lapse” of taking photos In video mode, the optional shortest duration of time lapse depends on the length of the video. The interval starts from the beginning of video length. Time Lapse Video Length (The shortest duration)

  • Page 47: Appendix Ii: Standard Packing List

    XIV. Appendix II: Standard Packing List Component name Quantity Camera USB cable Aerials TV Connecting wire Installation bandage Operating Instructions Warranty Card XV. Statement 1. The manufacturer reserves the right to make corrections at any time to the contents of this manual due to inconsistencies in editing / typographical errors and product upgrades and includes modification in new version of the manual.
