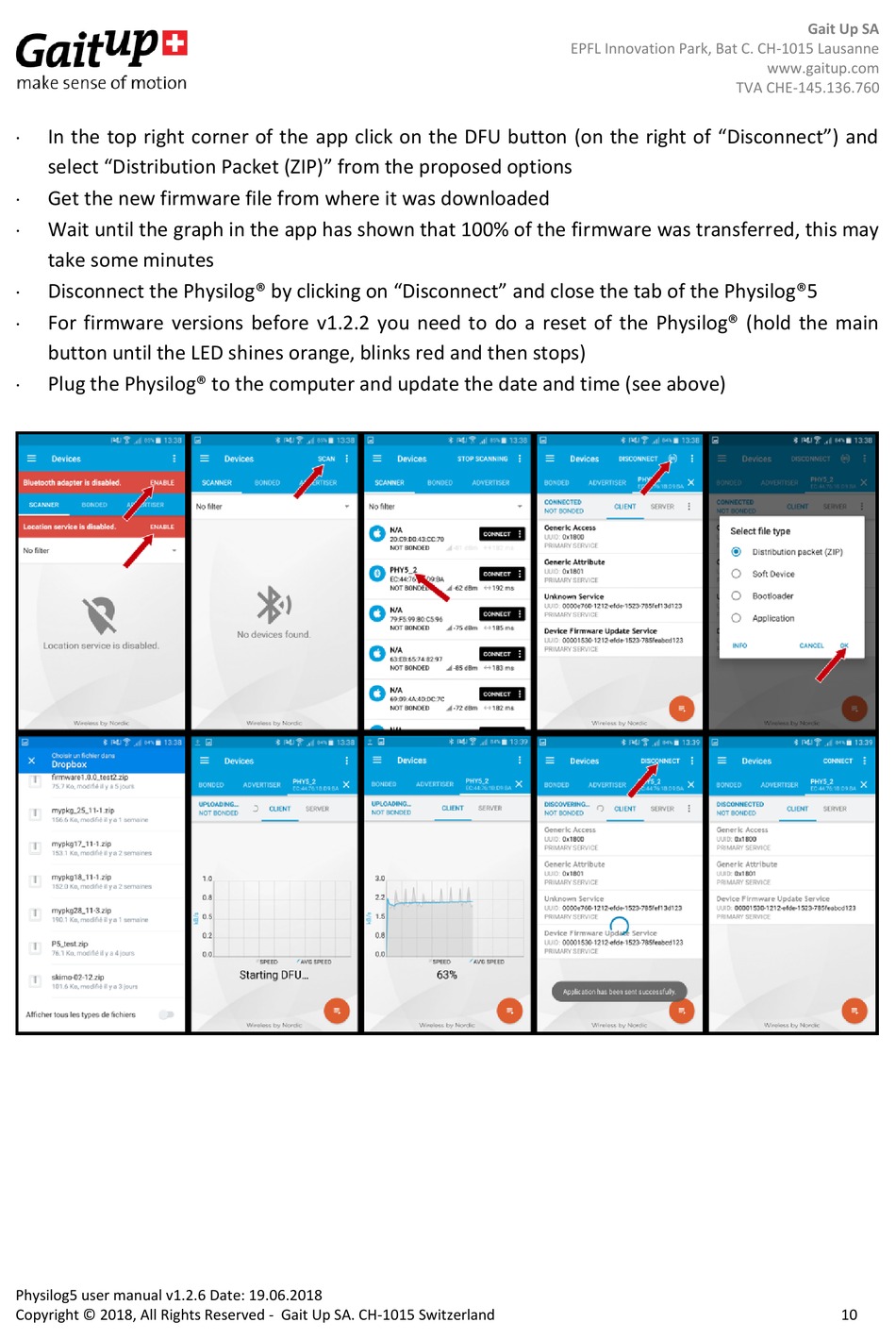

In the top right corner of the app click on the DFU button (on the right of "Disconnect") and
select "Distribution Packet (ZIP)" from the proposed options
Get the new firmware file from where it was downloaded
Wait until the graph in the app has shown that 100% of the firmware was transferred, this may
take some minutes
Disconnect the Physilog® by clicking on "Disconnect" and close the tab of the Physilog®5
For firmware versions before v1.2.2 you need to do a reset of the Physilog® (hold the main
button until the LED shines orange, blinks red and then stops)
Plug the Physilog® to the computer and update the date and time (see above)
Physilog5 user manual v1.2.6 Date: 19.06.2018
Copyright © 2018, All Rights Reserved - Gait Up SA. CH-1015 Switzerland
EPFL Innovation Park, Bat C. CH-1015 Lausanne
TVA CHE-145.136.760
Gait Up SA
www.gaitup.com
10
