User manual
Thank you for purchasing Physilog 6S, the Swiss quality movement sensor. This manual
introduces how to use the different features of the sensor.
ENGLISH
D-PHY6S-LBL-0102 / Physilog 6S - Instructions for use
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gait up Physilog 6S
Summary of Contents for Gait up Physilog 6S

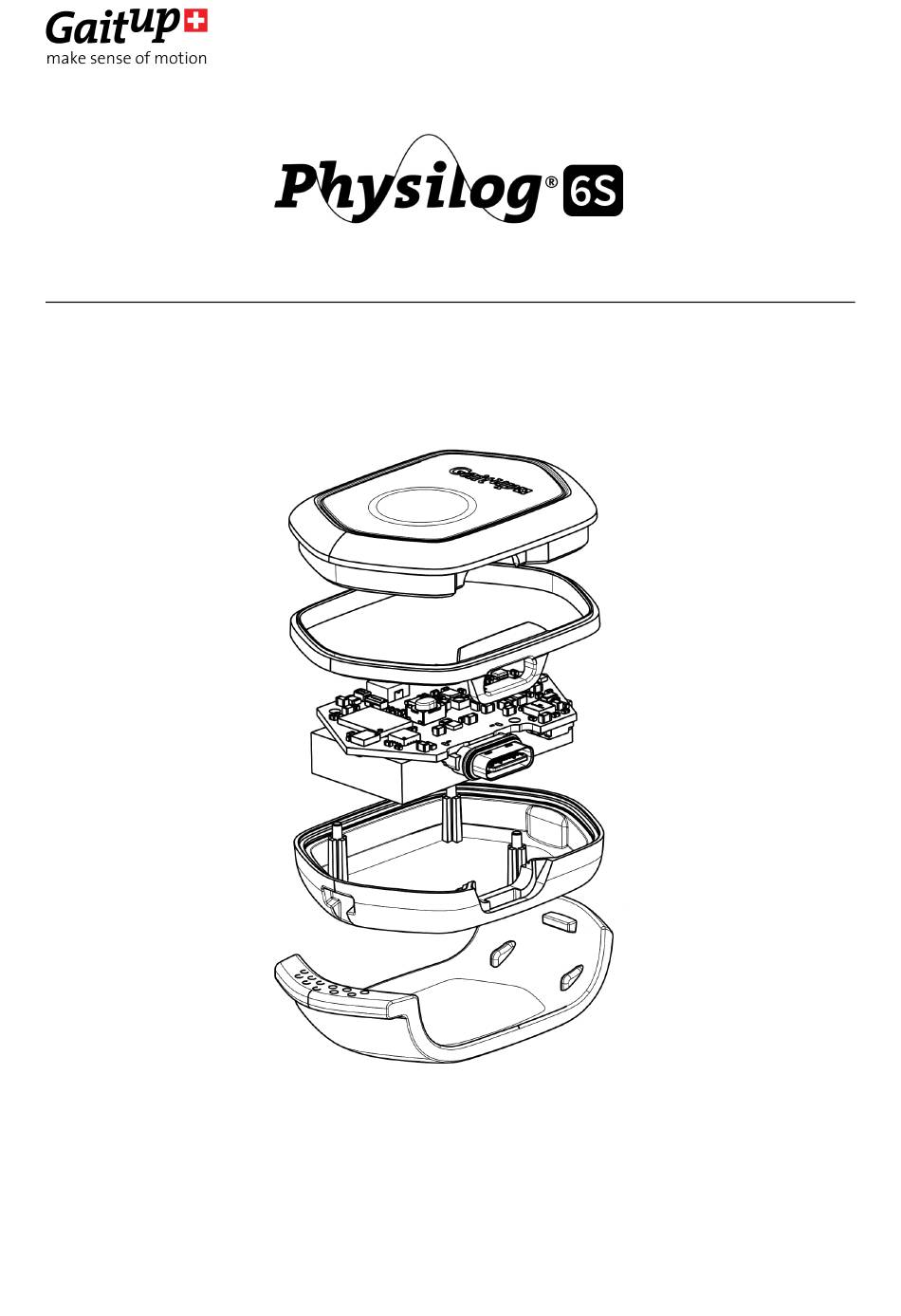

- Page 1 EPFL Innovation Park, Bat C. CH-1015 Lausanne www.gaitup.com TVA CHE-145.136.760 User manual Thank you for purchasing Physilog 6S, the Swiss quality movement sensor. This manual introduces how to use the different features of the sensor. ENGLISH D-PHY6S-LBL-0102 / Physilog 6S - Instructions for use...
- Page 2 Website: h ttps://clinical.gaitup.com/ Support email: s upport@gaitup.com Model: Physilog 6S IC ID: FCC ID: 2 AYHH-PHY06GAITUP Physilog 6S user manual v1.0.0 Date: 08.01.2021 Copyright © 2021, All Rights Reserved - Gait Up SA. CH-1015 Switzerland www.gaitup.com...
-
Page 3: Table Of Contents
Troubleshoot Limited Warranty & Support Policy Product compliance Europe IC - Canada (EN) IC - Canada (FR) Contact information Physilog 6S user manual v1.0.0 Date: 08.01.2021 Copyright © 2021, All Rights Reserved - Gait Up SA. CH-1015 Switzerland www.gaitup.com... -
Page 4: Physilog 6S Elements
1. Physilog 6S elements 2. Charging The Physilog 6S is charged via the USB-C port. Plug the USB-C connector of the cable delivered with the Physilog 6S to the sensor. Plug the USB connector to a Computer or charger (see voltage specifications below). -
Page 5: Recording With Physilog 6S
LED shortly blinks green three times. If several Physilog 6S sensors are configured to do so and started at the same time, they synchronize regularly during the measurement. A network includes one single master sensor and several slave sensors (from one to as many as wished). -
Page 6: Control The Physilog From A Mobile Application
Data saved on the internal memory of the Physilog® can be accessed using USB data transfer. Therefore, plug the USB cable to the Physilog® and a computer. The Physilog 6S connects to the computer like a USB key and files can be accessed. One file for each measurement is created and files are stored in folders depending on creation date (YY_MM_DD). -
Page 7: How To Update Date And Time Of The Physilog 6S
5.2. How to update Date and Time of the Physilog 6S Via computer: ⋅ Create a new text file on the Desktop of your computer or directly on the Physilog® sensor (on Windows: right click, new>text file, on Mac: open text editor and save file as text file) ⋅... - Page 8 ⋅ Wait until the graph in the app has shown that 100% of the firmware was transferred, this may take some minutes ⋅ Disconnect the Physilog® by clicking on “Disconnect” and close the tab of the Physilog 6S ⋅ Plug the Physilog® to the computer and update the date and time (see above) ⋅...
-
Page 9: Tips For Best Practices
⋅ Copy trial recordings to your computer: Physilog® is not the best place to keep important data. ⋅ Physilog 6S can be used outside when the temperature is not exceeding 30 °C. Do not use Physilog 6S to measure water-sport activities without additional waterproofing. -
Page 10: Maintenance And Disposal
Use water and soap, saline solution or 3% Hydrogen peroxide (H2O2) solution to clean the Physilog 6S sensor device and its fixation clip accessories. Do not use a cleaning spray, but carefully wipe all parts using a humid wipe. - Page 11 62368-1:2014+/A11:2017 Informations relatives à la sécurité: ⋅ Physilog 6S contient une batterie au lithium. La batterie ne doit être chargée que si la température extérieure est dans les limites définies. N’essayez jamais de connecter ou charger votre Physilog® 6S si la température ambiante est en dehors des limites de 0 à 45°C.
-
Page 12: Sensor Specifications
● Output voltage: DC 5V 3A/9V 2A/12V 1.5A ● Efficiency: >85% ● CE-marked & ROHS compliant ● USB-A connection Physilog 6S user manual v1.0.0 Date: 08.01.2021 Copyright © 2021, All Rights Reserved - Gait Up SA. CH-1015 Switzerland www.gaitup.com... -
Page 13: Troubleshoot
(number of red blinks, last manipulation, firmware version etc.). LED indications Physilog 6S user manual v1.0.0 Date: 08.01.2021 Copyright © 2021, All Rights Reserved - Gait Up SA. CH-1015 Switzerland www.gaitup.com... -
Page 14: Limited Warranty & Support Policy
Gait Up in any manner so as, in Gait Up’s judgement, to affect its service ability, or any product been subject to alteration, accident, misuse, abuse, neglect or abnormal wear. Gait up warrants solely to the original purchaser (customer). -
Page 15: Product Compliance
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable Physilog 6S user manual v1.0.0 Date: 08.01.2021 Copyright © 2021, All Rights Reserved - Gait Up SA. CH-1015 Switzerland www.gaitup.com... -
Page 16: Europe
IMDA Singapore statement Physilog 6S complies with the standards and specifications published by IMDA, is compatible with the public telecommunication networks in Singapore, and does not cause radio frequency interference to other authorised radio-communication networks. -
Page 17: Ic - Canada (Fr)
Note : The separation distance between the user and/or bystander and the antenna and/or radiating element of the device is of at least 15mm. Physilog 6S user manual v1.0.0 Date: 08.01.2021 Copyright © 2021, All Rights Reserved - Gait Up SA. CH-1015 Switzerland www.gaitup.com... -
Page 18: Contact Information
09 DEC 2020 1.0.0 Addition of FCC license ID, charger specifications Ainara Bujanda 08 JAN 2021 addition and correction of errors Physilog 6S user manual v1.0.0 Date: 08.01.2021 Copyright © 2021, All Rights Reserved - Gait Up SA. CH-1015 Switzerland www.gaitup.com...
