Summary of Contents for Chiltern Invadex TransAqua

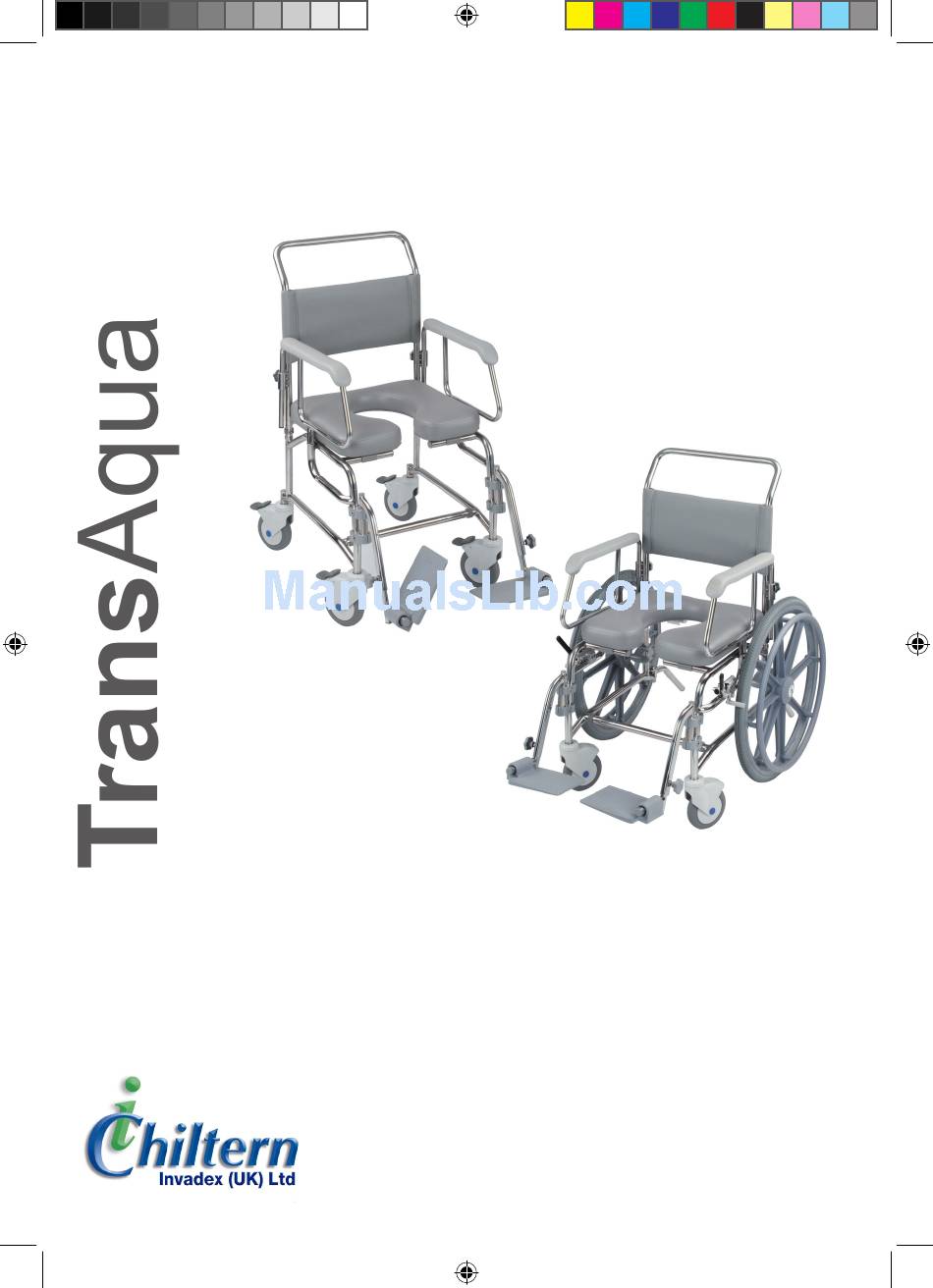

- Page 1 This user guide contains essential information in relation to safe use and maintenance and should be retained with the shower chair for reference User Guide Attendant & Self propelled models TransAqua User Guide Issue 2.0.indd 1 15/06/2018 14:46:08...
-
Page 2: Table Of Contents
Follow the recommendations in this guide to ensure maximum benefit from your shower commode chair. Your Chiltern Invadex shower chair has been designed and tested to meet the highest standards of safety. Read the safety section of this guide prior to use, this is contained on page 1. -
Page 3: Safety Considerations
This section should be read and understood prior to use of the shower chair. Failure to adhere to the below can lead to serious injury. Should clarification of any point be required, please call Chiltern Invadex on 01869 365500 prior to use. •... -
Page 4: Assembly Instruction
Push the backrest into the frame assembly until the holes are in line and snap home the grey securing pins (8). Prior to commencing you must ensure that all securing pins are fully inserted. June 2018 Issue 2.0 TransAqua User Guide Issue 2.0.indd 2 15/06/2018 14:46:10... - Page 5 Fit footrests into sockets (15) Should you need to disassemble the chair, follow the above instructions in reverse 15 - 1 Issue 2.0 June 2018 TransAqua User Guide Issue 2.0.indd 3 15/06/2018 14:46:12...
-

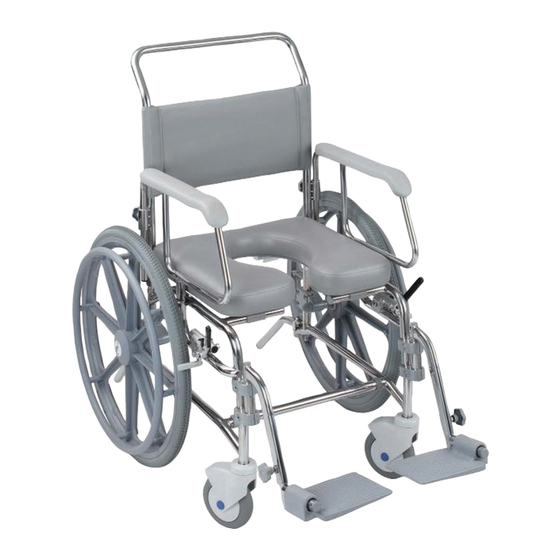

Page 6: Self Propelled Model
Push the backrest into the frame assembly until the holes are in line and snap home the grey securing pins (8). Prior to commencing you must ensure that all securing pins are fully inserted. June 2018 Issue 2.0 TransAqua User Guide Issue 2.0.indd 4 15/06/2018 14:46:13... - Page 7 Fit footrests into sockets (15) Should you need to disassemble the chair, follow the above instructions in reverse 15 - 1 Issue 2.0 June 2018 TransAqua User Guide Issue 2.0.indd 5 15/06/2018 14:46:14...
-
Page 8: Using A Commode Pan
Using a Commode Pan This is an optional accessory and is not supplied with the chair. The TransAqua can be used with a commode facility, this can be fitted at anytime by the purchase of a commode pan cradle and commode pan. -
Page 9: Armrest Adjustment
Loosen the Allen bolts using a standard 6mm Allen key, see fig 2 Fig 2 Rotate the footrest to the desired angle as fig 3 and retighten Fig 3 the Allen bolts Issue 2.0 June 2018 TransAqua User Guide Issue 2.0.indd 7 15/06/2018 14:46:15... -
Page 10: Applying The Brakes
5mm Allen key. If the brakes are not functioning or the castors are found to be damaged or loose, the chair must be removed from use pending repair. June 2018 Issue 2.0 TransAqua User Guide Issue 2.0.indd 8 15/06/2018 14:46:16... -
Page 11: Height Change (Engineer Required)
Attendant & Self Propelled Models It is possible to increase the height of the TransAqua shower chair by 1” or 2”. This is done through the addition of leg extension pins which fit between the chair frame and the castors and requires wheel adjustment on self propelling models. -
Page 12: Fitting Instruction Harness
To prevent potential injury, the fit of the harness, secureness of the buckle fastening and the fitting of the Velcro strap must be checked at each use. For further assistance please contact customer services on 01869 365500 opt 1. Chiltern Invadex (UK) Limited, 126 Churchill Road, Bicester OX26 4XD Tel: 01869 365500 Fax: 01869 365588 June 2018 Issue 2.0 Email: sales@chilterninvadex.co.uk Web: www.chilterninvadex.co.uk... -
Page 13: Cleaning & Maintenance
Attendant & Self Propelled Models It is recommended that your shower chair is serviced at least annually by Chiltern Invadex or an authorised, competent service agent. Where the chair is maintained by a loan store, the shower chair should be fully serviced, prior to re-issue. -
Page 14: Spare Parts
18” Pram handle backrest 211-00505 19” Pram handle backrest 211-00535 21” Pram handle backrest 213-00501 Backrest fabric & ties 201-00019 Armrests Standard armrest 211-00500 Height adjustable armrest 211-00512 Armrest pad 201-00066 June 2018 Issue 2.0 TransAqua User Guide Issue 2.0.indd 12 15/06/2018 14:46:18... - Page 15 19” Cross member assembly 211-00536 21” Cross member assembly 213-00500 Misc Parts Grey tube clips 002-00010 Handwheel CH0208 Aperture Horseshoe Flat padded Aperture + Skt Horseshoe + Skt Issue 2.0 June 2018 TransAqua User Guide Issue 2.0.indd 13 15/06/2018 14:46:18...
- Page 16 Page 14 CHAIRS TransAqua Spare Parts Where part numbers are not supplied it is strongly recommended that these parts are replaced by a competent person. Please contact Chiltern Invadex or your equipment provider for assistance. Attendant Propelled Model Braked castor...
- Page 17 210mm 210mm 105mm 76mm TransAqua 21” Seats 76mm 445mm 445mm 530mm 21” Seats Large only 64mm 64mm 210mm 210mm 105mm 76mm 445mm 530mm 530mm 530mm Extended seats 530mm Issue 2.0 June 2018 TransAqua User Guide Issue 2.0.indd 15 15/06/2018 14:46:21...
-
Page 18: Accessories
Foot plate with heel strap Foot plate with toe and heel straps Clip on side pad (1”, 2” and 3” options) Calf strap Waist strap (buckle or Velcro fastening) Full support harness June 2018 Issue 2.0 TransAqua User Guide Issue 2.0.indd 16 15/06/2018 14:46:22... -
Page 19: Warranty
Chiltern Invadex shall in no event be liable for any damages, costs or expenses arising from any claim made under this warranty (save for any legal liability of Chiltern Invadex for death or personal injury resulting from the company’s negligence in respect of its products). - Page 20 C o p y r i g h t ©...
