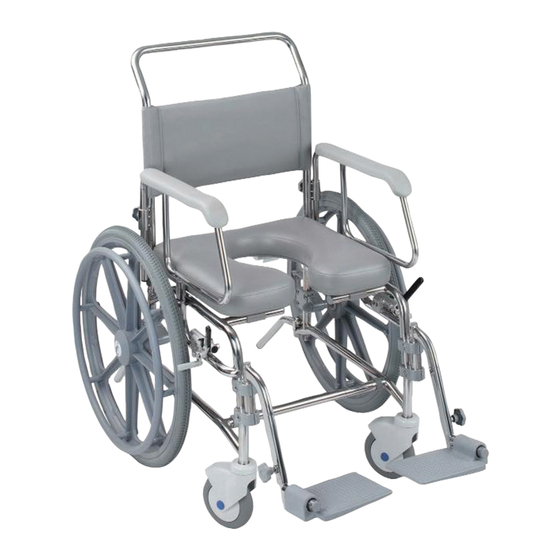

Chiltern Invadex TransAqua User Manual

Self propelled & attendant propelled models
Hide thumbs Also See for TransAqua:
Table of Contents

Advertisement

Quick Links

Download this manual
Shower Chairs
user guide
Self propelled &
Attendant propelled models
TransAqua

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TransAqua and is the answer not in the manual?

Questions and answers

Related Manuals for Chiltern Invadex TransAqua

Summary of Contents for Chiltern Invadex TransAqua

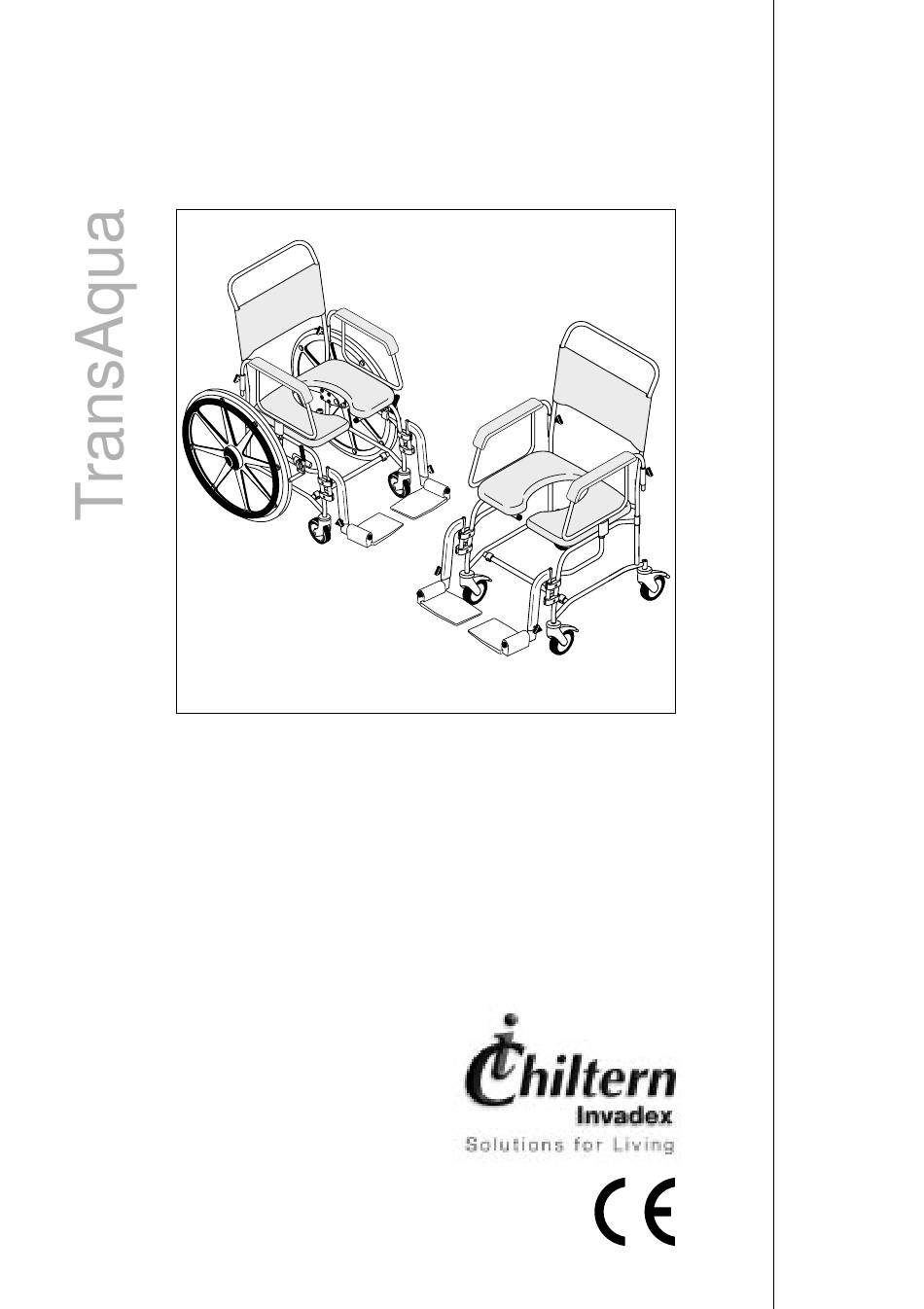

  • Page 1 Shower Chairs user guide Self propelled & Attendant propelled models TransAqua...

  • Page 2: Table Of Contents

    Chiltern Invadex Shower Chairs User Guide Contents Assembly Instructions - Attendant Propelled ...2 Disassembly Instructions-Attendant Propelled .4 Assembly Instructions - Self Propelled .....6 Disassembly Instructions - Self Propelled ..8 Things to consider before using the Shower Chair...........10 Cleaning and Maintenance ......17 Parts Guide - Attendant Propelled model ..

  • Page 3: Assembly Instructions - Attendant Propelled

    Chiltern Invadex TransAqua Shower Chairs User Guide Assembly Instructions Attendant Propelled Model Note: Follow the drawings carefully to ensure correct orientation. Holding the left hand side frame assembly of the shower chair (1) push the cross bar (2 ) into place. Make sure the holes align.
  • Page 4 Chiltern Invadex Shower Chairs User Guide Fit the armrest (9) in the socket (10) and pin (11) and tighten locking knob (12) repeat for other side. FITTING COMMODE PAN CRADLE Fit the commode pan cradle (if supplied) prior to fixing the seat, as shown on page 11.

  • Page 5: Disassembly Instructions-Attendant Propelled

    Chiltern Invadex TransAqua Shower Chairs User Guide Disassembly Instructions Attendant Propelled Model Apply brakes on rear wheels (1). Remove footrests (2) REMOVING THE SEAT Remove the seat, releasing the clips by grasping the front of the seat while holding down the armrest (3), you may need assistance when removing the seat.
  • Page 6 Chiltern Invadex Shower Chairs User Guide Remove the backrest by lifting upwards (8). Remove the right hand side frame (9) from the cross bar. Remove cross bar (10).

  • Page 7: Assembly Instructions - Self Propelled

    Chiltern Invadex TransAqua Shower Chairs User Guide Assembly Instructions Self Propelled Model Note: Follow the drawings carefully to ensure correct orientation. Locate the right hand side frame (3) on the cross bar, make sure the holes align and snap home the grey securing pins (4) from the front.
  • Page 8 Chiltern Invadex Shower Chairs User Guide Fit the armrest (9) in the socket (10) and pin (11) and tighten locking knob (12) repeat for other side. FITTING COMMODE PAN CRADLE Fit the commode pan cradle (if supplied) prior to fixing the seat, as shown on page 11.

  • Page 9: Disassembly Instructions - Self Propelled

    Chiltern Invadex TransAqua Shower Chairs User Guide Disassembly Instructions Self Propelled Model Apply brakes on rear wheels (1). Remove footrests (2) REMOVING THE SEAT Remove the seat, releasing the clips by grasping the front of the seat while holding down the armrest (3), you may need assistance when removing the seat.
  • Page 10 Chiltern Invadex Shower Chairs User Guide Remove the backrest by lifting upwards (8). Remove the right hand side frame (9) from the cross bar. Remove cross bar (10).

  • Page 11: Things To Consider Before Using The Shower Chair

    Chiltern Invadex TransAqua Shower Chairs User Guide Things to consider before using the Shower Chair Safety - all models • The backrest must be used at all times when the chair is occupied. • Armrests should be used at all times when the chair is occupied.
  • Page 12 Chiltern Invadex Shower Chairs User Guide To fit a commode pan (if fitted with cradle) SAFETY NOTE: To avoid the possibility of trapping, do not slide the commode pan on or off the rails whilst someone is sitting on the chair.
  • Page 13 Chiltern Invadex TransAqua Shower Chairs User Guide Fig 2 Fig 3 Fig 1 Standard seat Removing the seat • Release the clips by grasping the front of the seat while holding down the armrests, as Fig 1. Snapping on the seat •...
  • Page 14 Chiltern Invadex Shower Chairs User Guide Adjusting the armrests • If the (optional) adjustable armrest is fitted, adjust and lock in position as shown. • The armrests swing out and can be removed for easy transfer, as shown below. •...
  • Page 15 Chair height adjustment - castors (to be carried out by qualified personnel only) • Remove the castors using a short reach 8mm Allen key (available from Chiltern Invadex). • Reassemble with the leg extension pin in position, as shown. •...
  • Page 16 Chiltern Invadex Shower Chairs User Guide Applying braked castors • Check that castor fixings are secure. • Ensure that at least two castors are braked before a user transfers to or from the chair. Applying straight- line steering device (optional)
  • Page 17 Chiltern Invadex TransAqua Shower Chairs User Guide Chair height adjustment - Self propelling wheels (To be carried out by qualified personnel) Note: Adjusting the self propelling wheels will require adjustment to the position of the brakes. • Slacken the 4 clamp screws with a short reach 6mm Allen key (available from Chiltern Invadex) •...

  • Page 18: Cleaning And Maintenance

    Cleaning and Maintenance It is recommended that your shower chair is serviced annually by Chiltern Invadex or an authorised, competent service agent, in addition: 1. Regularly inspect all parts of the chair for defects. Any defective part should be removed promptly.
  • Page 19 Chiltern Invadex TransAqua Shower Chairs User Guide Parts Guide - Attendant Propelled item description part no HF Welded Seat Assemblies 450mm (18”) Seat flat padded 211-01000 450mm (18”) Seat medium horseshoe 211-01001 450mm (18”) Extended seat medium horseshoe 211-01005 450mm (18”) Seat large horseshoe 211-01002 450mm (18”) Extended seat large horseshoe...

  • Page 20: Parts Guide - Attendant Propelled Model

    Chiltern Invadex Shower Chairs User Guide item description part no Commode pan cradle 211-00513 This user guide covers the standard models listed. If you need a replacement part that is not shown, or if you have a query regarding your chair, please contact your supplier for assistance.
  • Page 21 Chiltern Invadex TransAqua Shower Chairs User Guide Parts Guide - Self Propelled item description part no HF Welded Seat Assemblies 450mm (18”) Seat flat padded 211-01000 450mm (18”) Seat medium horseshoe 211-01001 450mm (18”) Extended seat medium horseshoe 211-01005 450mm (18”) Seat large horseshoe 211-01002 450mm (18”) Extended seat large horseshoe...

  • Page 22: Parts Guide - Self Propelled Model

    Chiltern Invadex Shower Chairs User Guide description part no Self propelled wheel bracket 201-00512 Footrest bracket 201-00510 Footrest holder 201-00501 Commode pan cradle 211-00513 Clos-o-Mat anti-tip bar (RH) 211-00514 Clos-o-Mat anti-tip bar (LH) 211-00515 Allen Key (not illustrated) COM1625 This user guide covers the standard models listed.

  • Page 23: Seat Options

    Chiltern Invadex TransAqua Shower Chairs User Guide Seat Options (18” wide chairs) Padded Horseshoe Seats Padded Aperture Seats 64mm 64mm 210mm 210mm 76mm 105mm 445mm 445mm LARGE LARGE 64mm 64mm 165mm 165mm 131mm 76mm 445mm 445mm MEDIUM MEDIUM Flat Padded Seat...
  • Page 24 Chiltern Invadex Shower Chairs User Guide Seat Options (21” wide chairs) Padded Horseshoe Seats Padded Aperture Seats 64mm 64mm 210mm 210mm 105mm 76mm 530mm 530mm LARGE LARGE Flat Padded Seat 530mm Extended seat options 64mm 210mm 76mm 530mm Not available for side access...

  • Page 25: Warranty

    Chiltern Invadex for the safety of this product. 6. Chiltern Invadex shall in no event be liable for any damages, costs or expenses arising from any claim made under this warranty (save for any legal liability of Chiltern Invadex for death or personal injury resulting from the company’s...
  • Page 26 Models covered Please fill in the information below for future reference TransAqua TA18AP TA18SP TA21AP Dealers Name TA21SP ................Address ................................... Post Code......... Telephone ............Your Serial Number is ........Date of purchase ......
  • Page 27 FM 21085 Copyright © Chiltern Invadex Ltd The design of the product shown in this guide is vested in Chiltern Invadex Ltd and should not be copied or reproduced in anyway whatsoever without the express permission in writing of Chiltern Invadex Ltd.

This manual is also suitable for:

Transaqua ta18apTransaqua ta18spTransaqua ta21apTransaqua ta21sp
