- Page 1 RDM-DB Digital Dual Band Mobile Radio User Manual version 1.0 | 07/2020...
- Page 2 This radio generates RF electromagnetic energy during transmission. This radio is classified as “Occupational Use Only,” meaning it should only be used by those who are properly trained and aware of potential hazards, and not by general consumers in an uncontrolled environment. This radio has been tested and complies with FCC RF exposure limits.
- Page 3 Table of Contents version 1.0 | 07/2020...
-
Page 4: Radio Overview

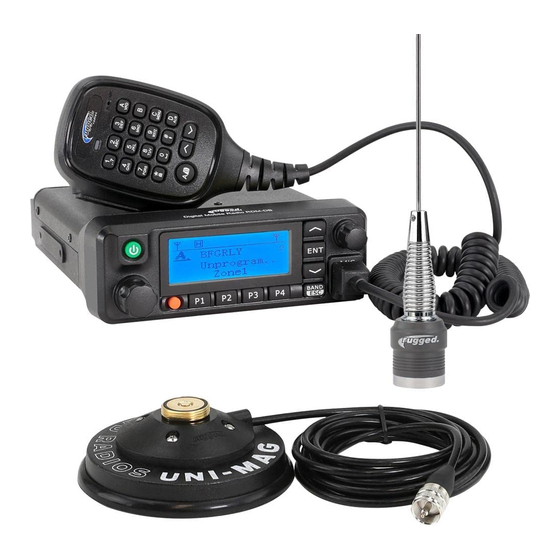

Radio Overview Power On/Off Up Channel Knob Enter Down Volume P1-P4 Side Key Emergency Band/Switch ESC Antenna Connection 13.8VDC EXTSP DATA Programming Cable Connection version 1.0 | 07/2020... - Page 5 Icon Function Press to transmit Increase volume or setting value Decrease volume or setting value Speak here during transmission Indicator Light Light is red during transmission Number Keys Input channel number or DTMF dial out Swap between home and sub screen version 1.0 | 07/2020...
-
Page 6: Safety Precautions
Safety Precautions Before using this radio, please read this manual which contains important information about safe usage, RF energy awareness, control information, and operational instructions for compliance with RF energy exposure limits. Radio Features � Emergency � Output Power: 50W �... - Page 7 ID Selection of Channels, User ID, or Group ID Select a zone, then use the channel knob to select a channel, user name or ID, or group ID. Receiving and Responding to Single and Group Calls A single call is a one-on-one call between two radios. The radio must be part of a group to be able to receive a group call.
- Page 8 Starting a Call You can choose a channel, user ID, group ID or group call in the following ways: � The Channel Knob � Contacts � A Pre-programmed Key � Manual Dialing (Only for single calls) Starting a Single or Group Call The radio will need to be part of a group in order to make a group call.
-
Page 9: Menu Overview
Menu Overview Keypad Operation The hand mic keypad can be used to input alphanumeric characters. The chart below details which characters are available per key. Available Characters & ‘ - : * # blank space Switch input mode Menu Operation •... -
Page 10: Advanced Features
Advanced Features Both the long and short press functions of side keys 1-4 can be reprogrammed with software to perform the following functions: � No function � Repeater/talk around � Record on/off � Turn warning tones on/off � Scan on/off �... - Page 11 Message Function (Digital Mode Only) Send and receive text based messages. • In Menu Mode, select Messages. • When the cursor appears, use the keypad on the hand mic to write your message. Use keys to move the cursor backward or forward if needed, and press delete characters.
- Page 12 Radio Settings The following options are included under Radio Settings: • Tones/Alerts • Power • Backlight • Squelch • Keypad Lock • Record • Clock • Mode Tones/Alerts Use this option to enable or disable radio alert tones and keypad tones. Power Set the transmit power level for each channel, with high power transmitting at a distance and low power transmitting at closer range.
-
Page 13: Technical Parameters
Technical Parameters Specifications may be revised without notice due to technical improvement. General Frequency Range 136-174MHz 400-480MHz Channel 1000 PLL Channel Spacing 6.25/25/12.5/25KHz Voltage Rating DC 13.8V Operating Temperature -30°C ~ +60°C Storage Temperature -30°C ~ +85°C Dimensions 143mm x 50mm x 175mm Compatible with US Military Standard MIL-STD-810C/D/E Transmitter... -
Page 14: Warranty Registration
Warranty Registration Rugged Radios Intercoms, Radios, and Headsets are backed by a 3-year warranty. For more information, or to register your product, please visit our website. Product Registration: ruggedradios.com/warranty Questions: 888.541.7223 When registering your product, or requesting a warranty over the phone, the following information will be required: Model Number Serial Number... - Page 15 Notes version 1.0 | 07/2020...
- Page 16 version 1.0 | 07/2020...
