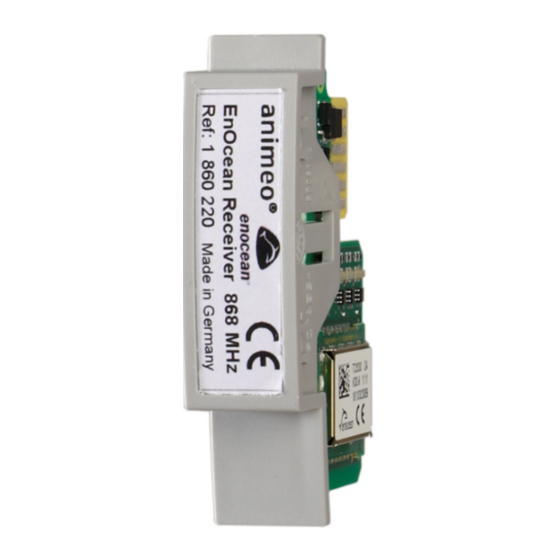

EnOcean Receiver 868 MHz
ANIMEO SOLO
ANIMEO IB+ ANIMEO KNX ANIMEO LON
Animeo plug-in EnOcean receiver
K E Y F E AT U R E S
Plug-in conception: upgrading an installation possible at any time
Maintenance free operation, no batteries needed.
Wireless local operation. 868MHz band.
Maximum operational range: 20 metres.
Compatible with PTM 200/210 EnOcean switches.
P L U G - I N C O N C E P T I O N
PN
1860220
EnOcean compatible plug-in card for Animeo IB+ and Animeo KNX
range of motor controllers. Enables hardwired Somfy motorised
parts to be controlled from EnOcean compatible switches using the
PTM200/210 module.
Battery free and wireless operation.
F U N C T I O N A L A D VA N TA G E S
Simple an intuitive installation steps.
Individual and group control of Somfy motors.
Flexibility: priority of local switches over the central BMS system is
fully configurable from the Animeo Motor Controller.
C L A S S I F I C AT I O N
The EnOcean receiver 868 MHz is a radio-operated plug-in card to
be mounted to an Animeo Motor Controller.
•
Class A control function.
•
Type 1 action.
•
Pollution degree: 2
•
Rated impulse voltage: 4 kV
•
Temperature of the ball hardness test: 75 °C
•
Type X attachment.
