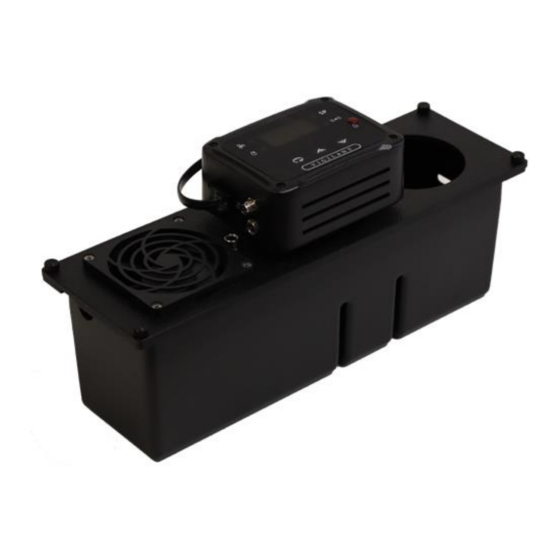

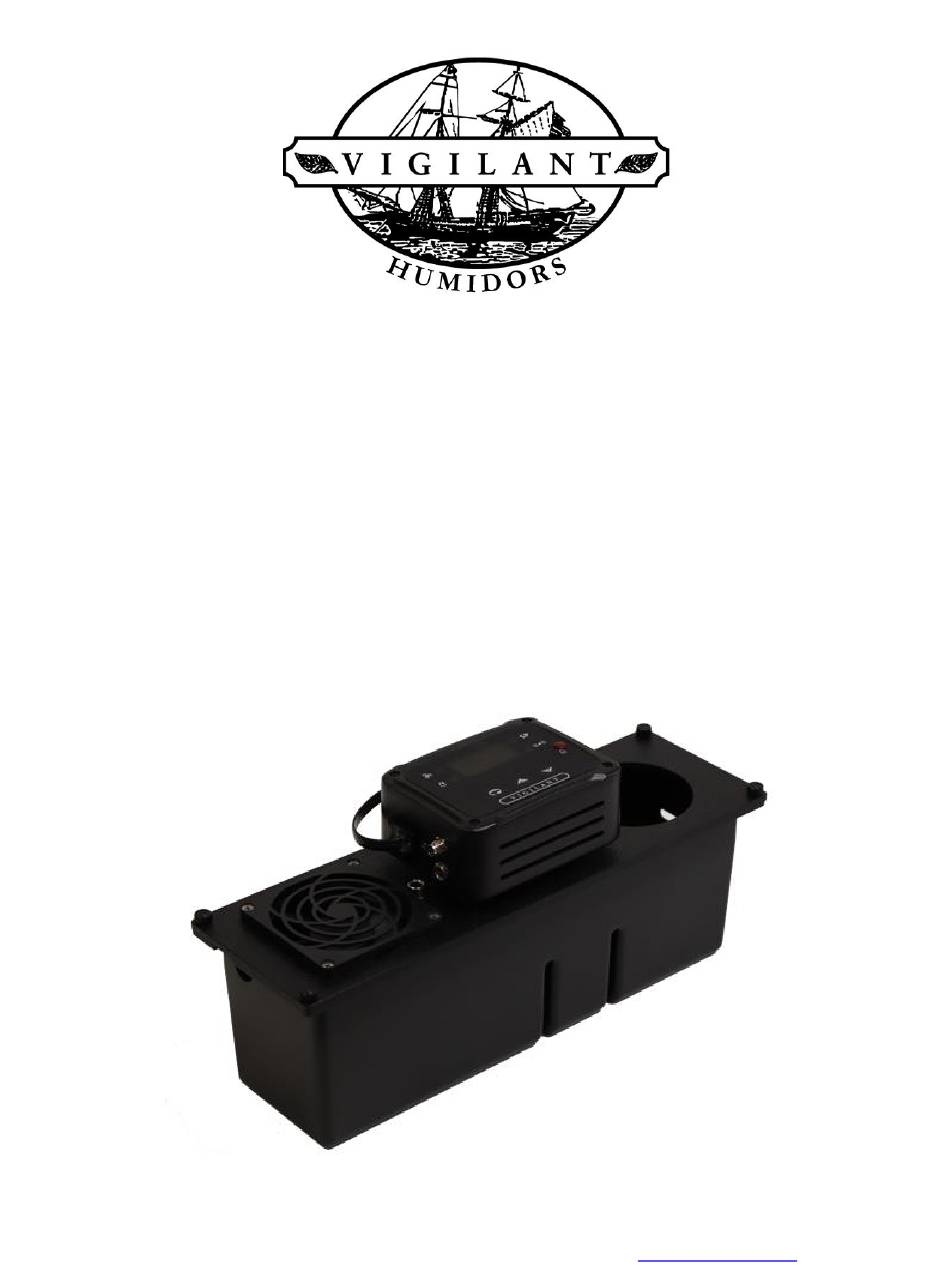

- Page 1 Vigilant Guardian 10, 100 & 150 Humidification Systems Operating Instructions 85 Industrial Park Drive | Dover, NH 03820 | 888-812-4427 | info@vigilantinc.com...
- Page 2 (RH) to within 2% of your desired setting. Should you have any questions regarding the installation or operation of Vigilant’s Guardian Humidification System, please call us toll-free at 888-812-4427. We will be happy to assist you.
- Page 3 Installation and Start-Up Operation IMPORTANT: • DO NOT OVERFILL THE RESERVOIR AS OVERFILLING WILL CAUSE DAMAGE TO YOUR CABINET! • DO NOT POUR WATER ON THE FAN THIS CAN CAUSE DAMAGE TO THE ELECTRONICS. • DO NOT MOVE CABINET WITH WATER IN IT. 1.
- Page 4 Remove the thumbscrews, lift the cover off and remove the filter. 3. Wipe the walls of the reservoir with a damp paper towel 4. Wicks should be changed every 90-120 days and can be ordered directly from Vigilant’s online store at http://shop.vigilantinc.com/.
-
Page 5: Troubleshooting
• If the set point is below the humidity level of the cabinet’s interior, the fan will not run. • Press the far-left button on the control panel to check set point. If these troubleshooting recommendations do not correct the problem, call Vigilant at 888-812-4427 and a service representative will gladly assist you. - Page 6 ADDENDUM – photos & additional instructions POWER STABILIZATION MODE The Guardian sensor requires a stabilization period of up to 30 minutes upon powering. When the control is first powered it will default to stabilization mode. This mode will delay operation for 10 minutes and the fan will be OFF. During this mode the display will flash “STB”...
- Page 7 ADJUSTING SET POINT • To view the current set point simply press the button • To adjust the set point simply use either the buttons • The adjustability range for cigar is 60-80% RH • Factory set point is 67% ALARMS The Guardian control features a visual alarm indicator.
-
Page 8: Filter Access
WIRES Sensor assembly DC power extension – 36” Remote control wire (optional) Power supply – 60” FILTER ACCESS 1. Remove thumb screws Lift cover off ADDING WATER • The red LED light will indicate low water. • Fill the reservoir with distilled water. Treat the water with Bacteriostat at this time if desired. - Page 9 CONTROLLER REMOVAL/ATTACHMENT Controller can be detached from reservoir and mounted remotely. Contact Vigilant for optional remote control wires. 1. Slide the controller back on the mounts 2. Lift the controller off the reservoir and press lever to disconnect the control wire...
- Page 10 4. Locate the control wire inlets on both the controller and reservoir. 5. Push the remote control wire onto the inlet and thread clockwise to secure.
- Page 11 All Vigilant electronic products are guaranteed to be free from defects in materials and/or workmanship for up to two years from date of purchase. Vigilant, at its sole discretion, may repair or replace defective components or products within this two-year period.
