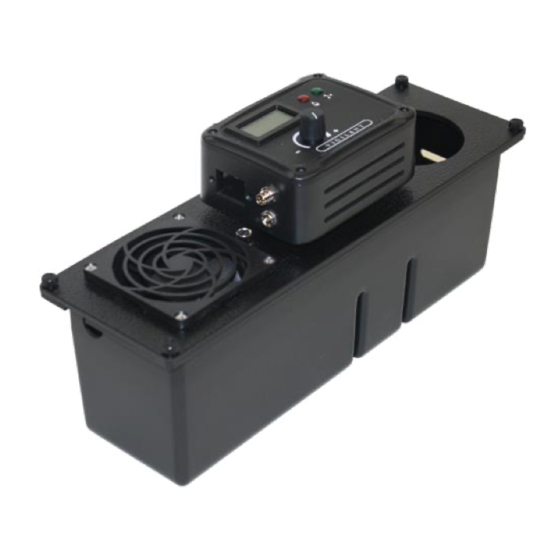

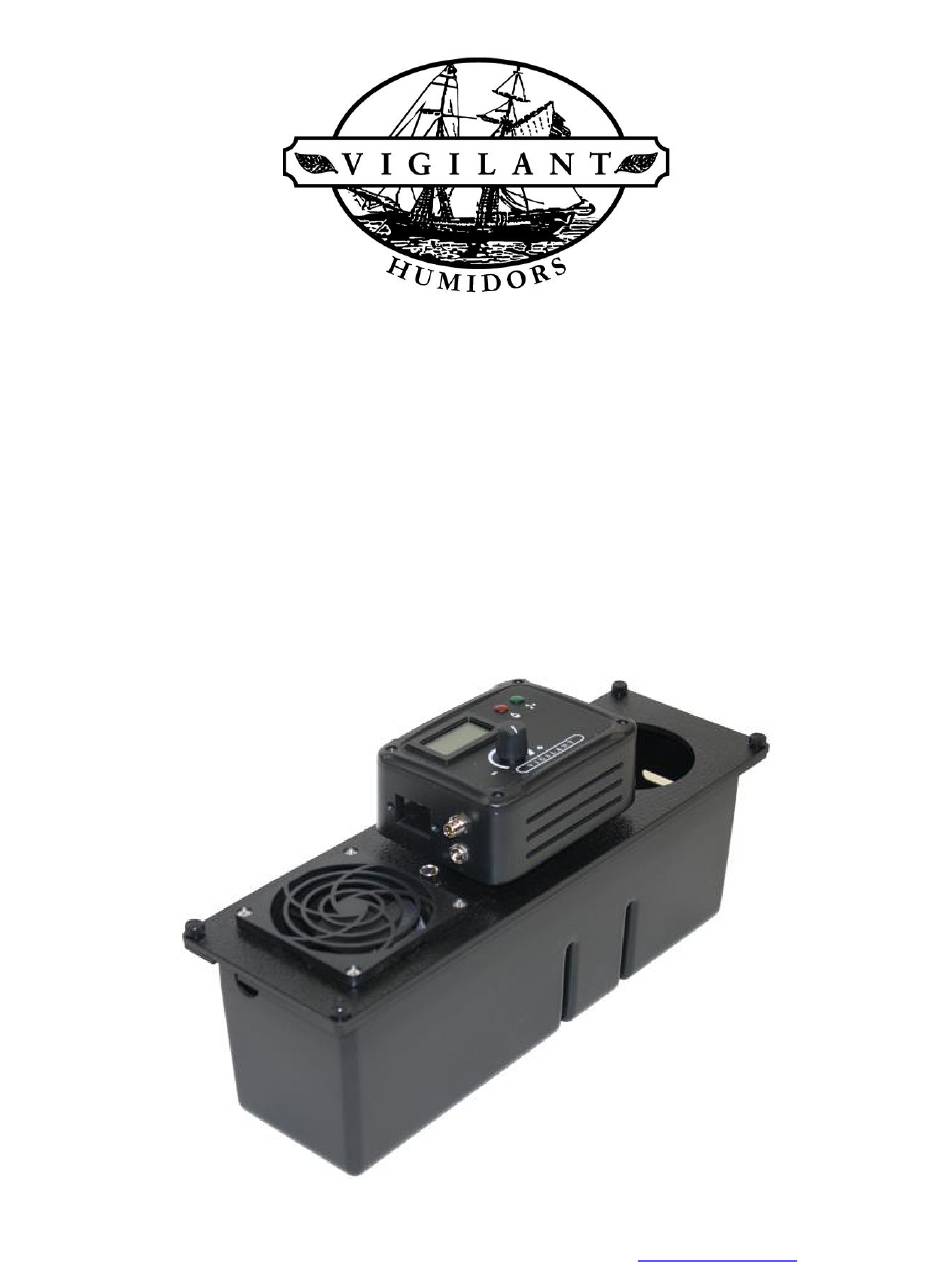

- Page 1 Vigilant Sentry 10, 100, & 150 Humidification Systems Operating Instructions 85 Industrial Park Drive | Dover, NH 03820 | 888-812-4427 | info@vigilantinc.com...
- Page 2 (RH) to within 5% of your desired setting. Should you have any questions regarding the installation or operation of Vigilant’s Sentry Humidification System, please call us toll-free at 888-812-4427. We will be happy to assist you.
- Page 3 Installation & Start-Up Operation IMPORTANT: • DO NOT OVERFILL THE RESERVOIR AS OVERFILLING WILL CAUSE DAMAGE TO YOUR CABINET! • DO NOT POUR WATER ON THE FAN THIS CAN CAUSE DAMAGE TO THE ELECTRONICS. • DO NOT MOVE CABINET WITH WATER IN IT. 1.
- Page 4 Remove the thumbscrews, lift the cover off and remove the filter. 3. Wipe the walls of the reservoir with a damp paper towel. 4. Wicks should be changed every 90-120 days and can be ordered directly from Vigilant, online at http://shop.vigilantinc.com/.
-
Page 5: Troubleshooting
• To check the fan, slowly turn the dial clockwise until the fan comes on. If the fan does not turn on, contact Vigilant. If these troubleshooting recommendations do not correct the problem, call Vigilant at 888-812-4427 and a service representative will gladly assist you. -
Page 6: Adjusting Set Point
ADDENDUM – photos & additional instructions INDICATOR KEY Low Water (Auto-filling/Trouble) Humidifier Active *optional equipment ADJUSTING SET POINT • With the dial in the lowest setting, turn it slowly clockwise. • Stop when the green LED light turns on. • Next, turn the knob counterclockwise until green LED light just turns off. - Page 7 CONTROLLER INTERFACE CONNECTIONS Power and interface connections Side view Rear view WIRES DC power extension – 36” Remote control wire (optional) Power supply – 60” FILTER ACCESS 1. Remove thumbscrews Lift cover off...
-
Page 8: Adding Water
• DO NOT fill beyond the MAX FILL line. CONTROLLER REMOVAL/ATTACHMENT Controller can be detached from reservoir and mounted remotely. Contact Vigilant for optional remote control wires. 1. Slide the controller back on the mounts 2. Lift the controller off the reservoir and press lever to disconnect the control wire... - Page 9 3. Tuck the control wire back into the housing 4. Locate the control wire inlets on both the controller and reservoir. 5. Push the remote control wire onto the inlet and thread clockwise to secure.
- Page 10 All Vigilant electronic products are guaranteed to be free from defects in materials and/or workmanship for up to two years from date of purchase. Vigilant, at its sole discretion, may repair or replace defective components or products within this two-year period.
