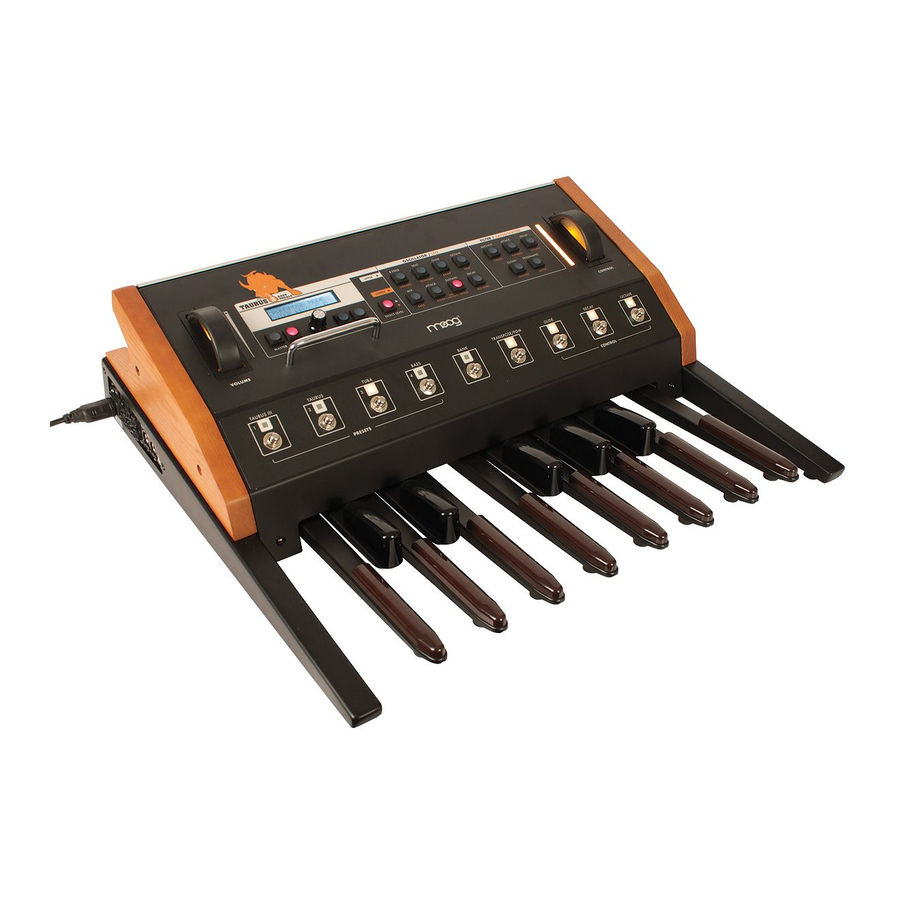

Moog TAURUS BASS PEDALS Instructions

Instructions for kenton midi interface

KENTON

When you select a receive channel or other set-up, this will be stored in memory and will be remembered for when

you subsequently turn on the pedals - all parameters listed on the next page are stored.

If you want to put the machine back to the factory default settings at any time, switch the synth on whilst holding

the red push button pressed - hold for a couple of seconds then release.

Give the red push button a short press (half a second) - then release. Follow this with a press of a bass pedal -

Bottom C will set channel 1 and top C will set channel 13 (See list below) - The selected channel will be stored in

memory and recalled when the unit is next turned on.

If you want to put the machine back to the factory default setting at any time, switch the pedals on whilst holding

the red push button pressed - hold for a couple of seconds then release. See next page for factory default

settings.

Before you press the red button, make sure that no notes are pressed on the pedals otherwise the results may be

unpredictable.

Setting MIDI channels and assignments. Give the red push button one short press (half a second) - then release.

Follow this with a note or sequence of notes as detailed on page 2. After selecting a channel you will be

automatically returned to playing mode but after making assignments you will need to press the ENTER key (Top

C) to return to playing mode. This is to enable you to make the multiple key presses required when re-assigning

sources to destinations. (N.B. set-ups are stored in non volatile memory).

Transmit / Receive channel 1 (factory default)

INSTRUCTIONS FOR MIDI INTERFACE

MOOG TAURUS BASS PEDALS

USING THE MIDI INTERFACE

electronics

Table of Contents

Do you have a question about the TAURUS BASS PEDALS and is the answer not in the manual?

Page 1 KENTON electronics INSTRUCTIONS FOR MIDI INTERFACE MOOG TAURUS BASS PEDALS USING THE MIDI INTERFACE When you select a receive channel or other set-up, this will be stored in memory and will be remembered for when you subsequently turn on the pedals - all parameters listed on the next page are stored.
Page 2 " " " " " " " " " " " " " " " " " " " " " " This interface will always transmit and receive on the same MIDI channel. OCTAVE SWITCH - - Changing the octave setting on the Taurus pedals will automatically transpose the MIDI in/out also When the octave switch LED is off, the MIDI will transmit notes in the range 36-48 When the octave switch LED is on.
Page 3 MIDI CONNECTORS MIDI IN should be connected to a MIDI OUT or a MIDI THRU similarly MIDI OUT should be connected only to a MIDI IN and a MIDI THRU should also be connected only to a MIDI IN. MIDI OUT is the signal from the synthesizer (or drum machine etc.) that is to be sent to another instrument. MIDI IN is a received signal that contains MIDI information from another synth, and MIDI THRU is an exact copy of information arriving at the MIDI IN socket.
