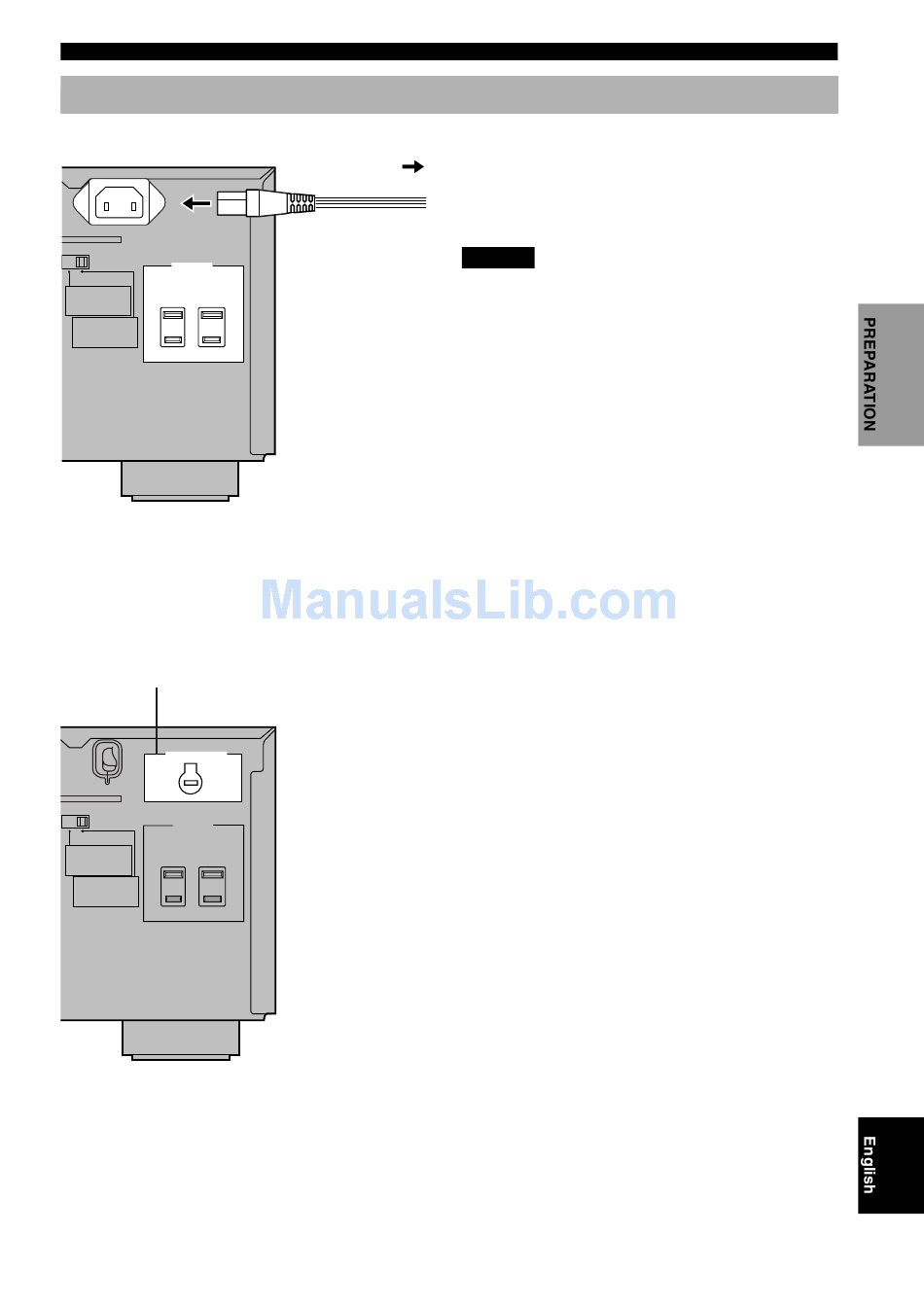

Connecting the Power Supply Cords

AC IN
MPEDANCE SELECTOR
SET BEFORE POWER ON
AC OUTLETS
MAIN A OR B: 4ΩMIN. /SPEAKER
A+B: 8ΩMIN. /SPEAKER
: 6ΩMIN. /SPEAKER
CENTER
REAR CENTER : 6ΩMIN. /SPEAKER
REAR : 6ΩMIN. /SPEAKER
MAIN A OR B: 8ΩMIN. /SPEAKER
A+B: 16ΩMIN. /SPEAKER
CENTER : 8ΩMIN. /SPEAKER
REAR CENTER :
8ΩMIN. /SPEAKER
REAR : 8ΩMIN. /SPEAKER
(U.S.A. model)
VOLTAGE SELECTOR
VOLTAGE SELECTOR
MPEDANCE SELECTOR
SET BEFORE POWER ON
AC OUTLETS
MAIN A OR B: 4ΩMIN. /SPEAKER
A+B: 8ΩMIN. /SPEAKER
:
CENTER 6ΩMIN. /SPEAKER
REAR CENTER : 6ΩMIN. /SPEAKER
:
REAR 6ΩMIN. /SPEAKER
MAIN A OR B: 8ΩMIN. /SPEAKER
A+B: 16ΩMIN. /SPEAKER
CENTER : 8ΩMIN. /SPEAKER
REAR CENTER :
8ΩMIN. /SPEAKER
REAR : 8ΩMIN. /SPEAKER
(China and General models)
I Connecting the AC power cord
To AC outlet [U.S.A. and Canada models]
Plug the power cord into the AC inlet when all
connections are complete, and then plug in this unit to the
wall outlet.
Caution
• Do not use other AC power cords than the one provided.
Otherwise it may result in causing fire or an electrical
shock.
[Australia, China and General models]
Plug in this unit to the wall outlet.
I AC OUTLET(S) (SWITCHED)
U.S.A., Canada, China and
General models ............................................ 2 OUTLETS
Australia model .............................................. 1 OUTLET
Use these outlets to connect the power cords from your
components to this unit. The power to the AC
OUTLET(S) is controlled by this unit's STANDBY/ON
(or SYSTEM POWER and STANDBY). These outlets
will supply power to any connected component whenever
this unit is turned on. The maximum power (total power
consumption of components) that can be connected to the
AC OUTLET(S) is 80 W.
I VOLTAGE SELECTOR
(China and General models only)
The VOLTAGE SELECTOR on the rear panel of this unit
must be set for your local main voltage BEFORE
plugging into the AC main supply. Voltages are 110/120/
220/240 V AC, 50/60 Hz.
CONNECTIONS
19
