SureCall SC-130W Manual

SURECALL WIDE-BAND
TRUCKER ANTENNA
Part #: SC-130W
For use with SureCall Vehicle Signal Boosters
Overview

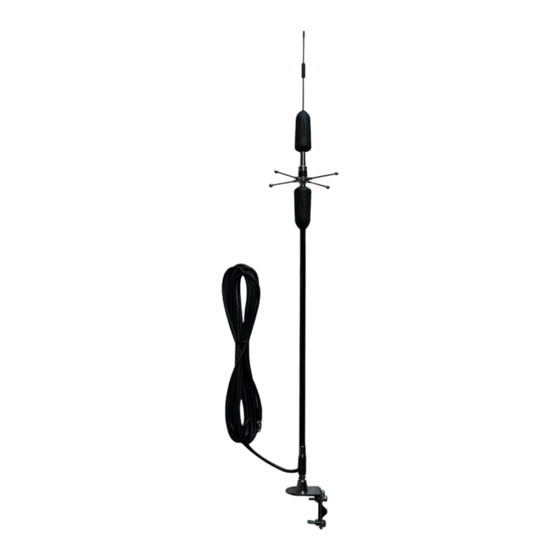

SureCall's SC-130W is a wide-band exterior antenna designed for large
trucks and vehicles. Stay connected anywhere with this 30" omni-direc-
tional antenna that is equipped with a strong base and mirror mount that
can hold up in the harshest of conditions. This weather-resistant exterior
antenna works with big rigs, RVs, boats and any other large vehicles in
need of a boosted cellular signal.
SC-130W is compatible with SureCall vehicle signal boosters that use an
outside antenna and supports all North American cell carriers.
Features
• Designed for use with large trucks, big rigs, RVs and boats
• Omni-directional antenna captures cell signal from all directions
• 3 dBi Gain
• Wide-Band (698 - 2700 MHz)
• FME-Female connector
• Includes complete mounting kit for mirror installation
Technical specifications
Part Number
Frequency
Input Impedance
Antenna Gain
VSWR
Polarization Type
Radiation Pattern
Connector
Cable Type
Cable O.D.
Height
Weight
© 2018, SureCall | 48346 Milmont Drive, Fremont CA 94538
SC-130W
698 - 2700 MHz
50 Ohm
3 dB
≤1.8
Vertical
Omni-directional
FME-Female
RG-58
5.0 mm
30"
15 oz
Installation
For best results, the antenna should be mounted in
an upright position on the mirror. The entire assem-
bly can be mounted to the mirror. The antenna
should be mounted with the chrome tip pointing
toward the sky (perpendicular to the ground).
Built-in ground plane allows for use on any surface
– metal, fiberglass, wood, etc.
Complete mounting kit included.
www.surecall.com | 1-888-365-6283 | Info@surecall.com
