SureCall SC-248W User Manual

SureCall Full Band Inside Panel Antenna
SC-248W User Manual
▪ Multi-Band (698 – 2700 MHz) Broadband
▪ 2G/ 3G /4G and WLAN systems
Directional antenna broadcasts
▪
▪ 3dB Gain
▪ Designed for indoor use only, wall mounted
Overview
SC-248W antenna is a multi-band directional antenna with a 120˚ reach and is designed
to be installed in an elevated position pointed toward the area you'd like receive
enhanced reception.
The range of the antenna is dependent on three factors:
• Physical obstructions
• Power generated by booster
• Reception from outside signal received and distributed by outside antenna.
The SC-248W is compatible with the following SureCall products:
Booster Compatibility: all 2G-4G home and in-building boosters series (FlexPro,Triflex
Fusion5,DualForce and Force5 etc), and all industrial boosters series (Inductrial-
DualForce, Force5)
Cable compatibility: Low coax cables with N Male on either end (SC-400, SC-240 etc.)
Accessory compatibility: Couplers and splitters
2014 V1.0

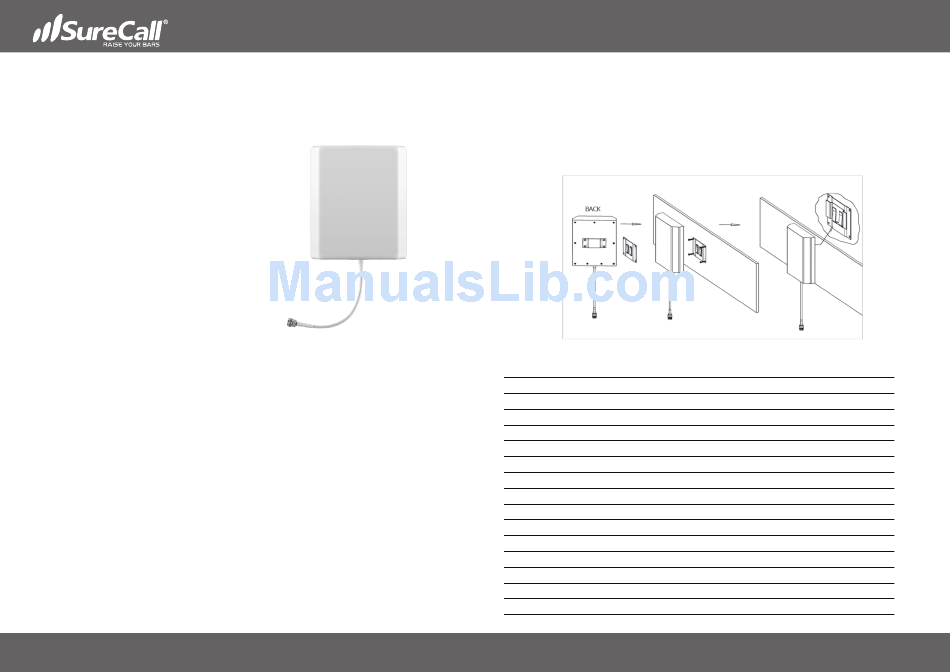

Installation
Step 1. Choose location for mounting antenna on vertical surface. Ideal height off the ground or floor should be the
approximate height of regular cell phone use.
Step 2. Using plate, mark position of desired screw placement with pencil or marker.
Step 3. Screw mounting plate into place with the slide panel protruding towards you.
Step 4. Slide antenna securely onto mounting plate.
Note: Be sure to provide enough separation from outside antenna. Panel antenna should not face outside antenna.

Specifications

Frequency 698-960 / 1700-2700MHz
Input Impedance 50 ohm
Antenna Gain 7 dB / 10 dB
VSWR ≤2.0 / ≤1.5
Polarization Type
Vertical
Radiation Directional
Maximum Power 50 Watt
Connector type N-Female or based on customer request
Height (inches) 8.3"
Dimension 7.1"
Color White
Mount Mounts to wall
Weight 1 LB
Groundplane Built-in ground plane
Beamwidth E:55 H:70/ E:45 H:60
SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com
