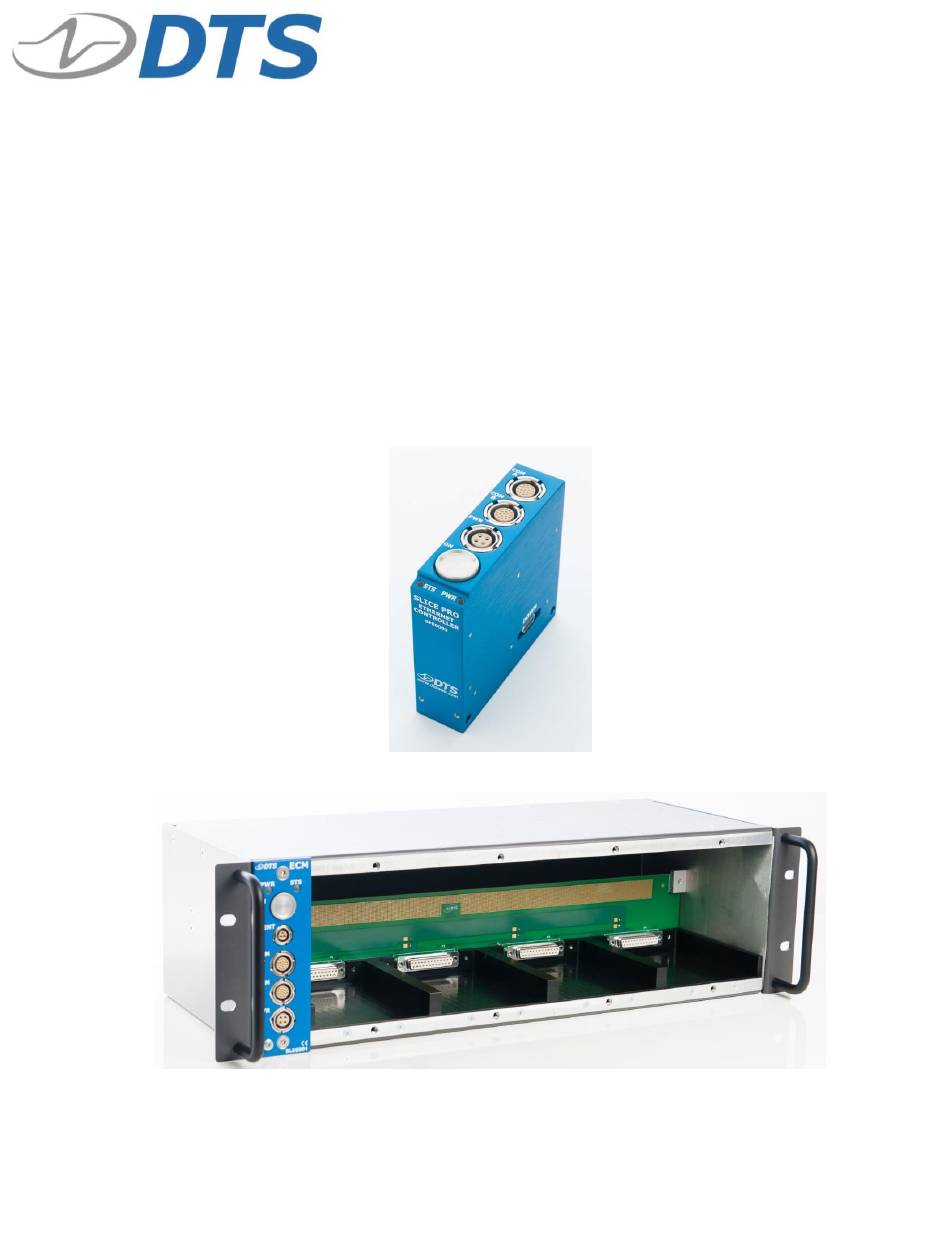

- Page 1 SLICE PRO/SLICE PRO LAB Ethernet Controller User’s Manual May 2019 13000-30610-MAN (Rev. 5) © Diversified Technical Systems, Inc. - All Rights Reserved...
-
Page 2: Table Of Contents
SLICE PRO Ethernet Controller User’s Manual May 2019 Table of Contents DTS Support ........................3 Introducing the SLICE PRO Ethernet Controller ............. 4 Control Panel ........................4 Using the PWR Input ....................... 5 Using the ON Power Switch ..................... 5 Remote ON ........................ -
Page 3: Dts Support
DTS has support engineers worldwide with extensive product knowledge and test experience ready to help via telephone, e-mail or on-site visits. The best way to contact a DTS support engineer is to submit a request through the DTS Help Center portal (support.dtsweb.com). -
Page 4: Introducing The Slice Pro Ethernet Controller
- Compatible with all TDAS and SLICE PRO COM connectors EVENT - Dedicated event input on SLICE PRO LAB ON power switch - Cycles power ON/OFF - Momentary; firmly press and hold for 2 sec PWR power input connector... -
Page 5: Using The Pwr Input
*** Ethernet Controllers are considered modules for the purposes of power calculations. SLICE PRO LAB systems do not contain internal batteries and must be connected to external power at all times (15 VDC nominal; 9-15 V range at 40 W). -
Page 6: Using The Com Connectors
The SLICE PRO Ethernet Controller contains an isolated, ESD-protected, contact-closure event input. The event input is available through both of the 19-pin COM connectors. SLICE PRO LAB also includes a dedicated event input connector. This input provides a way to use a contact-closure switch in harsh or noisy environments without negatively affecting the data acquisition system. -
Page 7: Led Indicators
Connected to external power and unit has fully charged Battery low Connected to external power; power fault SLICE PRO LAB systems do not contain internal batteries and must be connected to external power at all times. support.dtsweb.com 13000-30610-MAN (Rev. 5) -
Page 8: Basic Care And Handling
Crashworthy SLICE PRO equipment should be grounded to each other and bolted to the test vehicle. SLICE PRO LAB modules should be bolted to the rack and the rack properly grounded. DTS recommends checking continuity between the enclosures of each unit to confirm resistance readings of <1 ohm. - Page 9 SLICE PRO Ethernet Controller User’s Manual May 2019 WARNING: Due to battery chemistry, do not operate SLICE PRO DAS at temperatures below 0°C (32°F) or in excess of 60°C (140°F). support.dtsweb.com 13000-30610-MAN (Rev. 5)
-
Page 10: Power Management
*** Ethernet Controllers are considered modules for the purposes of power calculations. SLICE PRO LAB systems do not contain internal batteries and must be connected to external power at all times (15 VDC nominal; 9-15 V range at 40 W). -
Page 11: Power-Up And Power-Down Procedures
Due to battery chemistry, do not operate SLICE PRO DAS at temperatures below 0°C (32°F) or in excess of 60°C (140°F). SLICE PRO LAB systems do not contain internal batteries and must be connected to external power at all times (15 VDC nominal; 9-15 V range at 40 W). -
Page 12: Communication Features
Care should be taken when using this feature so that the desired event is captured within the data window. (See your software manual for additional information.) Please contact DTS for additional information on how this may be useful in your application. -
Page 13: Status Output Signal
SLICE PRO Ethernet Controller User’s Manual May 2019 Status Output Signal The status output signal is available for use as an indicator of system status. A typical application would be in an environment where operators may be a substantial distance away from the test equipment, in a control room or other remote location, and desire confirmation from the system that it is armed and healthy prior to testing. -
Page 14: Appendix A: Connector Information
SLICE PRO Ethernet Controller User’s Manual May 2019 Appendix A: Connector Information 19-pin COM connectors 4-pin POWER connector (EEG.2B.319.CLL) (EEG.2B.304.CLL) 15 16 17 (panel view) (panel view) Suggested cable connector P/N: Suggested cable connector P/N: FGG.2B.319.CLADxx* FGG.2B.304.CLADxx* Function Function Internal function only 9-15 VDC input Internal function only - VDC input/Ground... - Page 15 SLICE PRO Ethernet Controller User’s Manual May 2019 3-pin EVENT connector 25-pin Bus connector (EEG.1B.303.CLL) (172-025-212R021) (panel view) (panel view) Suggested cable connector P/N: FGG.1B.303.CLADxx* Function Function + Event, CC to pin 2 Reserved - Event, CC to pin 1 Reserved No connection No connection...
-
Page 16: Appendix B: Mechanical Specifications
SLICE PRO Ethernet Controller User’s Manual May 2019 Appendix B: Mechanical Specifications Weight: ~305 g (10.8 oz) Units in mm (inches) Torque spec: 84 in-lb (M6) support.dtsweb.com 13000-30610-MAN (Rev. 5) - Page 17 SLICE PRO Ethernet Controller User’s Manual May 2019 support.dtsweb.com 13000-30610-MAN (Rev. 5)
-
Page 18: Accessories/Support Equipment
SLICE PRO Ethernet Controller User’s Manual May 2019 Accessories/Support Equipment 10400-00060: Power supply; 15 VDC, 4 A (90-240 VAC in, LEMO term) (PS-05) 10600-0016x: Cable, power, POWER port to pigtail termination (RPX) 10700-0015x: Cable, PC comm, Ethernet via COM port (REC) 10700-0014x: Cable, COM port daisy chain (RDC) 10700-0018x: Cable, TDAS PRO rack event (RVB) 10700-0025x: Cable, TDAS G5 VDS event (VVB) -
Page 19: Appendix C: Hardware Configuration Specifications
If the calibration data is not available, try using the default address described in the table above. If you need information on the specifics of your equipment, please submit a request through the DTS Help Center web portal (support.dtsweb.com) and include the serial number(s) of the equipment and parameters you are asking about. support.dtsweb.com... -
Page 20: Changing The Ip Address
If the IP address is valid, the page will show success. Reboot the device for the settings to be applied. If you receive an error, submit a request through the DTS Help Center and attach the system log file. support.dtsweb.com... - Page 22 Removed power up PWR LED references in text. 19 May 2016 Updated to include SLICE PRO LAB. Revised max VDC input. Added grounding info. Updated polarity requirement for event input. Reworked Appendix C to negate need for custom page. Added CE Declaration as Appendix D.
