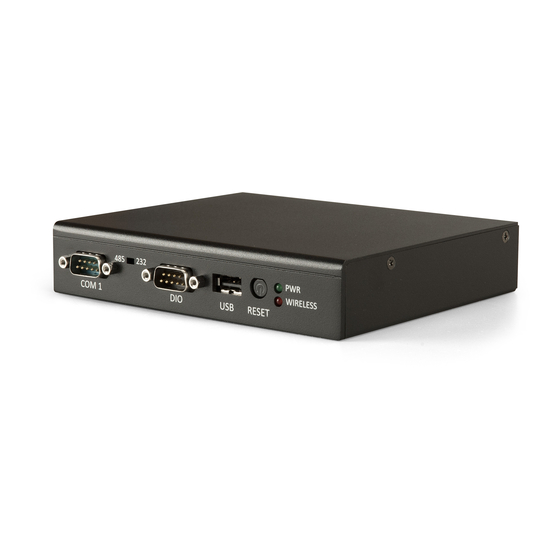

VIA Technologies ARTiGO A820 Development Manual
  1. Manuals
  2. Brands
  3. VIA Technologies Manuals
  4. Gateway
  5. ARTiGO A820
  6. Development manual

VIA Technologies ARTiGO A820 Development Manual

Android bsp v5.0.6
Hide thumbs Also See for ARTiGO A820:
Table of Contents

Advertisement

Quick Links

Download this manual
DEVELOPMENT GUIDE
VIA ARTiGO A820
Android BSP v5.0.6
1.00-11222018-153700

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARTiGO A820 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VIA Technologies ARTiGO A820

Summary of Contents for VIA Technologies ARTiGO A820

  • Page 1 DEVELOPMENT GUIDE VIA ARTiGO A820 Android BSP v5.0.6 1.00-11222018-153700...
  • Page 2 VIA Technologies, Inc. reserves the right the make changes to the products described in this manual at any time without prior notice.
  • Page 3 VIA ARTiGO A820 Android BSP v5.0.6 Development Guide Revision History Version Date Remarks 1.00 11/22/2018 Initial release...

  • Page 4: Table Of Contents

    VIA ARTiGO A820 Android BSP v5.0.6 Development Guide Table of Contents 1. Introduction ����������������������������������������������������������������������������������������������������������������������� 1 1�1 BSP Package Contents �������������������������������������������������������������������������������������������������������������������������� 1 1�1�1 Source Code Folder Contents �������������������������������������������������������������������������������������������������������� 1 1�1�2 Firmware Folder Contents ������������������������������������������������������������������������������������������������������������� 1 1�1�3 Document Folder Contents ������������������������������������������������������������������������������������������������������������ 1 1�1�4...

  • Page 5: Introduction

    VIA ARTiGO A820 Android BSP v5.0.6 Development Guide 1� Introduction This Development Guide explains how to setup the necessary build environment in order for users to customize the Android source code and create their own system image for the VIA ARTiGO A820 system. The VIA ARTiGO A820 Android BSP v5.0.6 is developed based on the NXP android_M6.0.1_1.0.0-ga (Android 6.0 Marshmallow) and enables hardware features that are defined on the VIA ARTiGO A820 system. 1�1 BSP Package Contents There are four folders in the package as listed below. Source code folder Description ARTiGO_A820_Android_source_code_patch.zip Android source code patch files and Image building script files Smart_ETK_v1.0_SourceCode.zip Smart ETK demo program source code Firmware folder Description Images_autoinstall_sd.zip Android EVK system image and installation script files Document folder Description ARTiGO_A820_Android_EVK_v5.0.6_Quick_ Quick Start Guide Start_Guide _v1.00_20181122.pdf ARTiGO_A820_Android_BSP_v5.0.6_...

  • Page 6: 1�1�4 Tools Folder Contents

    VIA ARTiGO A820 Android BSP v5.0.6 Development Guide Smart_ETK_SDK_Programming_Guide_v1 .00_20170811.pdf: The Programming Guide explains how to build the Smart ETK program and introduces a fully functional set of API for the different VIA boards or systems. 1�1�4 Tools Folder Contents ARTIGO_A820_Smart_ETK_Demo_v1.0.apk: is the Smart ETK demo program. BluetoothSPPTest.apk: is the Bluetooth SPP profile test program.

  • Page 7: Version Information And Supported Features

    VIA ARTiGO A820 Android BSP v5.0.6 Development Guide 1�2 Version Information and Supported Features • U-Boot version: 2015.04 • Kernel version: 3.14.52 • Evaluation image: Android Marshmallow 6.0 • Development based on NXP android_M6.0.1_1.0.0-ga (Android 6.0 Marshmallow) • Supports SPI with eMMC boot • Supports HDMI display • Supports HDMI audio output • Supports COM 1 (RS-232/RS-485), onboard COM debug connector • Supports Gigabit Ethernet (LAN1) • Supports 10/100Mbps Ethernet (LAN2) • Supports VIA VNT9271 USB Wi-Fi dongle • Supports VIA EMIO-1541 miniPCIe Wi-Fi module • Supports VIA EMIO-2531 miniPCIe Wi-Fi & Bluetooth module º Supports Bluetooth A2DP and SPP profile • Supports VIA EMIO-2550 miniPCIe Mobile Broadband module •...

  • Page 8: Build Environment Setup

    VIA ARTiGO A820 Android BSP v5.0.6 Development Guide 2� Build Environment Setup This section guides you through setting up the build environment for development. All instructions are based on using Ubuntu 14.04 LTS (64-bit). To make sure that the build process completes successfully, we recommend at least 120GB of disk space and 15GB of combined memory and swap space on the host machine. 2�1 Configuring Linux Host Machine The following packages are required for the Android development environment. The required packages can be installed using the commands below. To get more information, please visit the Android website at https://source.android.com/setup/build/initializing� The OpenJDK 7 is not included in the Ubuntu 14.04 default installation. The first step is to add a new server manually by using the following commands: $ sudo add-apt-repository ppa:webupd8team/java $ sudo apt-get update To install the OpenJDK 7, use the following commands: $ sudo apt-get install openjdk-7-jre $ sudo apt-get install openjdk-7-jdk The following packages are required for the Android development environment. To install the required...

  • Page 9: 3� Image Build

    VIA ARTiGO A820 Android BSP v5.0.6 Development Guide 3� Image Build The section explains how to build the U-Boot binary and Android file system for the VIA ARTiGO A820 system. 3�1 Extracting the VIA ARTiGO A820 BSP Use the following command to extract the contents of the BSP. $ unzip ARTiGO_A820_Android_source_code_patch.zip 3�2 Downloading the Source Code of Android 6.0.1 Downloading the Android 6.0.1 source code to the BSP/src folder can take several hours depending on your internet connection. *Note: You need to set up a Git account before downloading the source code. $ git config –-global user.email you@example.com $ git config –-global user.name “Your Name” Use the following commands to download the source code of Android 6.0.1: $ cd ARTIGO A820_Android_source_code_patch/Script $ ./download_source_Android6.0.sh...
  • Page 10 Taiwan Headquarters Japan China 1F, 531 Zhong-zheng Road, 940 Mission Court 3-15-7 Ebisu MT Bldg. 6F, Tsinghua Science Park Bldg. 7 Xindian Dist., New Taipei City 231 Fremont, CA 94539, Higashi, Shibuya-ku No. 1 Zongguancun East Road, Taiwan Tokyo 150-0011 Haidian Dist., Beijing, 100084 Japan China...
